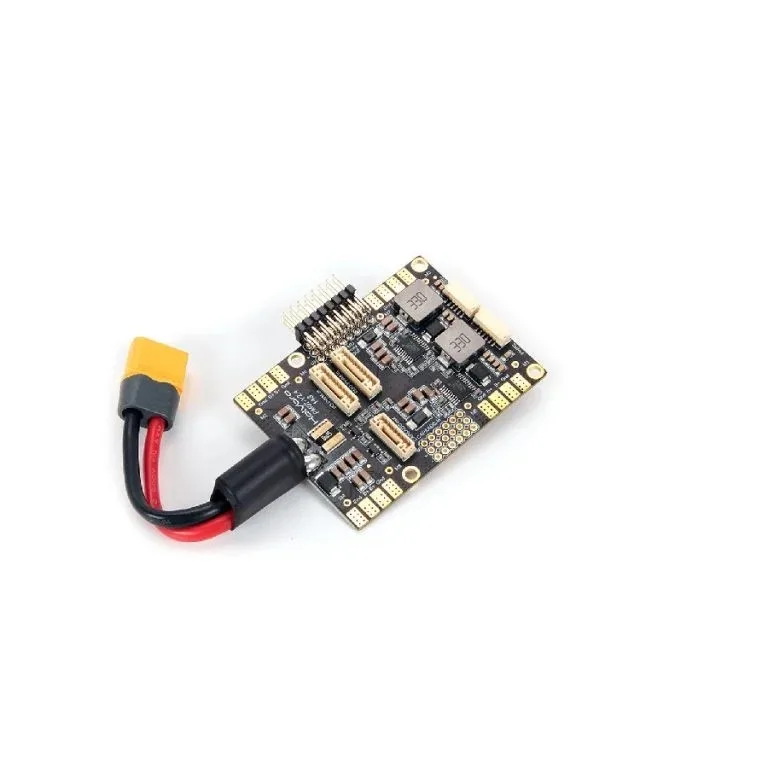

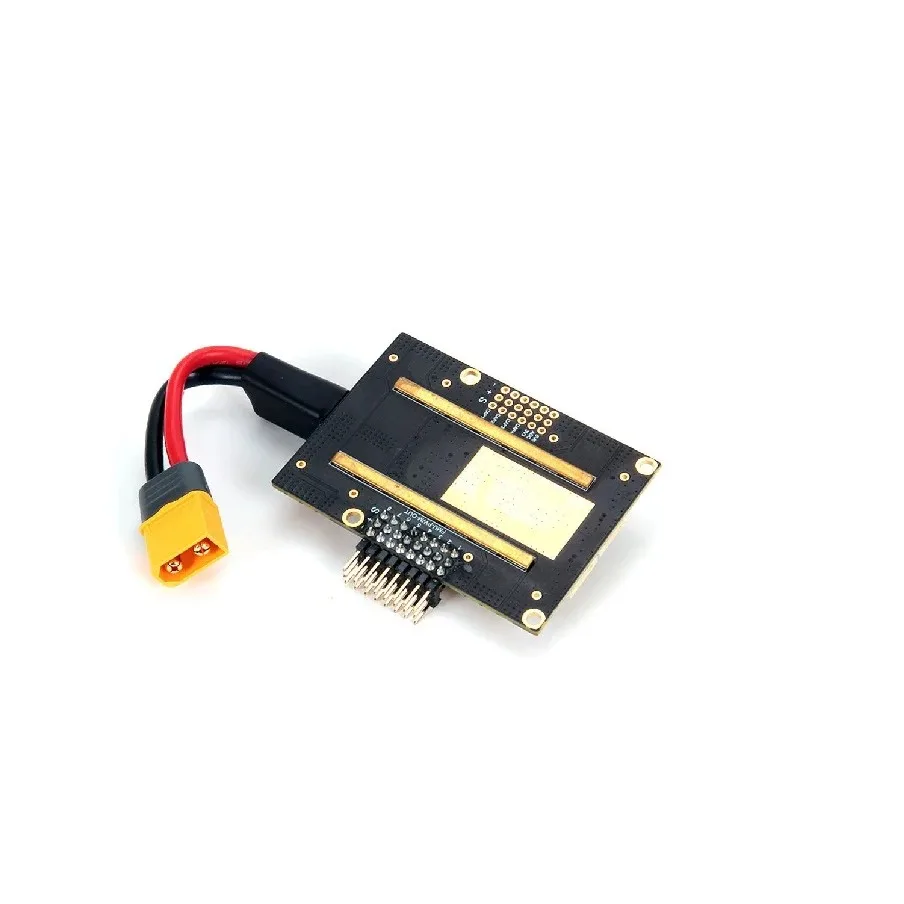

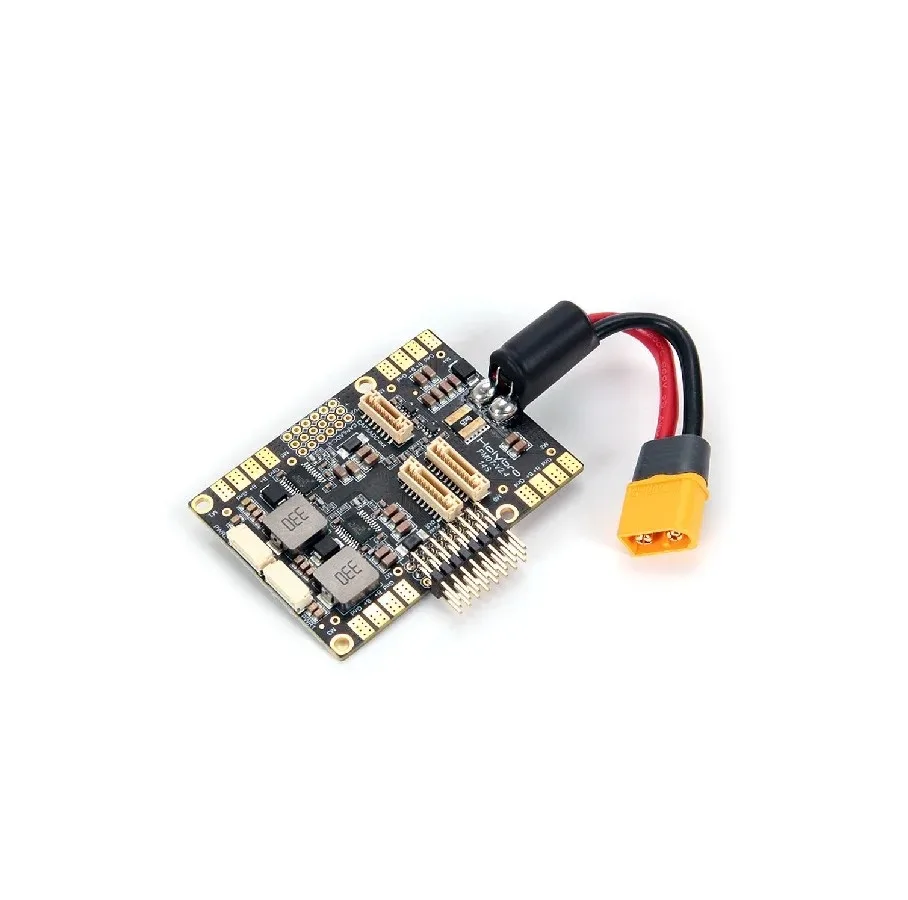

Holybro PM07 Power Module (14S)

This PM07 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated esc power & signal distribution for up to 8 ESCs.

PM07 has two 5.2V power output port that can provide redundant power to the flight controller, with independent circuits, BEC IC and circuitry.

It is also great for flight controller that do not have built-in servo header pins like the Pixhawk 6C & Pixhawk 4. It comes with pre-soldered wires, capacitor, and XT60 connector.

Please Note:

The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.
This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).

Features:

1. Dual Redundant Power: PM07 provides two independent 5.2V power outputs for flight controller redundancy.
2. Integrated ESC Distribution: Streamlines power and signal distribution for up to 8 ESCs.
3. Flight Controller Compatibility: Ideal for Pixhawk 6C & Pixhawk 4, lacking built-in servo header pins.
4. High Current Handling: Supports demanding conditions with 90A continuous and 140A burst current ratings.
5. Efficient Power Supply: Delivers stable 5.2V for clean power and improved stability.
6. Pre-soldered Convenience: Comes with pre-soldered wires, capacitor, and XT60 connector for easy installation.

Specification-

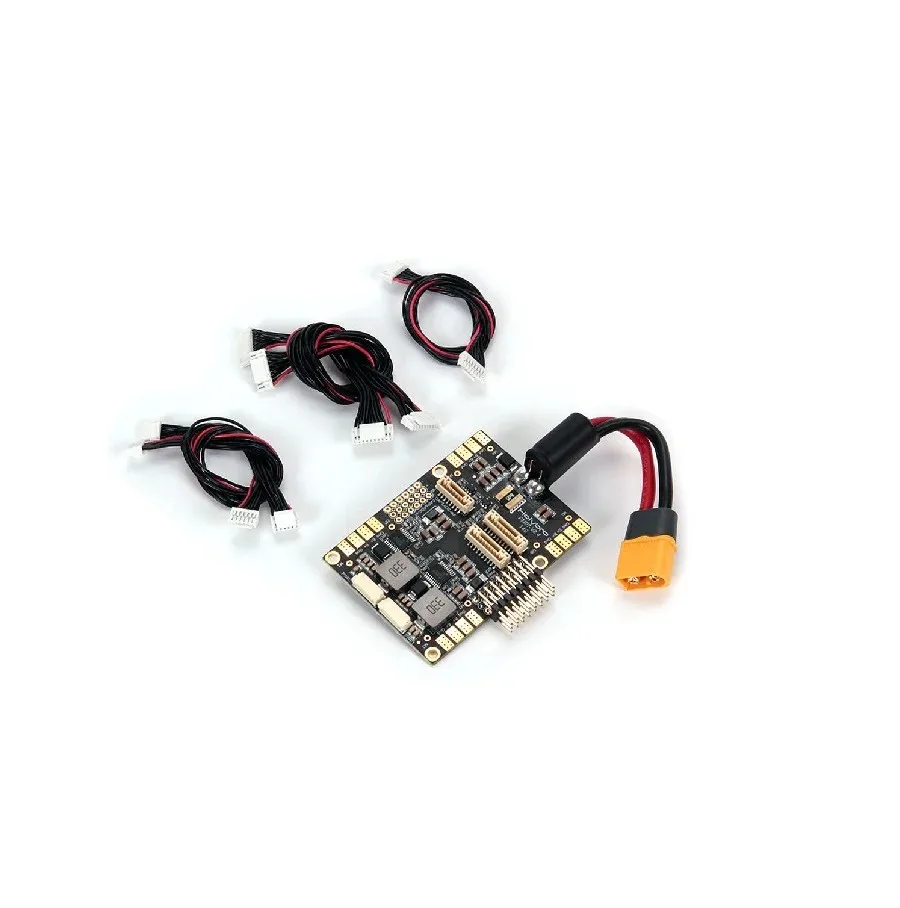

Package Includes:

1x   PM07 board
1x   80mm XT60 connector wire (installed)
1x   Electrolytic capacitor: 220uF 63V (installed)
2x   JST GH 10P Cable
1x   JST GH 8P Cable
2x   JST GH 6P Cable

Holybro PM07 Power Module Overview

The Holybro PM07 Power Module (14S) is a dedicated power distribution and measurement board designed for high-voltage drone setups up to 14S. It delivers clean, dual-redundant 5.2V outputs to flight controllers while simultaneously monitoring battery voltage and current consumption. Integrated ESC power and signal distribution for up to eight ESCs simplifies wiring on advanced UAV platforms.

Key Features of Holybro PM07 Power Module

• Dual redundant 5.2V BEC outputs with independent circuitry for reliable power to flight controllers
• Analog voltage and current sensing via 6-pin JST-GH cable for real-time telemetry
• Integrated ESC power and signal distribution for up to eight ESCs—eliminates separate power distribution boards
• Pre-soldered XT60 connector and 12AWG wire rated 30A continuous / 60A burst for secure battery connection
• Compact footprint: 68×50×10 mm with 45×45 mm mounting hole pattern and lightweight 43.8 g design
• Fast shipping from Zbotic ensures you get genuine Holybro modules quickly for your builds

Applications and Use Cases

• High-voltage multirotor drones requiring up to 14S battery support and precise power monitoring
• Fixed-wing UAVs or VTOL platforms needing clean BEC outputs and integrated ESC wiring
• Pixhawk 6C, Pixhawk 4, and other controllers without built-in servo headers
• Custom robotics projects that demand dual-redundant power feeds and telemetry feedback
• FPV and long-range UAV rigs where weight, space savings, and clean wiring are critical

How to Use Holybro PM07 Power Module

Mount the PM07 module on your drone frame using the 45×45 mm hole pattern. Solder or ensure the pre-soldered XT60 connector is firmly attached to your battery lead. Connect the 6-pin JST-GH cable from the module’s telemetry port to your flight controller’s power sensor input, then route each ESC’s signal and power wires into the module’s integrated distribution outputs. Verify voltage and current readings in your flight controller’s OSD or ground station before takeoff.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What battery voltage range does the PM07 support?

The Holybro PM07 Power Module supports battery packs up to 14S LiPo (up to 58.8 V). Always verify battery voltage stays within this range for safe operation.

Can the XT60 connector handle high current loads?

The pre-soldered XT60 and 12 AWG wire are rated for 30 A continuous current and up to 60 A burst for under 60 seconds. For sustained currents above 30 A, consider using thicker wiring or an external power distribution solution.

How does the redundant 5.2V output work?

The PM07 provides two separate 5.2 V BEC outputs, each with its own regulator and circuit. This redundancy ensures that if one output fails, the flight controller remains powered by the secondary feed.
