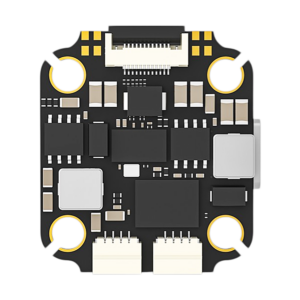

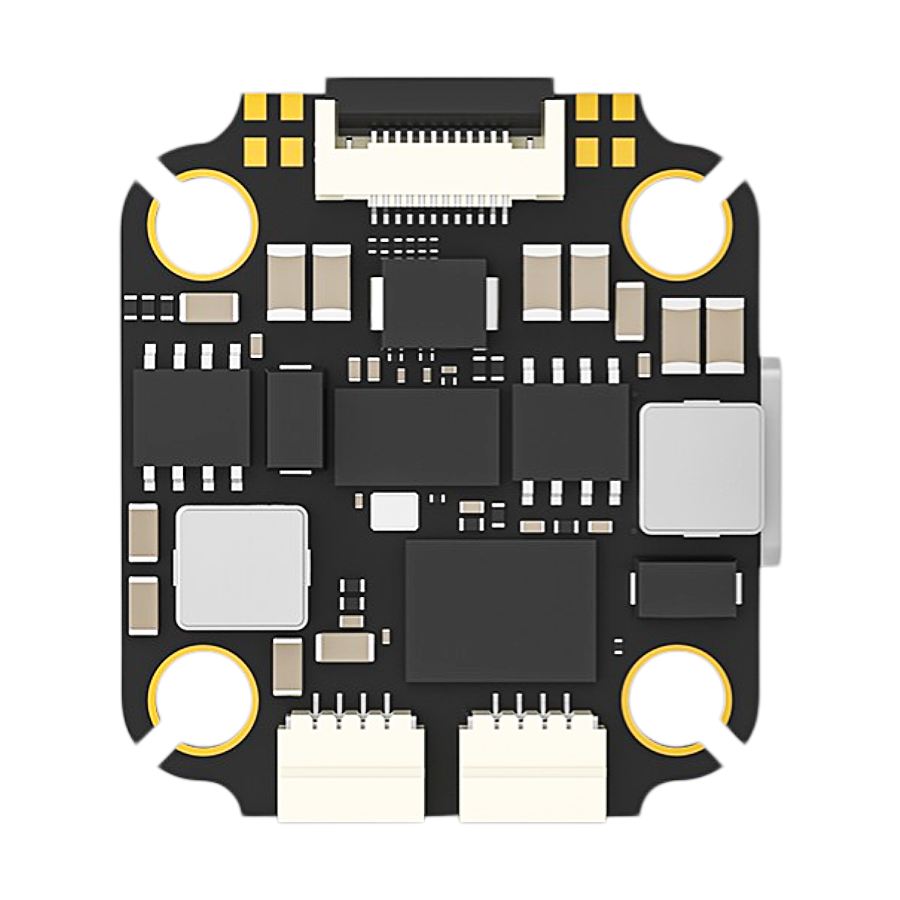

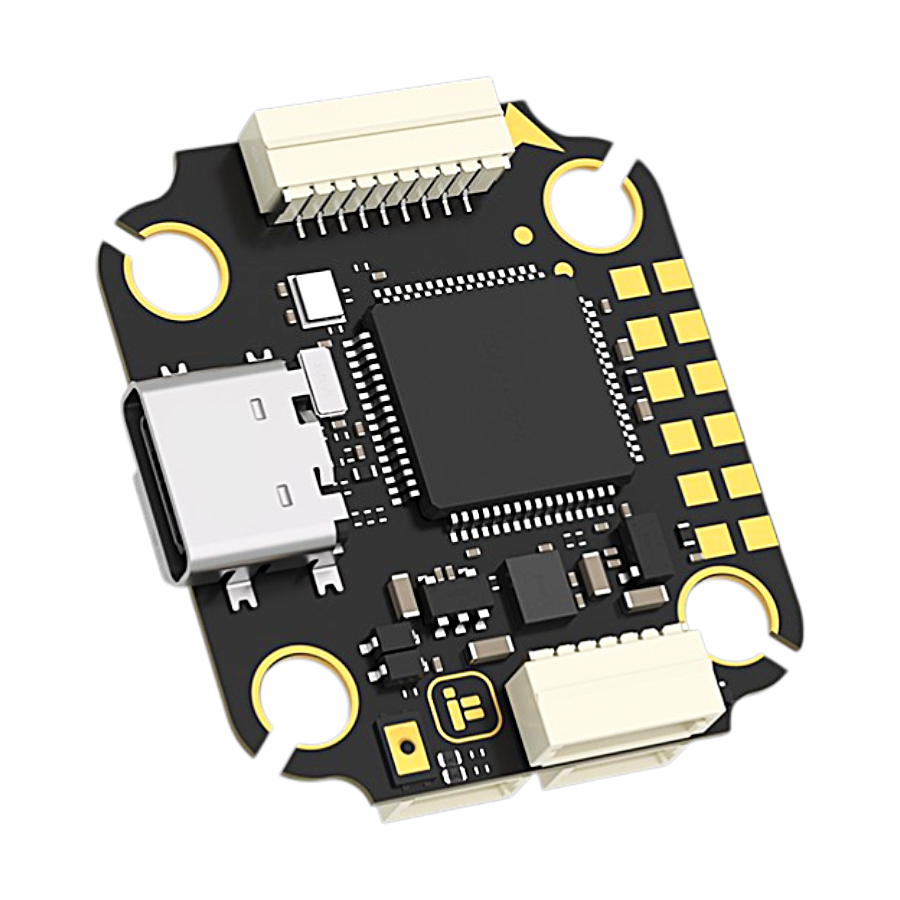

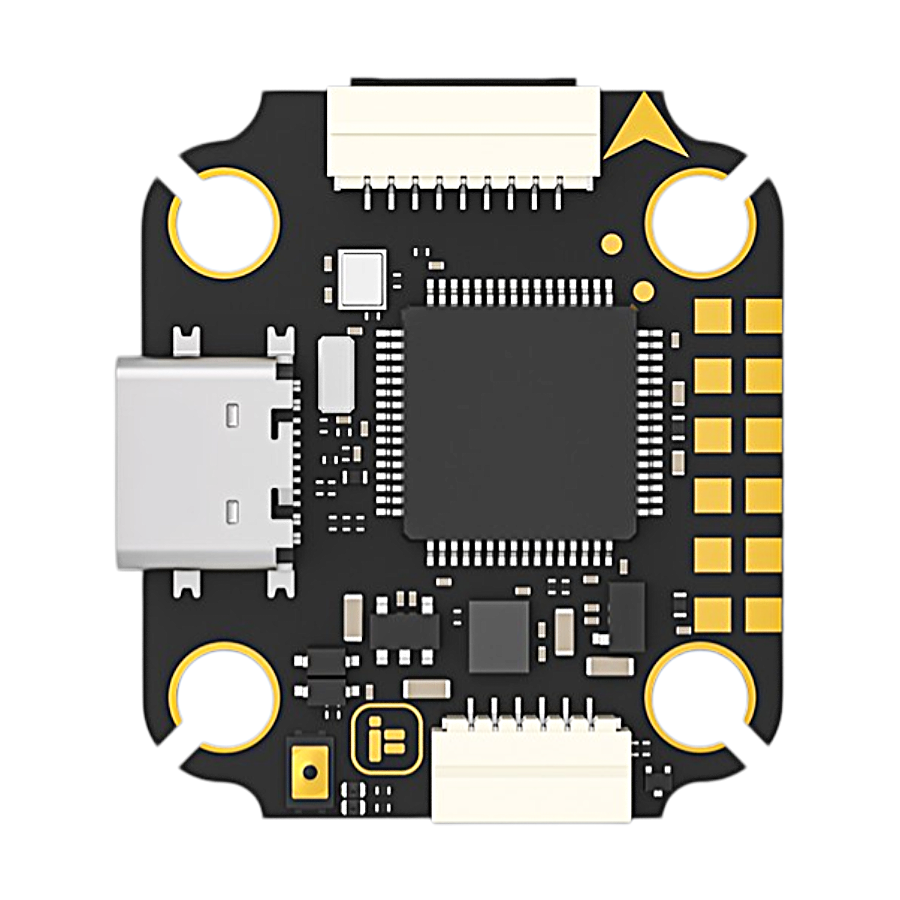

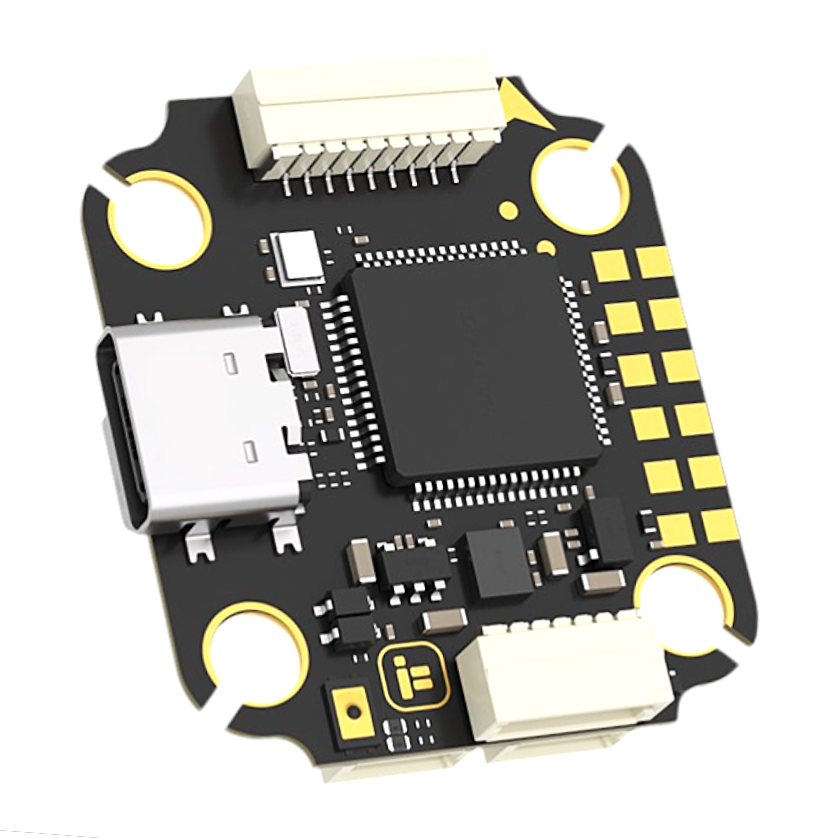

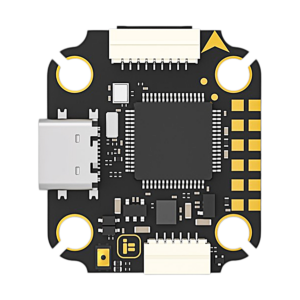

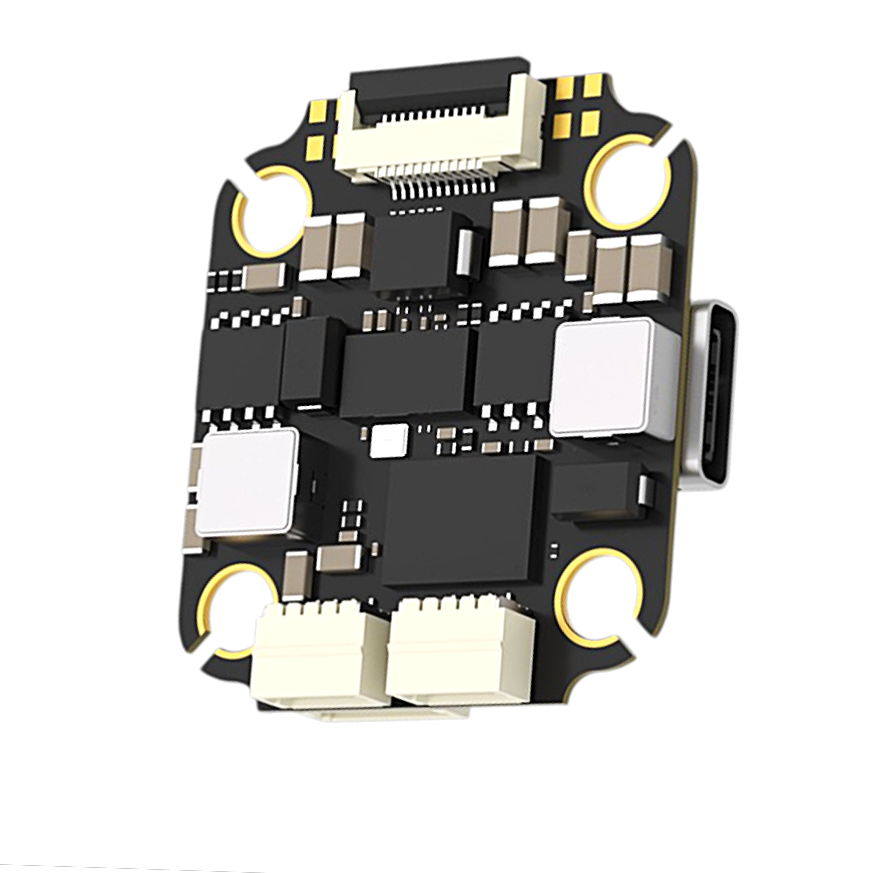

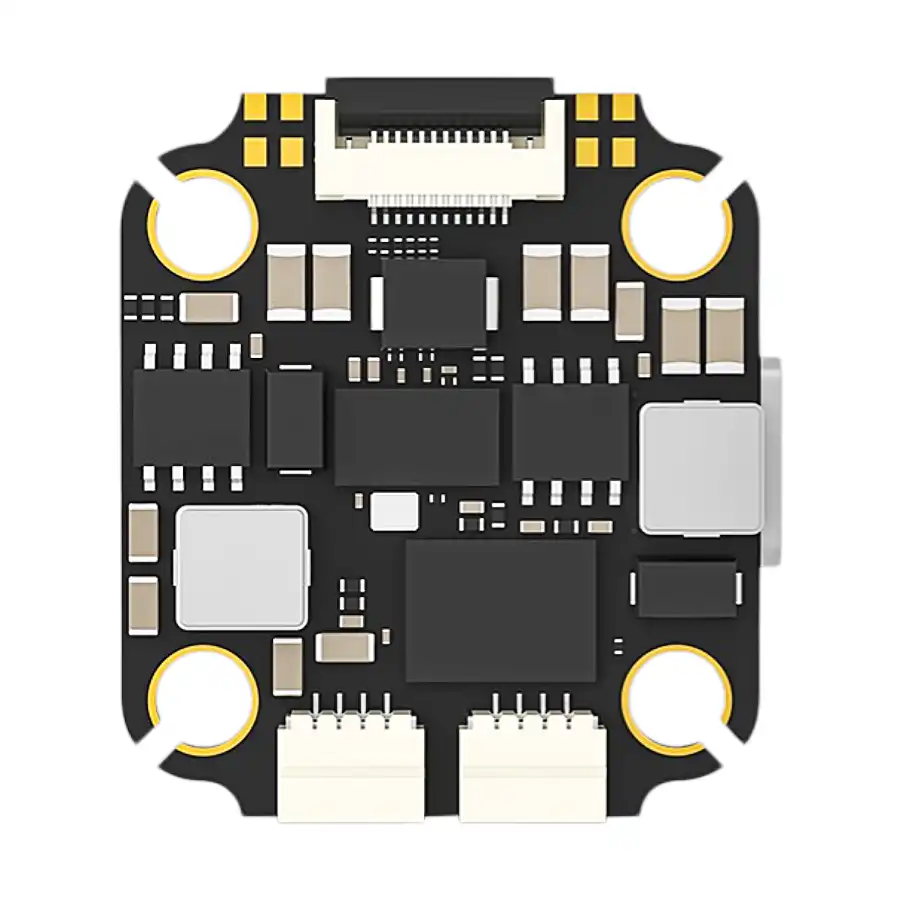

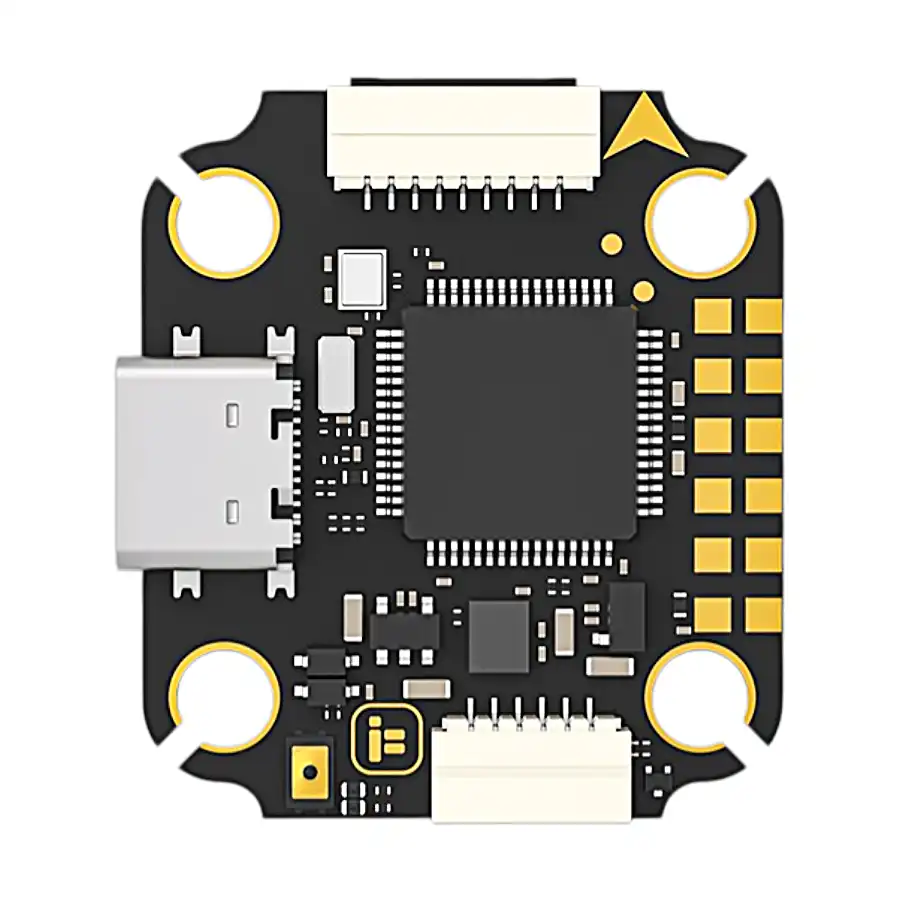

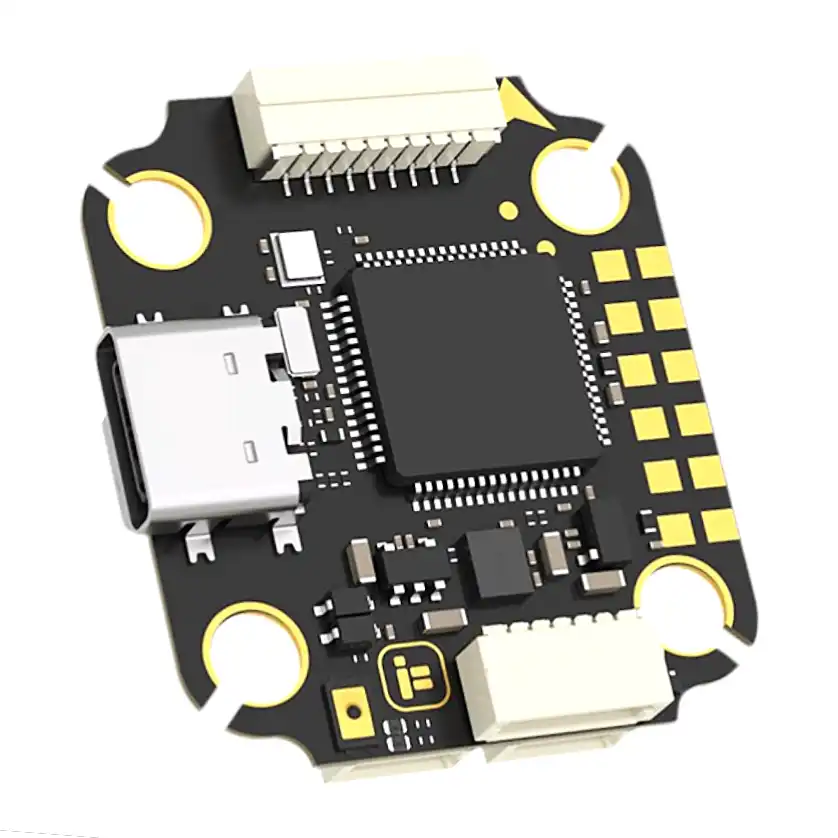

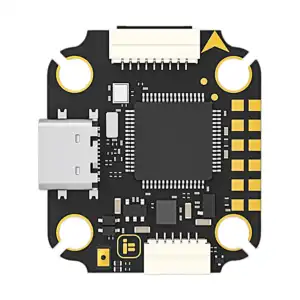

Iflight Borg F7 Mini FC
Description:
Introducing the All-New Borg Series – Power Meets Precision!
The Borg F7 Mini Flight Controller is specifically designed for racing fpv, providing unmatched performance. Elevate your racing experience with the cutting-edge technology of the Borg Series!
Note: iFlight product is for fun purposes only and does not support autonomous flight.
Features:
Supports 4S to 8S battery inputs, offering versatility for various racing setups.
Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.
Specifications:
| Category | Specification |
|---|---|
| Input Voltage | 4–8S (Supports LiHV Battery) |
| MCU | STM32F722RET6 |
| Gyroscope | ICM42688 |
| Barometer | SPA06-003 |
| OSD Chip | AT7456E (LGA) |
| Flash Memory | 32MB (Blackbox Flash) |
| UART Ports | 6 |
| Motor Outputs | 4 |
| I2C Support | Yes |
| VTX Protocols | DJI MSP / SmartAudio / IRC Tramp / HDZero |
| LED Controller | Supported |
| Beeper Pad | Supported |
| Firmware Target | IFLIGHT_BLITZ_F722 |
| Mounting Pattern | 20 × 20 mm (φ4) |
| Dimensions | 27 × 30.6 mm (±1 mm) |
| Weight | 6.9 g (±1 g) |
| BEC Output | 5V 2.5A, 12V 2A (12V with VTX Switch) |
Wiring Suggestion:
UART 1 for VTX HD / Analog
UART 2 for Receiver
UART 3 for GPS or other sensors that require a serial port
UART 4 for GPS
UART 5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet
VTX_ON_OFF Mode Command
resource PINIO 1 C0
set pinio_config = 1,1,1,1
set pinio_box = 40,41,255,255
set box_user_1_name = VTX_ON_OFF
aux 0 40 8 900 2100 0 0
save
Package Include:
1 x Borg Mini F7 Flight Controller
1 x Cable set
5 x silicon grommets
