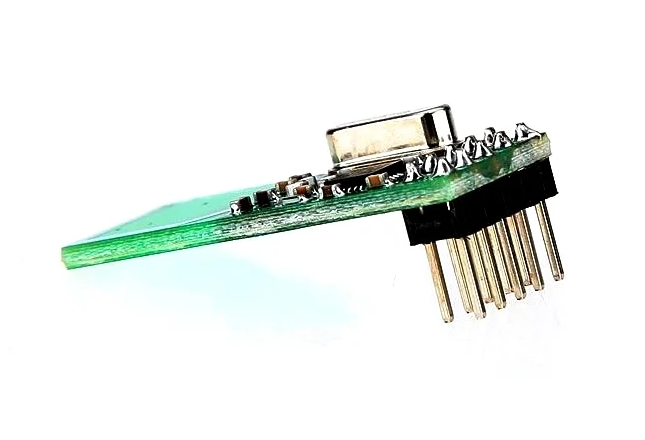

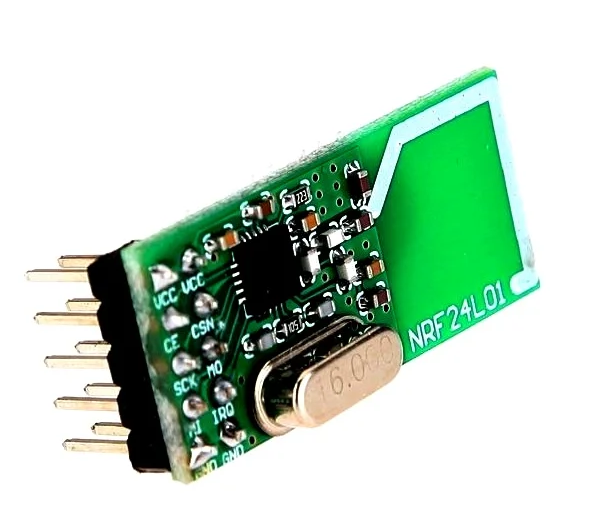

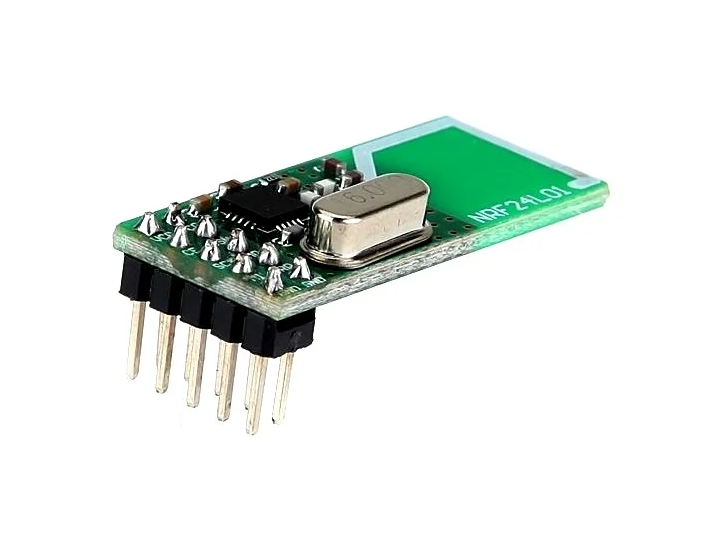

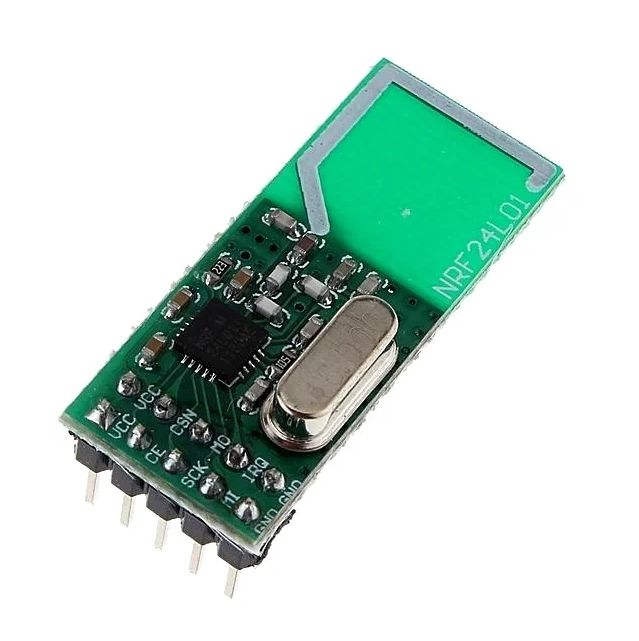

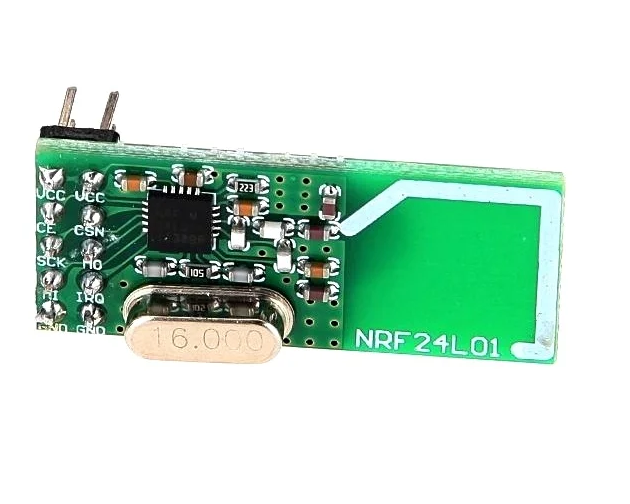

NRF24L01 Wireless Data Transmission module (Green) 10pin
The NRF24L01 Wireless Data Transmission module, presented in a sleek green design and featuring 10 pins, offers seamless wireless communication within the 2.4GHz band. With an impressive data rate of up to 2 Mbps, it facilitates swift and reliable data exchange across distances spanning a few hundred meters. Its SPI interface streamlines integration with microcontrollers, while its low power consumption ensures efficient operation at 3.3V.
Equipped with essential power, ground, SPI, and control pins, this module caters to a wide range of applications. Whether it’s for remote control systems or IoT devices, its compact design and robust capabilities position it as the ideal choice for enabling efficient and secure wireless data transmission in various electronic projects.
Features
- Maximum operating speeds up to 2Mbps, GFSK modulation efficiency, Anti-interference ability, Particularly suitable for industrial control applications.
- 125 Channels, Multi-point communication, and frequency hopping to meet the communication needs
- Built-in hardware CRC error detection, Multipoint communication address control.
- Low-power 1.9 ~ 3.6V, only 1uA on Power-down mode
- Built-in 2.4Ghz antenna
- Available software to set the address only received local Address when output data(Provide interrupt instruction), can be directly connected to a variety of microcontrollers, Software programming is very convenient.
- Built-in voltage regulator
- Standard DIP Pitch Interface for embedded applications
- size: 34mm X 17mm X 1mm
Specifications:
| Power Supply(V) | 1.9 ~ 3.6V |
|---|---|
| Frequency(GHz) | 2.4GHz |
| Data Rate | 2 Mbps |
| Interface | SPI |
| Size (mm): | 34mm X 17mm X 1mm |
Package Includes
- 1 x NRF24L01 Wireless Data Transmission Module (Green) 10pin
NRF24L01 Wireless Data Transmission Module (Green) 10pin Overview
The NRF24L01 Wireless Data Transmission Module (Green) 10pin is a compact 2.4 GHz transceiver designed for reliable SPI-based communication between microcontrollers. With support for multi-point networking, frequency hopping, and data rates up to 2 Mbps, it enables efficient wireless links over distances of up to several hundred metres.
Key Features of NRF24L01 Wireless Data Transmission Module (Green) 10pin
- 125 RF channels and built-in frequency hopping for interference-resistant links
- Multi-point communication with configurable addresses and hardware CRC error detection
- Low-power operation at 1.9–3.6 V, only 1 µA in power-down mode
- Integrated 2.4 GHz PCB antenna and on-board voltage regulator
- Standard 10-pin DIP pitch interface with SPI lines (MOSI, MISO, SCK, CE, CSN)
- Compact form factor (34 × 17 × 1 mm) and genuine Zbotic product with fast shipping
Applications and Use Cases
- Wireless sensor networks for environmental monitoring or industrial data logging
- Remote control links for robotics, drones, or RC vehicles
- Home automation devices such as smart lighting or security sensors
- Serial data replacement between two microcontrollers without cables
- Wireless gaming or multimedia controller communication
How to Use NRF24L01 Wireless Data Transmission Module (Green) 10pin
Connect the module’s VCC pin to a stable 3.3 V supply, GND to system ground, and wire MOSI, MISO, SCK, CE, and CSN to corresponding SPI pins on your microcontroller. Initialize the SPI peripheral, set unique 5-byte addresses and RF channel, then send and receive data packets using the nRF24L01 library functions. Ensure proper antenna orientation and configure power levels as needed.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage level is required for this module?
The NRF24L01 operates between 1.9 V and 3.6 V, with 3.3 V recommended. Do not connect directly to 5 V logic pins; use a level shifter or a 3.3 V microcontroller interface.
How far can I transmit data using this module?
Typical range in open line-of-sight conditions is up to a few hundred metres. Actual distance depends on environmental factors, antenna placement, and RF channel congestion.
Can I network multiple modules together?
Yes. The module supports multi-point communication with up to six data pipes and unique 5-byte addresses, allowing several devices to exchange data on the same RF channel.
Technical Specifications
| Model | NRF24L01 |
|---|---|
| Pin Count | 10-pin |
| Color | Green |
| SKU | AI0980 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The NRF24L01 Wireless Data Transmission Module (Green) 10pin is a versatile ir and rf transmitters and receivers used across a wide range of applications including remote control systems, wireless data links, home automation, security systems, and garage door openers.
Common use cases:
- Building a custom remote control
- Adding wireless triggering to a project
- Creating a simple wireless sensor link
This product is ideal for electronics hobbyists and IoT developers.
Technical Tip: 433MHz modules offer longer range; IR is line-of-sight only. RF modules need matched transmitter/receiver pairs.
