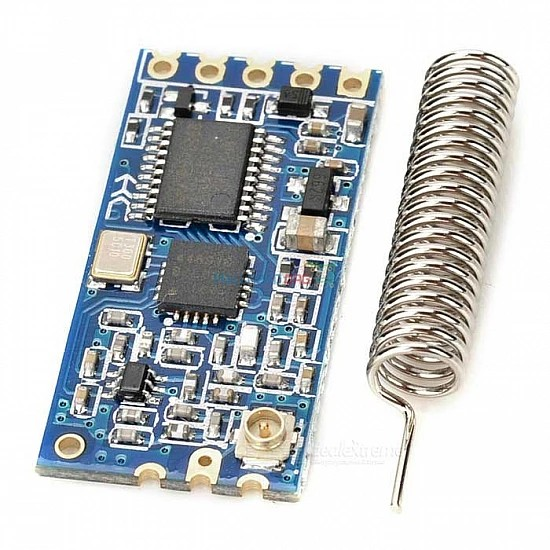

The HC-12 Wireless RF UART Communication Module is an advanced, multi-channel embedded wireless data transmission module. Operating in the 433.4 – 473.0 MHz frequency range, it allows users to set communication channels with a step size of 400 kHz, offering a total of 100 channels. The module boasts a maximum transmit power of 100mW (20dBm) and a receiver sensitivity of -116dBm at a baud rate of 5000bps, providing an effective communication range of up to 500 meters.

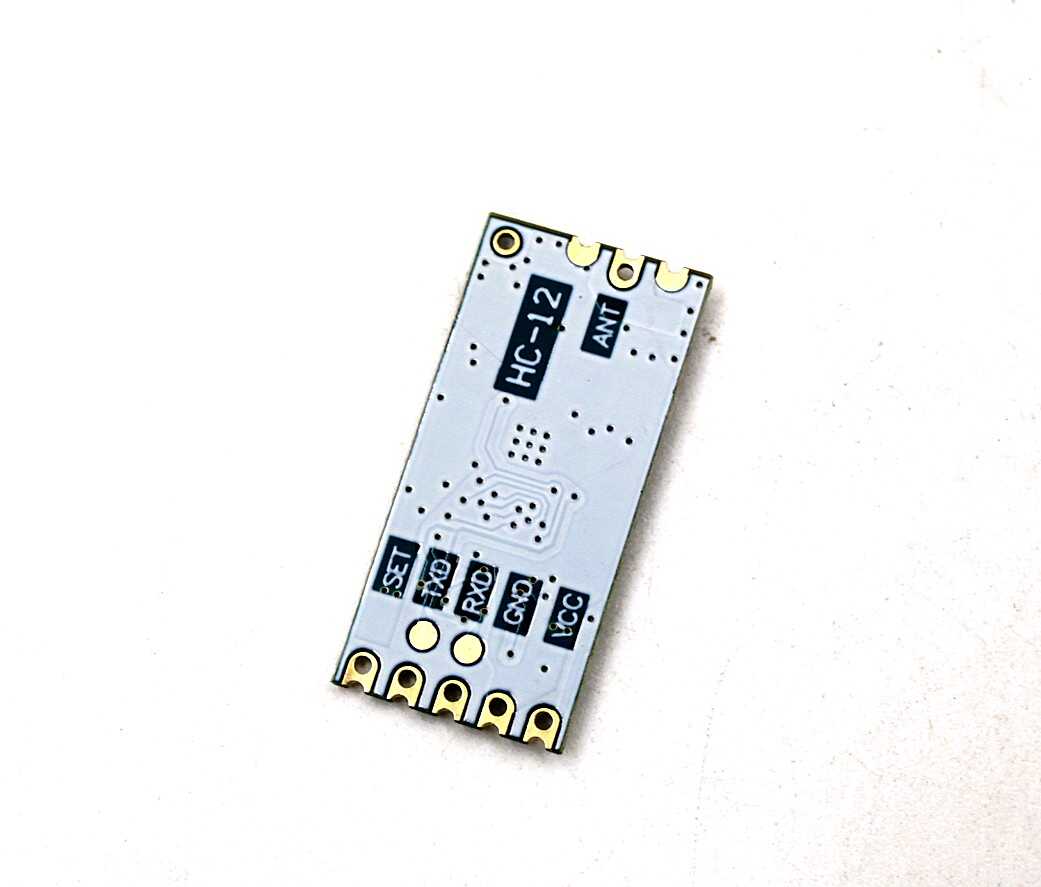

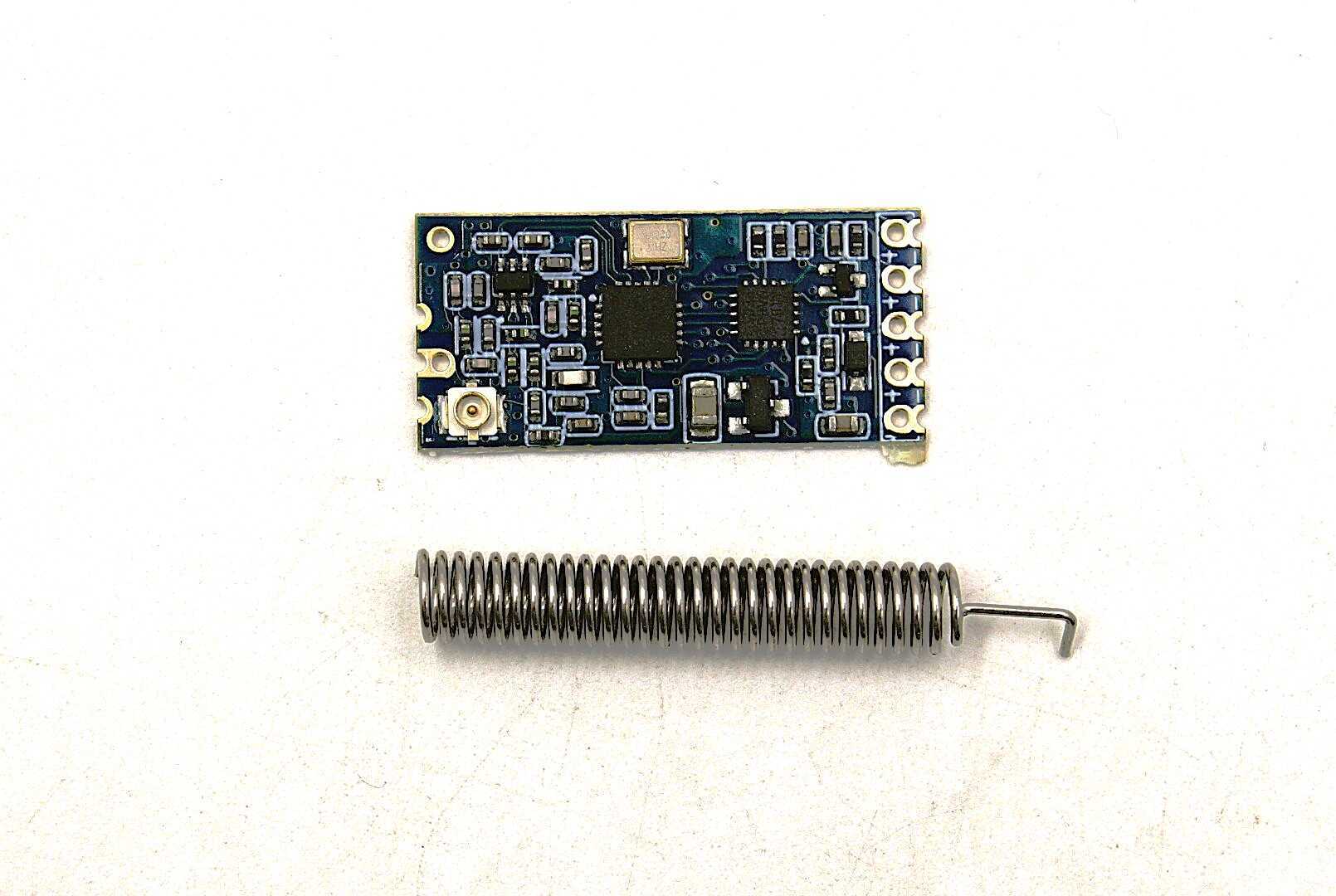

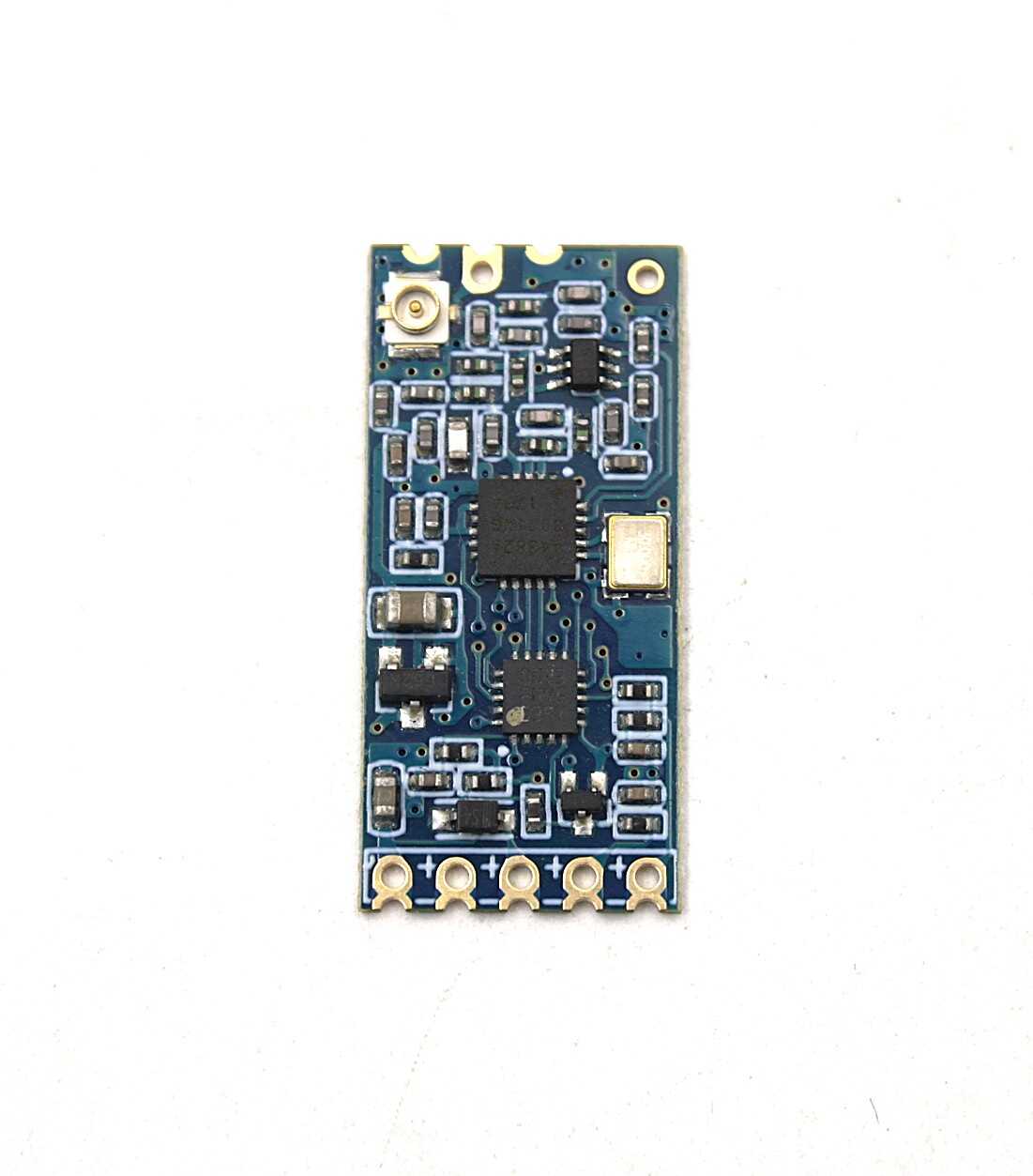

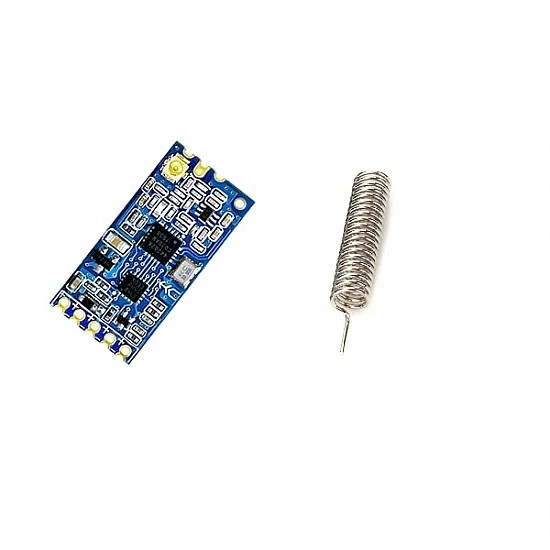

The module is encapsulated using a stamped hole method, making it easy to solder. Its compact size of 27.4mm x 13.2mm x 4mm (including the antenna base but excluding the spring antenna) allows for convenient integration into application systems. It features a PCB antenna connector (ANT1) that supports coaxial cables for external 433MHz antennas, as well as an antenna soldering hole (ANT2) for attaching a spring antenna, giving users flexibility in antenna choice based on their needs.
The HC-12 module includes an integrated MCU, so no additional programming is required. Users can simply send and receive data, making it a plug-and-play solution for wireless communication applications.
Features
IEEE 802.15.4g compliant
Frequency range = 119–1050 MHz
Receive sensitivity = –126 dBm
Serial TTL (RX, TX, GND) interface
Modulation (G)FSK, 4(G)FSK, (G)MSK, OOK
Max output power +20 dBm
Low active power consumption 10/13 mA RX, 18 mA TX at +10 dBm
Ultra low current powerdown modes 30 nA shutdown, 50 nA standby
Data rate = 100 bps to 1 Mbps
Fast wake and hop times
Highly configurable packet handler
TX and RX 64 byte FIFOs
Auto frequency control (AFC)
Automatic gain control (AGC)
Low BOM
Low battery detector
FCC Part 90 Mask D, FCC part 15.247, 15,231, 15,249, ARIB T-108, T-96, T-67, RCR STD-30
The HC-12 433 SI4463 Wireless Serial Module is a versatile ir and rf transmitters and receivers used across a wide range of applications including remote control systems, wireless data links, home automation, security systems, and garage door openers.
Common use cases:
Building a custom remote control
Adding wireless triggering to a project
Creating a simple wireless sensor link
This product is ideal for electronics hobbyists and IoT developers.
Technical Tip: 433MHz modules offer longer range; IR is line-of-sight only. RF modules need matched transmitter/receiver pairs.
