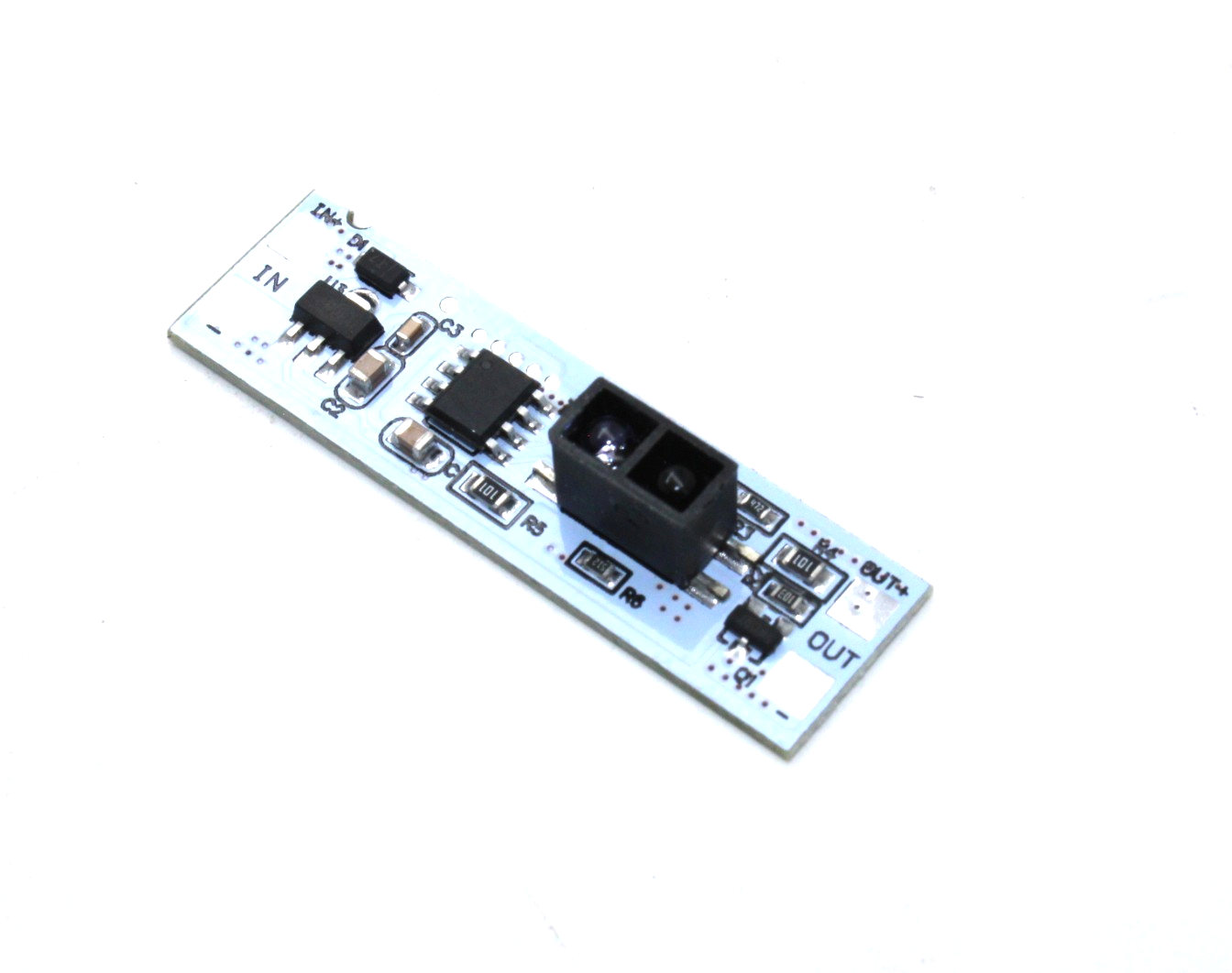

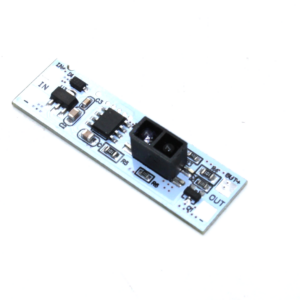

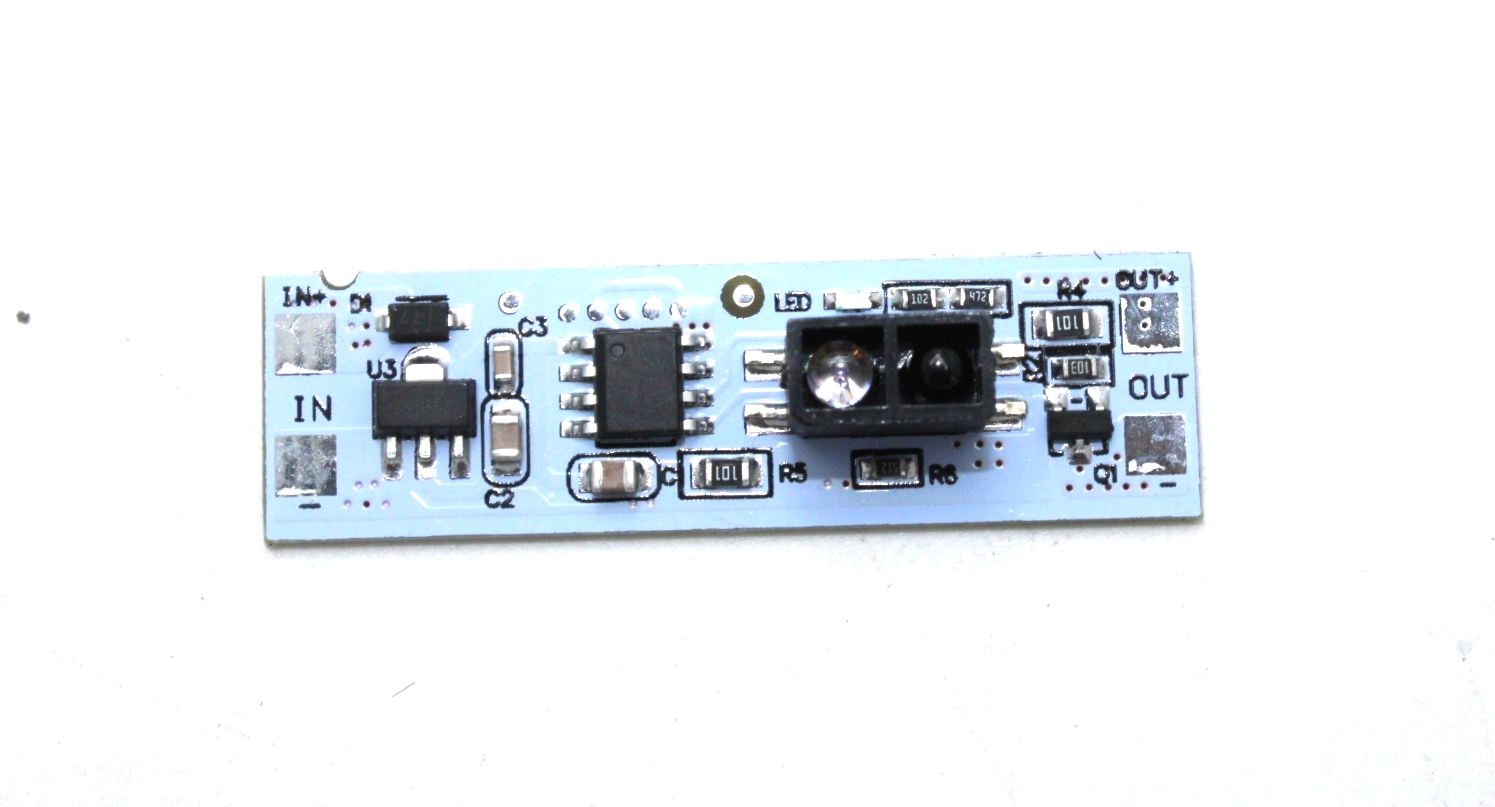

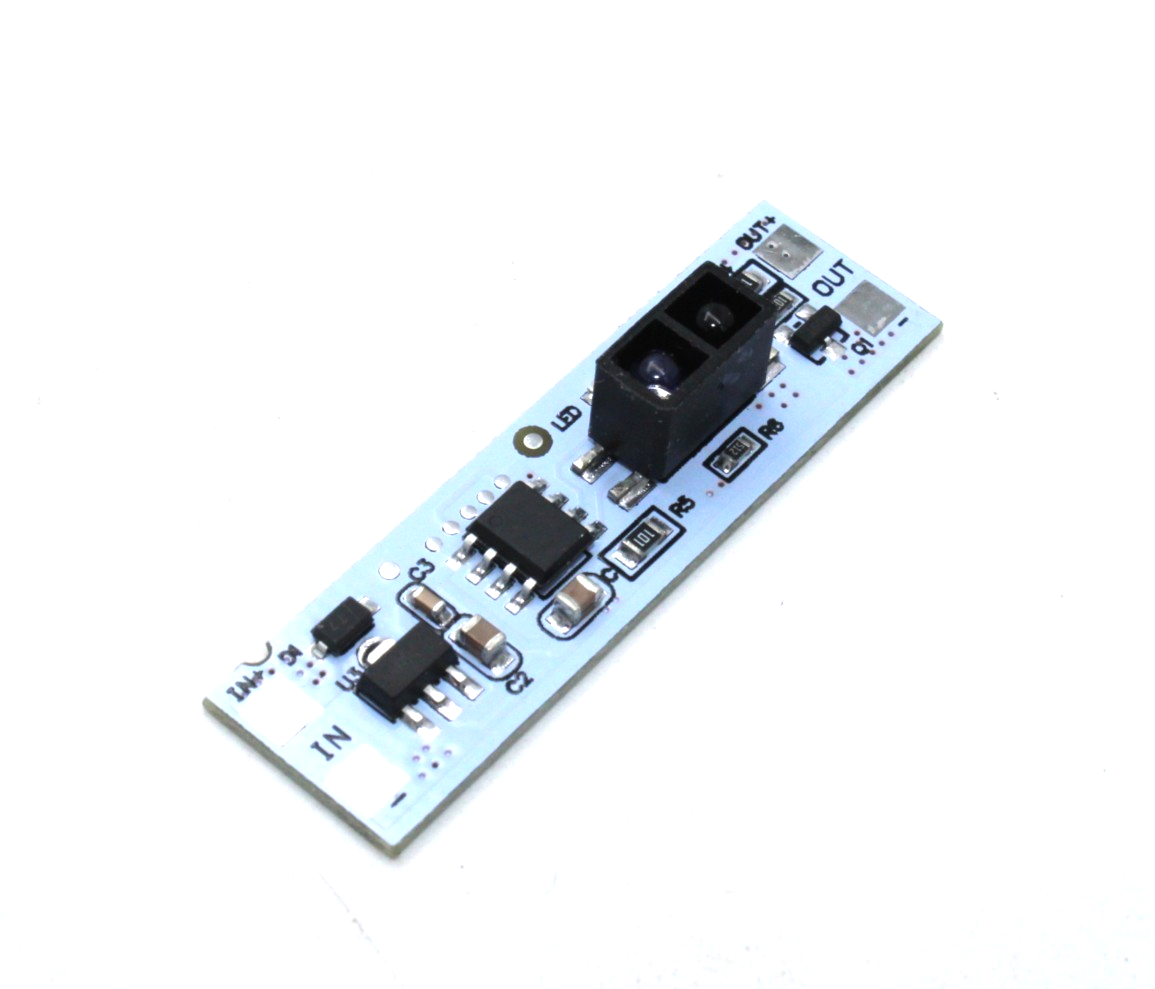

36W 3A Short Distance IR Obstacle Sensor Sweep Hand Sensor
This module uses an IR sensor to switch ON and OFF when a palm is swept over it from a distance of 10 to 80 mm. This IR sensor has many applications in household and industrial appliances, especially in the automotive sector. The product’s sensitivity can be adjusted, and it can work through non-metallic materials such as plastic, acrylic, glass, and ceramic. It has a stable performance!
This is an IR sensor-based switching module that functions ON and OFF by sweeping the palm over it from a 10 to 80 mm distance.
Specifications & Features
- Operating voltage: 12vDC
- Output Voltage: 12 V
- Output type: Double output
- Detection range: adjustable 10-80 MM
- Max Power Load: 36 W
- Delayed off time: none.
- Field of application: DC, constant pressure
- Load current: 3A optional.
- Standby current: 10mA
Specifications:
| Operating Voltage (VDC): | 12 |
|---|---|
| Output Voltage(V) | 12 |
| Output Type | Double output |
| Detection range | adjustable 10-80 mm |
| Power(W) | 36 |
| Field of application | DC, constant pressure |
| Standby current(mA) | 10mA |
Package Includes
- 1 x 36W 3A Short Distance IR Hand Sweep ON-OFF Sensor Module
Video
36W 3A Short Distance IR Hand Sweep ON-OFF Sensor Module Overview
The 36W 3A Short Distance IR Hand Sweep ON-OFF Sensor Module is a compact infrared switch that toggles DC loads by sweeping a hand within 10–80 mm of its sensing face. Designed for quick and hygienic touchless operation, it delivers reliable on/off control in a variety of low-voltage applications.
Key Features of 36W 3A Short Distance IR Hand Sweep ON-OFF Sensor Module
- Short-range IR detection adjustable from 10 mm to 80 mm for precise sensing
- Dual output switching up to 12 V DC at 3 A, supporting loads up to 36 W
- Zero delayed-off time for instantaneous ON/OFF response
- Works through non-metallic surfaces such as plastic, acrylic, glass, and ceramic
- Low standby current consumption of just 10 mA
- Fast shipping from Zbotic across India
Applications and Use Cases
- Touchless lighting control in kitchen cabinets, wardrobe displays, or under-shelf LEDs
- Automatic faucet or dispenser activation in restrooms and laboratories
- Hand-swipe operated door or gate access in cleanrooms and medical facilities
- Object presence detection on conveyor lines for packaging and assembly
- Hygienic activation of vending machines and kiosks behind protective glass
- Automotive interior dash or boot lighting with non-contact switching
How to Use 36W 3A Short Distance IR Hand Sweep ON-OFF Sensor Module
Connect the module’s V+ and GND terminals to a regulated 12 V DC power source, wire your load between the output terminals and its supply, then adjust the onboard potentiometer to set detection sensitivity. Mount the sensor behind a non-metallic panel or directly in your device, then simply sweep your hand over the sensing area to switch the load on or off.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can this sensor handle inductive loads like motors or solenoids?
Yes, it switches DC loads up to 36 W at 12 V DC and 3 A, but for inductive devices with high inrush currents, we recommend adding a suppression diode or an inrush current limiter to protect the module.
How do I fine-tune the detection range?
The sensing distance is adjusted via the onboard potentiometer. Turn it clockwise to increase range or counterclockwise to decrease, then test by sweeping your hand at various distances until the desired trigger point is achieved.
Will it detect through a glass or acrylic panel?
Yes, the IR beam can penetrate non-metallic materials up to the set detection range (max 80 mm), making it suitable for installation behind glass, acrylic, ceramic, or plastic coverings.
