This is the 12V variant of the NE555 Time Delay Monostable Switch Module 12V in Relay Modules. Available at ₹54.28 (₹46.00 + GST) with free shipping across India.
Looking for Ne555 Module 12v? NE555 Time Delay Monostable Switch Module 12V is available at Zbotic with fast shipping across India.
NE555 Time Delay Monostable Switch Module 12V
The NE555 Time Delay Monostable Switch with Electrical Relay (12V) is a monostable generator based on the NE555 integrated circuit. This timer switch module features a high-performance timing design and includes power indicator LEDs along with timing indication LEDs. It can provide timing from microseconds to several hours, making it ideal for applications such as vehicle equipment delays to prevent ignition issues and to protect components from high sudden currents.
The NE555 Time Delay Monostable Switch Module allows for adjustable delay times ranging from 0 to 10 seconds, which can be set using a potentiometer or by changing the capacitance. It is also capable of controlling devices up to 220V/10A.
Features
- Precision Pulse Generation / Timing.
- Monostable Operation.
- Standby no power consumption
- Excellent temperature stability of 0.005%/°C
- Time can be adjusted by a potentiometer, the default is 0-25 seconds.
- Module signal side design has optocoupler isolation, anti-interference ability can adapt to the high-low level two kinds of control signal application, suitable for industrial control.
Note

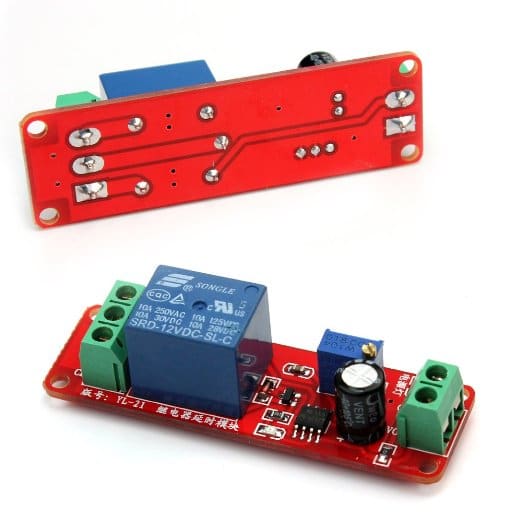

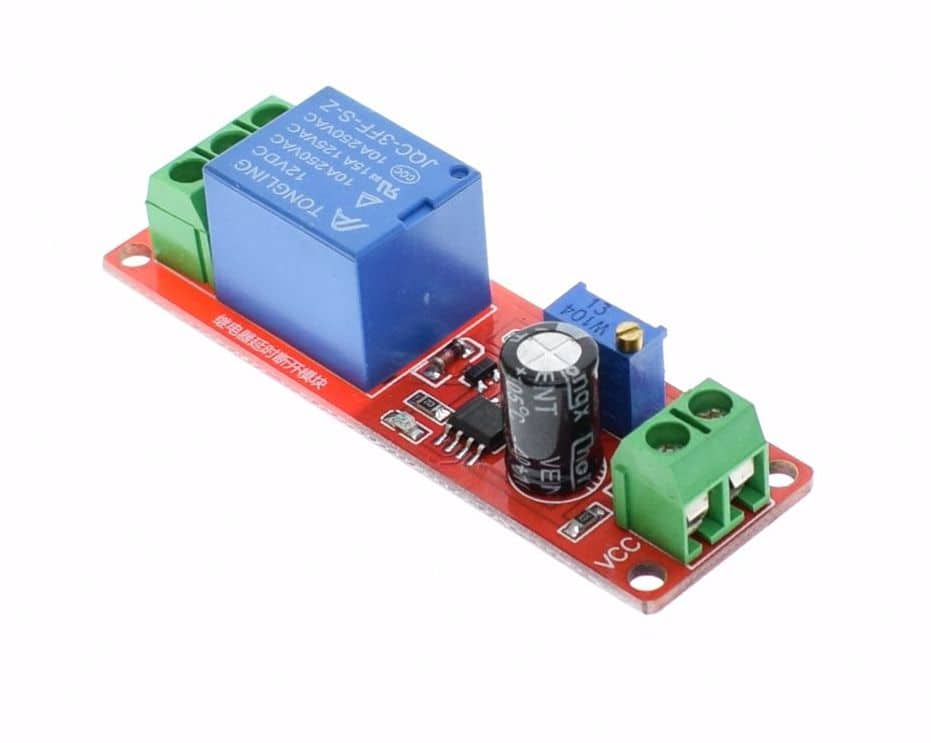

This product is available in two relay module types: JQC-3FF-S-Z and SRD-12VDC-SL-C. We ship randomly, so you will get any one of these 2 types.
Specification:
| Trigger Current (mA) | 20 |
|---|---|
| Switching Voltage (VAC) | 125@15A, 250@10A |
| Adjustable Time(s) | 0 to 10 |
| AC Control Voltage | 250V @max. 10A |
| DC Control Voltage | 30V @max. 10A |
| Max. Load(W) | 2200 |
| Length (mm): | 68 |
| Width (mm): | 22 |
| Height (mm): | 18 |
| Weight (g): | 18 |
Package Includes
1 x NE555 Delay Monostable Switch Module.
Video
NE555 Time Delay Monostable Switch Module 12V Overview
The NE555 Time Delay Monostable Switch Module 12V is a compact timer relay board based on the NE555 integrated circuit. Designed for 12V DC operation, it provides a single-shot delay from 0 to 10 seconds before energizing its relay contacts, ideal for sequencing and protection tasks.
Key Features of NE555 Time Delay Monostable Switch Module 12V
- Based on the reliable NE555 timer IC for stable monostable operation.
- 12V DC supply with adjustable delay range from 0 to 10 seconds via onboard potentiometer.
- Built-in power indicator LED and timing status LED for visual feedback.
- Relay contacts rated for 250VAC/10A or 30VDC/10A, supporting up to 2200W load.
- Compact PCB design with screw terminals for easy wiring.
- Genuine product with fast shipping across India from Zbotic.
Applications and Use Cases
- Delay-on power sequencing for motors, pumps or compressors to prevent inrush current.
- Vehicle equipment delay for lighting circuits, horn suppression or ignition interlock.
- Control of warning sirens and alarms with precise single-shot time intervals.
- Home automation tasks like stairway lighting or electronic door locks.
- Industrial control panels requiring sequenced actuation of solenoids or valves.
How to Use NE555 Time Delay Monostable Switch Module 12V
Connect a 12V DC supply to the module’s power input terminals, wire your load to the relay output contacts, then trigger the NE555 by applying the start signal (power-up or external trigger). Adjust the onboard potentiometer to set the desired 0–10 s delay; the timing LED will illuminate during the delay and the relay will switch once the interval elapses.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum load capacity of this module?
The relay is rated for up to 10A at 250VAC or 30VDC, supporting a maximum switching power of 2200W. It can handle resistive and light inductive loads within these limits.
How do I adjust the delay time?
Use the onboard potentiometer to vary the resistance in the NE555 timing network. Turning it clockwise increases the delay up to 10 seconds, while counterclockwise reduces it toward 0 seconds.
Can I use this module in automotive applications?
Yes. The module runs on 12V DC and is ideal for vehicle equipment delays, ignition protection, lighting sequencing and other automotive control tasks.
