This is the 12V variant of the 2 Channel 12V Relay Module Solid State High Level SSR DC Control 240V 2A with Resistive in Relay Modules. Available at Original price was: ₹225.38.₹160.48Current price is: ₹160.48. (₹136.00 + GST) with free shipping across India.

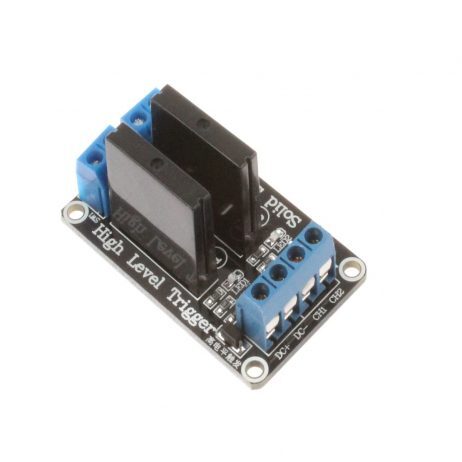

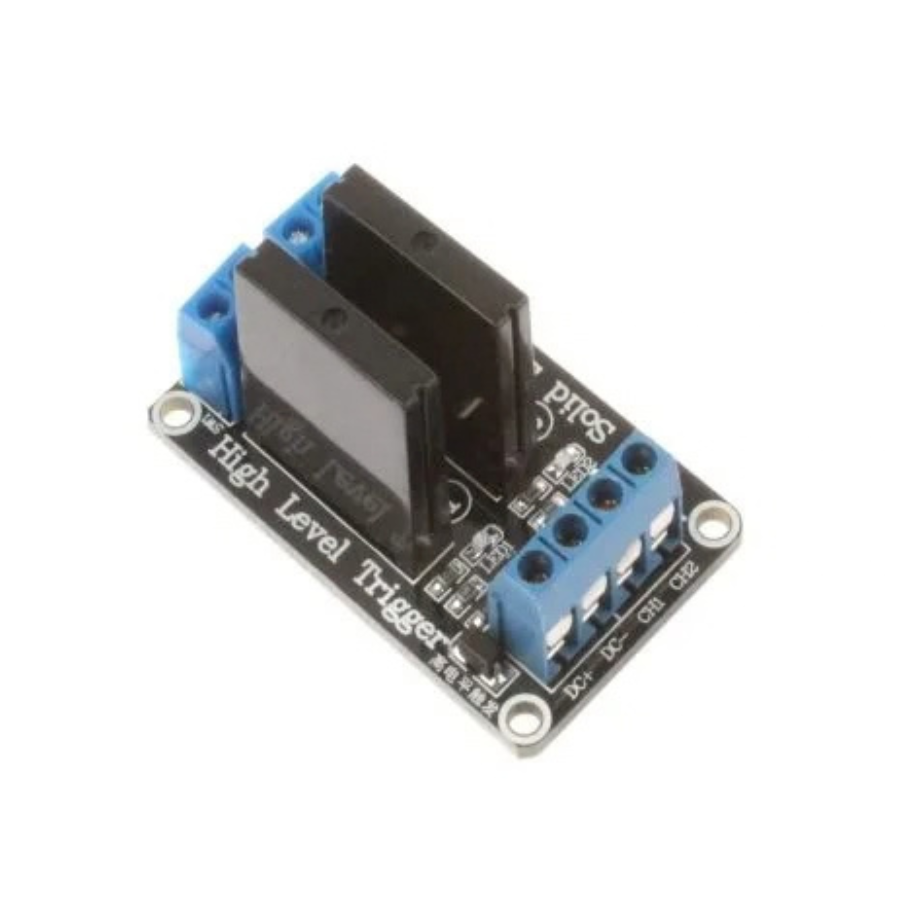

2 Channel 12V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive
Upgrade your control system with the 2-Channel 12V Solid State Relay Module, providing reliable switching capabilities for high-voltage AC loads from lower voltage DC control circuitry. Utilizing solid-state relay (SSR) technology, this module offers noise-free operation and an extended lifespan compared to traditional mechanical relays.
Features:
- Solid State Relay Technology: Utilizes solid-state relay technology, featuring an IR LED and a photo Triac sealed in a compact enclosure for reliable performance.
- 2-Channel Configuration: Control up to 2 independent loads with ease, offering versatility in your applications.
- High Load Capacity: Each channel supports loads of up to 2 amps at 240VAC, making it suitable for various lighting, holiday displays, and other applications.
- LED Indicator: Equipped with LED indicators for each relay, allowing for easy status monitoring.
- Assembled and Tested: The module comes assembled and has undergone electrical testing to ensure reliable performance.
- Microcontroller Compatibility: Can be controlled directly by a microcontroller, offering seamless integration into your control setup.

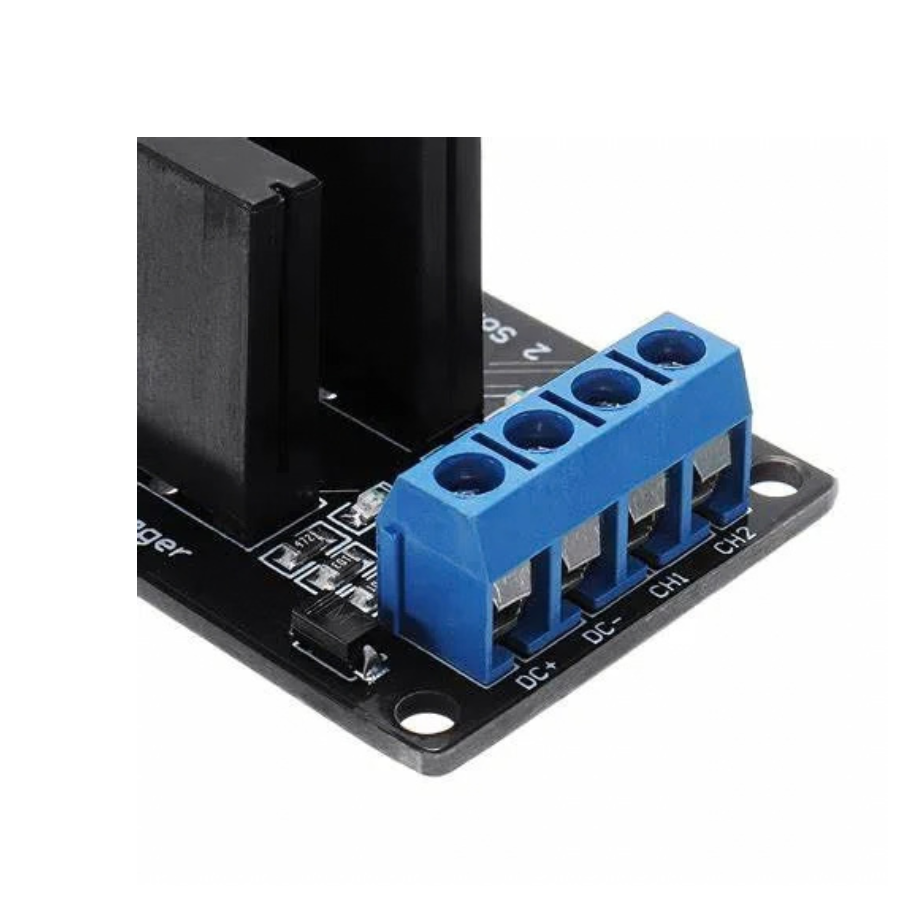

- Convenient Input Connectivity: Features DC and DC- terminals for power connection, as well as CH1 and CH2 terminals for input control signal connection.
- Versatile Applications: Ideal for controlling various appliances and equipment with large currents, providing flexibility in usage scenarios.
Input Parts:
- DC: Connects to VCC for power supply according to the relay voltage.
- DC-: Connects to GND for the ground connection.
- CH1 and CH2: Individual relay module signal trigger points, effective at the high level, facilitating precise control over each channel.
Enhance your control capabilities with the 2-Channel 12V Solid State Relay Module, offering reliable switching performance and versatility for a wide range of applications. Whether you’re controlling lighting systems, holiday displays, or other equipment, this module provides an efficient and durable solution for your needs.
Specifications:

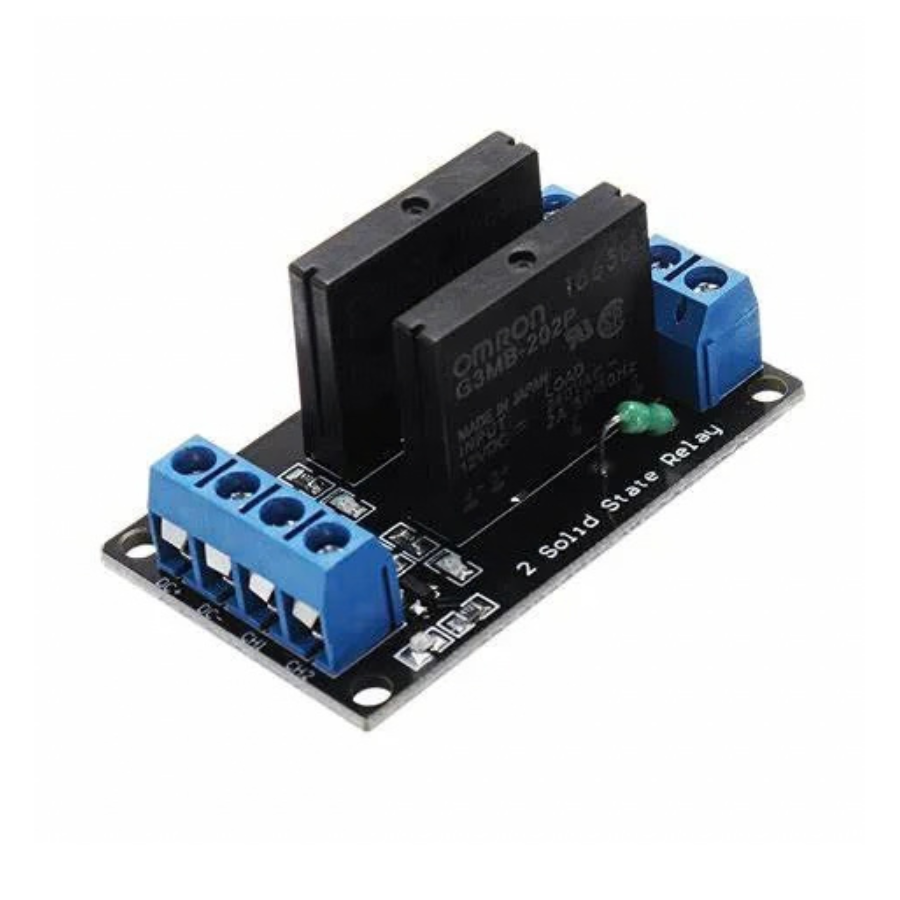

| Part Number | G3MB-202P |
|---|---|
| Power supply | 12VDC/160mA |
| Switching Voltage (VAC) | 240@2A |
| Isolation | Phototriac |
| Zero Cross | Yes |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 5 × 2 × 1 cm |
Package Includes:
1 x 2 Channel 12V Relay Module Solid State High-Level SSR DC Control 250V 2A with Resistive Fuse
