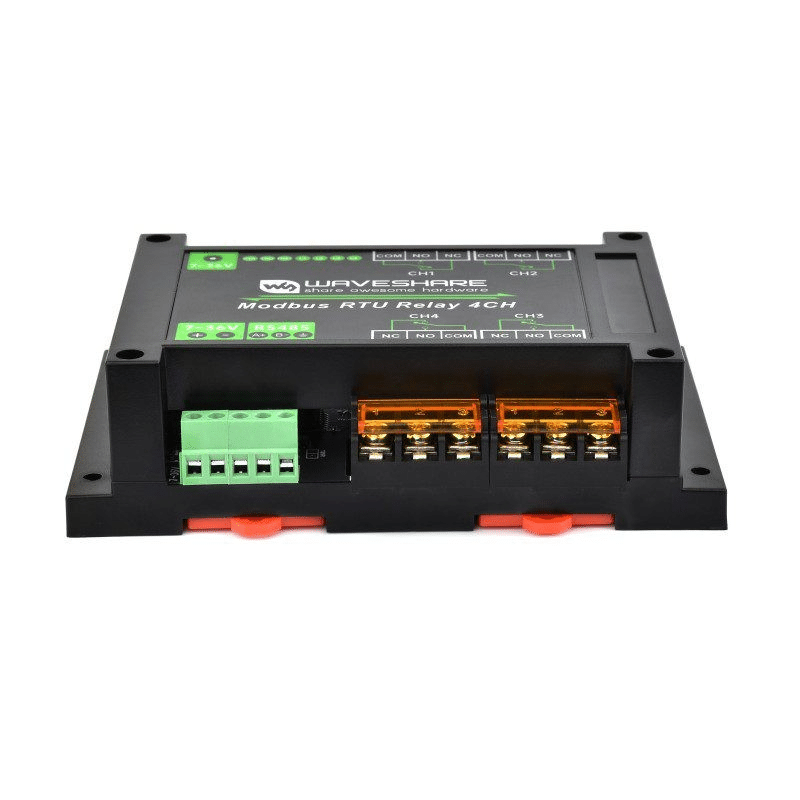

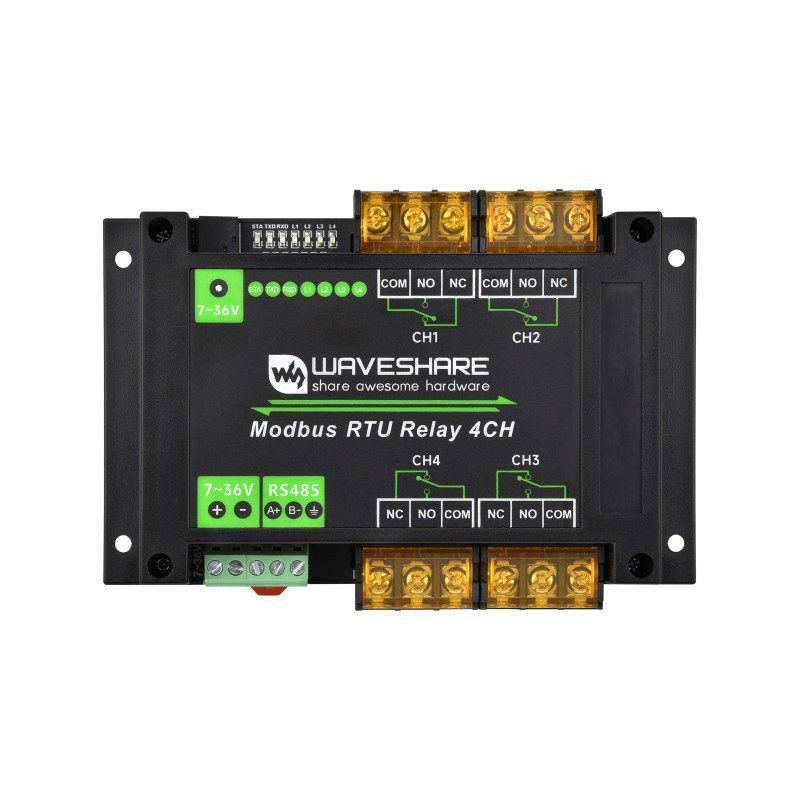

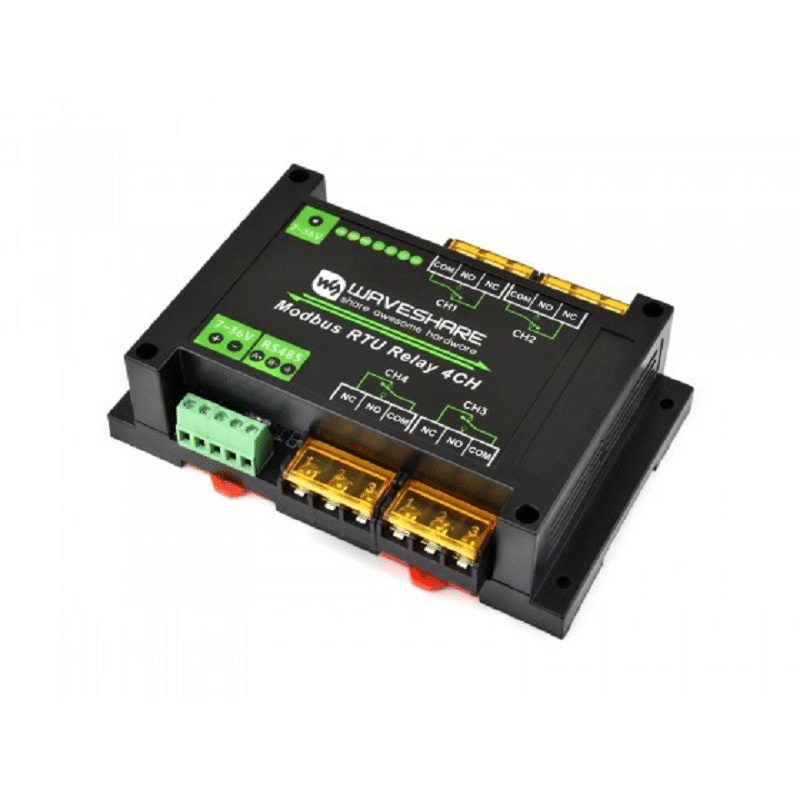

Waveshare Industrial Modbus RTU 4-ch Relay Module with RS485 Interface, Industrial Grade Rail-Mount Case
The Modbus RTU 4-ch Relay Module is an industrial 4-ch relay module controlled via RS485 bus, utilizing Modbus RTU protocol. It features embedded protection circuits such as power isolation, ADI magnetically isolation, resettable fuse, and TVS diode, etc. It also comes with an ABS enclosure.
The Modbus RTU 4-ch Relay Module is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipment’s and/or applications with high communication requirement.
Features:
-
Configurable device address (1~255), multi devices can be cascaded on RS485 bus
-
Features flash-on, flash-off function, by passing arguments to the command, it is possible to turn on the relay for a while and then close it automatically
-
Onboard voltage regulator, supports 7V~36V wide voltage supply
-
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
-
Onboard unibody ADI magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
-
Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
-
Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
-
Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability
-
Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
-
High quality relay, contact rating: ≤30A 250V AC or ≤30A 28V DC
-
Rail-mounted ABS plastic enclosure, easy to install, safe to use
-
3 LEDs for indicating the MCU status and signal transceiving status
Specification:
Model: Relay Module No. of Channels: 4 Operating Voltage (VDC): 7~36 Communication Interface RS485 Contact Form: 1NO 1NC Contact Rating ≤30A 250V AC, ≤30A 28V DC Communication Protocol Standard Modbus RTU protocol
Package Includes:
1 x Modbus RTU Relay 4CH
ESP32 Wakeup Sources: GPIO, Timer and Touch Triggers for Deep Sleep
Understanding ESP32 wakeup sources for deep sleep is essential for building battery-powered IoT devices that last weeks or...
Read More →
ESP32-H2 Zigbee and Thread Native Support Guide
The ESP32-H2 Zigbee Thread native support marks a turning point for Indian IoT developers who want to build...
Read More →
ESP8266 Power Consumption: Reducing Current in Sleep Mode
If you are building a battery-powered IoT device with the ESP8266, understanding and reducing ESP8266 power consumption in...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Interface / Protocol | RS485 |
| SKU | AI7721 |
| Weight | 0.42 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare Industrial Modbus RTU 4-ch Relay Module with RS485 Interface, Industrial Grade Rail-Mount Case is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
