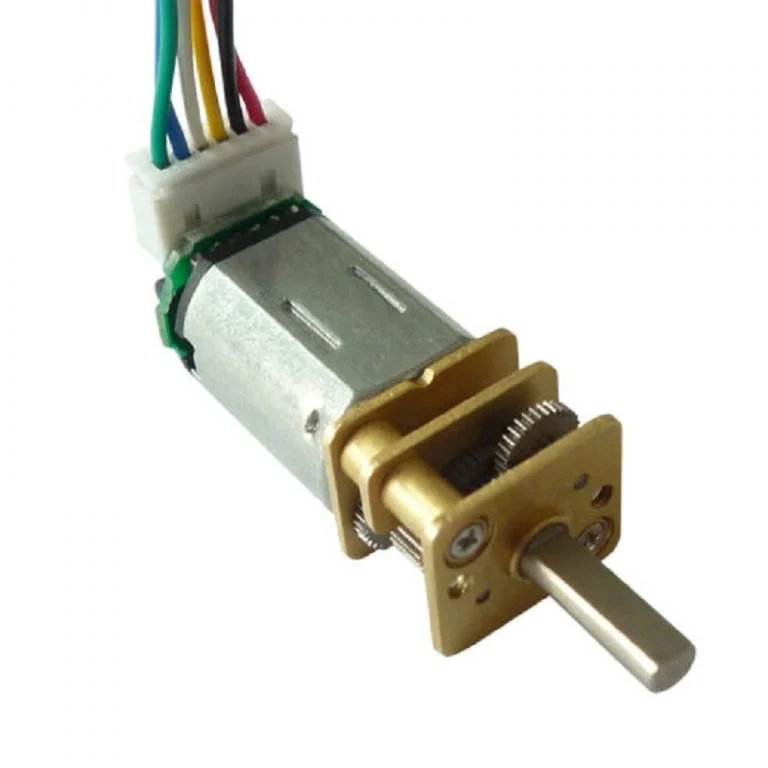

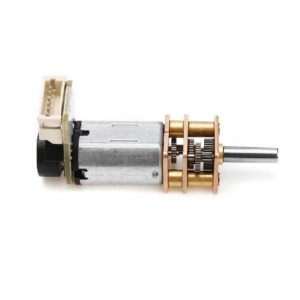

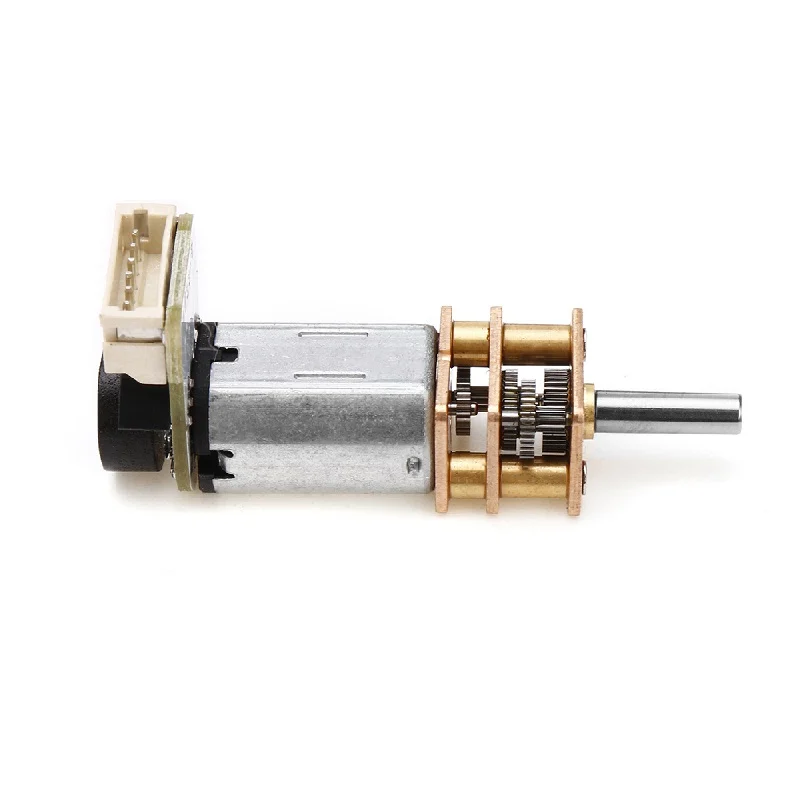

This is the 12V variant of the N20 12V 60RPM Micro Metal Gear Motor With Encoder in N20 Motor with Encoder. Available at ₹507.40 (₹430.00 + GST) with free shipping across India.
Looking for N20 Motor 12v? N20 12V 60RPM Micro Metal Gear Motor With Encoder is available at Zbotic with fast shipping across India.
Product Description
The N20 12V 60RPM Micro Metal Gear Motor with Encoder, which is designed to work at 12 V. However, this type of motor can also run at different voltages, both higher and lower than the nominal one. The acceptable voltage range is 3 – 12 V, and the motor can start rotating with as little as 0.5 V.
Using voltages lower than 3 V may not be effective and using voltages higher than 12 V may reduce the motor’s lifespan. The micro metal gear motors come in various gear ratios, from 5:1 to 1000:1. All of them have the same size, except for the ones with a 1000:1 gear ratio. This means that you can easily replace one motor with another if you need a different gear ratio for your project.
Features:
- Model: GA12 N20.
- This is a DC Mini Metal Gear Motor, ideal for making robots.
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
- Motor Size: 15 x 12 x 10 mm.
- Gearbox Length: 9 mm.
- Count: 3PPR(Pulse per Revolutions).

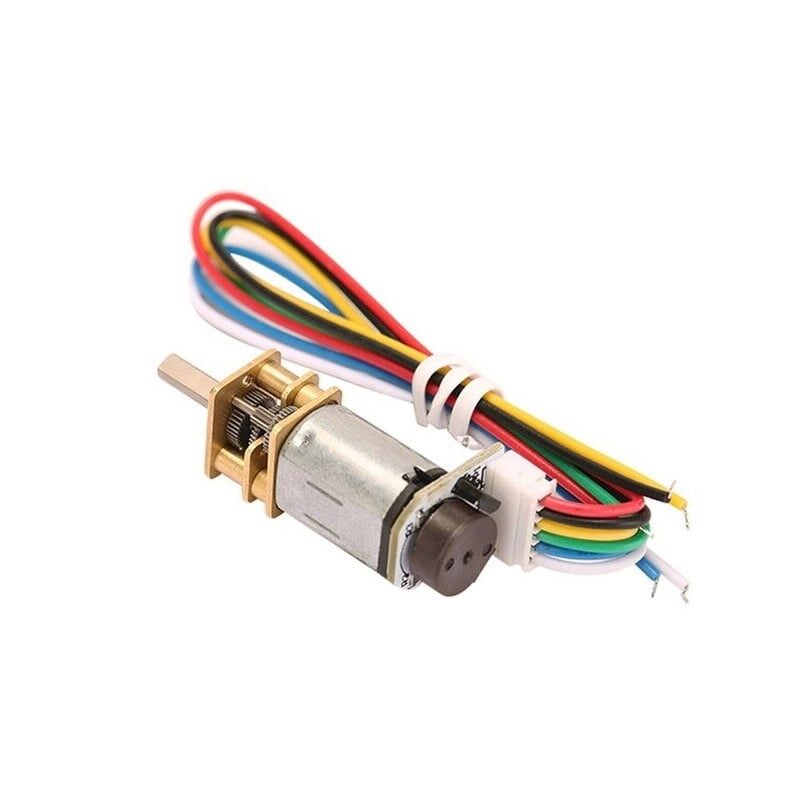

How to wiring? :
- Red – motor Power (Exchange can control the motor positive and negative rotation).
- Black – encoded power supply(VCC) – Positive (positive 3.3-5v).
- Yellow – signal feedback (motor turns 2 signals).
- Green – signal feedback (motor turns 2 signals).
- Blue – encoded power(GND).
- White – Motor power (Exchange can control the motor positive and negative rotation).
Dimensions :

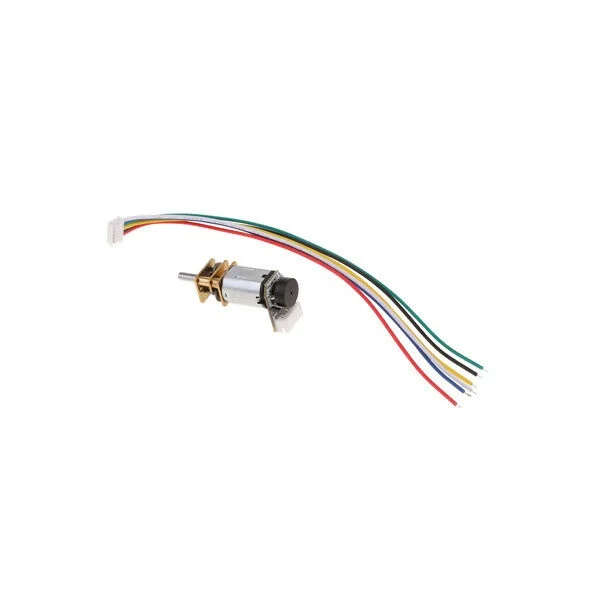

Package Includes :
1 x N20 12V 60RPM Micro Metal Gear Motor With Encoder.
1 x Connector(14 cm).
N20 12V 60RPM Micro Metal Gear Motor With Encoder Overview
The N20 12V 60RPM Micro Metal Gear Motor With Encoder is a compact DC gearbox motor featuring an integrated encoder for precise speed and position feedback. Designed for 12 V operation (3–12 V range), it delivers 60 RPM output and is ideal for small robotics, automated platforms, and educational projects.
Key Features of N20 12V 60RPM Micro Metal Gear Motor With Encoder
- Rated Voltage: DC 12 V (operates from 3 V to 12 V, starts at 0.5 V)
- Output Speed: 60 RPM at 12 V for low-speed, high-torque applications
- Integrated Encoder: Two-channel quadrature feedback with 140 mm test wire
- Output Shaft: D-type 3 × 10 mm for secure coupling
- Compact Metal Gearbox: Durable milling edge of 0.5 mm for precise gear engagement
- Wheel Compatibility: 43 mm diameter wheel flange for direct mounting
- Fast Shipping: Shipped quickly across India from Zbotic
Applications and Use Cases
- Mobile robot drive systems requiring accurate speed control
- Automated camera sliders and pan-tilt mechanisms
- Educational robotic kits with position feedback
- Small conveyor belts for assembly or sorting tasks
- Line-following and maze-solving robots
- Precision turntables for miniaturized prototyping
How to Use N20 12V 60RPM Micro Metal Gear Motor With Encoder
Mount the motor using the gearbox housing or wheel flange, connect the two power leads to a DC driver or PWM controller set up for 3–12 V, and wire the encoder’s A/B channels and ground to your microcontroller inputs. Adjust supply voltage for desired speed and use encoder feedback for closed-loop control.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage range can I use for this motor?
This motor runs nominally at 12 V but operates effectively from 3 V to 12 V. It can start turning with as little as 0.5 V, though torque and speed increase with higher voltage.
How is the encoder wired and used?
The encoder provides two quadrature output channels for direction and speed feedback. It comes with a 140 mm test wire, typically four conductors: VCC, GND, Channel A and Channel B, compatible with most microcontroller input pins.
Can I swap this with other N20 gear ratios?
Yes. All N20 micro metal gear motors up to 500:1 share the same gearbox dimensions, so you can replace this 60 RPM unit with another ratio from Zbotic without modifying your mounting setup.
Worm Gear Motor vs Planetary Gear Motor: Torque & Efficiency Compared
When building a robot, CNC machine, automated gate, or any motorised mechanism, the type of gearmotor you choose...
Read More →
Automatic Plant Watering System with Servo Valve & Soil Sensor (Arduino Project)
Whether you travel often, forget to water your plants, or simply want to automate your home garden, an...
Read More →
Stepper Motor Tutorial: NEMA 17, A4988, and AccelStepper Library
The stepper motor is the backbone of precision motion control in electronics projects. From 3D printers and CNC...
Read More →Technical Specifications
| Model | N20 |
|---|---|
| Operating Voltage | 12V |
| Speed | 60 RPM |
| SKU | AI2462 |
| Weight | 0.01755 kg |
| Availability | In Stock |
Applications & Use Cases
The N20 12V 60RPM Micro Metal Gear Motor With Encoder is a versatile n20 motor with encoder used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
