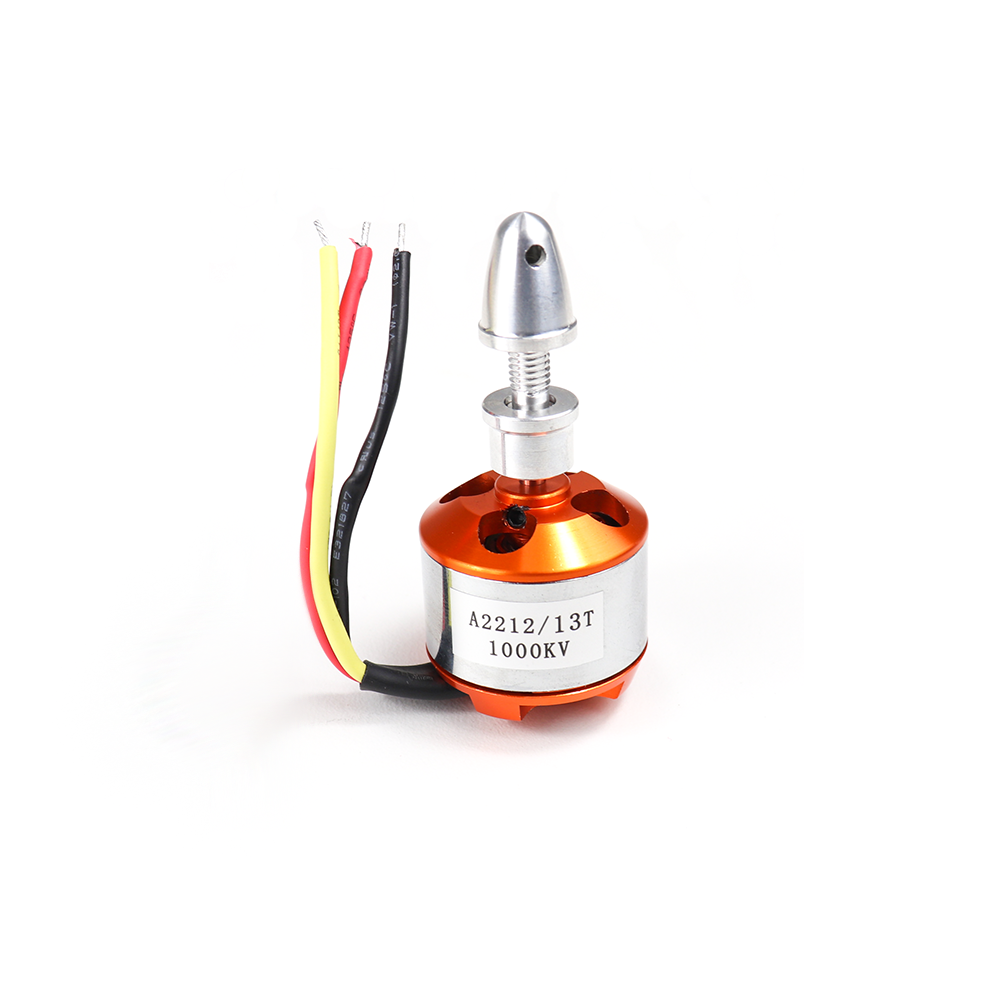

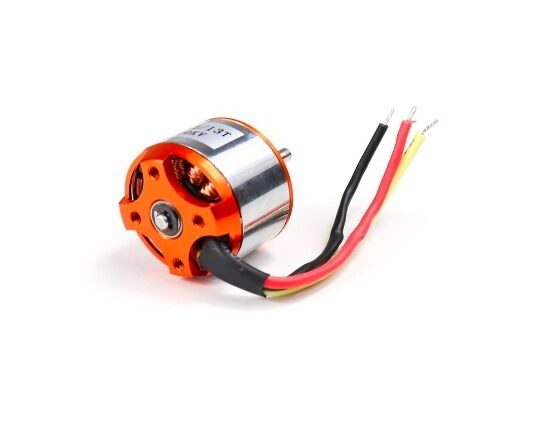

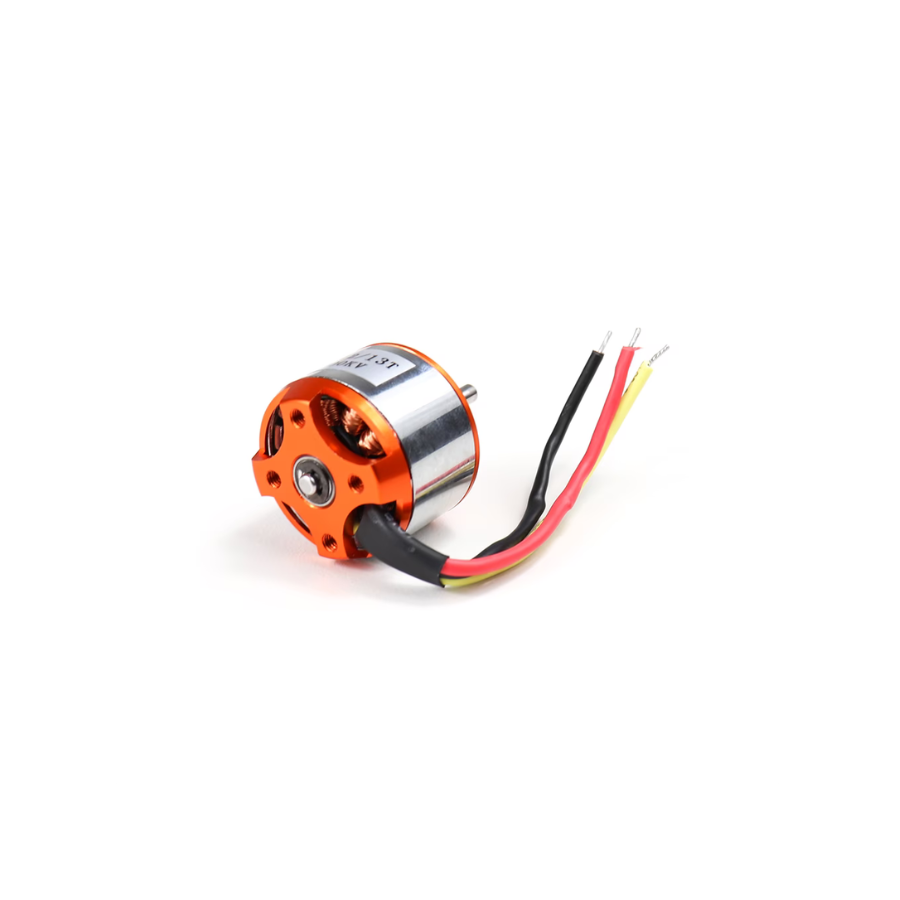

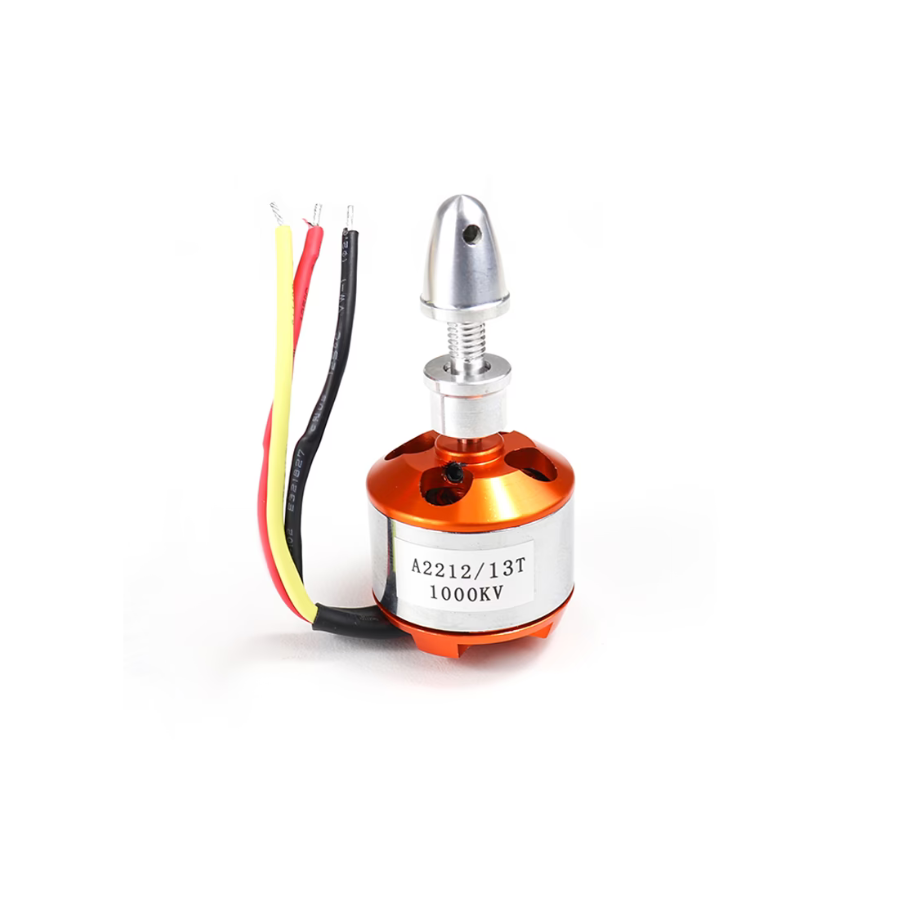

A2212 1000KV BLDC Brushless DC Motor for Drone

A2212 1000KV BLDC Brushless DC Motor for Drone

The A2212 KV1000 Brushless Motor is engineered specifically for powering RC quadcopters. It is built with high-quality bearings and stators that ensure high efficiency and a steady power output, which is crucial for maintaining stable flight.



This motor includes patented balancing technology that assures peak performance. Its durable metal casing increases both reliability and longevity, making it suitable for extended usage. Moreover, it is designed to be lightweight and easy to install, providing both convenience and remarkable performance.



Features

• The steel design is capable of withstanding competitional conditions.
• Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
• Compact size.
• Offers great performance and value for money.

Note:

This motor is bi-directional which means it can rotate in CW or CCW direction by swapping the polarity of the input supply.

Specification:

Model	A2212 10T 13T
Motor KV (RPM/V)	1000
Current Handling Capacity (A)	12
No-Load Current (mA)	500
Max. Efficiency Current (A)	4 ~ 10
Compatible LiPO Batteries	2S ~ 3S
Shaft Diameter (mm)	3.17
Maximum Efficiency	80%
Length (mm):	27.5
Width (mm):	27
Weight (g):	64



---

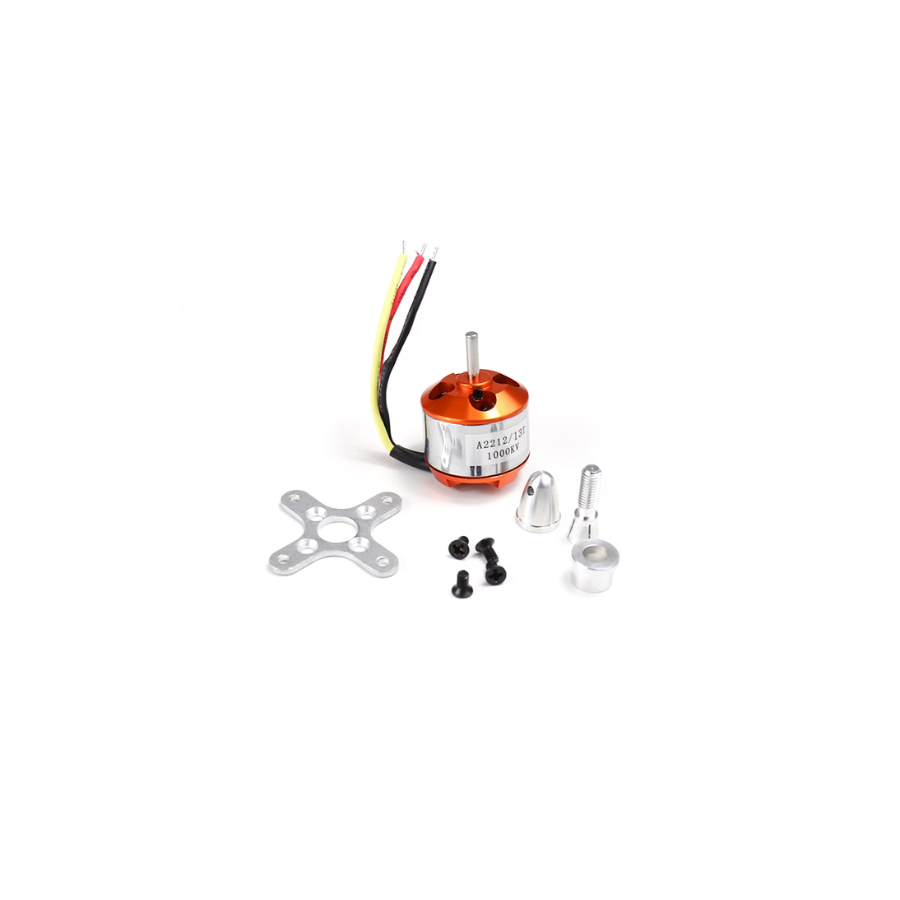

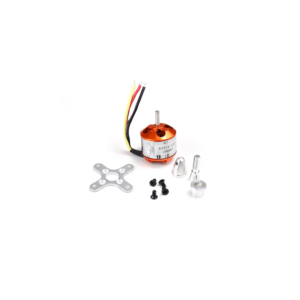

Package Includes:

1. 1 x A2212 1000 KV BLDC Brushless DC Motor
2. 1 x Prop Adapter
3. A Motor Holder (X-type) and set of screws.
