This is the 12V variant of the N20-12V-300 Rpm Micro Metal Gear Motor in N20 Gear Motor without Encoder. Available at ₹223.02 (₹189.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION

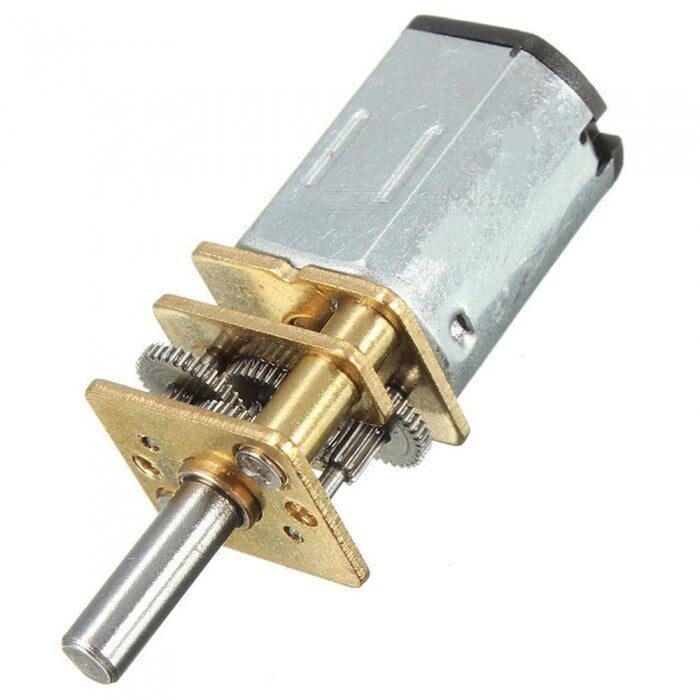

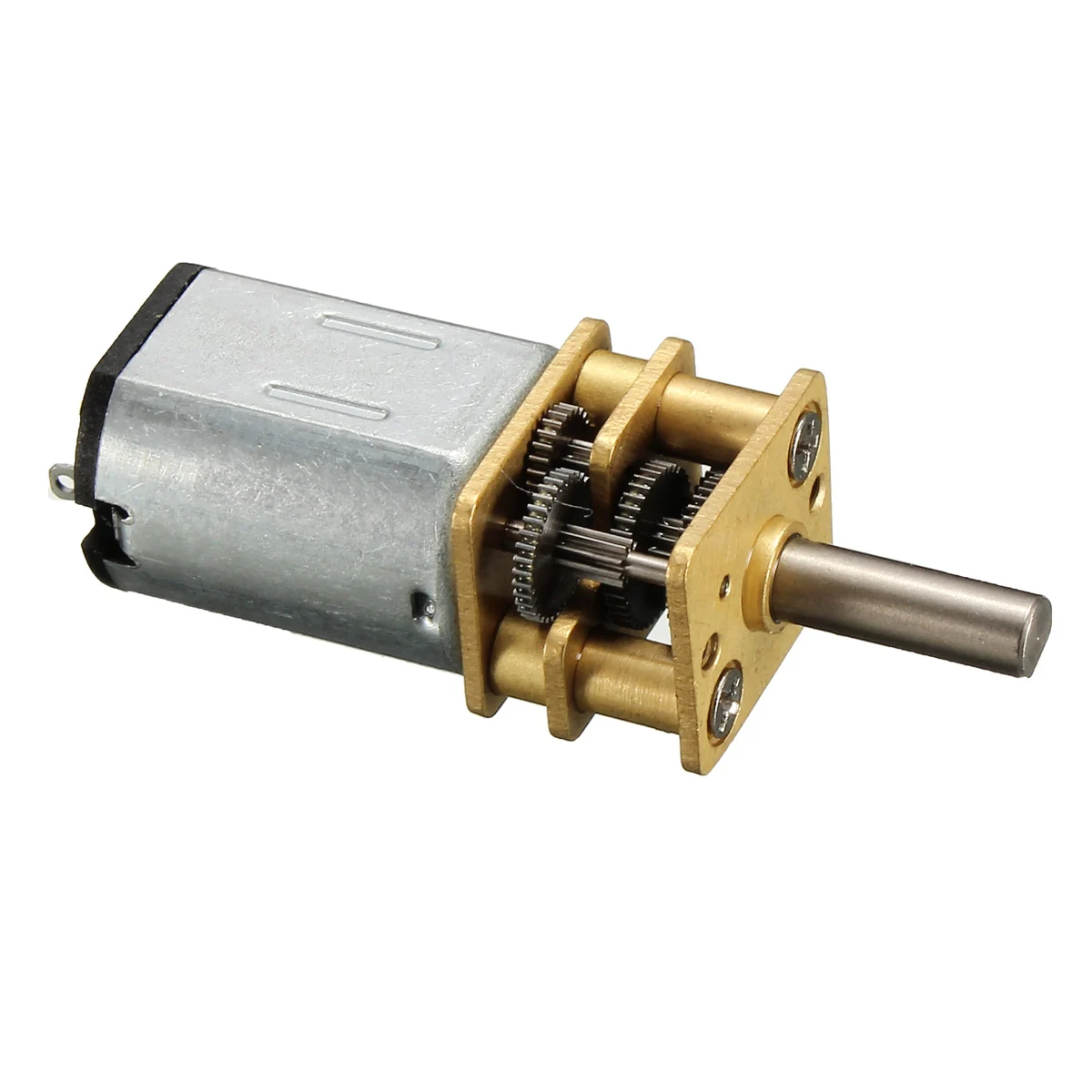

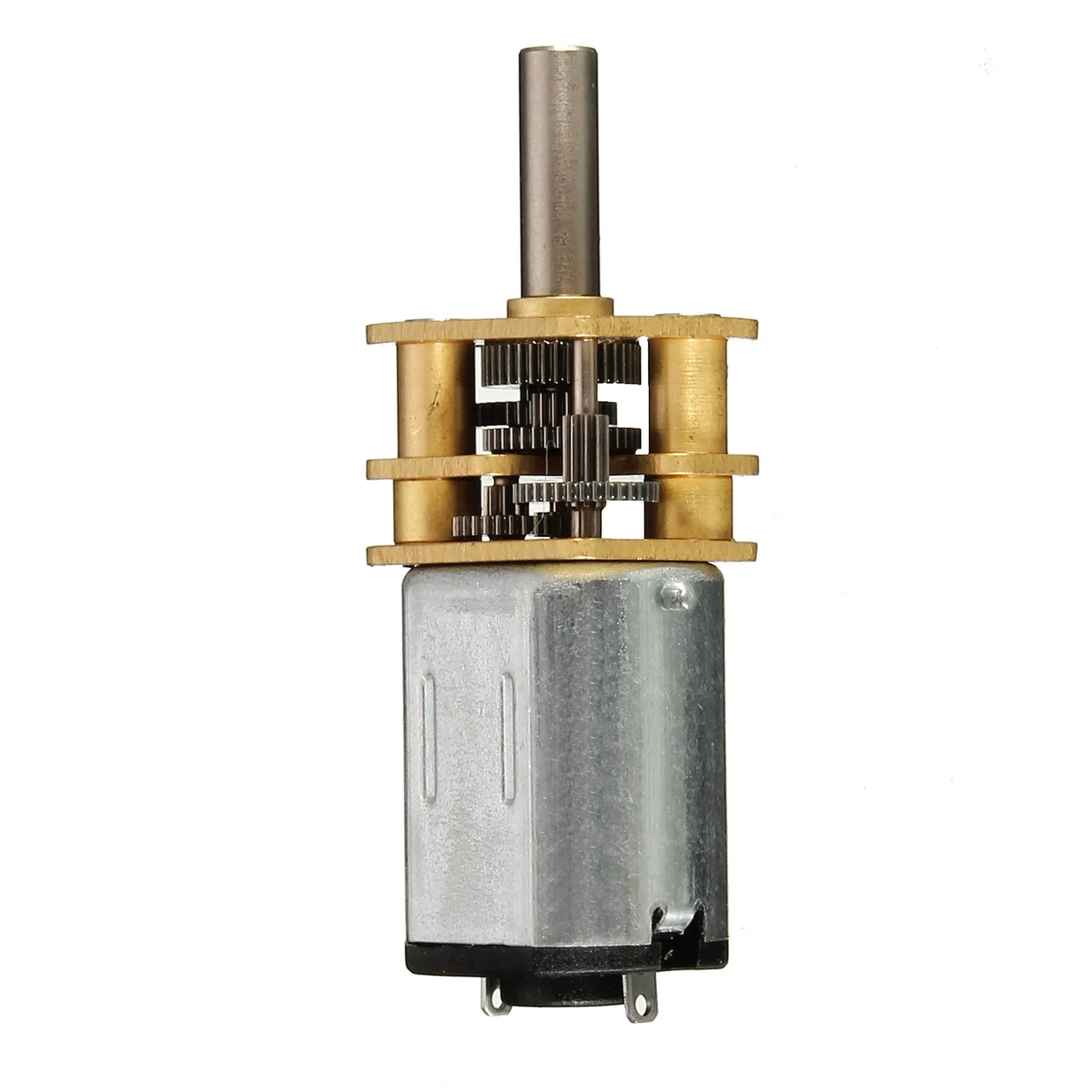

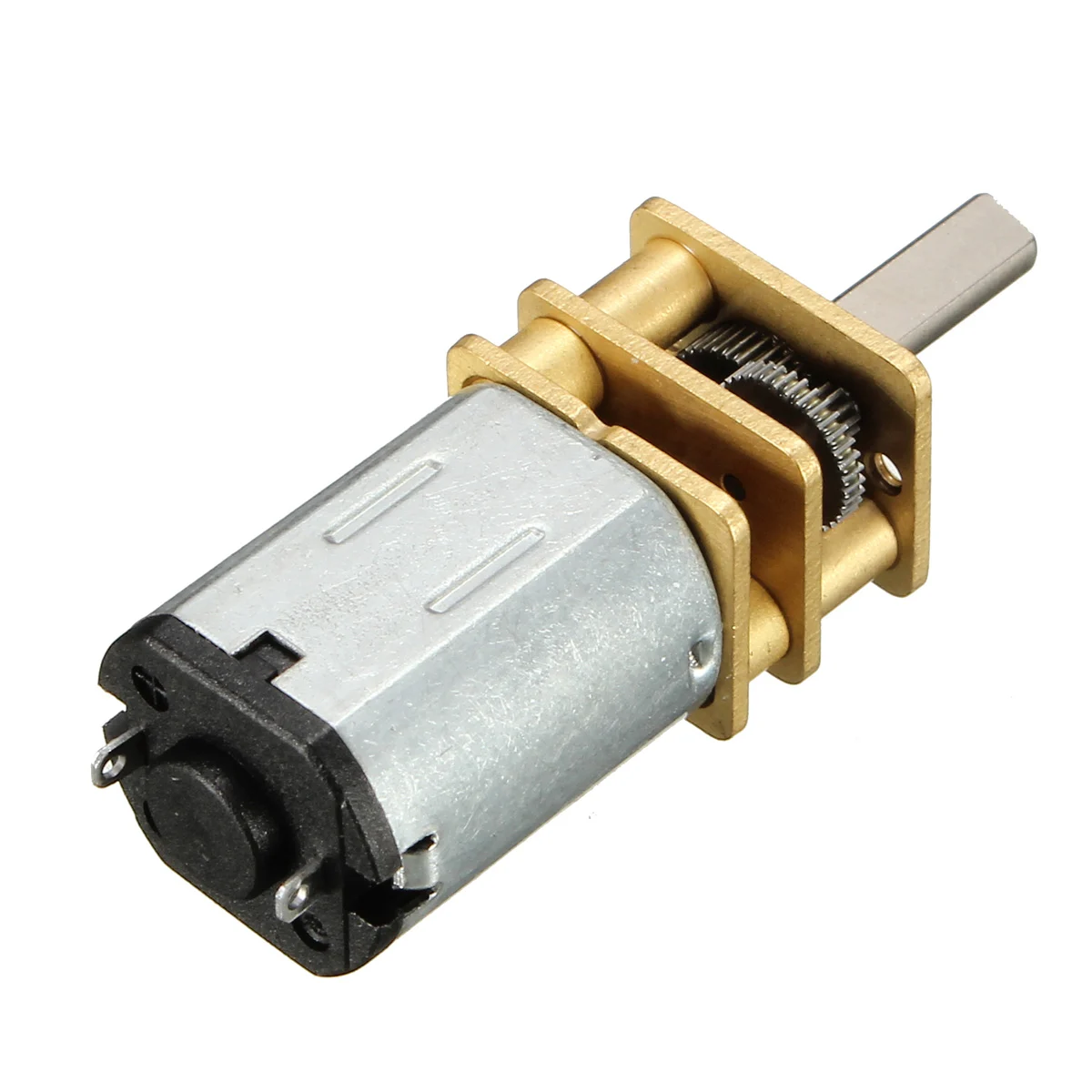

This N20-12V-300 Rpm Micro Metal Gear Motor is a compact, high-torque, and low-speed motor. It has a metal gearbox that increases the torque of the motor and makes it durable and resistant to wear. It is ideal for replacing damaged or rusty DC geared motors on various machines. It can be used for various applications such as boats, cars, electric bicycles, fans, and home appliances.
The N20-12V-300 Rpm Micro Metal Gear Motor (High Torque) has a rectangular cross-section of 10 × 12 mm and a D-shaped output shaft that is 9 mm long and 3 mm in diameter. It can fit in small spaces and drive wheels with heavy loads.
Note: Image of product may differ from Actual Product.
Features :
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
Specification:
| Model No. | N20-12V |
|---|---|
| Rated Operating Voltage (VDC) | 12 |
| No Load Current (mA) | 50 |
| Stall Current (A) | 0.3 |
| Rated Speed (RPM) | 240 |
| Rated Torque(kg-cm) | 0.5 |
| Stall Torque(Kg-Cm) | 4 |
| No load Speed (RPM) | 300 |
| Gear Ratio | 100 : 1 |
| Shaft Type | D-type, Single Side |
| Shaft Diameter (mm) | 3 |
| Weight (gm) | 11 |
| Screw Size | M3 |
| Shipping Weight | 0.016 kg |
| Shipping Dimensions | 6 × 4 × 3 cm |
Package Includes :
1 x N20-12V-300 Rpm Micro Metal Gear Motor
