Looking for Mx1508 Motor? MX1508 Dual H Bridge DC PWM Stepper Motor Driver is available at Zbotic with fast shipping across India.

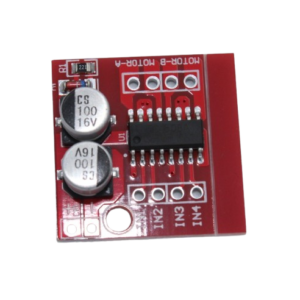

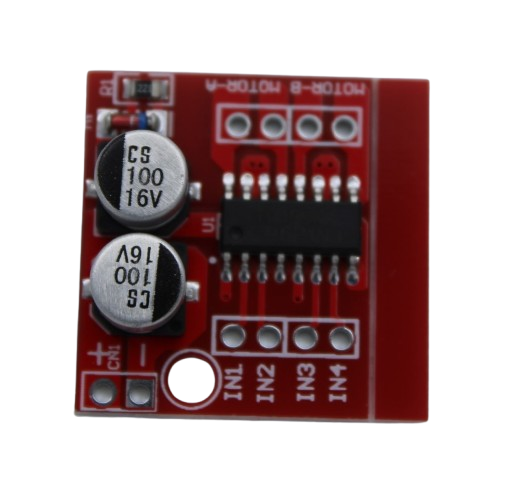

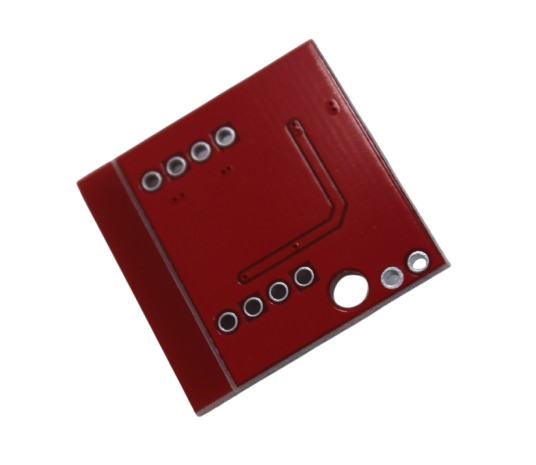

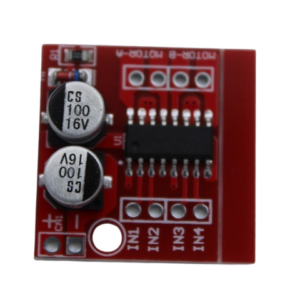

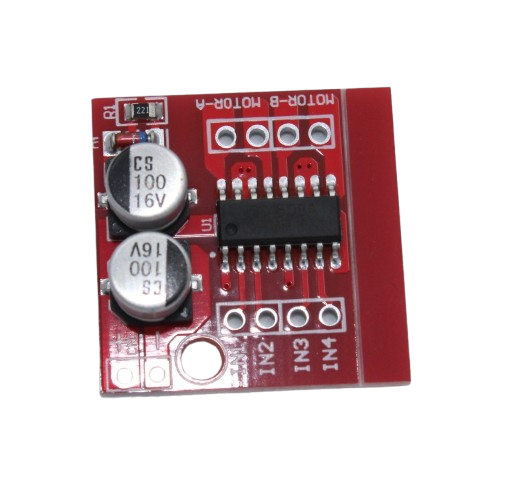

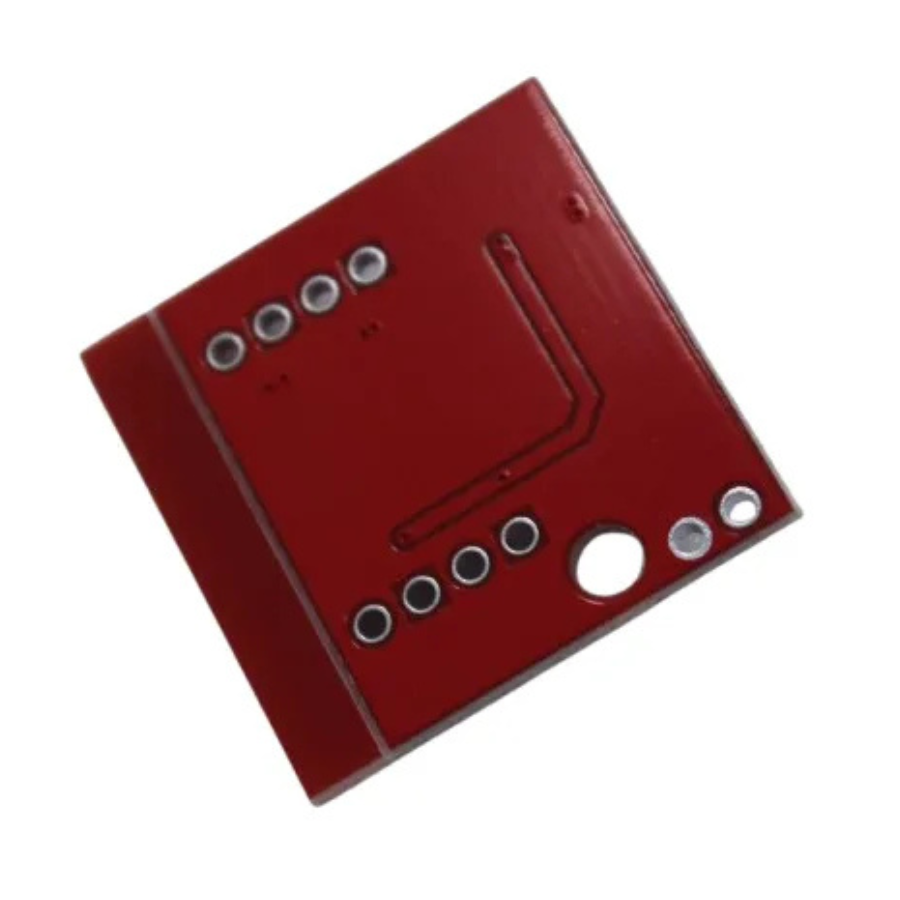

MX1508 Dual H Bridge DC PWM Stepper Motor Driver
MX1508 Dual H Bridge DC PWM Stepper Motor Driver module is ideal for use in battery-powered smart cars, toy cars, robots. Supply voltage 2V ~ 10V can drive two DC motors or 4-wire 2-phase stepper motors, can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed. Each can provide a continuous current of 1.5A, peak current up to 2.5A, thermal protection and can be automatically restored.
Note: This Product is available in two different variants of IC (MX1508 and JL AS208PO1429-25C4) with the same working we will ship it randomly.
Features:
- Dual H-bridge motor driver can drive two DC motors or a 4-wire two-phase stepper motor.
- Single Operating current 1.5A
- peak current up to 2.5A, low standby current (less than 0.1uA).
- Built-in common conduction circuit, when the input pin is left floating, the motor does not malfunction.
- Built-in thermal protection circuit with hysteresis effects (TSD), without worrying about the motor stall.
- Ultra-small size.
- The mounting hole diameter: 2 mm
Specifications:
| The module supply voltage | 2V-10V |
|---|---|
| Signal input voltage | 1.8-7V |
| Single Operating current | 1.5A |
| Peak current | up to 2.5A |
| Low standby current | less than 0.1uA |
| The mounting hole diameter | 2 mm |
| Length(mm) | 24.7 |
| Breadth(mm) | 21 |
| Height(mm) | 5 |
| Weight(g) | 2 |
Package Includes:
1 x MX1508 Dual H Bridge DC PWM Stepper Motor Driver
MX1508 Dual H Bridge DC PWM Stepper Motor Driver Overview
The MX1508 Dual H Bridge DC PWM Stepper Motor Driver is a compact module that drives two DC motors or one 4-wire, 2-phase stepper motor with independent forward/reverse control and speed adjustment. Operating from 2 V to 10 V, it delivers up to 1.5 A continuous (2.5 A peak) per channel and includes thermal protection for reliable operation in robotics and small vehicle projects.
Key Features of MX1508 Dual H Bridge DC PWM Stepper Motor Driver
- Wide supply voltage: 2 V–10 V for battery-powered applications
- Dual H-bridge outputs to drive two DC motors or one 4-wire stepper
- Continuous current of 1.5 A per channel, peak current up to 2.5 A
- PWM-controlled speed adjustment and direction reversal
- Built-in thermal shutdown with auto-reset for protection
- Standard 2 mm mounting holes for easy integration
- Genuine product and fast shipping from Zbotic across India
Applications and Use Cases
- Battery-powered smart car motor control
- Toy car drive systems with reversible DC motors
- Robot joint actuation using 4-wire stepper motors
- Pan-tilt camera mounts requiring precise speed control
- Automated conveyor or feeder mechanisms
- Educational electronics kits and prototyping boards
How to Use MX1508 Dual H Bridge DC PWM Stepper Motor Driver
Connect the module’s VCC and GND to your 2 V–10 V power source, wire motor outputs to M1A/M1B and M2A/M2B (or the stepper coils), and apply logic-level PWM signals (1.8 V–7 V) to the IN1–IN4 pins. Adjust duty cycle on each input to control motor speed and drive high/low logic levels for forward/reverse rotation. Ensure proper heat dissipation during prolonged operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage and current ranges does the MX1508 support?
The MX1508 operates from 2 V to 10 V and can supply 1.5 A continuous per channel, with peak currents up to 2.5 A for short bursts, making it ideal for small DC and stepper motors.
Can I use this driver with a 4-wire stepper motor?
Yes. The dual H-bridge design allows you to connect each coil of a 4-wire, 2-phase stepper motor to the two channels and drive it with PWM signals for smooth microstepping or full-step operation.
Does the MX1508 include thermal protection?
It features built-in thermal shutdown that automatically disables outputs under over-temperature conditions and resets once cooled, ensuring safe and reliable motor control.
