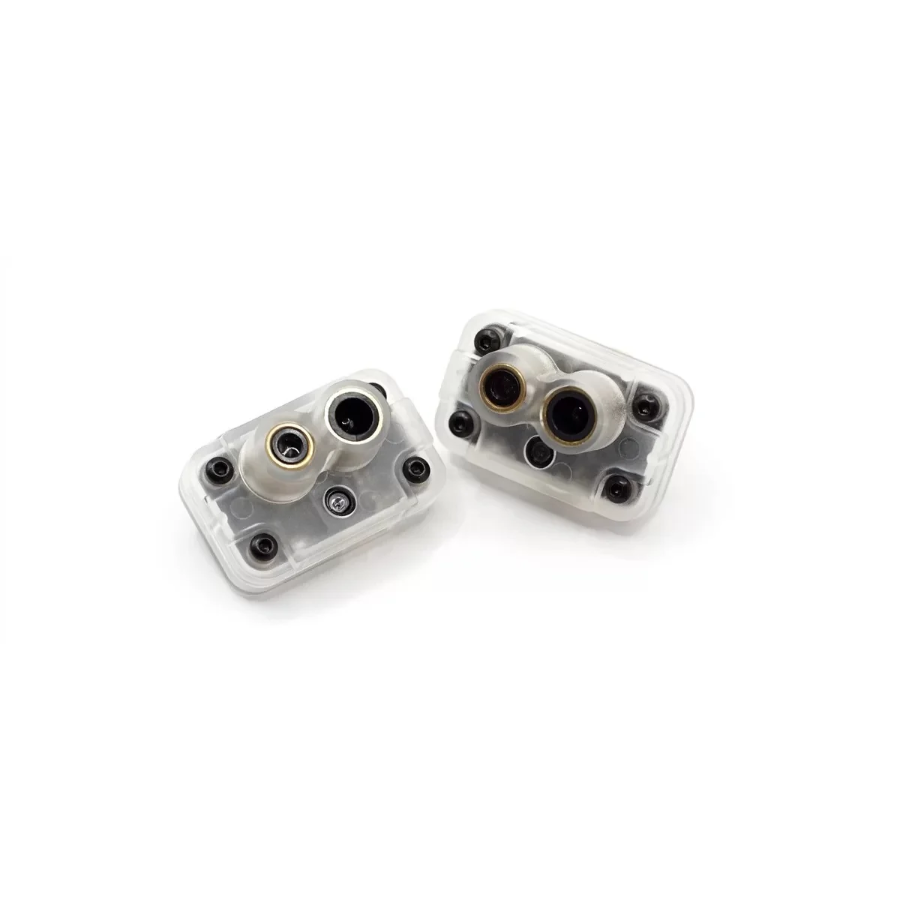

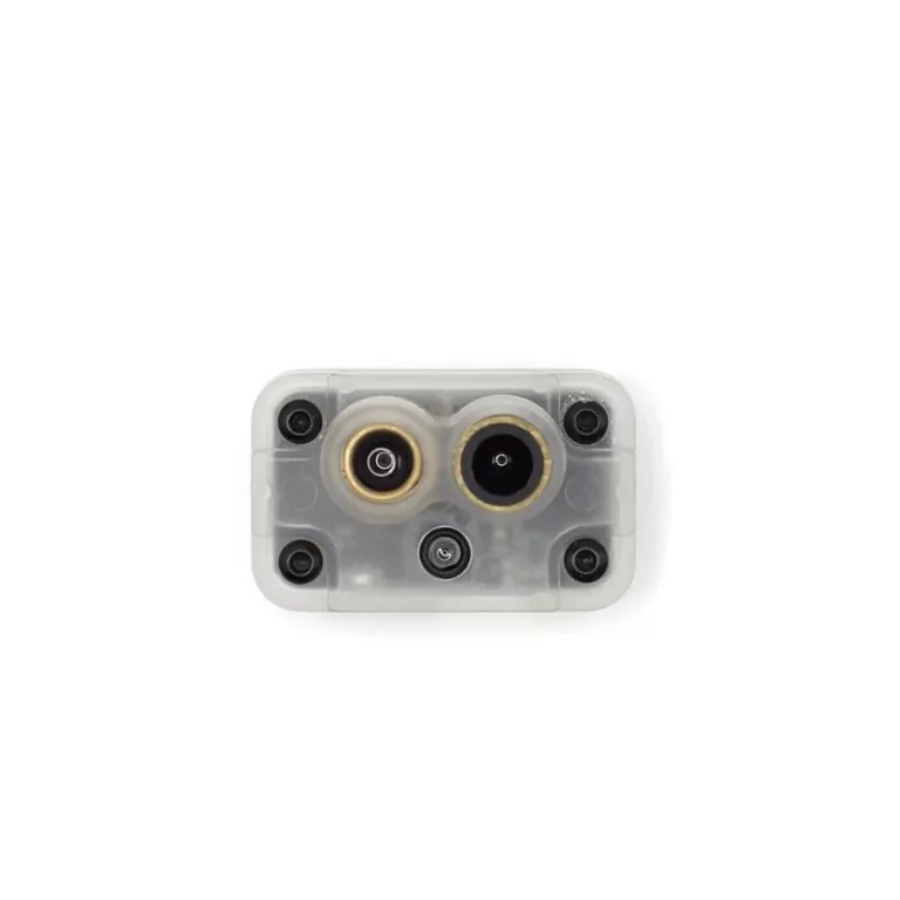

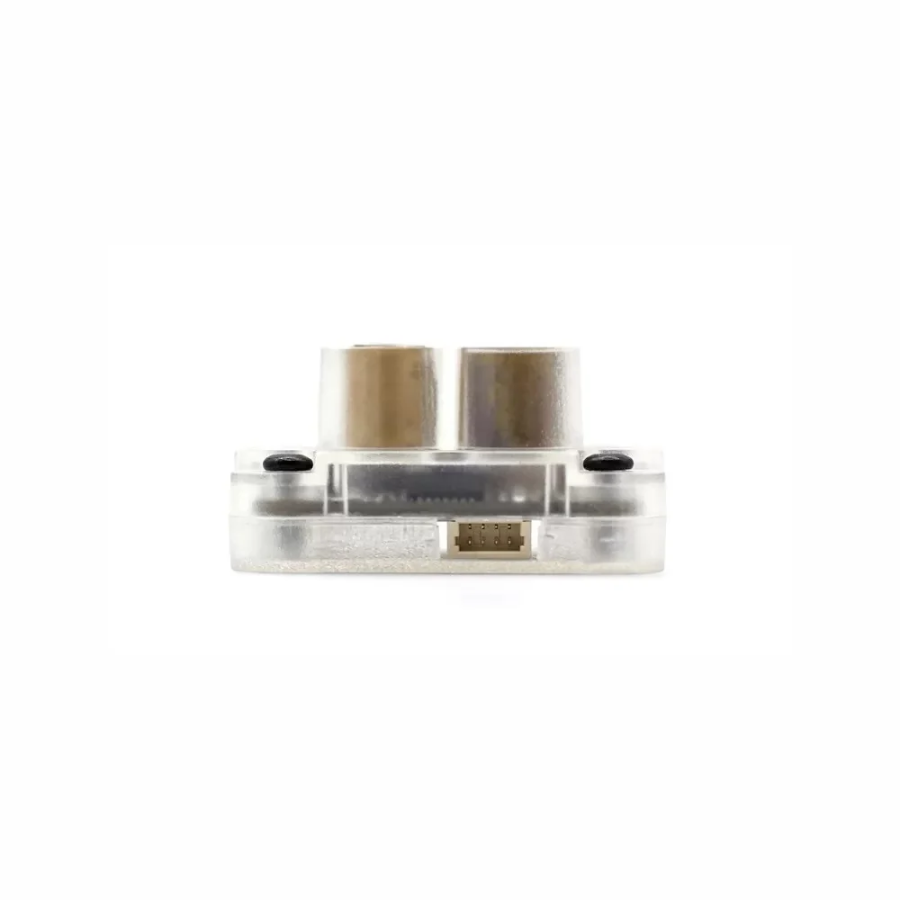

MicoAir MTF-01P UAV Drone Optical Flow and Distance Sensor
Description:
The MicoAir MTF-01P UAV Drone Optical Flow and Distance Sensor is designed to support position estimation and altitude measurement in unmanned aerial vehicles (UAVs). By combining optical flow sensing with distance measurement, it helps a drone estimate its movement relative to the ground and maintain more stable hovering, particularly when GPS signals are weak or unavailable. It is suitable for compatible multirotor drones, autonomous flight systems, and robotics applications.
Specifications:

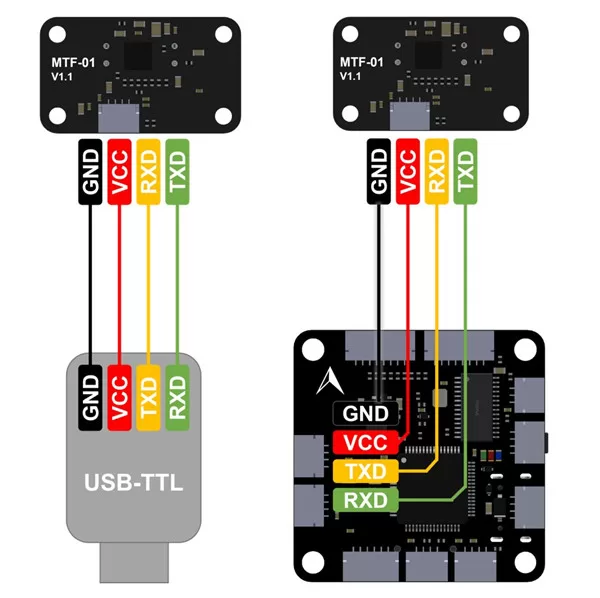

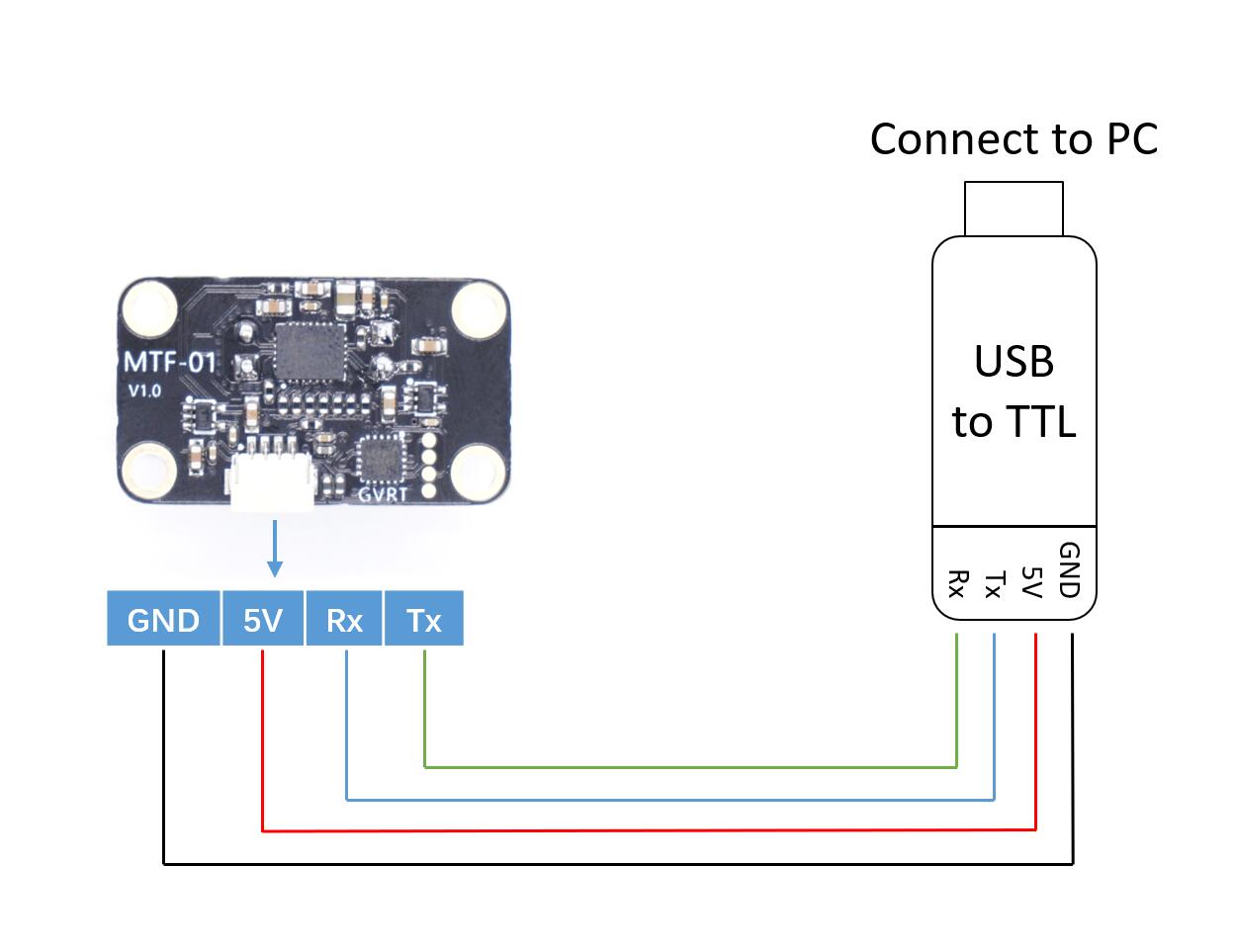

- Output Mode: UART 115200
- Output Interface: LVTTL (3.3V)
- Protocol: Micolink/Mavlink/MSP
- Output Rate: 100Hz
- Firmware Supported: Ardupilot/PX4/INAV/FMT
- TOF Range: 12m@90% reflectance/600Lux; 8m@90% reflectance/60KLux;
-
Center Wavelength: 808nm
-
Emitting Angle: 1.5°
- Dead Zone: 2cm
- Ranging Accuracy: 2cm(0.1-2m@90% reflectance);2%(>2m@90% reflectance)
- Optical Flow FOV: 42 °
- Max Speed Measurement: 7m/s@1m height
- Ambient Light Demand of Optical Flow: >60Lux
- Optical Flow Working Distance: >8cm
- Light source: Laser
- Power Consumption: 500mW
- Supply voltage: 5V
Physical
- Mounting: 24.3 x 12mm, Φ2.5mm
- Dimensions: 33.2 x 20.8 x 16.8 mm
- Weight: 8g
Micolink
The micolink is a lightweight protocol customized by MicoAir Tech, prepared for developers who are ready to write their own code to read sensor data.
Package Includes:
1xMicoAir MTF-01P UAV Drone Optical Flow and Distance Sensor
