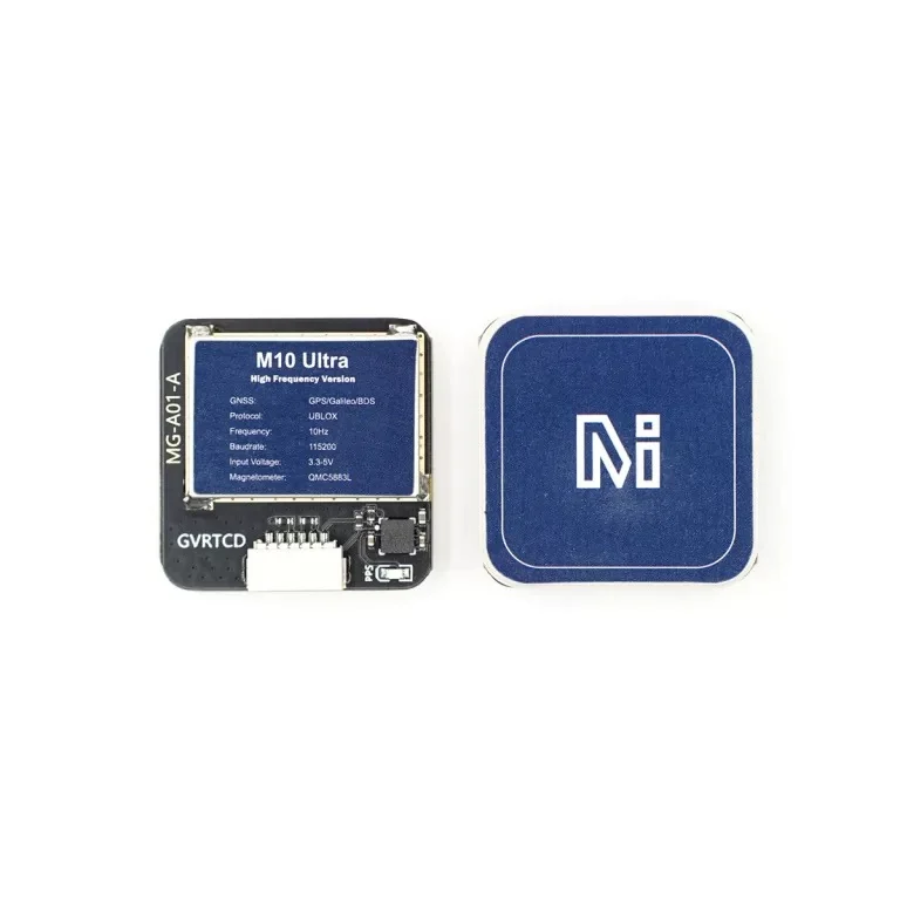

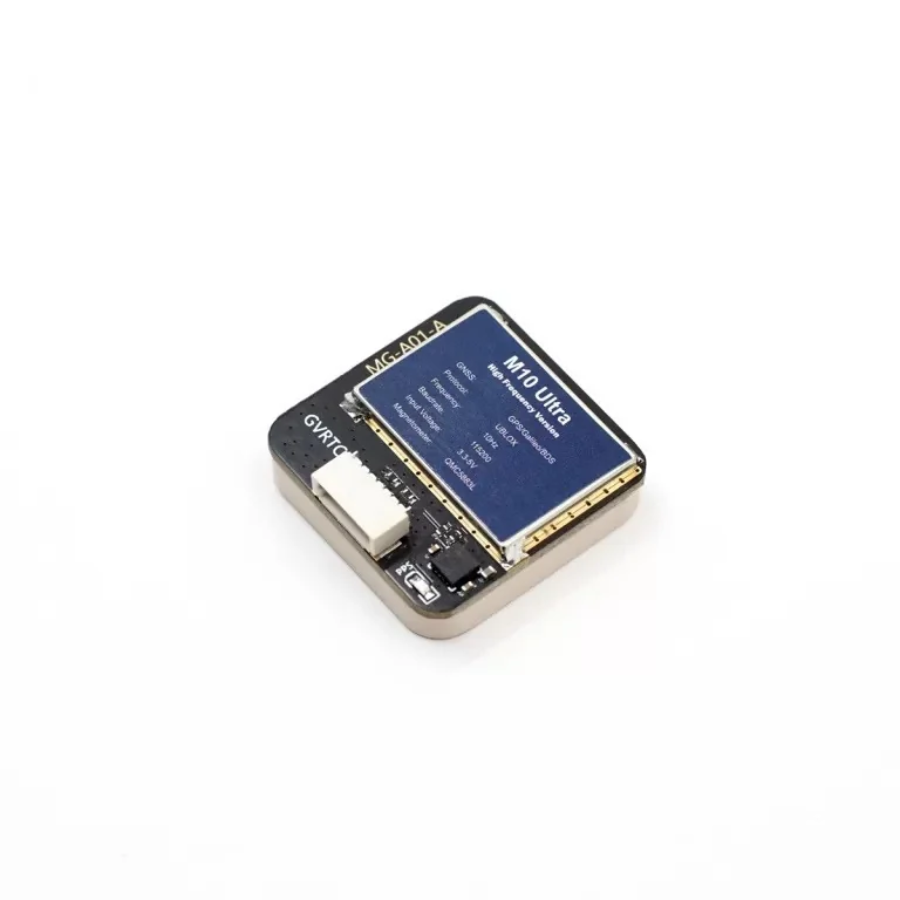

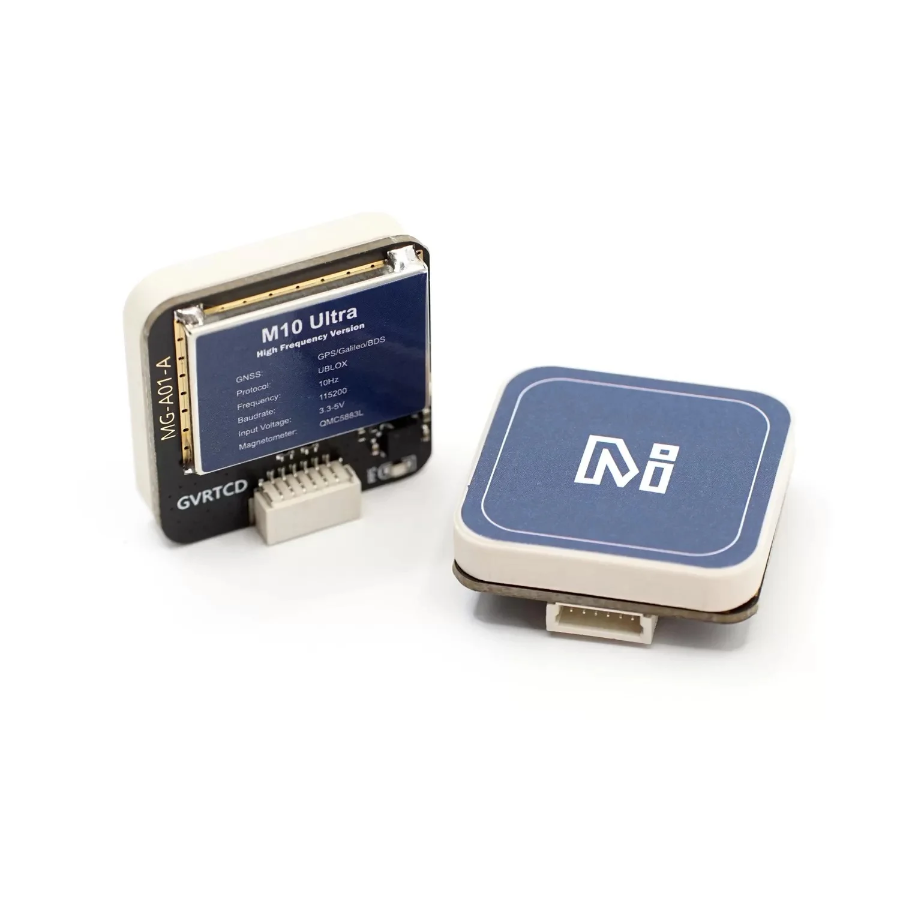

MicoAir MG-A01 (M10) GNSS GPS Module for UAV Drones

MicoAir MG-A01 (M10) GNSS GPS Module for UAV Drones

Description:

The MicoAir MG-A01  is a high-performance navigation module for modern drones. It features the advanced u-blox 10th generation M10050 receiver chip. This “Ultra” version runs at a higher frequency than standard chips. Because of this, it achieves a rapid 10Hz navigation update rate. You can track up to 32 satellites simultaneously for extreme precision. It is the perfect choice for pilots who refuse to compromise on speed. This module ensures your flight controller always has the most current data.

Key Features

This module includes a built-in QMC5883L magnetic compass for accurate heading. The MicoAir MG-A01 utilizes a large 25x25x4mm high-gain patch antenna. This antenna provides superior signal reception even in difficult environments. It supports all major L1 signals including GPS, GLONASS, Galileo, and BeiDou. Unlike standard M10 units, this Ultra version maintains a fast refresh rate. You do not need to disable satellite systems to keep performance high. It also features built-in flash memory to save your custom parameters.

Installation and Setup

The MicoAir MG-A01 is incredibly easy to integrate into your build. It uses a standard SH1.0-6P connector for quick wiring. The module is compatible with INAV, Betaflight, Ardupilot, and PX4 firmware. A blue PPS LED provides clear visual status of your 3D fix. It stays solid on power-up and blinks once a fix is achieved. The compact 25mm square size fits most standard GPS mounts. Furthermore, it includes a 3D-printed battery strap mount for immediate installation.

Reliability and Performance

Stability is a hallmark of the MicoAir MG-A01 GNSS system. It operates on a stable 5V input with low 30mA current draw. This efficiency helps preserve your drone’s battery life during long missions. The module provides a highly reliable UBX-PVT output protocol by default. It handles concurrent reception from four satellite systems when configured correctly. This creates a redundant and robust positioning web for your aircraft. Whether racing or exploring, this module delivers professional-grade results. Trust the M10 Ultra technology for your next mission.

• MG-A01(M10 Ultra) GNSS module integrates a special version of u-blox 10th generation receiver chip – M10050, which run with higher frequency than normal, and the magnetic sensor – QMC5883L. It supports all L1 GNSS signals (GPS/GLONASS/Galieo/BeiDou) and can use up to 32 satellites simultaneously for navigation.
• The high-gain 25 x 25 x 4mm patch antenna provides the best performance.
• Built-in flash, parameters can still be saved when module lost power.

Specifications

• GNSS Receiver: U-BLOX M10 (M10050)
• Magnetic Compass: QMC5883L
• Antenna:  25x25x4mm
• GNSS System Support: GPS L1 /CA; GLONASS L10F; BeiDou B1L/B1C; Galileo E1B/C; QZSS L1 C/A/S; SBAS L1 C/A
• Concurrent: 3 (GPS/BeiDou/Galileo(default) or GPS/GLONASS/Galileo), when Beidou B1L is turned off, it becomes possible to use 4 satellite systems at the same time: GPS+BeiDou(B1C)+GLONASS+Galileo
• Max Navigation rate: 10Hz
• Max satelite num: 32
• Input Voltage: 5V
• Current: 30mA
• Output Interface(GPS): UART (3.3V LVTTL)
• Interface(Compass): I2C
• UART Baudrate: 115200(default)
• Output Protocol: UBX-PVT(default)
• PPS LED: Blue (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)

Flight Controller Firmware Required

• INAV: >=5.0.0
• Betaflight: >=4.3.0
• Ardupilot: >=4.3.0
• PX4: >= 1.14.0

Physical

• Dimensions: 25 x 25 x 7.8 mm
• Weight: 12g
• Connector: SH1.0-6P 1.0mm pitch

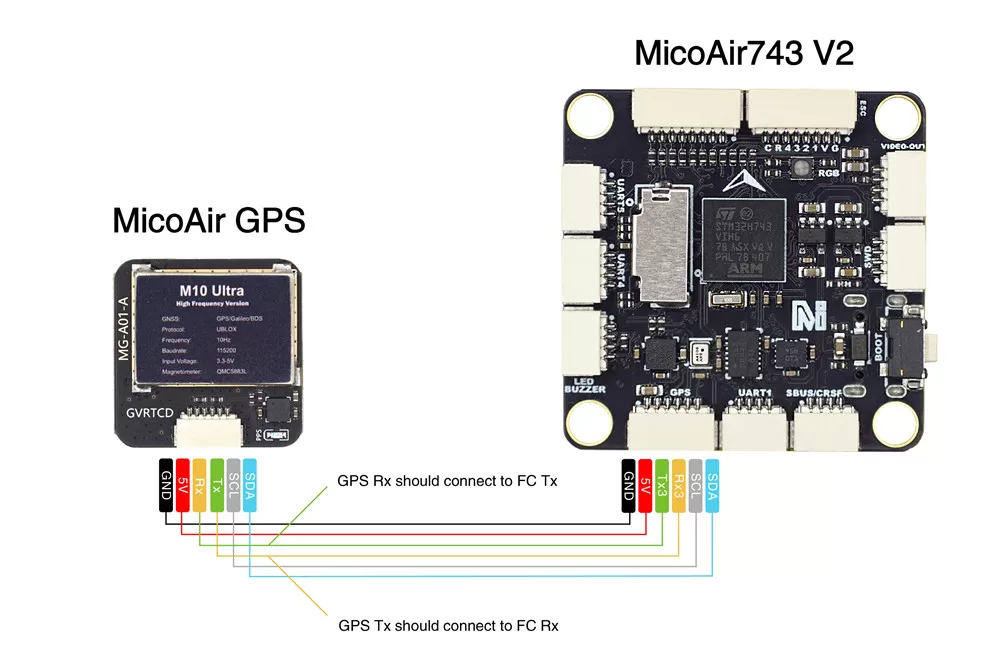

Wiring Diagram

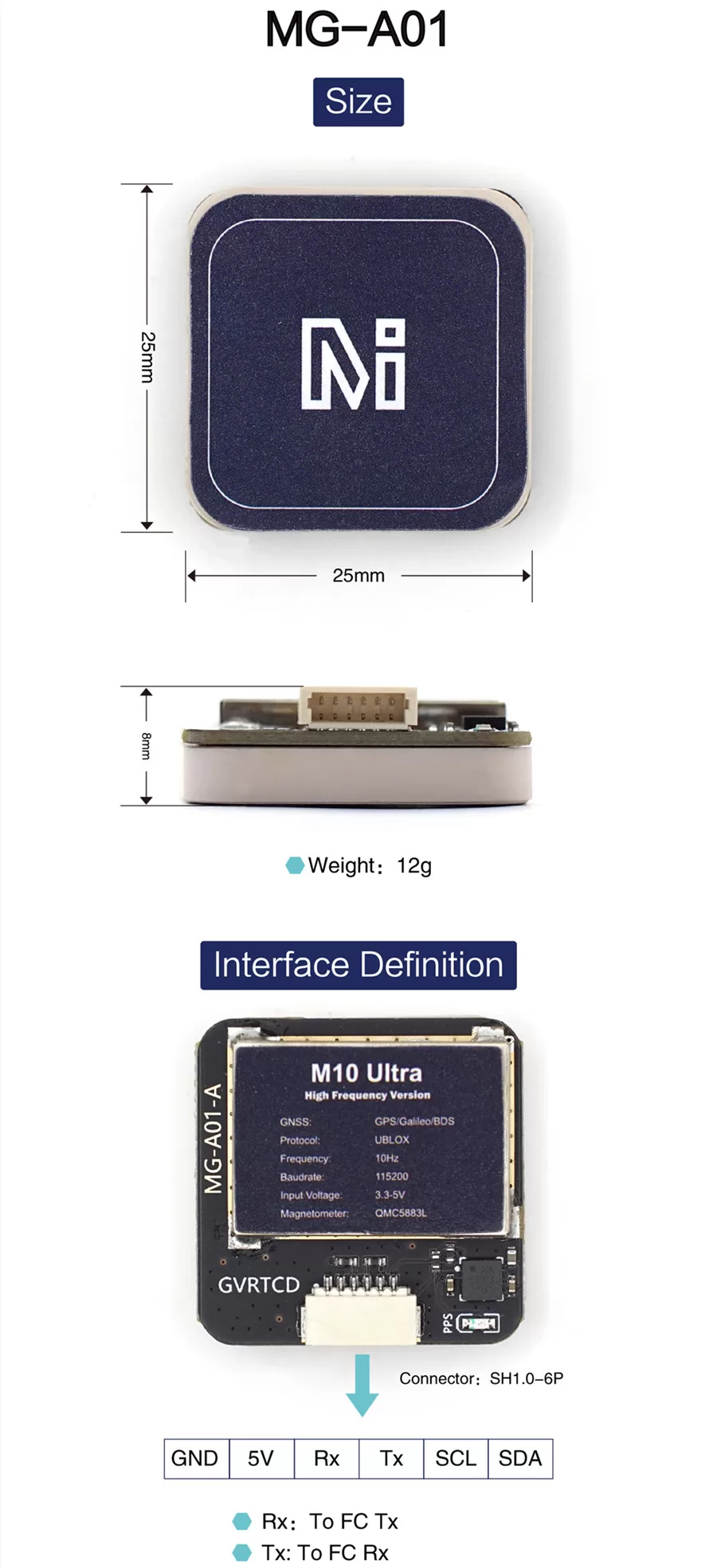

Interface Definition

Package Includes:

1xMicoAir MG-A01 (M10) GNSS GPS Module for UAV Drones
