Looking for F9p Rover 27 Cm? Holybro DroneCAN H-RTK F9P Rover 27 Cm is available at Zbotic with fast shipping across India.
The DroneCAN H-RTK F9P represents the cutting-edge in differential high-precision GNSS positioning systems, utilizing the DroneCAN protocol for communication. It offers multi-band RTK with swift convergence times and dependable performance, simultaneous reception of GPS, GLONASS, Galileo, and BeiDou signals, and a rapid update rate suitable for dynamic, high-volume applications requiring centimeter-level accuracy.
The system’s integration of the DroneCAN Protocol ensures up to an 8 Hz navigation update rate, enhanced upgradeability, noise immunity, and real-time capabilities, surpassing UART in robustness due to its superior resistance to electromagnetic interference. It also frees up serial ports on the flight controller, as multiple CAN devices can connect to a single CAN bus through a hub.
Featuring a u-blox ZED-F9P module, a BMM150 compass, and a tri-colored LED indicator, the DroneCAN-F9P is powered by an STM32G4 processor that operates at 170 MHz, with 512 KByte Flash and 96KByte RAM. It supports firmware upgrades via the DroneCAN GUI Tool and is compatible with the Pixhawk series of open-source flight controllers.
Features:
- The Rover model has a flatter profile and stronger water resistance.
- It uses a dual-band patch antenna and comes with an integrated cable to connect to the CAN bus.
- It excels in spaces where there are few obstructions.
- Built with durable materials to withstand rugged conditions and ensure long-term reliability.
specification
| Model | DroneCAN H-RTK F9P Rover |
|---|---|
| Working Voltage | 4.75V~5.25V |
| Current Consumption (mA) | ~250 |
| Processor | STM32G473 |
| Cable Length (cm) | 27 |
| Receiver | U-blox ZED-F9P high precision GNSS module |
| Antenna Type | Ceramic Patch Antenna with 20dB LNA |
| Magnetometer | BMM150 or IST8310 |
| GNSS | BeiDou, Galileo, GLONASS, GPS / QZSS |
| GNSS Bands | B1I, B2I, E1B/C, E5b, L1C/A, L1OF, L2C, L2OF |
| Positioning Accuracy (°) | 3D FIX: 1.5 m / RTK: 0.01 m |
| Communication Protocol | DroneCAN 1Mbit/s |
| Antennas Peak Gain | L1: 4.0dBi, L2:1.0 dBi |
| Time-TO-First Fix | Cold start: ≤29s, Hot start: ≤1s |
| Navigation Update Rate | RAW: 20Hz Max RTK: 8Hz Max |
| Diameter (mm): | 80 |

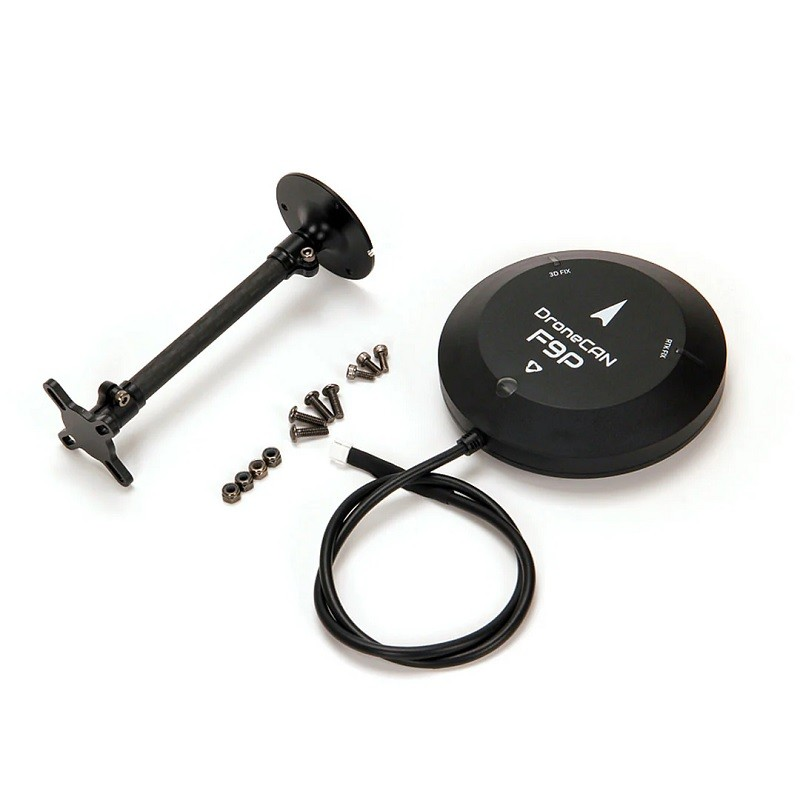

Package Includes:
1 x Holybro DroneCAN H-RTK F9P Rover 27 Cm

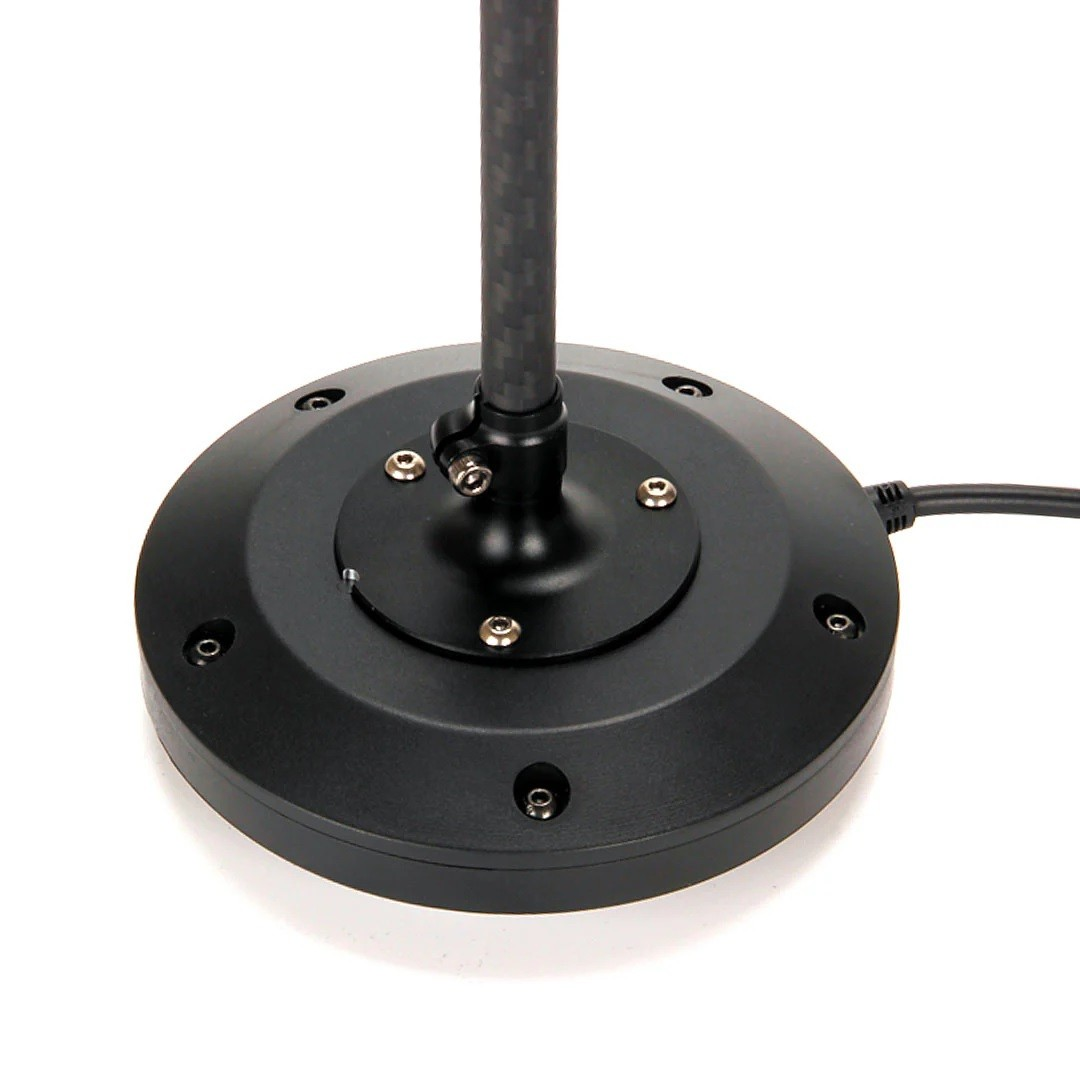

1 x Fixed Carbon Fiber GPS mount

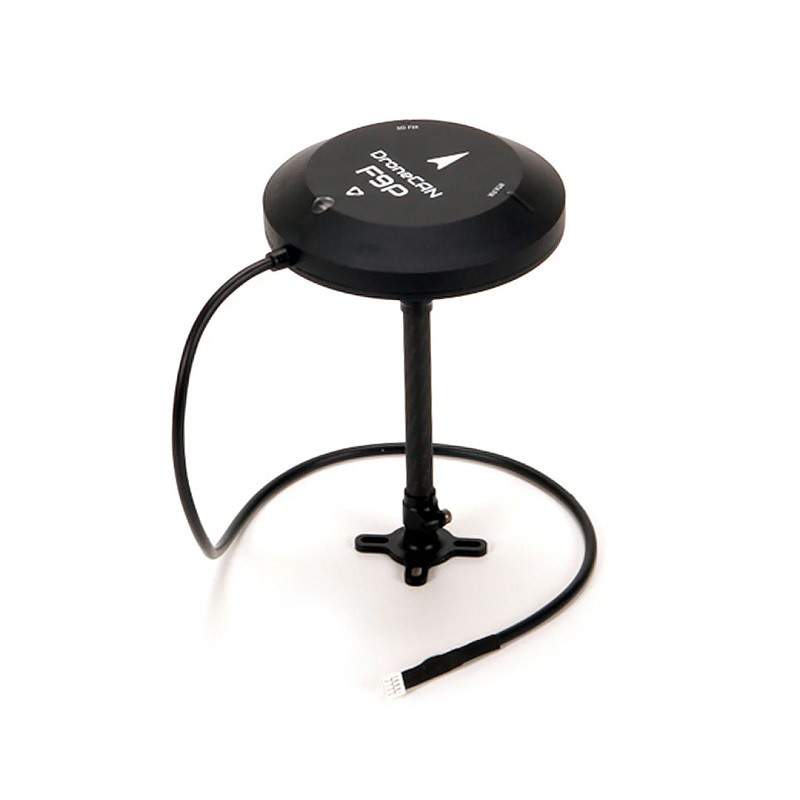

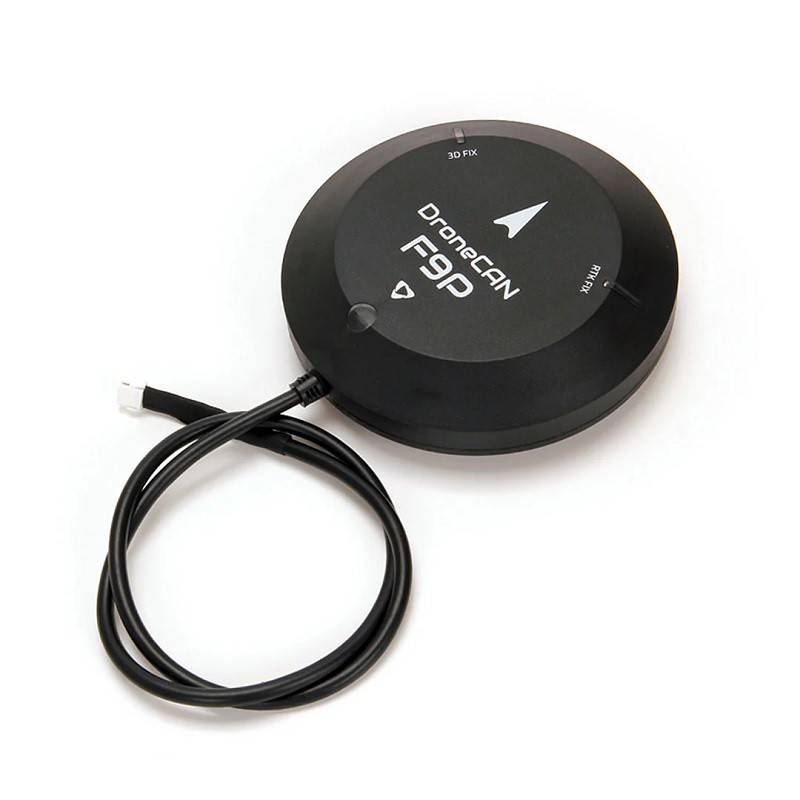

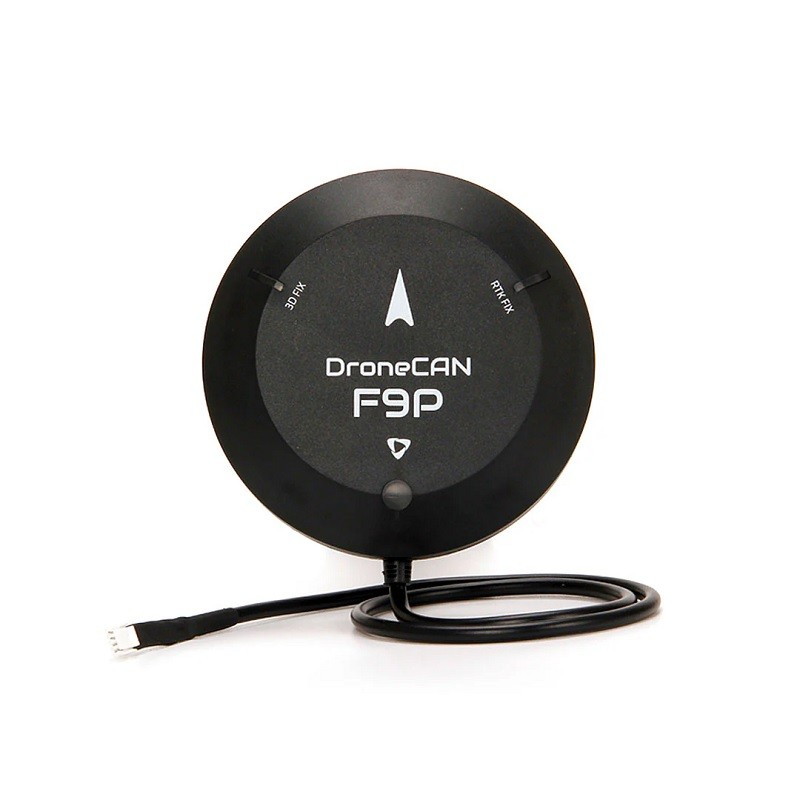

Holybro DroneCAN H-RTK F9P Rover 27 Cm Overview
The Holybro DroneCAN H-RTK F9P Rover 27 Cm is a compact, high-precision GNSS rover module designed for centimeter-level positioning in UAVs, robotics and surveying platforms. It combines the u-blox F9P multi-band RTK receiver with the robust DroneCAN protocol to deliver rapid convergence and reliable real-time location data.
Key Features of Holybro DroneCAN H-RTK F9P Rover 27 Cm
- Multi-band RTK GNSS supporting GPS, GLONASS, Galileo, BeiDou and QZSS for fast, reliable fixes
- Integrated ceramic patch antenna with 20 dB LNA for improved signal strength
- DroneCAN interface delivers up to 8 Hz navigation updates with strong EMI immunity
- Powered by STM32G473 MCU; operates at 4.75 V–5.25 V, drawing ~250 mA
- Onboard BMM150 or IST8310 magnetometer for accurate heading information
- 27 cm cable length allows flexible antenna placement on compact vehicles
- Fast shipping across India from Zbotic
Applications and Use Cases
- Precision drone surveying and mapping where centimeter accuracy is critical
- Autonomous ground vehicles requiring real-time kinematic positioning
- Agricultural drones performing field coverage with RTK-based flight paths
- Mobile robotics navigation in GPS-challenged or EMI-intense environments
- Geotagging camera rigs for photogrammetry and 3D reconstruction
- Construction site monitoring with automated stakeout and layout tasks
How to Use Holybro DroneCAN H-RTK F9P Rover 27 Cm
Mount the ceramic patch antenna clear of obstructions using the 27 cm cable, then connect the Rover to your DroneCAN bus and a 5 V supply. Configure your autopilot or companion computer to recognize the DroneCAN device, calibrate the onboard magnetometer, and initiate the RTK base-rover link. Once the Rover locks on multiple satellite constellations, you’ll start receiving centimeter-level position updates at up to 8 Hz.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What update rate can I achieve with the DroneCAN H-RTK F9P Rover?
You can achieve up to an 8 Hz navigation update rate over DroneCAN, providing smooth and timely RTK position fixes for dynamic UAV and robotics applications.
Which satellite constellations are supported by this Rover?
The unit simultaneously tracks GPS, GLONASS, Galileo, BeiDou and QZSS signals, enabling faster RTK convergence and robust performance in varied geographic regions.
How should I position the antenna for optimal performance?
Use the 27 cm cable to place the ceramic patch antenna in an open, horizontal orientation with a clear view of the sky. Secure it using standard GNSS mounts to minimize multipath and ensure strong signal reception.
Drone Weight Optimization: Every Gram Counts in FPV
Table of Contents Understanding Drone Weight Optimization Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Toothpick Drone Build: Ultralight Outdoor FPV
Table of Contents Understanding Toothpick Drone Build Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Betaflight Configuration: Complete Setup Guide for FPV
Table of Contents What is Betaflight and Why It Matters Installing Betaflight Configurator First-Time Firmware Flashing Ports and...
Read More →Technical Specifications
| Brand | Holybro |
|---|---|
| Interface / Protocol | CAN |
| SKU | AI6050 |
| Weight | 0.26 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Holybro DroneCAN H-RTK F9P Rover 27 Cm is a versatile gps modules used across a wide range of applications including drone navigation, asset tracking, fleet management, precision agriculture, and hiking/outdoor gadgets.
Common use cases:
- Adding GPS waypoint navigation to a drone
- Building a vehicle tracker
- Precision positioning for surveying
This product is ideal for drone builders, fleet managers, and outdoor electronics developers.
Technical Tip: Multi-constellation receivers (GPS + GLONASS + BeiDou) provide faster and more accurate fixes. RTK modules offer centimeter-level precision.
