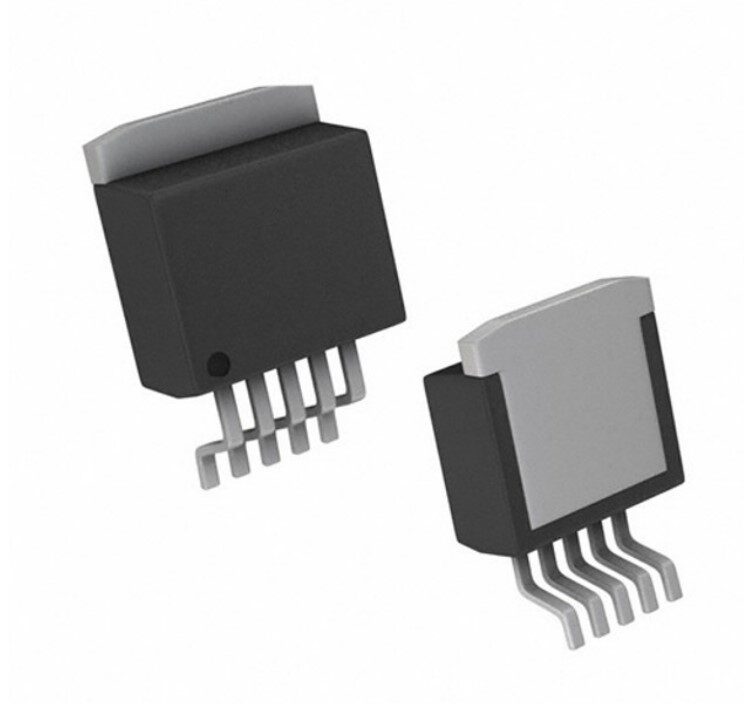

Looking for Mic29302wu Regulator? MIC29302WU – 3A Adjustable Output LDO Linear Voltage Regulator 5-Pin TO-263 is available at Zbotic with fast shipping across India.
- Case/Package: TO-263
- Mount: Surface Mount
- Number of Pins: 5
- Accuracy: 1 %
- Dropout Voltage: 370 mV
- Input Bias Current: 40 nA
- Max Input Voltage: 26 V
- Max Operating Temperature: 125 C
- Max Output Current: 3 A
- Max Output Voltage: 25 V
- Min Input Voltage: 2.5 V
- Min Operating Temperature: -40 C
- Min Output Voltage: 1.27 V
- Number of Outputs: 1
- Number of Regulators: 1
- Output Current: 3 A
- Output Type: Adjustable
- Output Voltage: 26 V
- Output Voltage Accuracy: 1 %
- Polarity: Positive
- Quiescent Current: 35 mA
- Reference Voltage: 1.24 V
- Height: 4.59 mm
- Length: 10.67 mm
- Width: 9.17 mm
- Lead Free: Lead Free
Package Includes
1 x MIC29302WU – 3A Adjustable Output LDO Linear Voltage Regulator 5-Pin TO-263
MIC29302WU – 3A Adjustable Output LDO Linear Voltage Overview
The MIC29302WU is a high-current, low-dropout linear regulator housed in a 5-pin TO-263 surface-mount package. It delivers up to 3 A of adjustable output with 1% accuracy, making it ideal for applications requiring precise voltage regulation and minimal noise.
Key Features of MIC29302WU – 3A Adjustable Output LDO Linear Voltage
- Up to 3 A continuous output current at a dropout voltage as low as 370 mV for efficient power delivery
- Adjustable output range from 1.27 V to 25 V with 1% accuracy for precise system control
- Wide input voltage span from 2.5 V to 26 V to support diverse supply rails
- Extremely low input bias current of 40 nA and operating temperature from –40 °C to 125 °C for reliability in harsh environments
- Compact TO-263 surface-mount package simplifies PCB layout and enhances thermal performance
- Genuine MIC29302WU units in stock at Zbotic.in with fast shipping across India
Applications and Use Cases
- Powering microcontroller and FPGA boards in industrial automation where low dropout is critical
- Point-of-load voltage regulation for telecommunications and networking equipment
- On-board power management in 3D printers, CNC machines, and robotics requiring stable drive voltages
- Portable medical and instrumentation devices that demand precise voltage rails
- Low-noise power supply for audio amplifiers and RF communication modules
How to Use MIC29302WU – 3A Adjustable Output LDO Linear Voltage
Solder the MIC29302WU onto a PCB using the TO-263 footprint, then program its output by selecting an external resistor divider between the VOUT, ADJ, and ground pins. Place recommended low-ESR input and output capacitors close to the regulator to ensure stability, and apply an input voltage between 2.5 V and 26 V to begin regulation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the dropout voltage of the MIC29302WU under full load?
The dropout voltage is typically 370 mV when sourcing the maximum 3 A output, ensuring minimal voltage drop across the regulator.
Can I adjust the output above 5 V?
Yes. By choosing appropriate resistor values in the external feedback divider, the MIC29302WU can be programmed to provide any voltage from 1.27 V up to 25 V.
Do I need external capacitors with this regulator?
Yes. For stable operation, place a low-ESR input capacitor (for example, 10 µF) near the VIN pin and an output capacitor (such as 22 µF) between VOUT and ADJ as specified in the datasheet.
Technical Specifications
| Model | MIC29302WU |
|---|---|
| Current Rating | 3A |
| Pin Count | 5-pin |
| Interface / Protocol | BLE |
| SKU | AI1042 |
| Weight | 0.002 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MIC29302WU - 3A Adjustable Output LDO Linear Voltage Regulator 5-Pin TO-263 is a versatile voltage regulator ics used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
