Description:

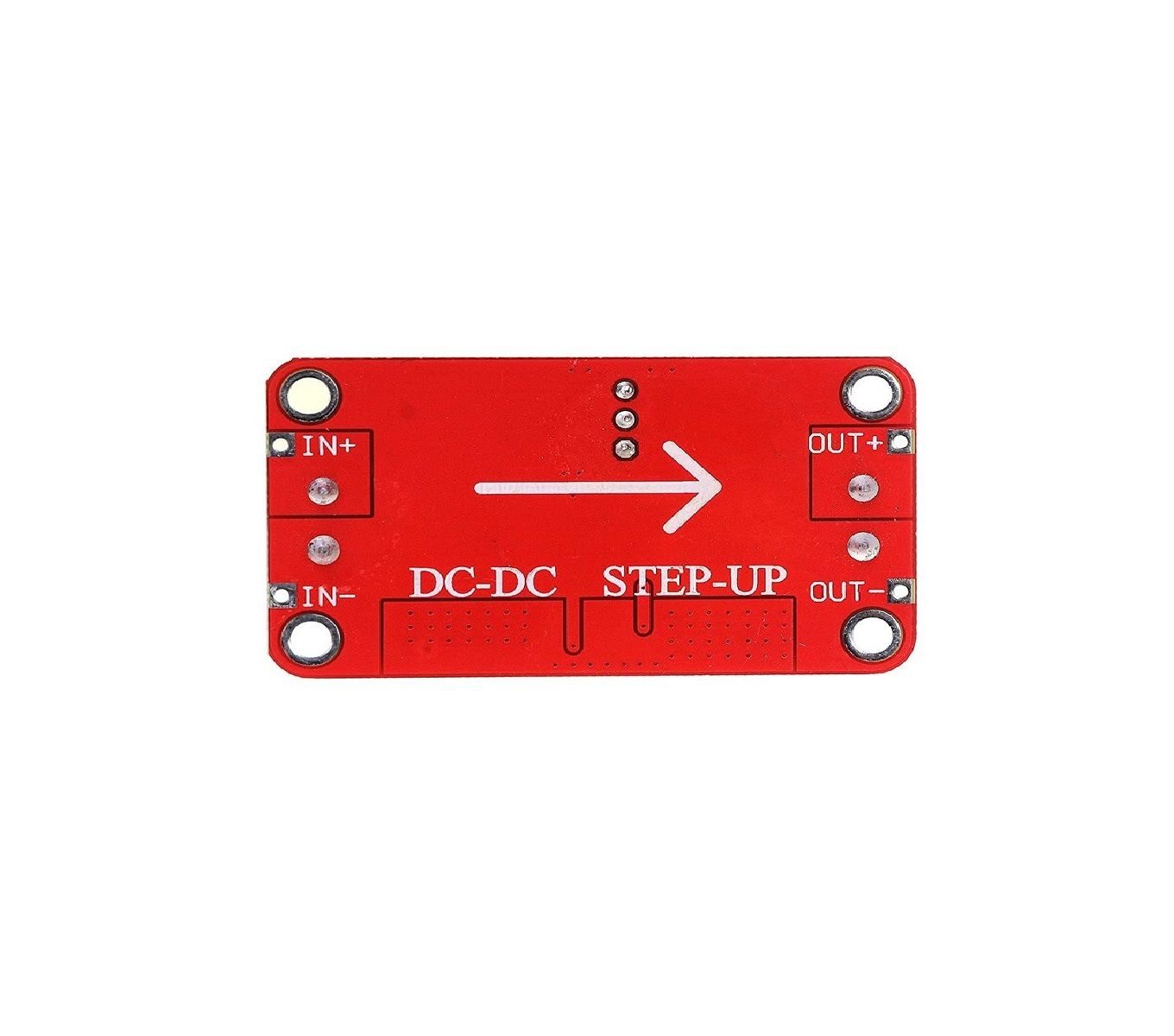

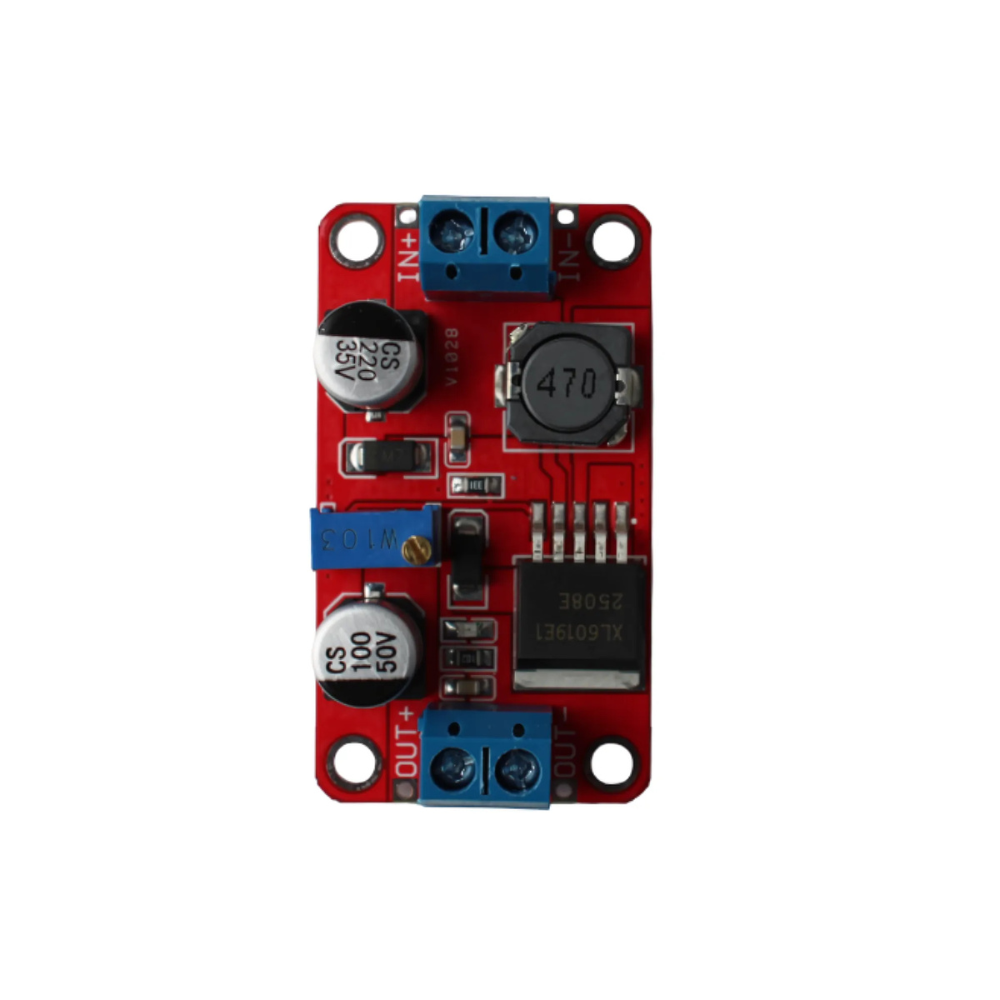

XL6019 DC-DC 5A Adjustable Boost Power Supply Module
The Boost module is a stripped down renderer and a set of data handling modifications for High charts. It bypasses some of the standard High charts features, applies some trade-offs and focuses on handling and rendering as many data points as possible as quickly as possible
The boost is a popular non-isolated power stage topology, sometimes called a step-up power stage. Power supply designers choose the boost power stage because the required output voltage is always higher than the input voltage, is the same polarity, and is not isolated from the input.
DC to DC step up module based on the upgraded XL-Semi XL-6019, offering up to 5A switching current and conversion efficiency of up to 97%.
Features:
- With reverse connect protection, output 5V / 12V / 24V adjustable, beyond LM2577 performance. The built-in thermal protection, over-current protection reliability.
- Wide input voltage range, the input voltage up to 35V.
- Adjustable output voltage, maximum support 40V.
- The built-in thermal protection, over-current protection full reliability protection circuit, high reliability.
- System conversion efficiency can achieve 90% above, convenient thermal design.
- TO263-5 l standard packaging, suitable for booster application within 30W.
Specifications:
| Model | XL6019 |
|---|---|
| Product Type | Adjustable Boost Power Supply Module |
| Input Current | 5A (MAX) |
| Input Voltage | DC 3-35 V Switching |
| Working temperature | Industrial (-40 ° C to + 85 ° C) |
| Negative Voltage | DC 5-40V (Adjustable) |
| Frequency Range | 220 kHZ |
| Output ripple | 100mv (MAX) |
| Voltage Regulation | ± 0.5% MS + -> Positive; IN —> Negative; OUT + -> Positive; OUT —> |
| Packages Includes | 1 pc XL6019 |
| Boost Module size | Approx 50 * 28 * 13mm (L * W * H) |
| Load Regulations | ± 0.5% |
| Conversion efficiency | 94% (MAX) |
Package Includes:
- 1 x XL6019 DC-DC 5A Adjustable Boost Power Supply Module
Technical Specifications
| Model | XL6019 |
|---|---|
| Current Rating | 5A |
| Interface / Protocol | BLE |
| SKU | AI1109 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The XL6019 DC-DC 5A Adjustable Boost Power Supply Module is a versatile boost converter used across a wide range of applications including voltage step-up for electronics, battery-powered LED drivers, USB power banks, and low-voltage to high-voltage conversion.
Common use cases:
- Boosting 3.7V LiPo to 5V for USB output
- Driving 12V LED strips from a 5V source
- Building a portable power bank
This product is ideal for power electronics designers and DIY enthusiasts.
Technical Tip: Boost converters increase voltage at the cost of reduced current capacity. Total power (W) remains roughly constant minus efficiency losses.
