Product Description

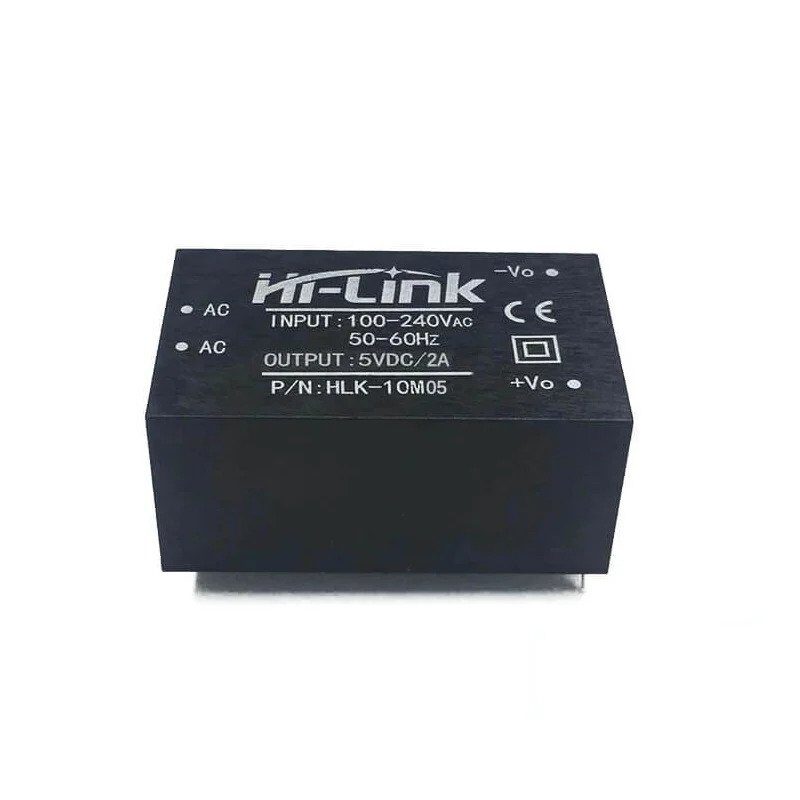

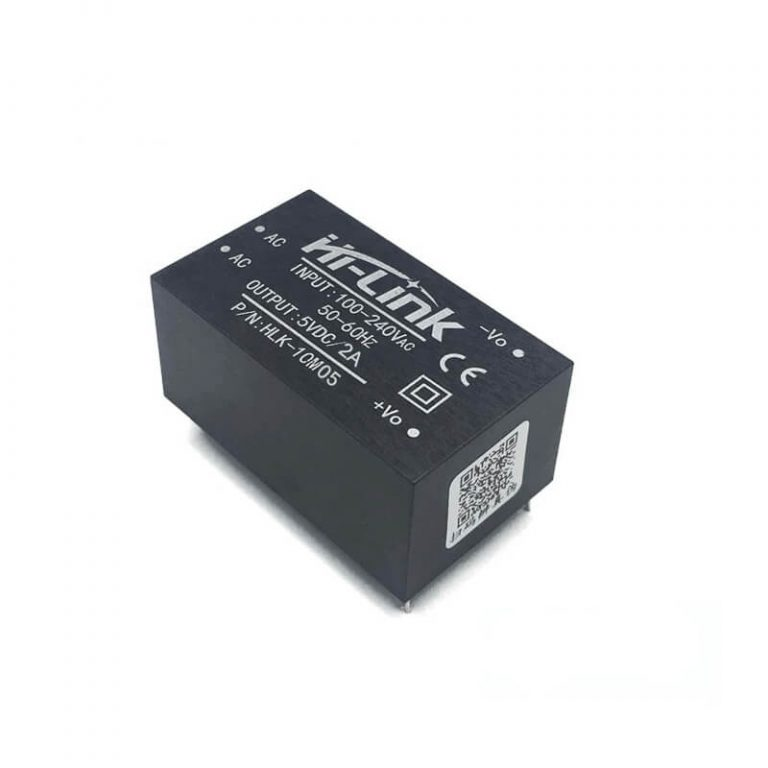

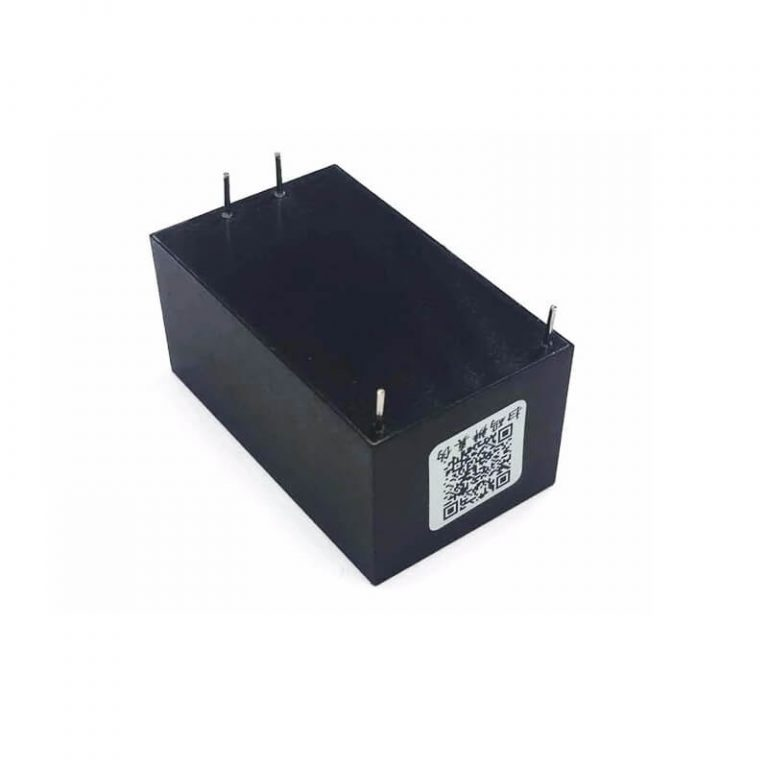

The HLK-10M05 5V/10W Switch Power Supply Module is an isolated switching step-down power supply module that can be mounted on a PCB. It converts 100V AC – 240V AC to 5V DC and has a power rating of 10 Watt. This is ideal for small projects that require a 5 volt supply from mains. The module has many benefits, such as low temperature rise, low power consumption, high efficiency, high reliability, and high-security isolation.
The 10W ultra-small series power supply module is a compact and efficient power module designed by Hi-Link for customers. It can work with a global input range and has low temperature rise, low power consumption, high efficiency, and high reliability. It is widely used in smart homes, automation control, and other fields.
This Power Supply Module is a switching source that can handle voltage grid fluctuations. It is designed to be mounted on the PCB and provides a convenient solution for powering pads that you take. It has applications in smart homes, automation and control, communication equipment, instrumentation, and other industries.
Specifications
Model Number | HLK-10M05 |
Output Power(W) | 10 |
Output Type | Single |
Input Voltage(V) | 100-240 |
Output Voltage(V) | 5 |
Output Current(mA) | 2000 |
Working Temp(C) | -25 – +60 |
Working Humidity | 5-95 |
Features
- Meet UL, CE requirements,
- Ultra-thin, ultra-small
- All voltage input (AC: 100 ~ 240V)
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- The product is designed to meet the requirements of the EMC and Safety Test
- Low power consumption, environmental protection, no-load loss <0.1W
Environmental conditions:
- Technical indicators: Single bit
- Working temperature: – 20-60 +degree
- Storage temperature: + 80-40 -degree
- Relative humidity: 5-95%
- The cooling way: Natural cooling
- The atmospheric pressure: 80-106Kpa
- The altitude: 2000M or less.
Package Includes
- 1 x HLK-10M05 5V/10W Switch Power Supply Module
