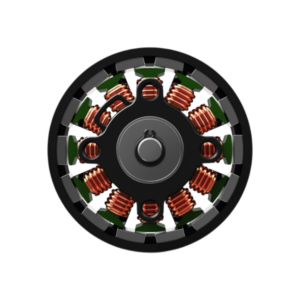

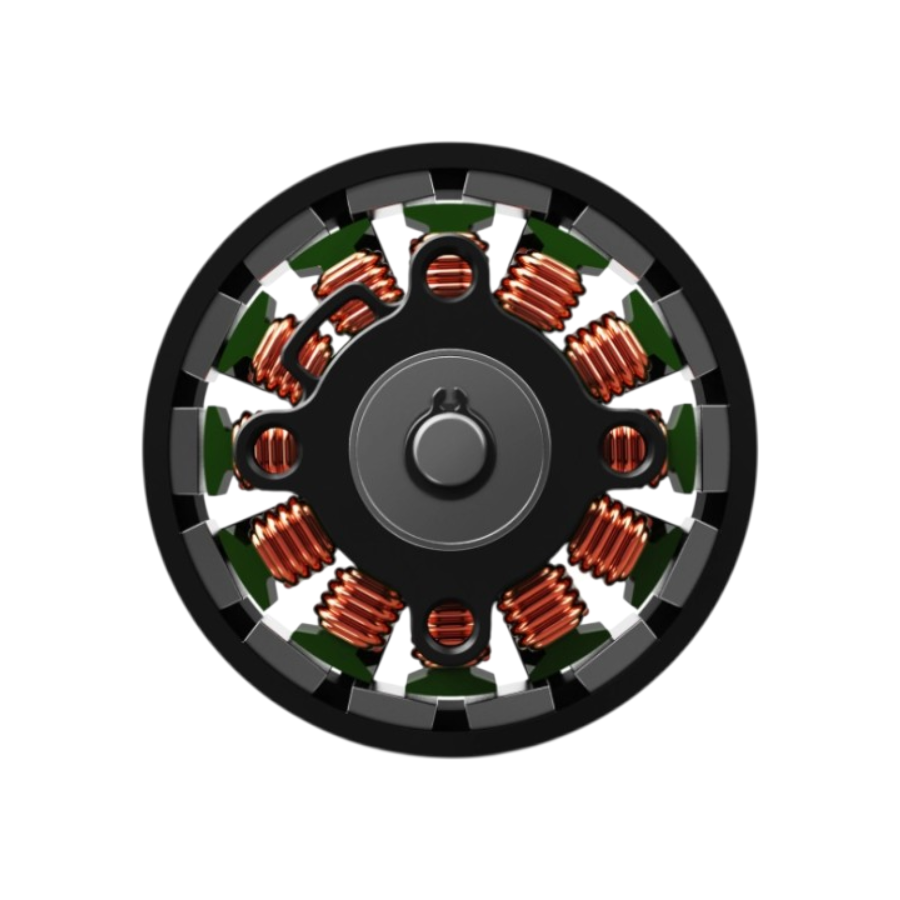

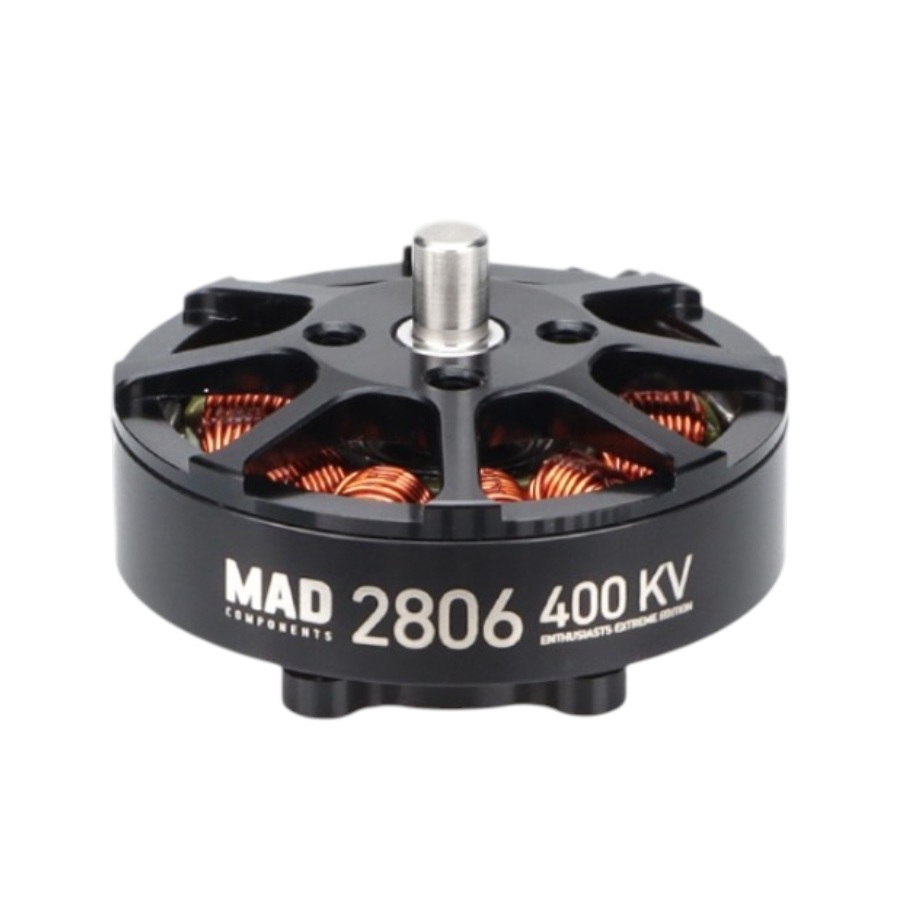

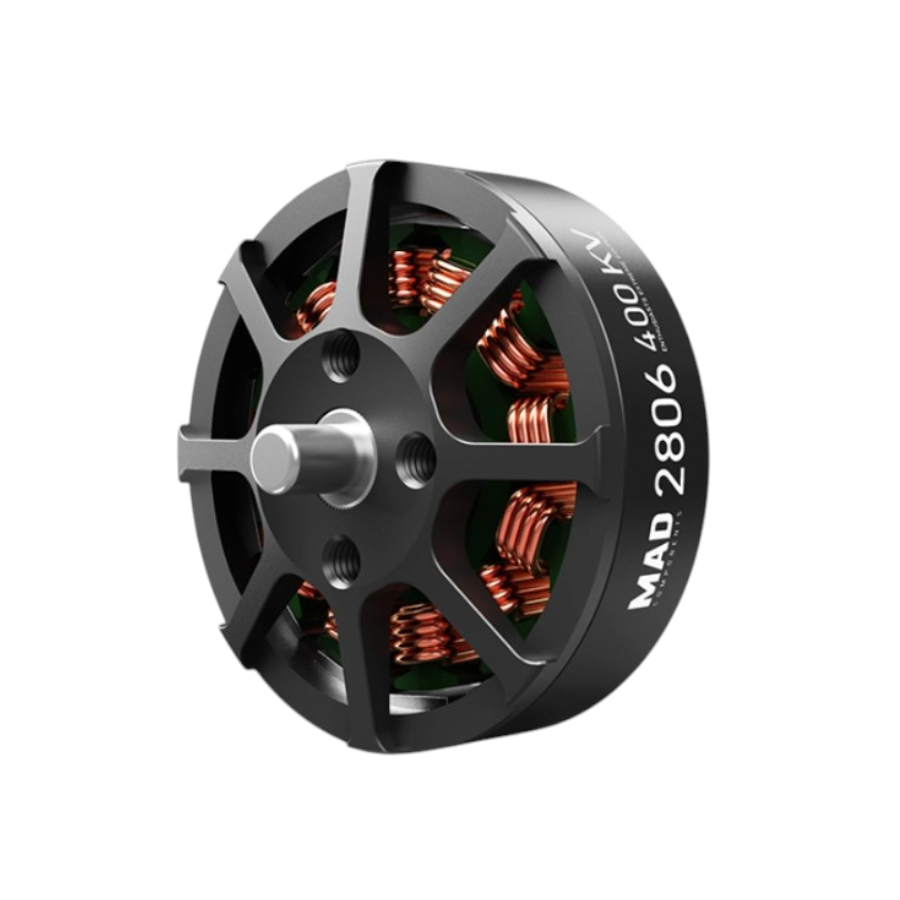

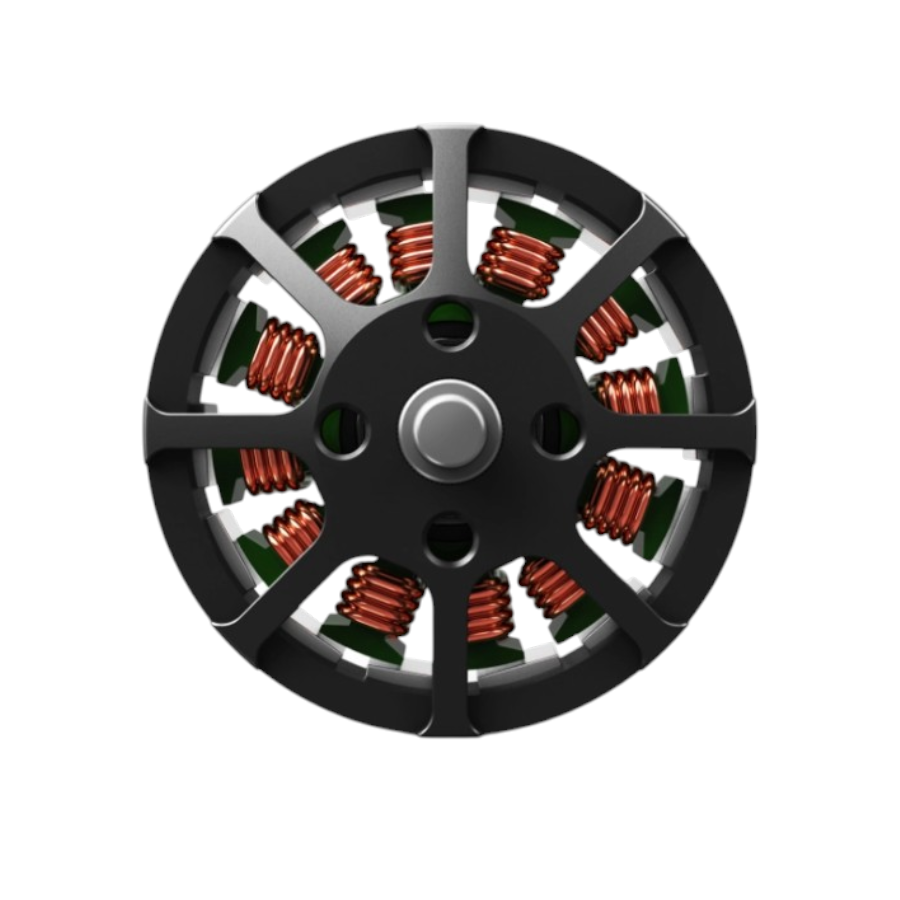

MAD 2806 EEE Drone Motor 400KV (Pack Of 4)
Description:
The MAD 2806 EEE Drone Motor 400KV is engineered for drone enthusiasts who demand both performance and efficiency. Weighing only 44g, this motor is tailored for lightweight UAVs, offering smooth flight dynamics and reliable hovering thrust between 300–400g. With a maximum thrust of 1.1kg, it’s ideal for quadcopters used in training, mapping, or endurance flights.
Designed with high-temperature resistance up to 45°C, an internal resistance of 597mΩ, and a low no-load current of 0.22A, this motor ensures long flight durations with reduced power loss. Optimized for 12×4.0 to 13×4.4 props and supporting 2–6S LiPo batteries, it provides exceptional flexibility for builders and tinkerers alike. The motor delivers over 74% efficiency, aided by precision EZO bearings and rugged construction that supports rainproof operations.
Dimensional Diagram:
Features:
- Passed 500V insulation test
- 50 mm extended enameled cable
- 400KV rating for smooth throttle response
- Efficient thrust: 300–400g hover, 1.1kg max
- Supports 2S to 6S LiPo batteries
- Rainproof and durable construction
- Precision EZO 694ZZ bearings for smooth rotation
- Compatible with 12×4.0 and 13×4.4 propellers
- Operates efficiently at up to 45°C
Specifications:
| Motor KV (RPM/V): | 400KV |
|---|---|
| Motor Type: | Brushless Outrunner |
| Model No: | 2806 |
| Model: | MAD 2806 EEE |
| Compatible LiPO Batteries: | 6S (22.2V) |
| Framework | 2806 |
| Shaft Diameter (mm): | 4 |
| Motor Outer Diameter(mm) | 35 |
| Max. Efficiency Current (A) | 20 to 30 |
| Max. Power (W) | ~850 |
| Maximum Thrust (gm) | Up to 1700g (with 8″ props on 6S) |
| No-load current (A) | 0.22 @ 20V |
| No-Load Current (mA) | 220 |
| Operating Temperature (°C): | Max 45°C |
| Motor Size (mm): | D:35 × 19.8 |
| Weight (g): | 44(Each) |

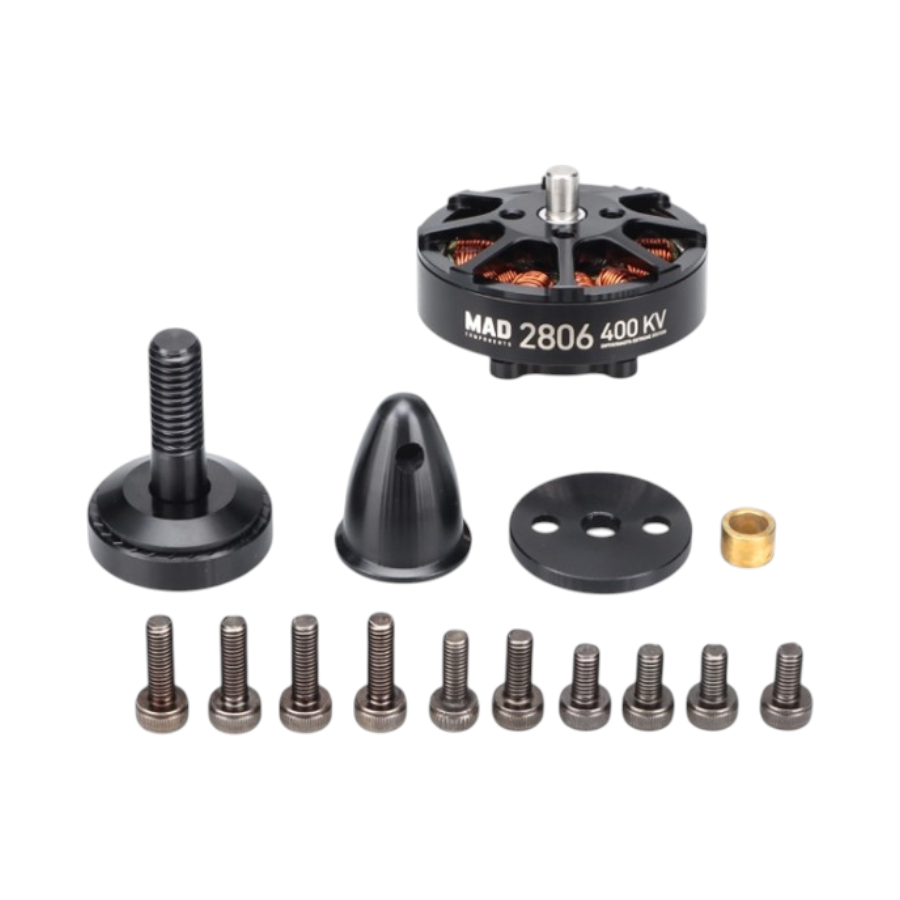

Package Includes:
4 x MAD 2806 EEE Drone Motor 400KV
1 x Accessory Set
How to Solder Drone ESC and Motors: Beginner Tutorial
How to Solder Drone ESC and Motors: Beginner Tutorial Soldering is the single most important skill you will...
Read More →
FPV Drone Tuning Rates and Filters: Betaflight PID Guide
Table of Contents What Is PID Control in FPV Drones? Betaflight PID Terms: P, I, D, F Explained...
Read More →
Servo PWM Frequency: 50Hz vs 333Hz vs 1kHz — Trade-offs Explained
PWM frequency is one of the most frequently misunderstood aspects of servo motor control. Most beginners set their...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 400KV |
| Package Quantity | 4 pcs |
| SKU | AI8079 |
| Weight | 0.45 kg |
| Availability | In Stock |
Applications & Use Cases
The MAD 2806 EEE Drone Motor 400KV (Pack Of 4) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
