The GT2205 2300KV Brushless DC Motor – Silver Cap (CCW Motor Rotation) is a high-quality multirotor motor with an attractive and sturdy design.
The motor runs very smoothly and has precise tolerances. It also features a strong c-clip for reliable operation.
The GT2205 2300KV Brushless DC Motor uses curved high-temperature N52 magnets and quality proven bearings to enhance its performance. This motor works well with premium orange 3S-4S Li-Po batteries, ESCs of 40-60A, and 5 inch orange propellers.
The only drawback of this motor is its poor self-cooling technology. It lacks exposed fins that are essential for cooling purposes.
We have tested the GT2205 2300KV BLDC motor and found it to be very capable. We are confident that it will meet the needs of serious makers and drone racers everywhere.
Features:
- The build quality on these is really top-notch.
- The motor is extremely smooth.
- The motor weighs around 35 grams.
- The use of a very strong c-clip makes the motor durable.
- Thin, wide, and curved magnets for unique flight characteristics.
specification-
Max. Efficiency Current | 30 A |
---|---|
Maximum Efficiency | >81% |
Internal Resistance(mΩ) | 65 |
LiPO Batteries | 3 ~ 4 Cell |
ESC | 40 ~ 60 A |
Propeller | 5 inch |
Shaft Diameter (mm) | 4 |
Weight (gm) | 35 |
Shipping Weight | 0.037 kg |
Shipping Dimensions | 3 × 3 × 4 cm |
Package Includes:

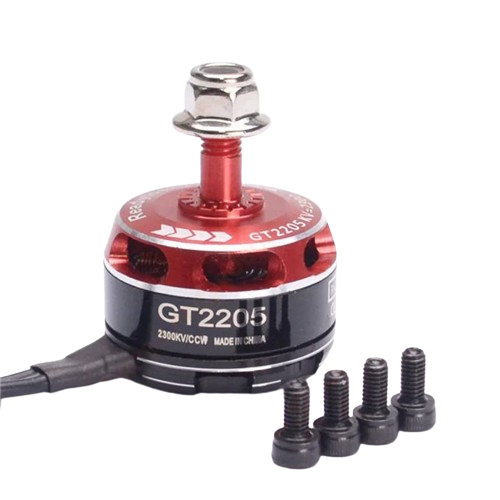

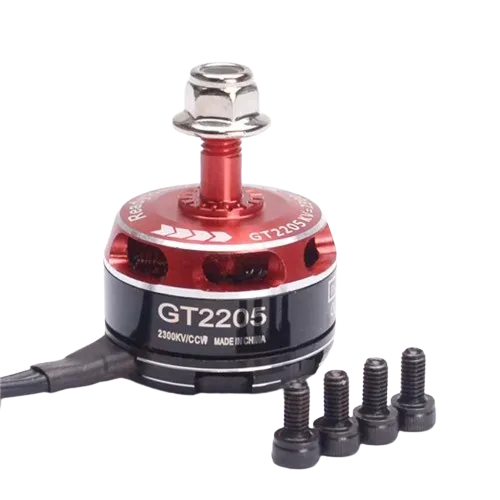

1 x GT2205 2300KV Brushless Motor.
4 x Socket Head Cap (Allen) Bolts for motor fitting.
