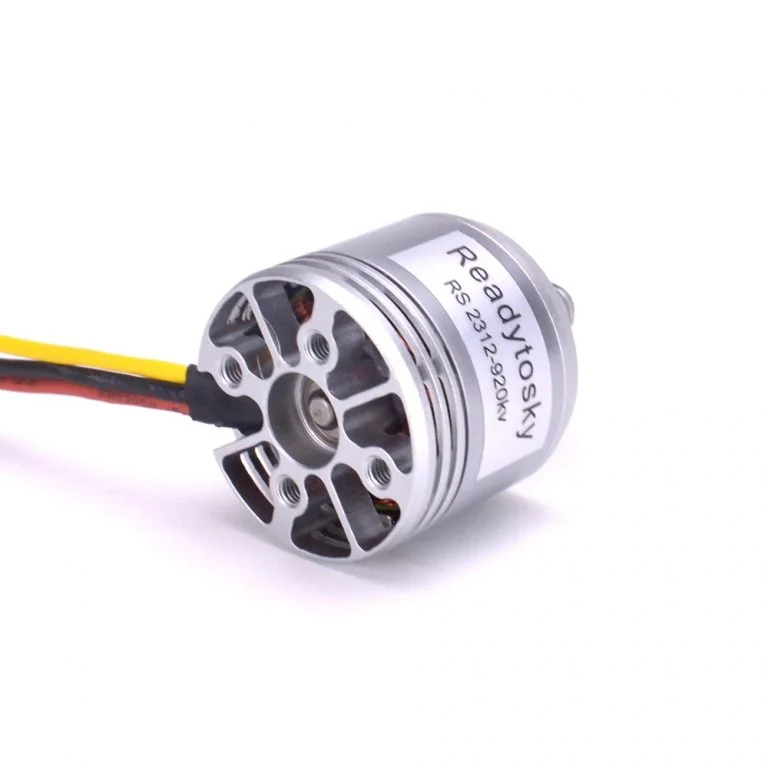

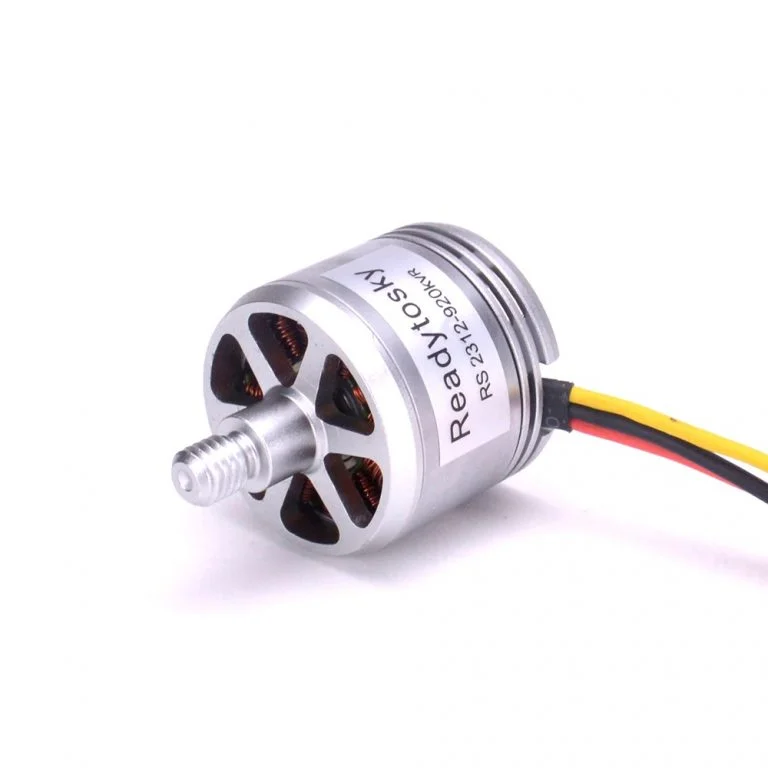

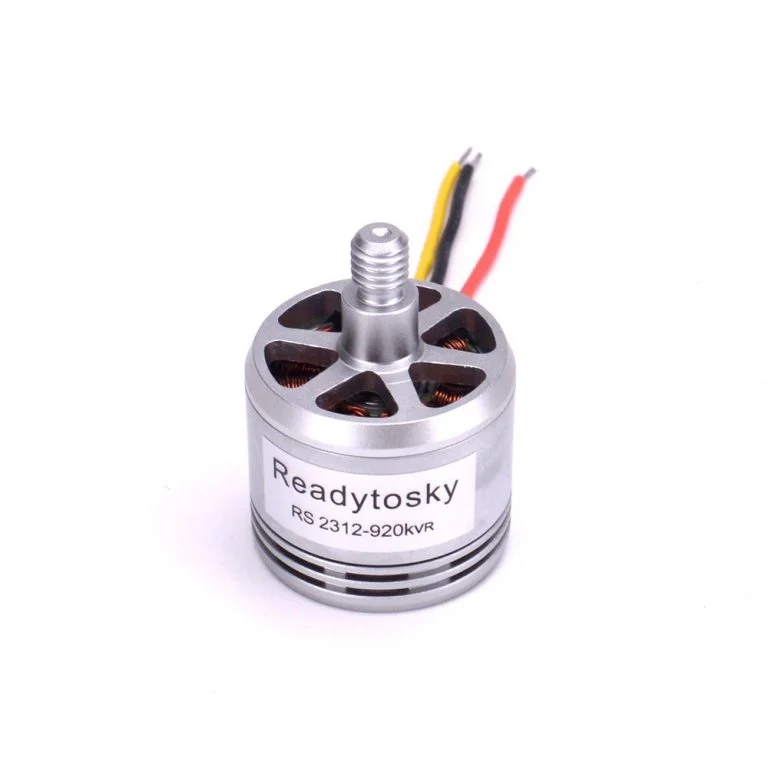

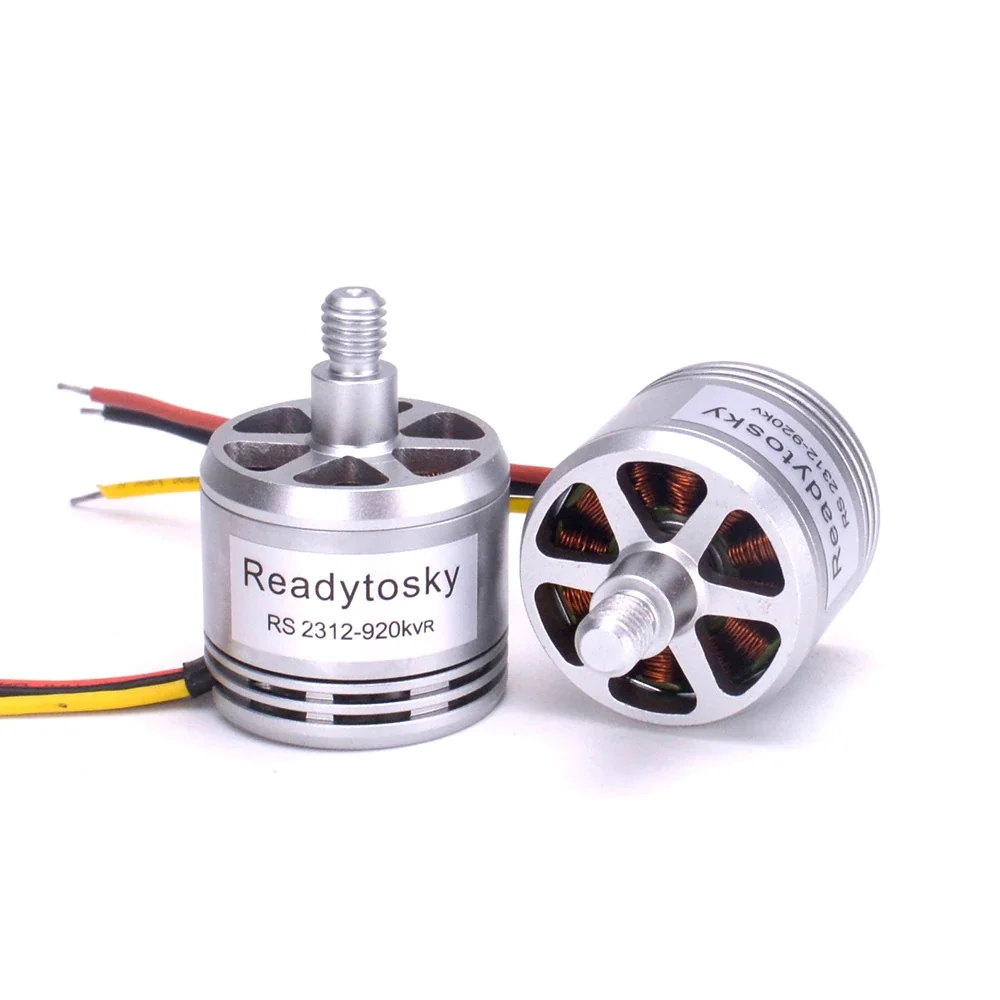

This is a 2312 920KV Brushless DC Motor for Drone (CW Motor Rotation).
This is our medium-priced high-quality Brushless DC Motors for Drone or Quadcopters. The framework of this motor is 12N14P what means it has 14 poles. The CNC Machined Aluminium case makes them more attractive in look than those traditional black-colored Brushless Motors for Drone.
This motor is Well-balanced good quality magnets that give you a smooth running experience. This premium quality 2312 920KV Brushless DC Motor for Drone is good to go for many UAV pilots and the maximum power of the motor is about 220 W also this motor is compatible with 2-4S.
Features :
- Equips Japanese EZO bearing to ensure smooth operation.
- The outer covering is designed using CNC Machined Aluminium.
- Use of aluminum in design makes it lightweight.
- 180-degree magnets
Specification:
Model | 2312 |
---|---|
Motor KV (RPM/V) | 920 |
Framework | 12N14P |
Maximum Power (W) | 220 |
No-Load Current (mA) | 450 |
Max. Efficiency Current (A) | 14 |
Compatible LiPO Batteries | 2S ~ 4S |
Poles | 14 |
Length (mm) | 27.7 |
Width (mm) | 27.7 |
Height (mm) | 26 |
Weight (gm) | 50 |
Shipping Weight | 0.055 kg |
Shipping Dimensions | 3 × 3 × 3 cm |

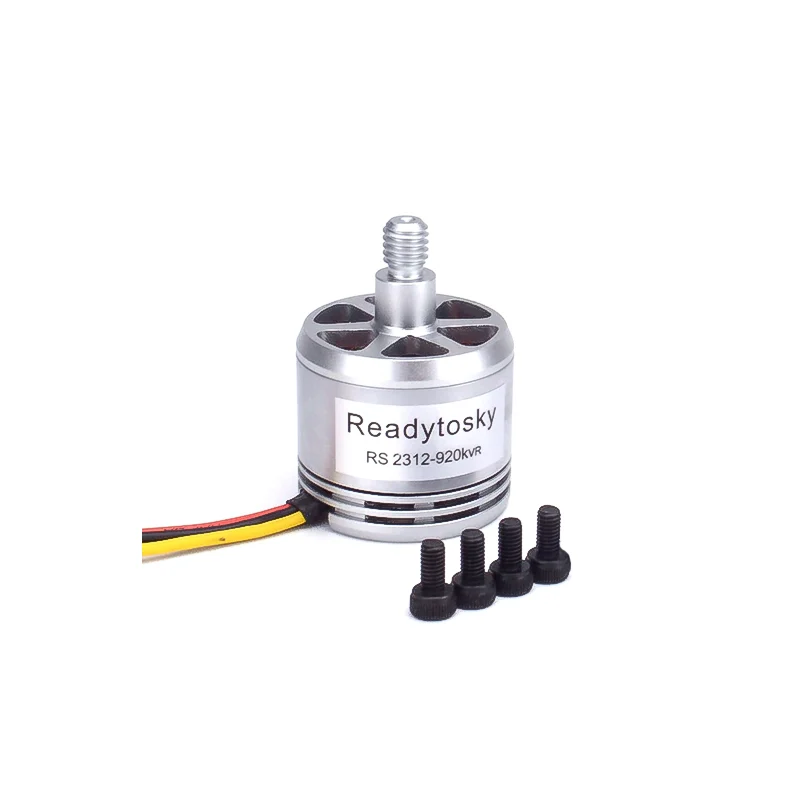

Package includes :
1 x Readytosky 2312 920KV CW Brushless Motor
