M10Q_V2_180_GPS_MR1866
Description:

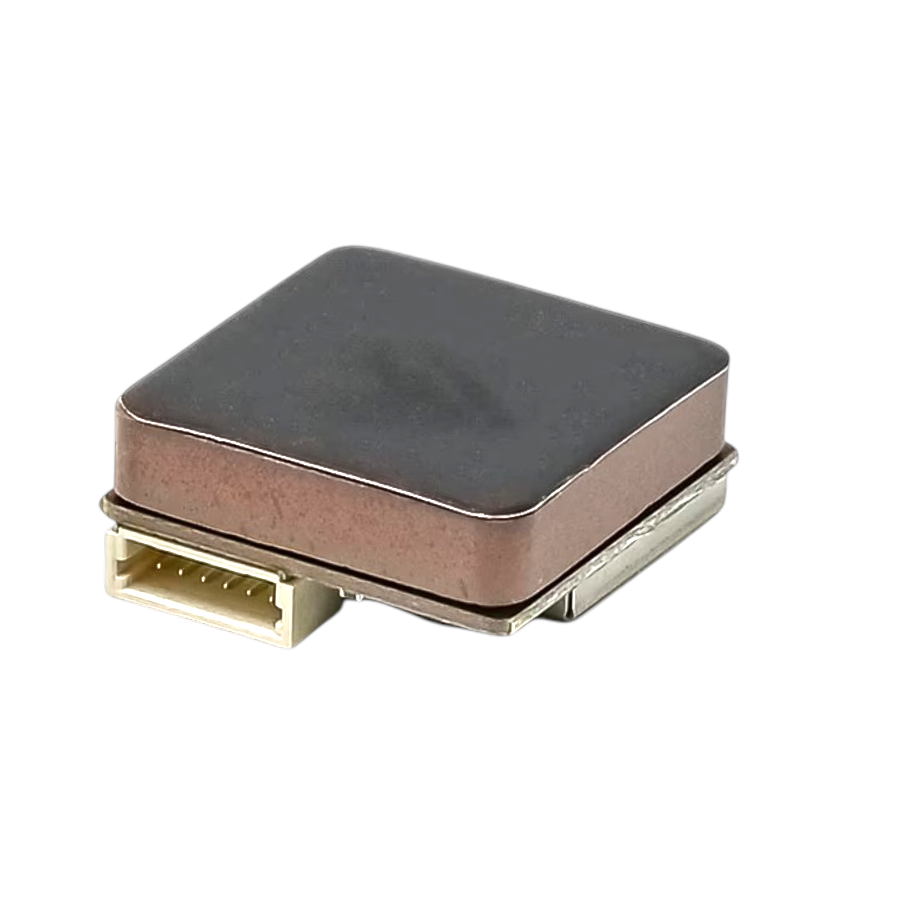

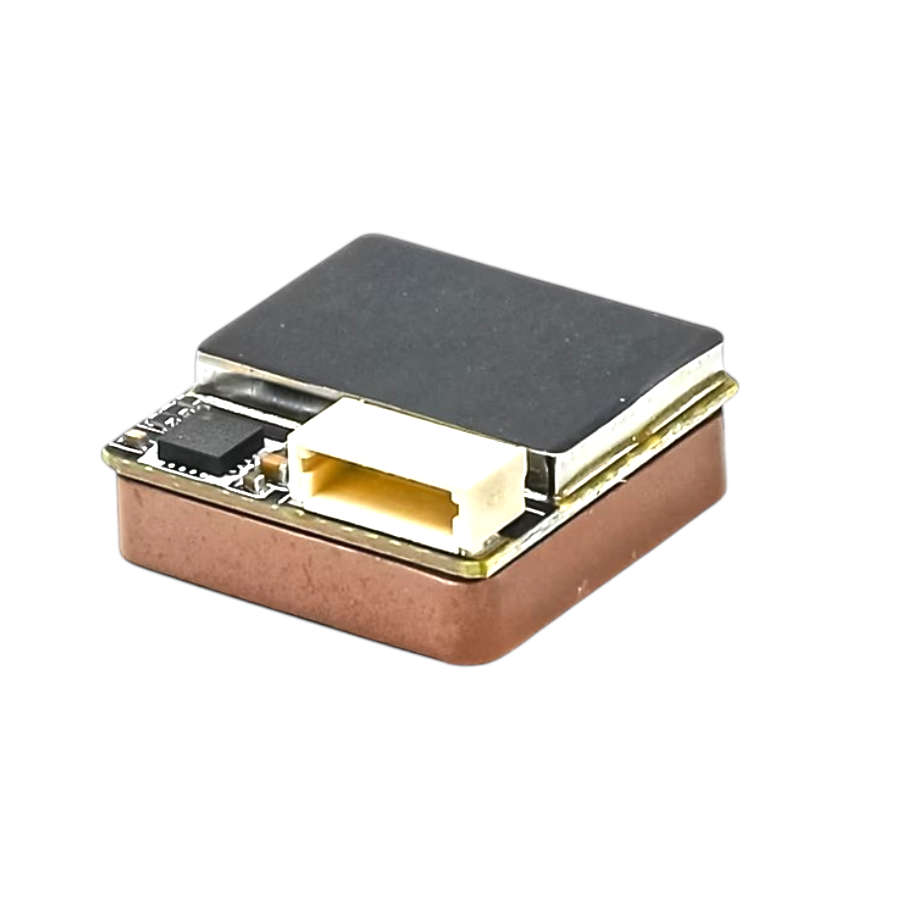

The Foxeer M10Q 180 GPS 5883 Compass is a high-performance GPS module designed for precise navigation and positioning in various applications, including drones and other remote-controlled devices. This compact and advanced module integrates a GPS receiver with a 5883 compass sensor, providing accurate location tracking and reliable heading information. Note: Although the product is from the Foxeer brand, the brand name may not be visible on all items. Some products may be received with or without the Foxeer branding, as the supplier has discontinued labeling certain items with the brand name.
Features:
- High-Precision GPS: Equipped with the M10Q GPS chipset, it delivers fast and accurate positioning data, ensuring reliable navigation even in challenging environments.
- Integrated Compass: The built-in 5883 magnetometer offers precise heading information, helping to maintain accurate orientation and stability for your device.
- Compact Design: Its small form factor allows for easy integration into a variety of setups without adding significant weight or bulk.
- Robust Performance: The module is designed to perform well in diverse conditions, making it suitable for both recreational and professional use.
- Versatile Compatibility: Compatible with a range of flight controllers and systems, enhancing its utility across different platforms.
- Easy Setup: User-friendly interface and straightforward installation process ensure that you can get up and running quickly.
Specifications:
| Chip | M10(10th Generation Chip) |
| Frequency | GPS L1, GLONASS L1, BDS B1, GALILEO, ESBAS L1, QZSS L1 |
| Input Voltage (V): | 5V |
| Antenna (Y/N): | Ceramic Antenna |
| Channel | 72 |
| Battery | Bilid-in |
| Compass | QMC5883 |
| Baud Rate | 115200bps |
| Protocol | Dual NMEA/UBLOX |
| Output Frequency | 1Hz-10Hz,10Hz default |
| Speed accuracy | 0.05m/s |
| Horizontal Accuracy | 2D ACC1.5m(outdoor) |
| Receiver Sensitivity | Trace -166dBm; Capture -160dBm |
| Operating Temperature (°C): | -40C-+85C |
| Storage Temperature (°C): | -40C-+105C |
Package Includes:
1 x Foxeer M10Q 180 GPS 5883 Compass
ExpressLRS (ELRS) Setup Guide: Low Latency Long Range RC Control
Table of ContentsIntroductionWhat Is ExpressLRS?Choosing Your ELRS HardwareFlashing ELRS FirmwareTransmitter Module SetupReceiver Setup and BindingFlight Controller ConfigurationUsing the...
Read More →
Drone Motor KV Rating Explained: How to Pick the Right Motor
Table of ContentsWhat is KV Rating in a Drone Motor?How KV Affects RPM and PerformanceLow KV vs High...
Read More →
FPV Camera Comparison: DJI O3 vs Walksnail vs Analog — Which Is Best?
Table of ContentsIntroductionUnderstanding FPV Video SystemsAnalog FPV: The Classic ChoiceDJI O3 Air Unit: The Premium Digital OptionWalksnail Avatar:...
Read More →Technical Specifications
| Brand | Foxeer |
|---|---|
| SKU | AI8213 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The M10Q_V2_180_GPS_MR1866 is a versatile gps modules used across a wide range of applications including drone navigation, asset tracking, fleet management, precision agriculture, and hiking/outdoor gadgets.
Common use cases:
- Adding GPS waypoint navigation to a drone
- Building a vehicle tracker
- Precision positioning for surveying
This product is ideal for drone builders, fleet managers, and outdoor electronics developers.
Technical Tip: Multi-constellation receivers (GPS + GLONASS + BeiDou) provide faster and more accurate fixes. RTK modules offer centimeter-level precision.
