EDITHFPV IronNav M10S GPS+Compass(QML5883P)

EDITHFPV IronNav M10S GPS+Compass(QML5883P)

Description:

The Flying Tech GNSS GPS & Compass Module M10Q-5883P is a compact multi-constellation GPS and compass module designed for FPV drones, UAVs, flight controllers, and autonomous navigation projects. Based on the M10Q GNSS platform, it delivers fast satellite acquisition, reliable positioning performance, and support for modern flight controller firmware including INAV, Betaflight, and ArduPilot.

The module features a built-in 15×15mm ceramic patch antenna and integrated magnetic compass, providing both accurate position and heading data for functions such as Return To Home, heading hold, waypoint navigation, and assisted flight modes. Support for multiple GNSS constellations helps improve satellite coverage and positioning reliability, particularly in more challenging environments.

With low power consumption, UART and I2C connectivity, dual JST-GH 6-pin connectors for flexible installation, and support for both UBX and NMEA protocols, the M10Q-5883P is well suited to freestyle, cinematic, long-range, and autonomous drone builds.

Features:

• M10Q GNSS platform
• Integrated magnetic compass
• Multi-constellation GNSS support

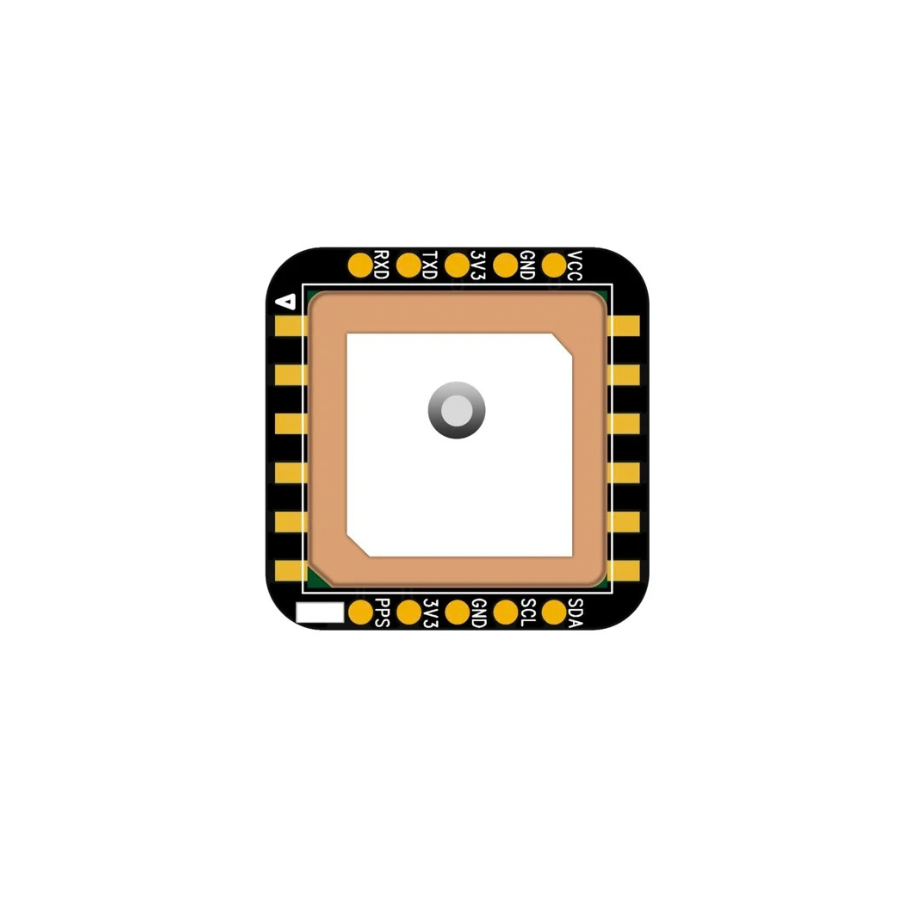

• 15×15×4mm ceramic patch antenna
• UART interface for GPS communication
• I2C interface for compass connection
• UBX and NMEA protocol support
• Green PPS status LED

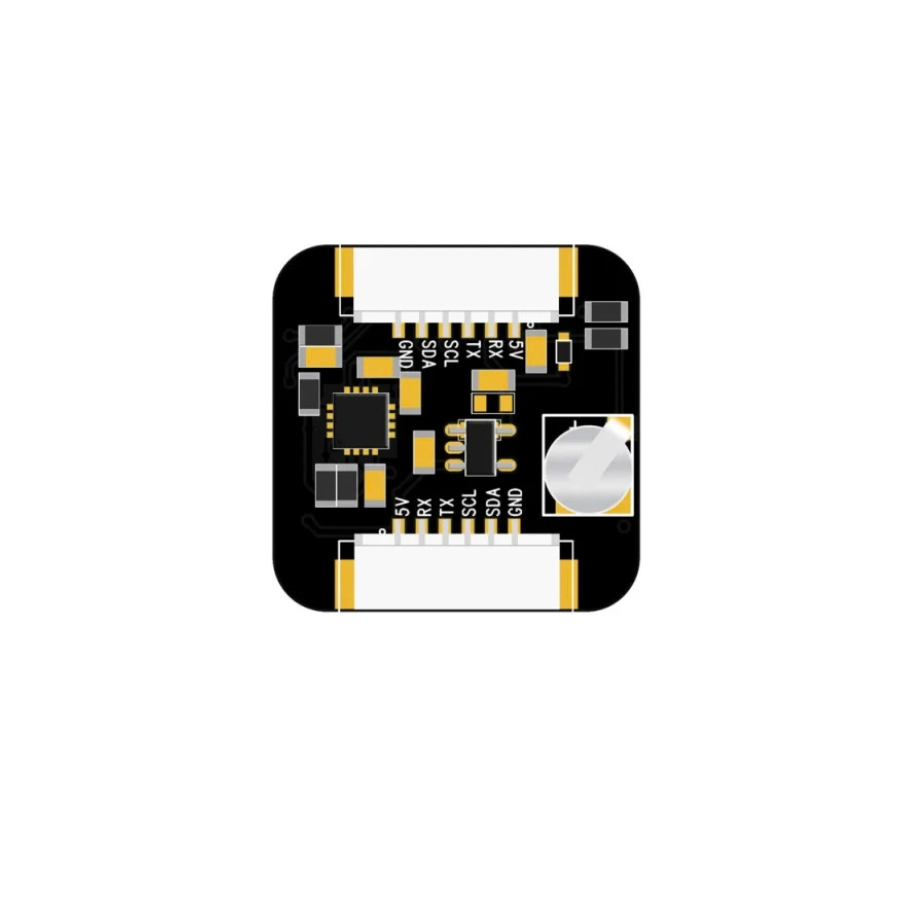

• Dual JST-GH 6-pin connectors
• Low power consumption
• Compatible with INAV, Betaflight, and ArduPilot

Specifications:

• GPS module based on M10Q chipset
• Magnetic Compass QMC5883P
• Patch antenna 15*15*4mm
• Input voltage range: 4~9V (5V pad/pin)
• Working voltage : 5V
• Power consumption: 13mA
• UART baudrate: 9600 default
• Operating Temperatures: -20~80 °C
• UART(TX, RX) interface for GNSS SAM-M10Q-00B
• I2C(DA, CL) interface for Compass QMC5883L
• JST-GH-6P connector (SM06B-GHS-TB). 1.27mm pitch
• GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
• Protocol: UBX(u-blox) 5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz
• 20mm*20mm*12.4mm
• Weight : 8g

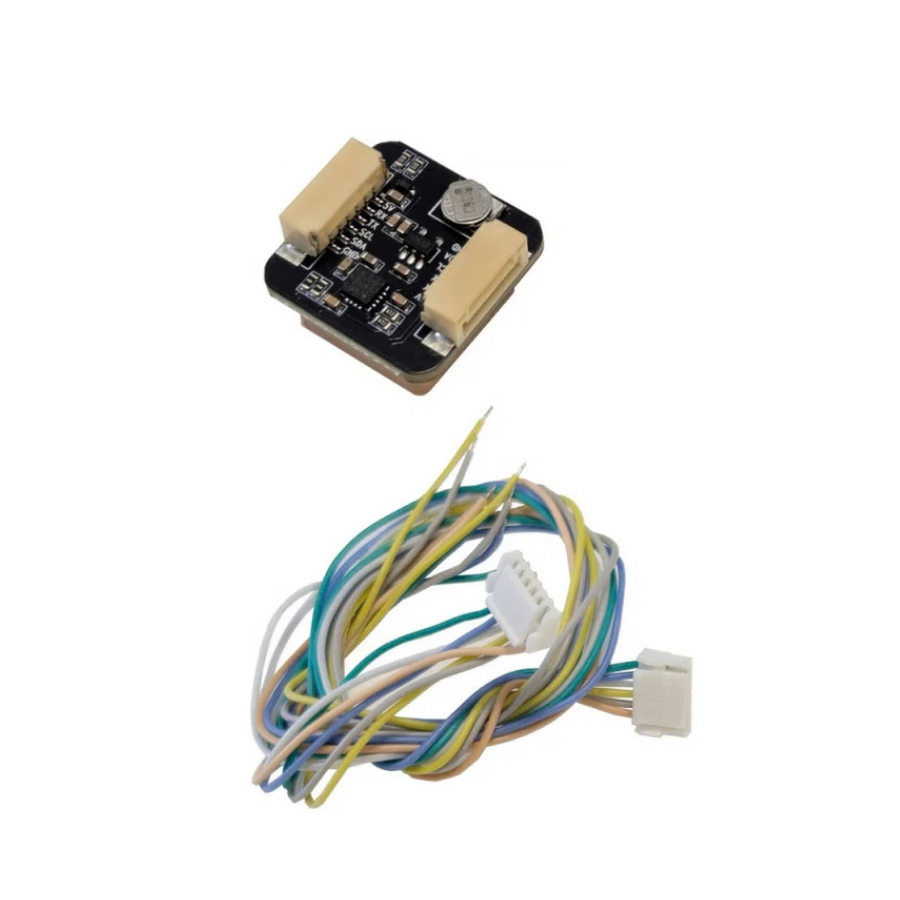

Pacakge Includes

• M10Q-5883, 1 pc
• JST-GH-6P to JST-GH-6P 20cm silicon wire, 2 pc
