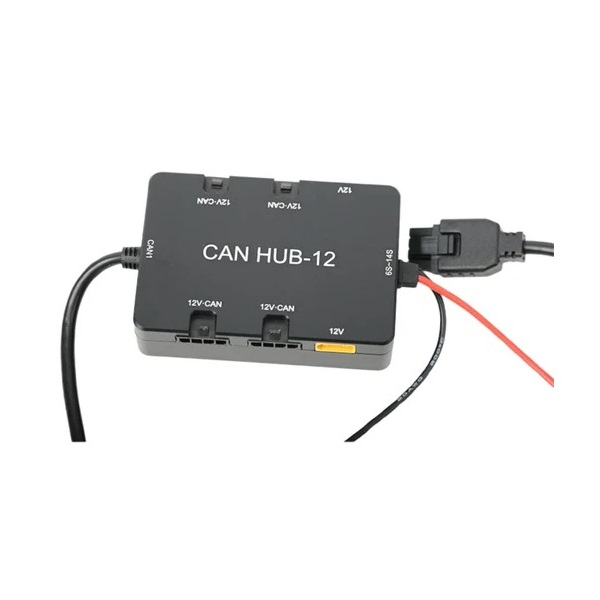

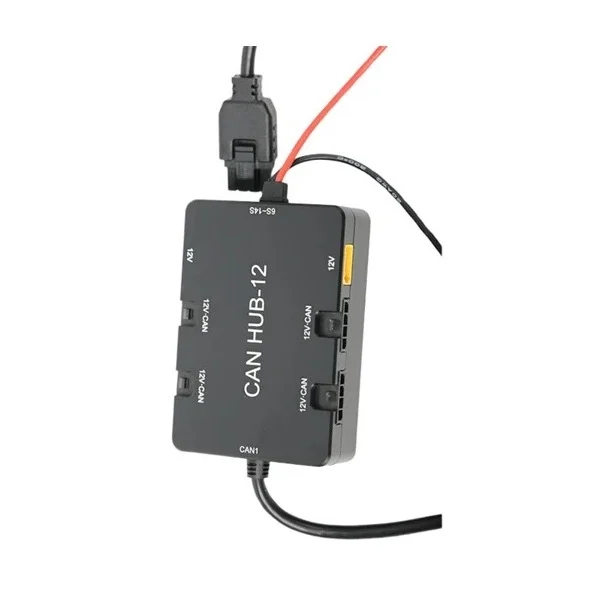

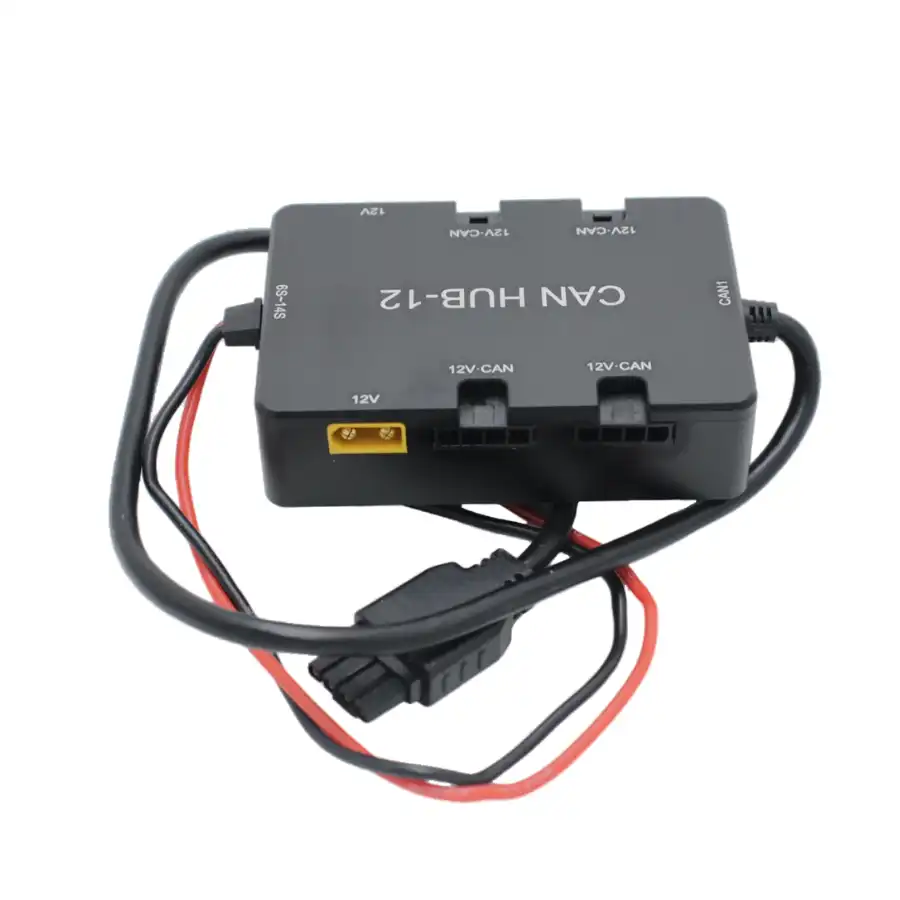

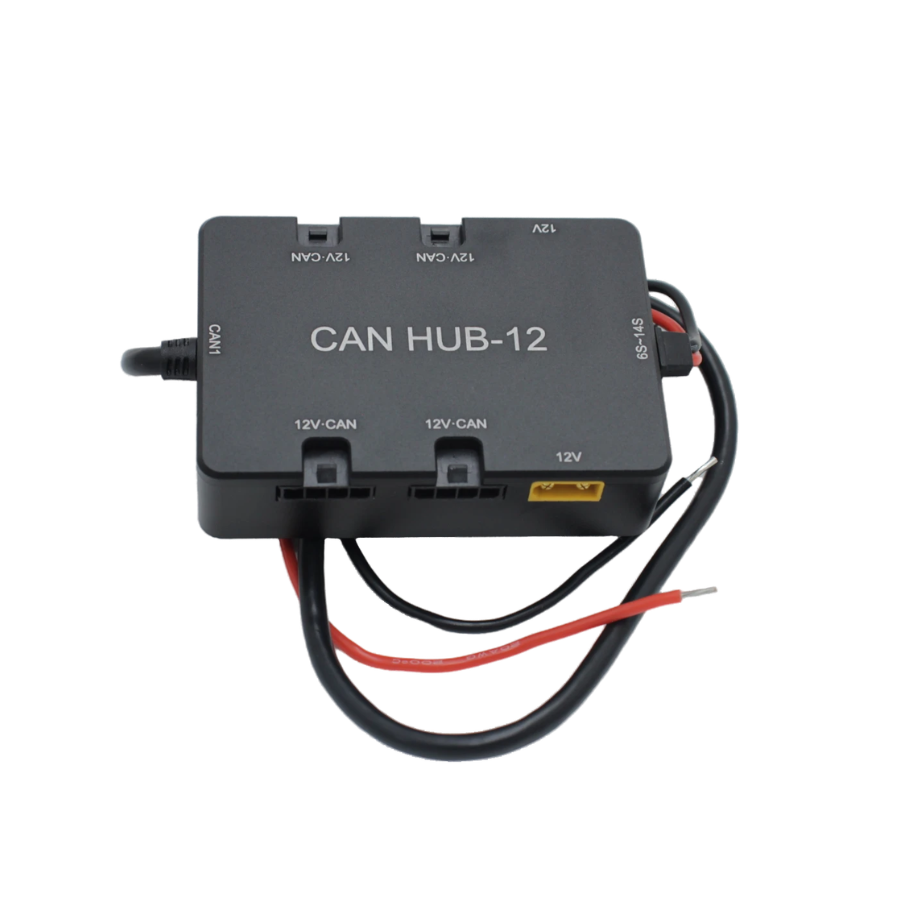

The CAN HUB-12 module is mainly a CAN interface expansion device developed for Jiyi ’s new generation flight control K ++ and its peripheral supporting peripherals. It supports 6-14S power input, 12V CAN output, and 12V power output. The CAN HUB-12 interface has strong expandability. It integrates a step-down power supply and expansion interface into one, which is easy to use.
Features:
- Strong interface expandability.
- Integrated power supply and expansion interface.
- Good quality product
Specification-
| CAN1 | interface connected to K++ flight control |
|---|---|
| 12v CAN | Output voltage 12V; can be connected to ground radar, obstacle avoidance radar, RTK, etc |
| 12v | Output voltage 12V; interface XT30 |
| 6s-14s | Input power 6S-14S |
| Shipping Weight | 0.097 kg |
| Shipping Dimensions | 14 × 10 × 4 cm |
Package Includes:
1 x Jiyi CAN HUB-12 (Tracking Device)
Jiyi CAN HUB-12 Overview
The Jiyi CAN HUB-12 is a CAN interface expansion module designed specifically for Jiyi’s K++ flight control system. It integrates a step-down power supply and multiple expansion interfaces, enabling you to power and connect peripherals such as radars and RTK modules with ease.
Key Features of Jiyi CAN HUB-12
- Strong CAN interface expandability for Jiyi K++ flight control
- Integrated step-down power supply and expansion interface in one compact unit
- Dual 12V outputs: a CAN-enabled port for sensors and an XT30 power output
- Wide input voltage range from 6S to 14S LiPo batteries
- Lightweight design (97 g) for seamless integration on UAV platforms
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Connecting ground radar modules to the flight controller for terrain mapping
- Powering obstacle avoidance radars on multirotor UAVs
- Integrating RTK units for high-precision positioning in surveying drones
- Adding multiple CAN-bus peripherals without overloading the main controller
- Expanding sensor arrays on inspection and agricultural drones
How to Use Jiyi CAN HUB-12
To set up the CAN HUB-12, connect the CAN1 port directly to your Jiyi K++ flight controller’s CAN interface, then attach your 6S–14S battery to the power input. Plug sensors or radars into the 12V-CAN output and route power-hungry peripherals through the XT30 12V port. Secure all connections and verify voltage levels before powering on your UAV.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which flight controller is the CAN HUB-12 compatible with?
The CAN HUB-12 is specifically designed to interface with Jiyi’s K++ flight control system, ensuring seamless data and power distribution to attached peripherals.
What input voltage range does it support?
The module accepts a wide input range from 6S to 14S LiPo batteries, making it suitable for various UAV power configurations without additional regulators.
What devices can be powered from the 12V CAN output?
The 12V CAN output supports ground radars, obstacle avoidance radars, RTK units and other CAN-bus enabled sensors, allowing you to expand your UAV’s capabilities.
