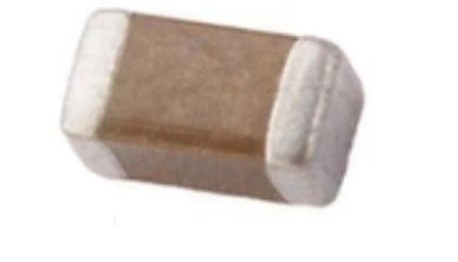

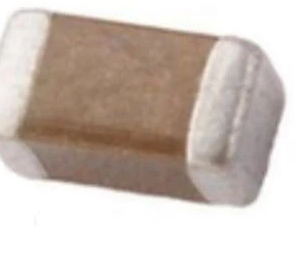

LXES15AAA1-153 ESD Suppressors Diode
This LXES15AAA1-153 ESD Suppressors Diode are developed mainly for antenna line and signal line use. It’s ceramic ESD protection Diode and has 0402 (1005 metric) package. We do not recommend that you use it in places where DC voltage is always applied, even if it is within rated voltage.
Introducing the LXES15AAA1-153 ESD Suppressors Diode, a high-quality component designed to protect sensitive electronic devices from electrostatic discharge (ESD) events.
These diodes are specifically engineered to provide reliable ESD protection for a wide range of electronic applications, including integrated circuits, semiconductors, and other sensitive electronic components.
With their compact and robust design, the LXES15AAA1-153 diodes offer efficient ESD protection while minimizing space requirements on circuit boards.
Whether you’re designing circuits for consumer electronics, industrial equipment, or automotive systems, the LXES15AAA1-153 ESD Suppressors Diode provides essential protection against potentially damaging electrostatic discharge events, ensuring the reliability and longevity of your electronic devices.
Specifications
- Product Type: ESD Suppressors
- Polarity: Bidirectional
- Working Voltage: 4V
- Package/Case: 0402 (1005 metric)
- Vesd – Voltage ESD Contact: 15 kV
- Vesd – Voltage ESD Air Gap: 15 kV
- Cd – Diode Capacitance: 0.05 pF
- Operating Temperature: -40 C to +85 C
- Weight – 0.0095 g
Package Includes
1 x LXES15AAA1-153 ESD Suppressors Diode
LXES15AAA1-153 ESD Suppressors Diode Overview
The LXES15AAA1-153 is a bidirectional ceramic ESD suppressor diode in a tiny 0402 (1005 metric) package. It delivers reliable electrostatic discharge protection for antenna feed lines and signal paths at a working voltage of 4 V. Supplied as a pack of five genuine units, it’s ideal for high-density PCB applications.
Key Features of LXES15AAA1-153 ESD Suppressors Diode
- Bidirectional ESD suppression to clamp positive and negative transients
- Low working voltage of 4 V for sensitive analog and RF circuits
- Ultra-compact 0402 (1005 metric) package suited for space-constrained layouts
- Ceramic construction optimized for antenna lines and high-speed signal routes
- Pack of five genuine LXES15AAA1-153 diodes
- Fast shipping from Zbotic with full tracking across India
Applications and Use Cases
- Protecting Wi-Fi, Bluetooth or cellular antenna feed lines from ESD strikes
- Guarding high-speed data interfaces (USB, UART, SPI) on PCBs
- Safeguarding RF transceiver input/output stages in communication modules
- Securing sensor and IoT interface circuits against electrostatic spikes
- Preventing static damage on high-density board layouts in consumer electronics
How to Use LXES15AAA1-153 ESD Suppressors Diode
Solder the LXES15AAA1-153 across the vulnerable signal line and ground plane using the recommended 0402 footprint. Since it’s bidirectional, orientation on the PCB does not matter. Incorporate a solid ground reference under the diode to ensure effective ESD clamping, and avoid applying continuous DC voltage beyond its 4 V rating.
