This is the Red variant of the 5mm 940nm Infrared Receiver LED IR Diode LED (Flame Sensor)-PACK OF 5 in PIR / IR and Optical Sensor. Available at ₹23.84 (₹20.20 + GST) with free shipping across India.
Product Description:
An IR Receiver LED is a device that detects infrared rays. It has a negative polarity, which means that its anode and cathode are connected to the ground and the supply voltage in reverse order. When the IR Receiver LED receives light, it allows current to pass through it. The current flow is directly proportional to the intensity of the light. This IR Receiver LED has a diameter of 5mm and a power dissipation (Pd) of 100mW.
Features:
- Diameter: 5mm
- Power dissipation Pd(mW) : 100
- Reverse voltage: 5V
- Forward Voltage: 1.2 V-1.3V
- Operating Temperature: -40°C- 100°C
- Peak Response wavelength: 940nM
- Lead Spacing: 2.54mm
Specification:
| Product | Infrared Receiver LED IR Diode LED |
|---|---|
| Diameter (mm): | 5 |
| Power dissipation Pd(mW) | 100 |
| Reverse voltage(V) | 5 |
| Forward Voltage(V) | 1.2 -1.3 |
| Operating Temperature Range (°C): | -40° to +100° |
| Lead Spacing | 2.54 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 5 × 4 × 1 cm |
Package Includes:

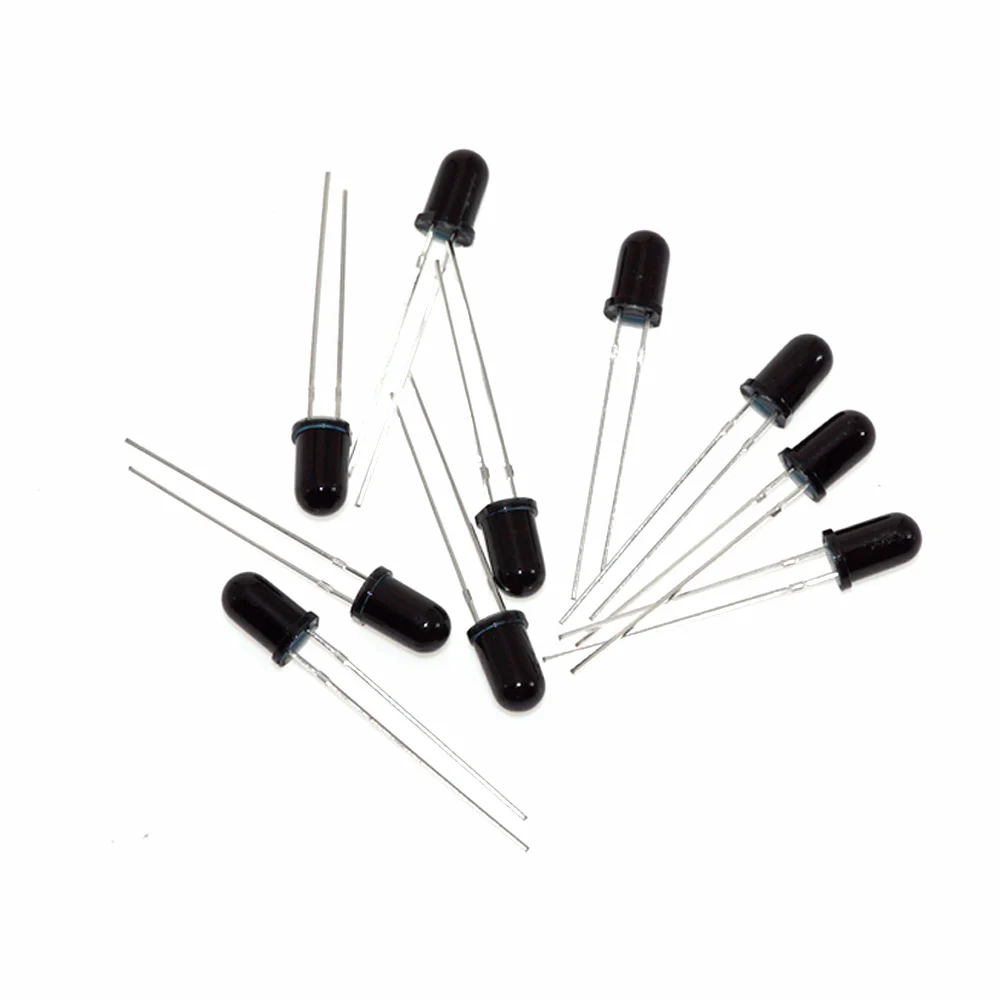

1 x 5mm 940nm Infrared Receiver LED IR Diode LED- (Pack of 5)
Tutorial:
https://www.youtube.com/watch?v=qW0uso6eH3E&t=50s
5mm 940nm Infrared Receiver LED IR Diode LED (Flame Overview
The 5mm 940nm Infrared Receiver LED IR Diode LED (Flame Sensor) is a photodiode designed to detect infrared radiation at the 940nm wavelength. Supplied as a pack of five, this IR receiver LED is ideal for sensing heat sources or remote IR signals in embedded electronics and flame detection circuits.
Key Features of 5mm 940nm Infrared Receiver LED IR Diode LED (Flame
- Peak Response Wavelength: 940nm optimized for flame and IR signal detection
- Robust Power Handling: 100mW maximum dissipation for reliable operation
- Wide Temperature Range: Operates from –40°C to +100°C in harsh environments
- Standard 5mm Package: Easy breadboard and PCB integration with 2.54mm lead spacing
- Low Forward Voltage: 1.2–1.3V for efficient current-to-light conversion
- Fast Shipping from Zbotic: In-stock pack of five LEDs dispatched within 24 hours
Applications and Use Cases
- Flame detection modules in industrial safety systems
- Obstacle and proximity sensing in robotics and automation
- Infrared remote-control receiving and signal demodulation projects
- Line-of-sight infrared communication links
- Night-vision array prototypes and IR imaging experiments
How to Use 5mm 940nm Infrared Receiver LED IR Diode LED (Flame
To use this IR receiver LED, mount it on your PCB or breadboard with the 2.54mm spacing. Wire it in reverse bias by connecting the cathode (longer lead) through a suitable series resistor (e.g., 10kΩ) to your supply voltage (up to 5V) and tie the anode (shorter lead) to ground. Measure the photodiode current or voltage drop across the resistor to detect IR intensity or flame presence.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Q: How many LEDs are included in this pack?
A: This product includes five 5mm 940nm infrared receiver LEDs, each with identical specifications.
Q: What is the recommended series resistor value?
A: For 5V operation, a 10kΩ resistor in series with the cathode offers a good balance between sensitivity and current draw; adjust as needed for your circuit.
Q: Can this IR receiver LED handle high-temperature environments?
A: Yes, it is rated for continuous operation from –40°C up to +100°C, making it suitable for industrial and outdoor flame sensing applications.
