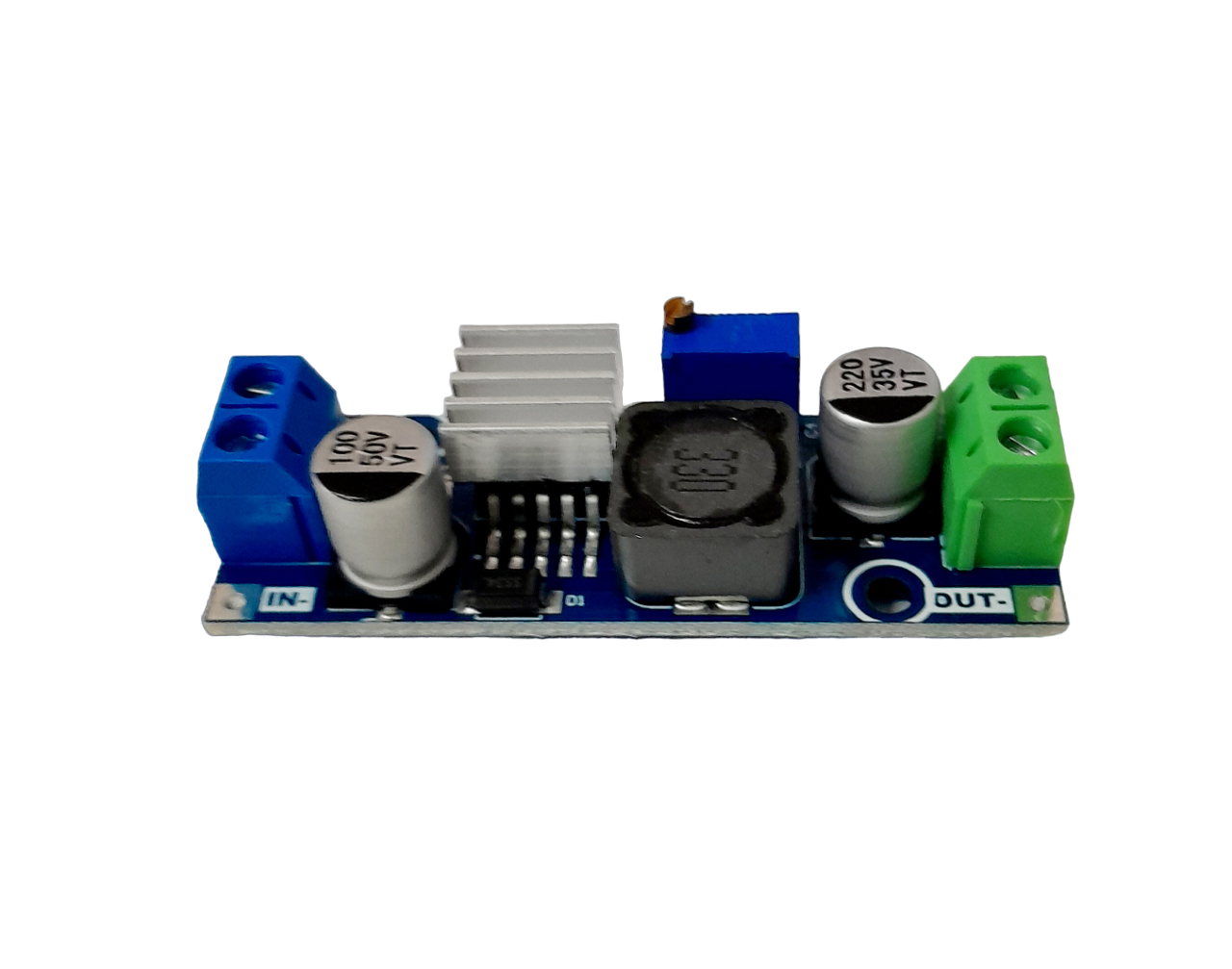

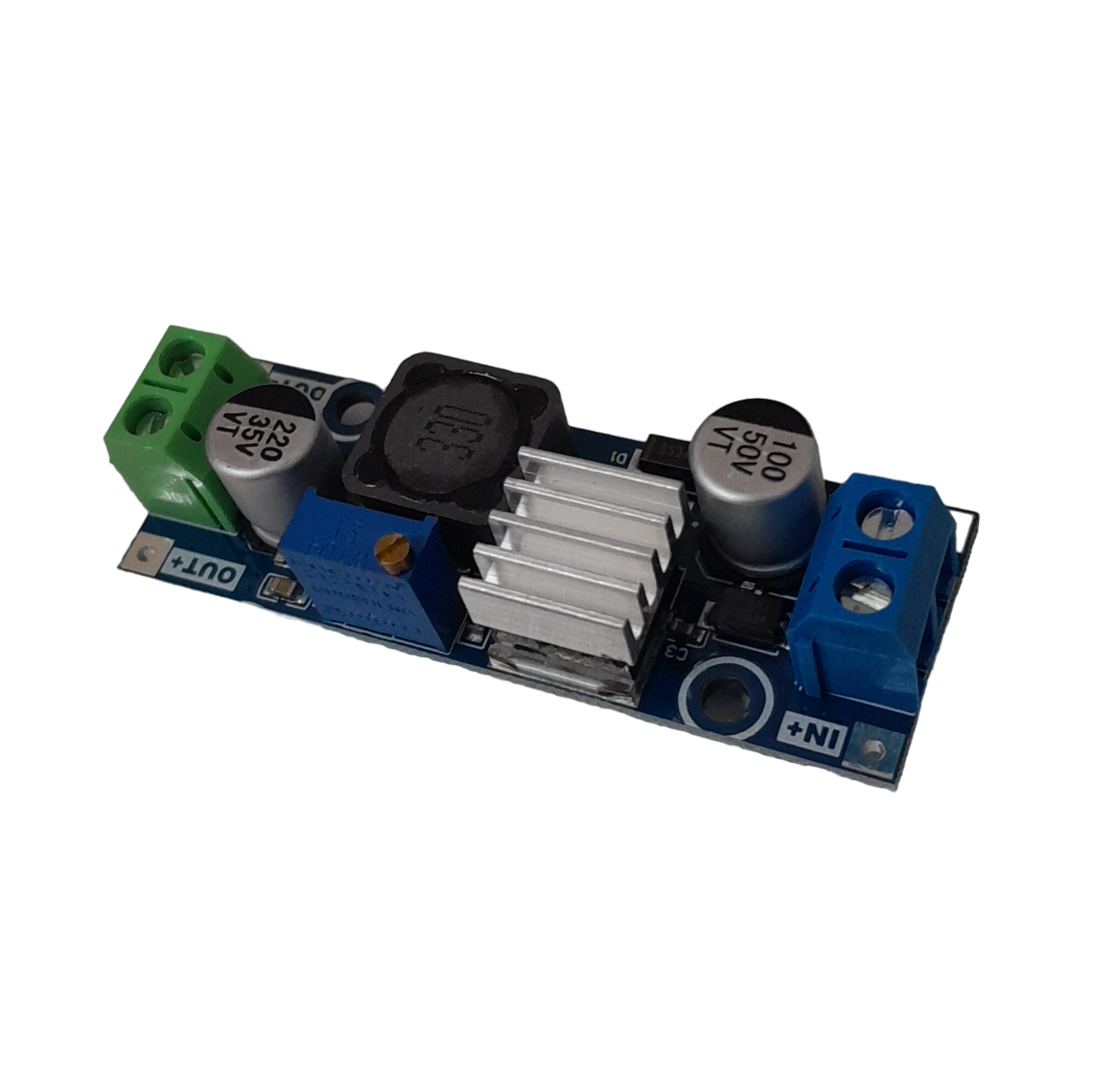

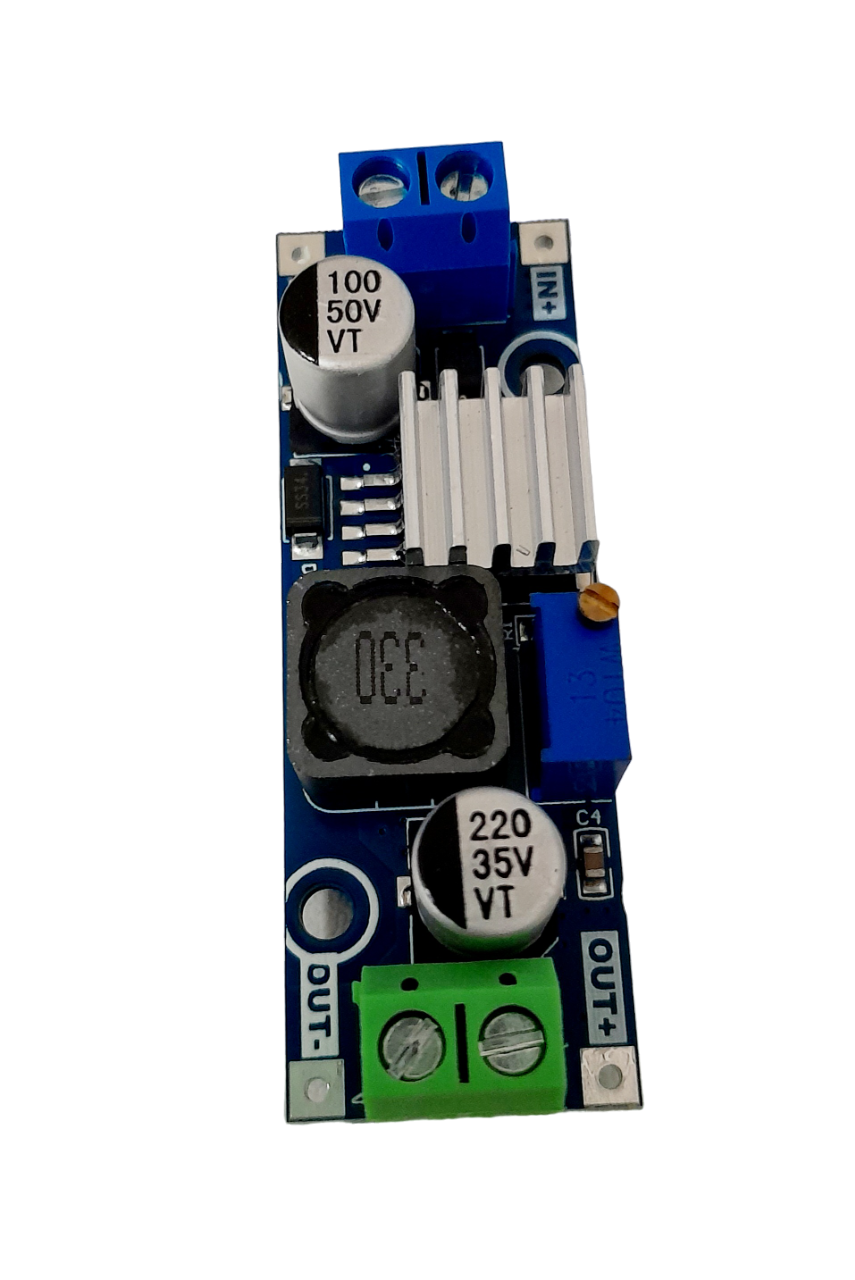

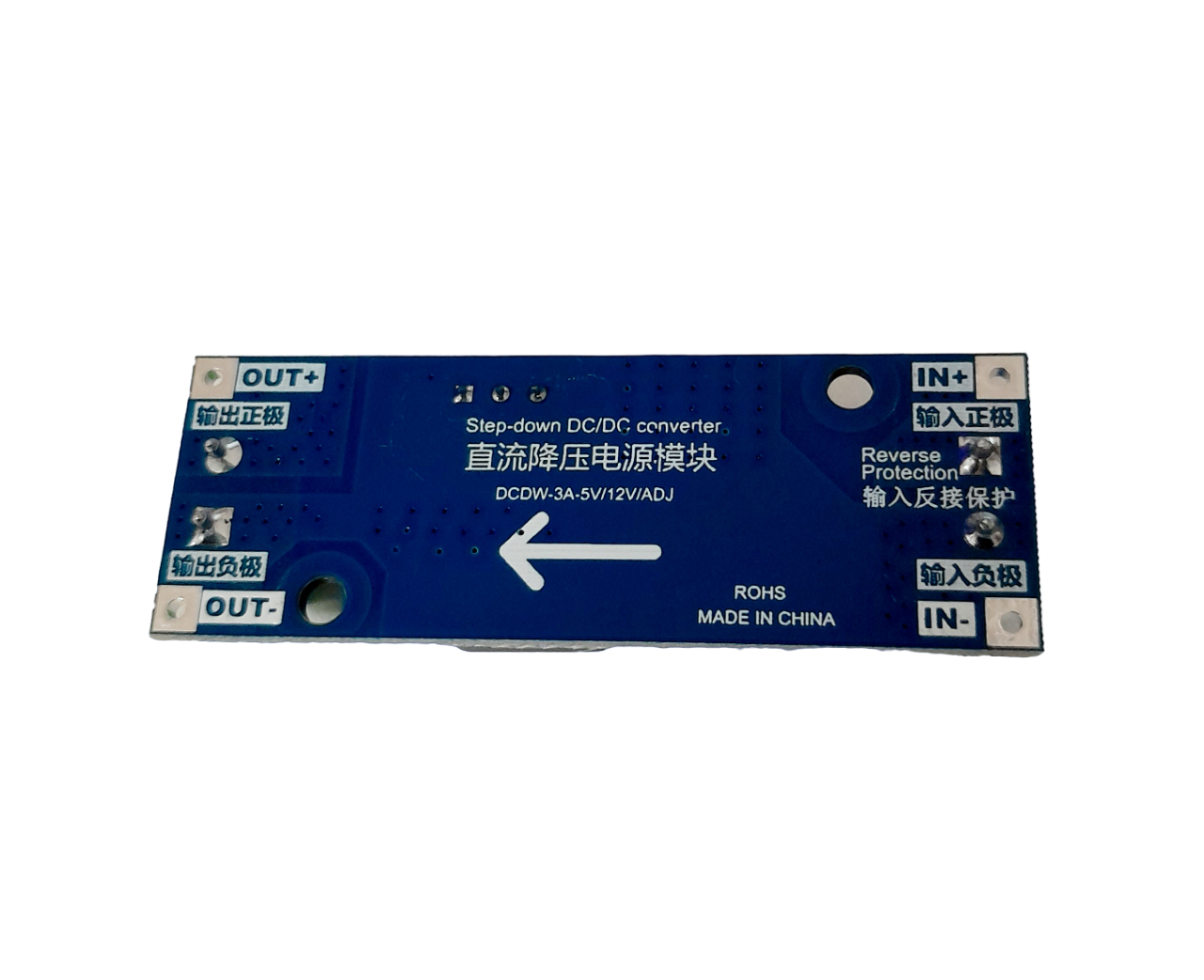

LM2596S DC-DC 24V 40V to 12V 9V 5V 3V Adjustable DC Step-down Power Module

This is the 24V variant of the LM2596S DC-DC 24V 40V to 12V 9V 5V 3V Adjustable DC Step-down Power Module in Buck Converter, Buck Boost Voltage Regulators. Available at ₹167.56 (₹142.00 + GST) with free shipping across India.

Looking for Lm2596s? LM2596S DC-DC 24V 40V to 12V 9V 5V 3V Adjustable DC Step-down Power Module is available at Zbotic with fast shipping across India.

PRODUCT DESCRIPTION

The 2596A Step-Down DC-DC LM2576 Adjustable Voltage Regulator is an efficient and reliable power module designed for precise voltage regulation. It features high-frequency X7R bypass capacitors at the input and output terminals, ensuring superior electromagnetic compatibility.

Input Voltage Range: DC 3.2V to 35V (with a requirement that the input voltage be at least 1.5V higher than the output voltage; it does not support voltage boosting).

Output Voltage Range: DC 1.25V to 30V, with continuous adjustability. The module delivers high efficiency (up to 92%) and can supply a maximum output current of 3A.

Performance: When tested with a 12V input and 5V output at 1A, the voltage adjustment rate is less than 1%, demonstrating excellent stability and precision.

Note:

The input and output must not be connected in reverse, as doing so can damage the chip.

This is a step-down module, so the input voltage must always be higher than the output voltage.

For outputs below 2A, the module can be used continuously without a heatsink. However, if the output current exceeds 2.5A or the output power surpasses 10W, a heatsink is recommended for extended operation to prevent overheating.

Specification:

PACKAGE INCLUDES:

1 X LM2596S DC-DC 24V 40V to 12V 9V 5V 3V Adjustable DC Step-down Power Module

LM2596S DC-DC 24V 40V to 12V 9V 5V 3V Adjustable DC Overview

The LM2596S DC-DC step-down module converts a wide DC input (3–40V) into a precise, adjustable output (1.5–35V) at up to 3A. It’s ideal for powering microcontrollers, LED drivers, bench supplies and other electronics where stable, efficient voltage regulation is required.

Key Features of LM2596S DC-DC 24V 40V to 12V 9V 5V 3V Adjustable DC

• Wide input range: DC 3V–40V (must exceed output by ≥1.5V; no boost function)
• Continuously adjustable output: DC 1.5V–35V via onboard potentiometer
• High output current: up to 3A with efficiency up to 92%
• Premium components: all Sanyo solid capacitors and high-Q inductor for low ripple
• Robust 36μm thickened PCB for improved heat dissipation
• Built-in high-power LED indicator for output status
• Compact form factor: 45×20×14 mm, lightweight (20 g)
• Fast shipping across India from Zbotic

Applications and Use Cases

• Automotive and motorcycle DC-DC conversion from 12V/24V batteries
• Bench power supply for electronics prototypes and lab equipment
• Adjustable LED driver for high-power lighting projects
• Powering Arduino, Raspberry Pi and other microcontroller boards
• Solar panel voltage regulation for battery charging systems
• Custom robotics applications requiring stable voltage rails

How to Use LM2596S DC-DC 24V 40V to 12V 9V 5V 3V Adjustable DC

Connect the module’s VIN+ and VIN– to your DC source (ensuring input is ≥1.5 V above desired output). Use a multimeter on VOUT terminals while rotating the onboard potentiometer to set the required voltage. After adjustment, hook up your load and, for sustained high current, attach a small heatsink or ensure adequate airflow.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What is the recommended input voltage for stable 5V output?

To achieve a stable 5V, provide at least 6.5V input (1.5V above the desired output), within the module’s 3–40V range. Use a regulated DC source to avoid voltage spikes.

How much current can I draw from this module?

The LM2596S board can deliver up to 3A continuously. For loads near the upper limit, attach a heatsink and ensure proper ventilation to maintain reliable operation.

Does this module include short-circuit or thermal protection?

This design uses high-quality Sanyo capacitors and a 36μm PCB for stability, but it does not feature built-in short-circuit or thermal shutdown. We recommend external fuses or current-limiting devices for sensitive applications.
