This is the 5V variant of the 5V DD38LOSA DC-DC, Converter, Voltage,Stabilization, Device,Input DC6-40V, 5W, Power Supply, Module, （With PIN and, AMS1117 in Buck Converter. Available at ₹219.48 (₹186.00 + GST) with free shipping across India.
Looking for Dd38losa Module? 5V DD38LOSA DC-DC, Converter, Voltage,Stabilization, Device,Input DC6-40V, 5W, Power Supply, Module, （With PIN and, AMS1117 is available at Zbotic with fast shipping across India.

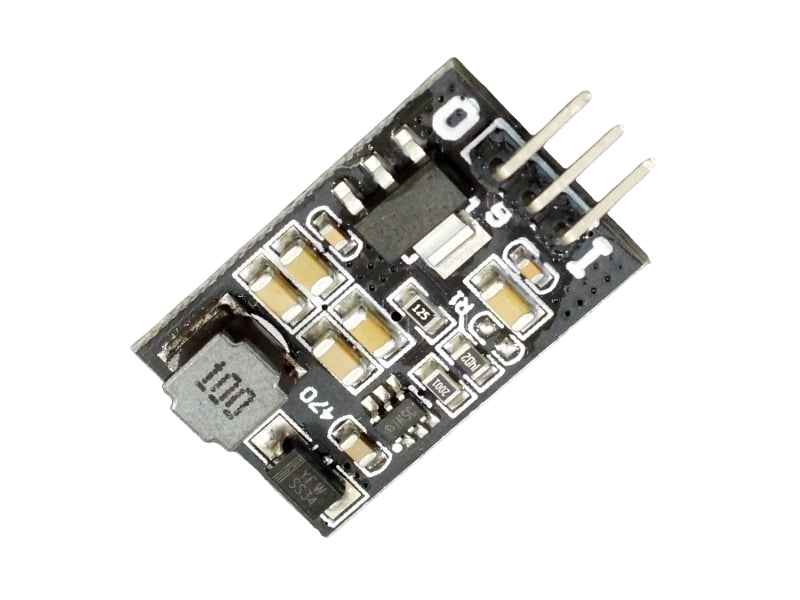

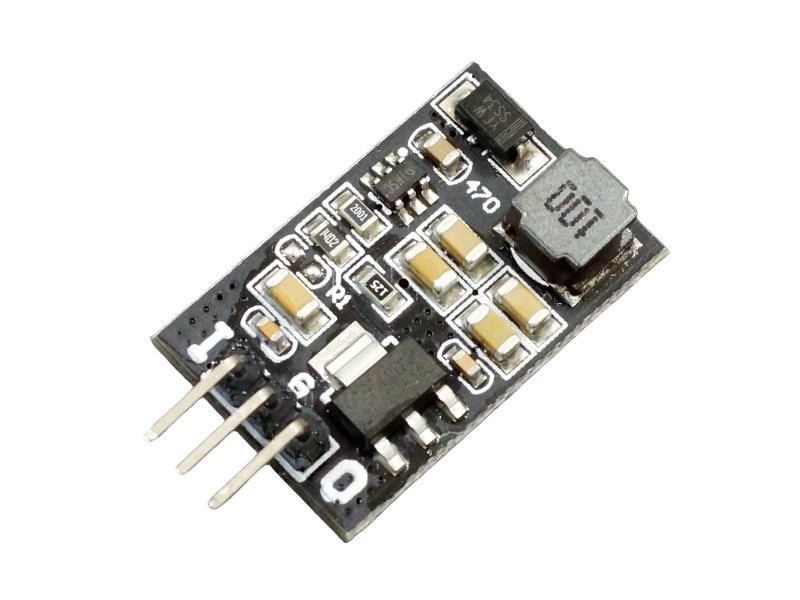

5V DD38LOSA DC-DC, Converter, Voltage, Stabilization, Device,Input DC6-40V, 5W, Power Supply, Module, （With PIN and, AMS1117
These modules possess a unique characteristic of integrating both a DC-DC converter, capable of accommodating a wide range of input voltages, and an LDO linear regulator, ensuring a steady output voltage.
Features:
- 5V Output
- 8 to 40V Input
- 700mA continuous current independent of input voltage
- Up to 1A intermittent current
- Short circuit and thermal protection built-in
- Small package compatible with standard 3 pin TO-220 regulator pinout
Specification:
- VIN Input Voltage Range 8 to 40V
- IO Maximum Output Current 700mA
- IPEAK Peak Surge Current 1000mA
- VO Output Voltage 5V
- IO Max Output Current (Continuous) 700mA
- Iq Quiescent current 5mA typical
- Dimensions L x W x H (not including header) 25 x 16 x 5.8mm
Package Includes:
1 x 5V DD38LOSA DC-DC Converter,5W Power Supply Module
5V DD38LOSA DC-DC, Converter, Voltage,Stabilization, Overview
The 5V DD38LOSA is a compact DC-DC buck converter module with an integrated AMS1117 LDO regulator, designed to deliver a stable 5V output from a wide 8–40V DC input. Ideal for powering microcontrollers, sensors, and small electronics, it combines high efficiency with built-in protection features.
Key Features of 5V DD38LOSA DC-DC, Converter, Voltage,Stabilization,
- Wide input range: 8 – 40 V DC for automotive and battery applications
- Regulated 5 V output using DC-DC stage plus AMS1117 linear regulator
- 700 mA continuous output current, with 1 A peak surge capability
- Built-in short-circuit and thermal shutdown protection
- Low quiescent current: 5 mA typical
- Compact 25 × 16 × 5.8 mm footprint with standard 3-pin TO-220 layout
- Genuine product, fast shipping from Zbotic across India
Applications and Use Cases
- Powering Arduino, ESP32/ESP8266 and other microcontroller boards
- Stable 5 V rail for automotive electronics (12 V/24 V systems)
- Portable battery-powered projects and field instrumentation
- LED lighting strips and indicator circuits
- Backup power modules for routers, modems, and CCTV cameras
- DIY robotics and remote sensor nodes
How to Use 5V DD38LOSA DC-DC, Converter, Voltage,Stabilization,
Connect your DC source (8–40 V) to VIN+ and VIN–, then wire VOUT+ and VOUT– to your 5 V load. Ensure proper polarity and keep input within specified range. No external adjustment is needed—the module provides a fixed 5 V output. Mount on a PCB or use header pins for easy integration, and allow airflow over the module for continuous high-current operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What input voltage range does the DD38LOSA support?
The 5V DD38LOSA accepts DC inputs from 8 V up to 40 V, making it suitable for automotive, solar, and battery-powered systems.
What continuous and peak currents can this module deliver?
It provides up to 700 mA of continuous output current and can handle intermittent surges up to 1 A for short durations without damage.
Does the module include protection features?
Yes. The DD38LOSA has built-in short-circuit protection and thermal shutdown. If internal temperatures rise too high or an overload occurs, it will shut down to prevent damage.
Technical Specifications
| Model | DD38LOSA |
|---|---|
| Operating Voltage | 5V |
| Power Rating | 5W |
| SKU | AI2396 |
| Weight | 0.00455 kg |
| Availability | In Stock |
Applications & Use Cases
The 5V DD38LOSA DC-DC, Converter, Voltage,Stabilization, Device,Input DC6-40V, 5W, Power Supply, Module, （With PIN and, AMS1117 is a versatile buck converter used across a wide range of applications including voltage step-down for electronics, battery-powered projects, LED driver circuits, microcontroller power supply, and solar power regulation.
Common use cases:
- Converting 12V car battery to 5V for USB devices
- Powering a Raspberry Pi from a drone battery
- Regulating solar panel output for charging
This product is ideal for electronics hobbyists, IoT developers, and power supply designers.
Technical Tip: Buck converters are more efficient than linear regulators (LM7805). Choose one rated for at least 1.5x your required current. Ensure input voltage is at least 2V above output.
