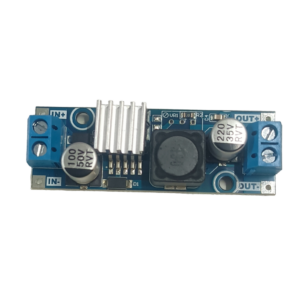

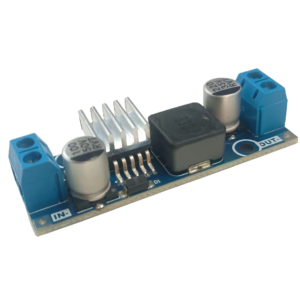

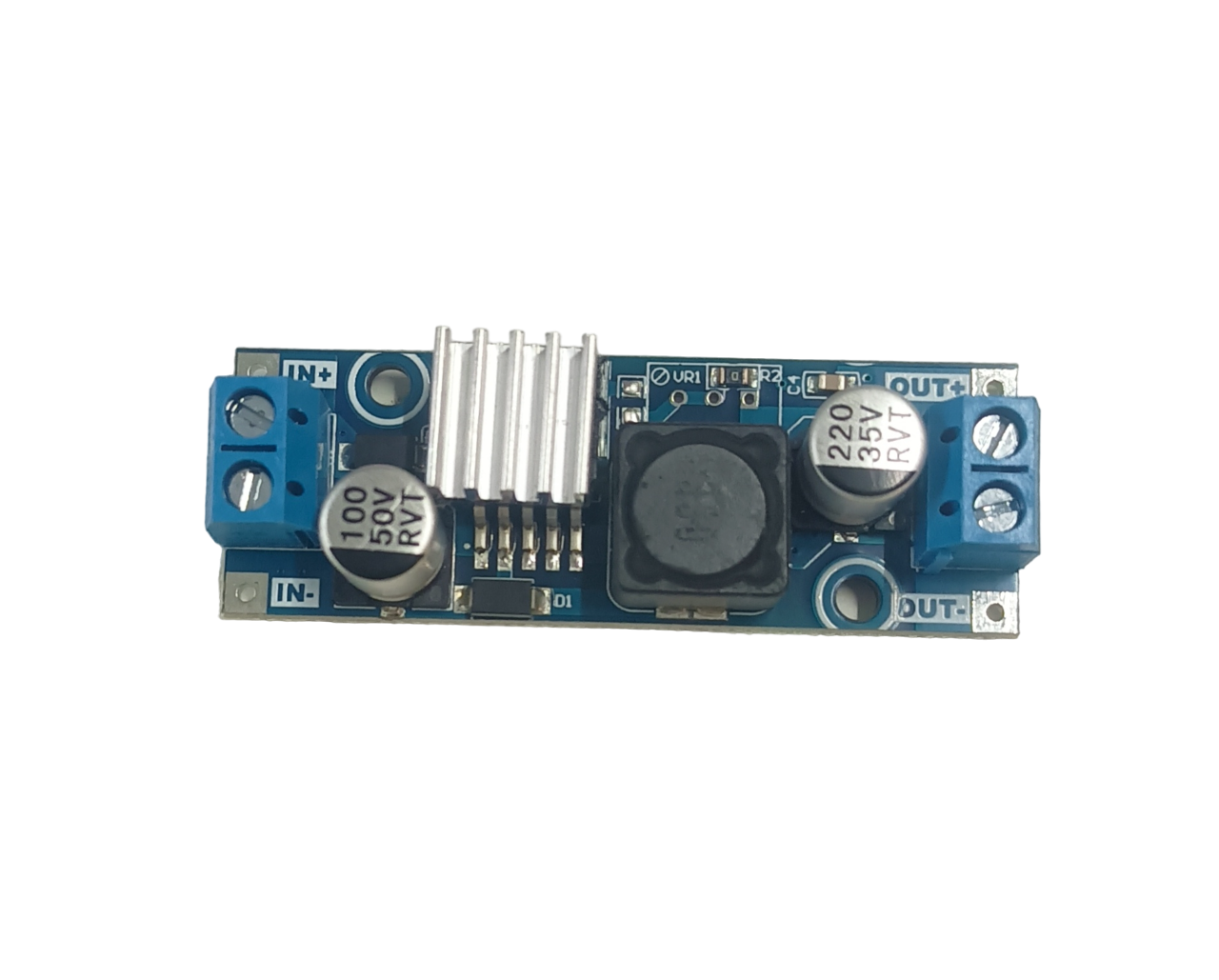

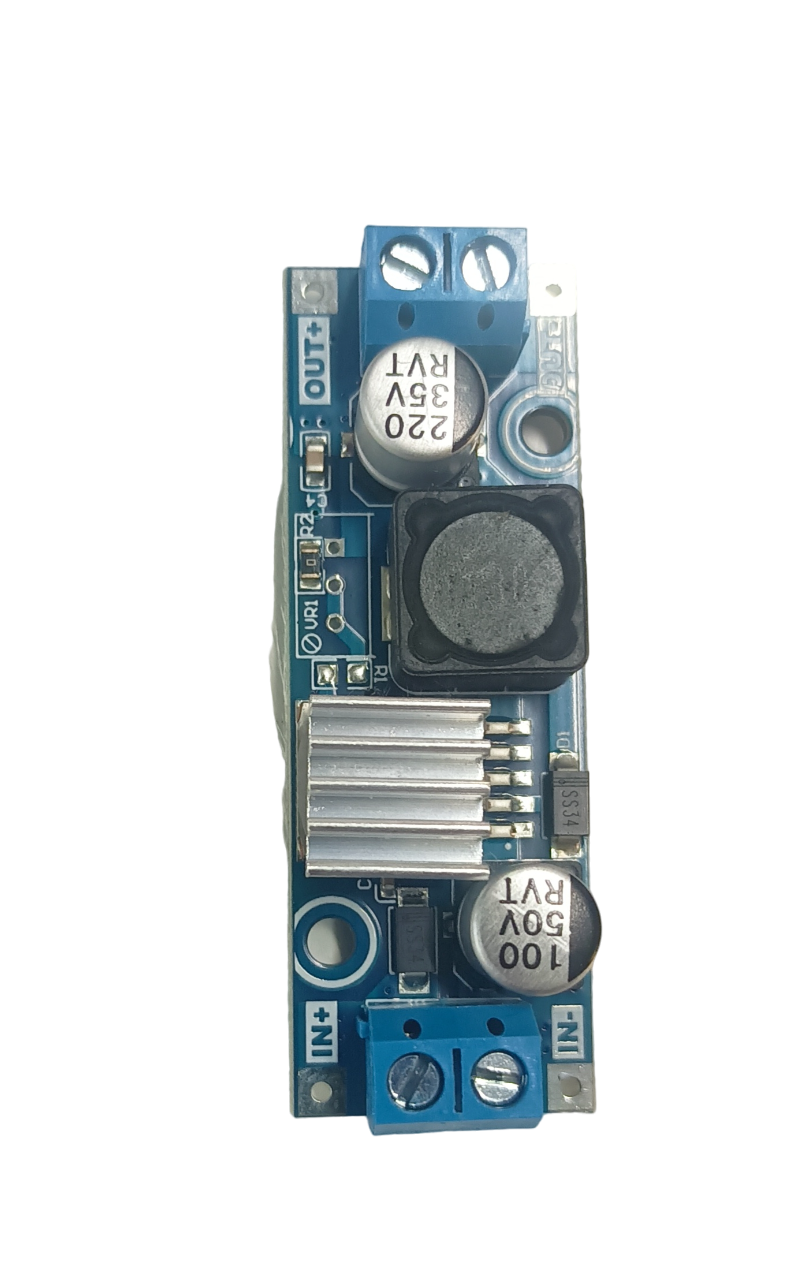

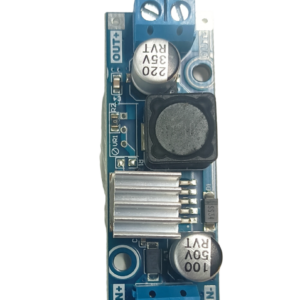

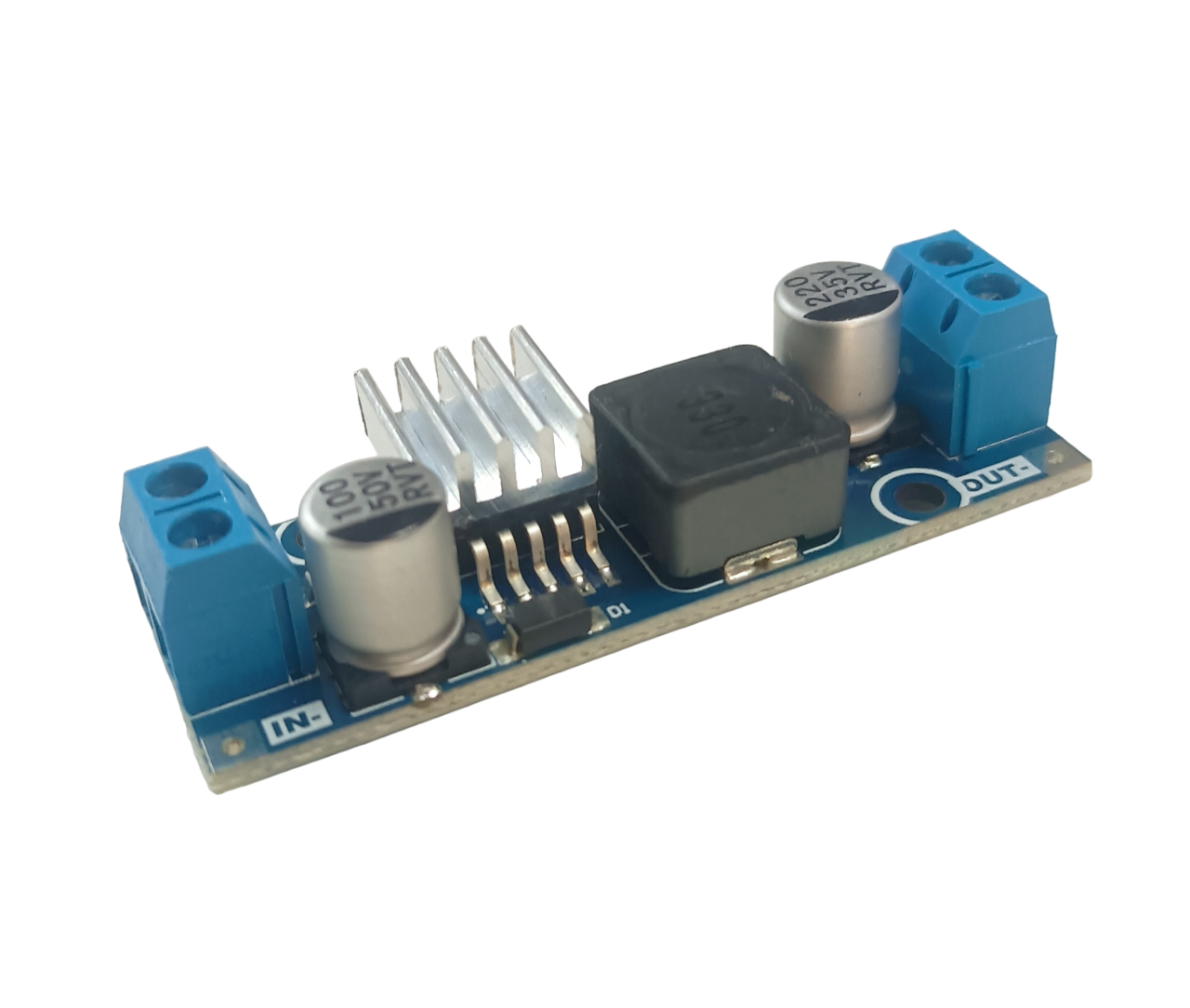

LM2596 LM2576 DC-DC 12V 24V to 5V DC Step-down Power Module
The LM2596 / LM2576 DC-DC Step-Down Power Module is a highly efficient voltage regulator designed to convert higher input voltages, such as 12V or 24V, into a stable 5V output. Powered by the reliable LM2596 or LM2576 ICs, this module offers excellent efficiency and consistent performance.
Ideal for applications requiring a steady 5V supply, it is perfect for use in automotive electronics, solar power systems, DIY projects, and more. With its compact form factor, the module is easy to integrate into various electronic setups, making it a versatile solution for both professional and hobbyist applications.
Key features of this module include:
- Input voltage range: 12V or 24V (DC)
- Output voltage: 5V (DC)
- High efficiency and low ripple
- Adjustable output voltage using onboard potentiometer
- Over-current protection
- Over-temperature protection
- Reverse polarity protection (some models may include this feature)
Overall, the LM2596 LM2576 DC-DC Step-down Power Module provides a reliable and convenient solution for stepping down higher input voltages to a stable 5V output, making it ideal for various electronic projects and applications.

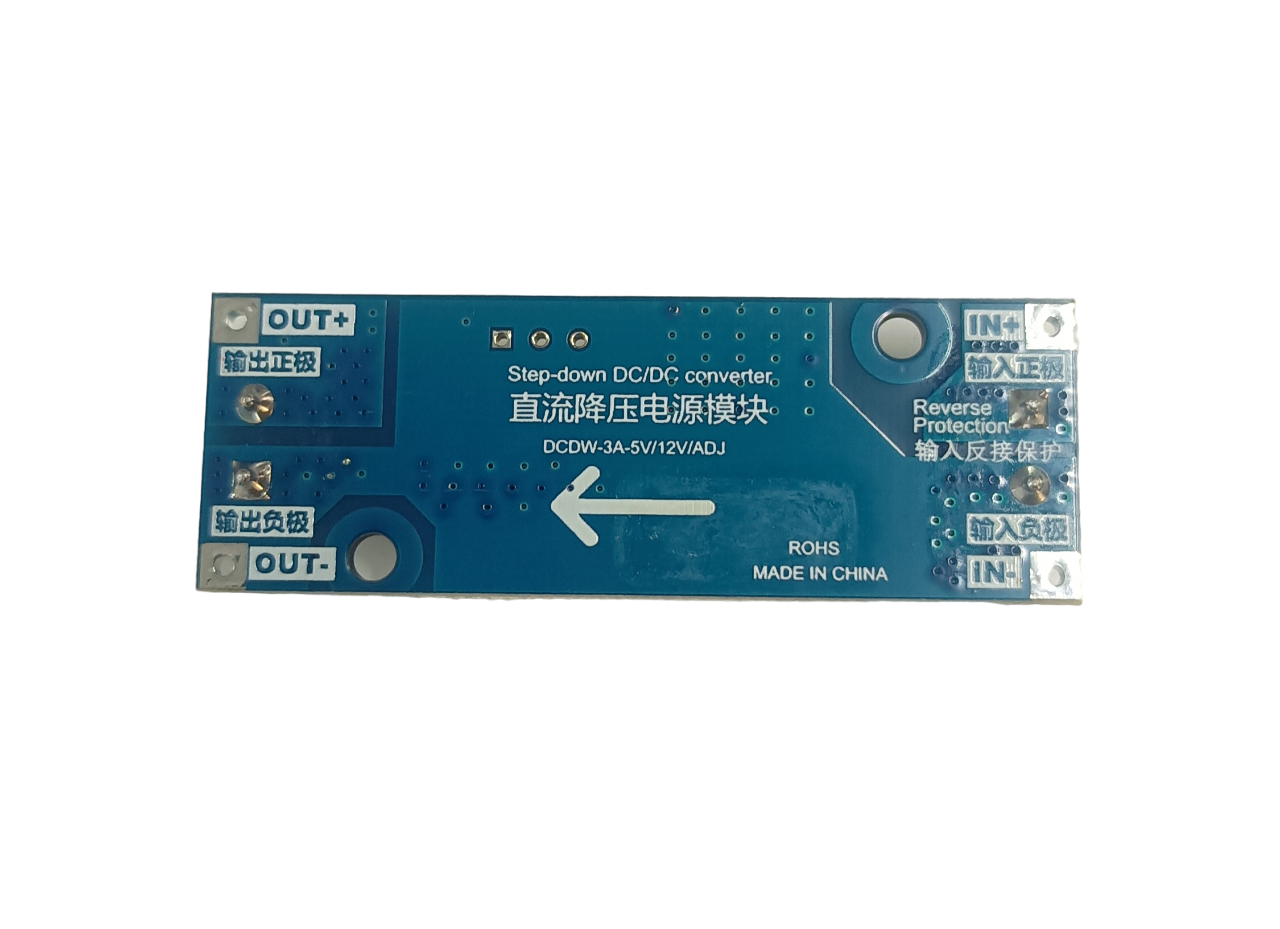

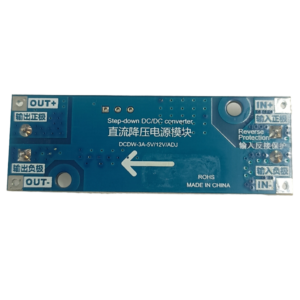

Pin Configuration:
– IN+ input positive
– IN- input negative
– OUT+ output positive
– OUT- output negative
Specification:
– Type: LM2596 DC Power Supply Step-down Module
– Input: 5-60V
– Output: 1.25-26V
– Output max current: 3A
– Continuous operating current: 1.2A (output power within 20W)
PACKAGE INCLUDES
1 X LM2596 LM2576 DC-DC 12V 24V to 5V DC Step-down Power Module
