DC-DC 1.8V-5V to 3.3V, Booster and Buck Power, Modules

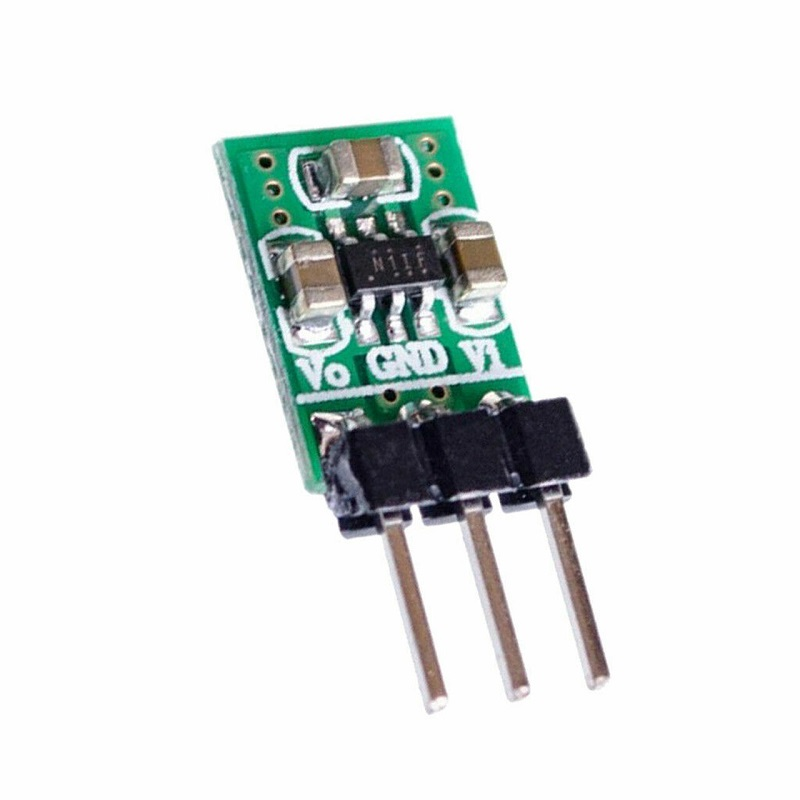

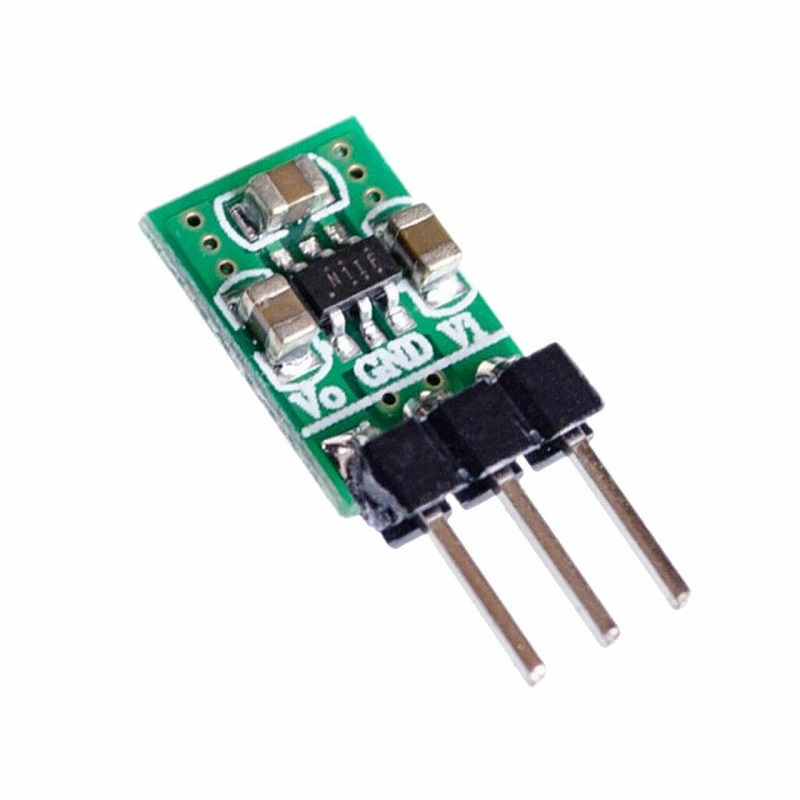

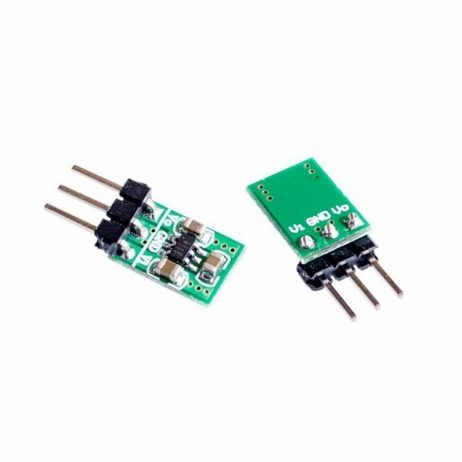

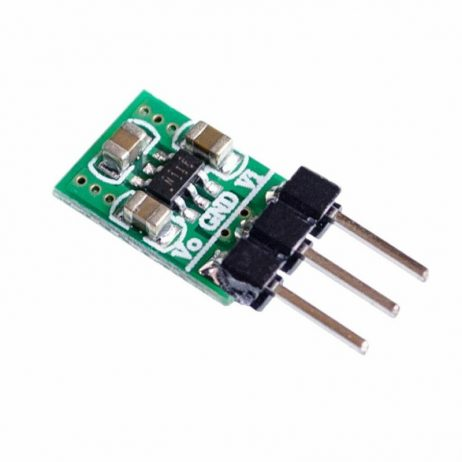

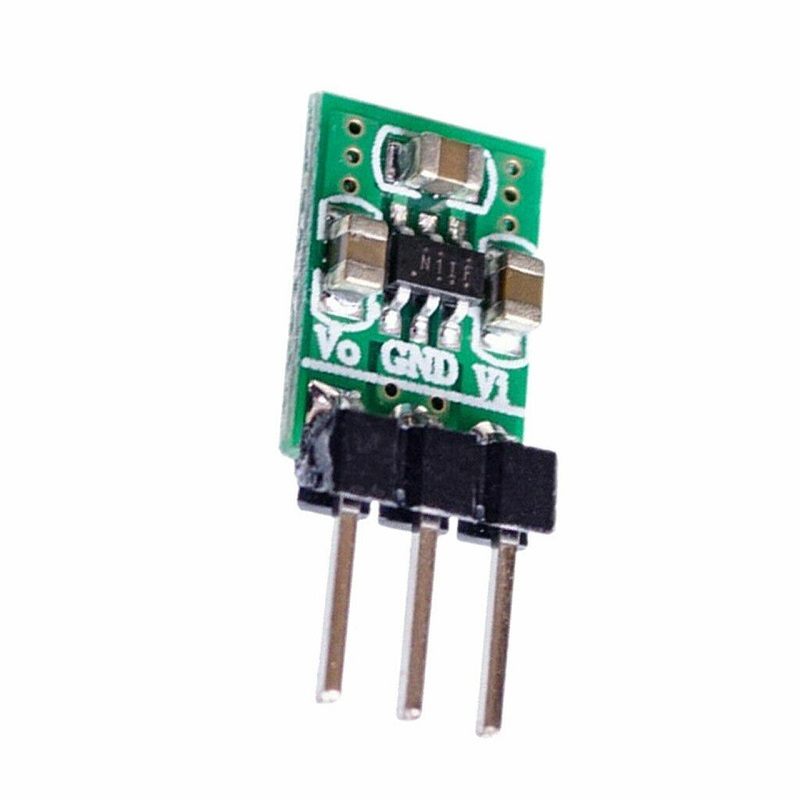

Buy this DC-DC 1.8V-5V to 3.3V Booster and Buck Power Module in a small size (11 x 7 mm) that provides a consistent 3.3V DC output with an input supply range of 1.8 to 5 VDC. The buck-boost module steps up the voltage when the input is less than 3V and steps down the voltage when the input is greater than 3.3V, hence the name.
Circuit Diagram:
Features and Specifications:
- Input Voltage: 1.5V to 5V DC.
- Output Voltage: 3.3V DC.

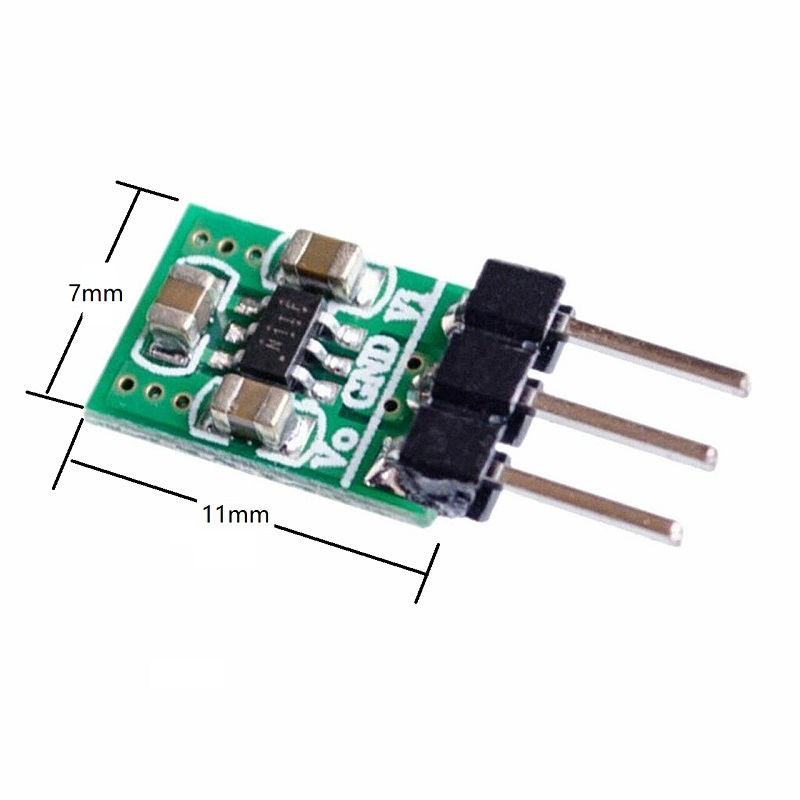

- Dimensions (L x W) mm: 11 x 7
Specification:
Input Voltage (V) | 1.5V to 5V DC |
---|---|
Dimensions(mm) | 11 x 7 |
Output Voltage(V) | 3.3V DC |
Shipping Weight | 0.02 kg |
Shipping Dimensions | 8 × 6 × 2 cm |
Package Includes:
1 x DC-DC 1.8V-5V to 3.3V Boost and Buck Power Module
