DC – DC 6-24V to 5V USB Output Step Down Power Charger with Adjustable Buck Converter

DC – DC 6-24V to 5V USB Output Step Down Power Charger with Adjustable Buck Converter

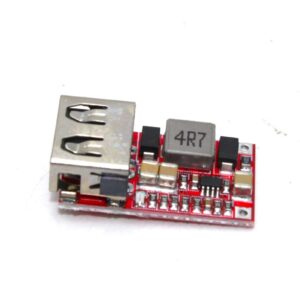

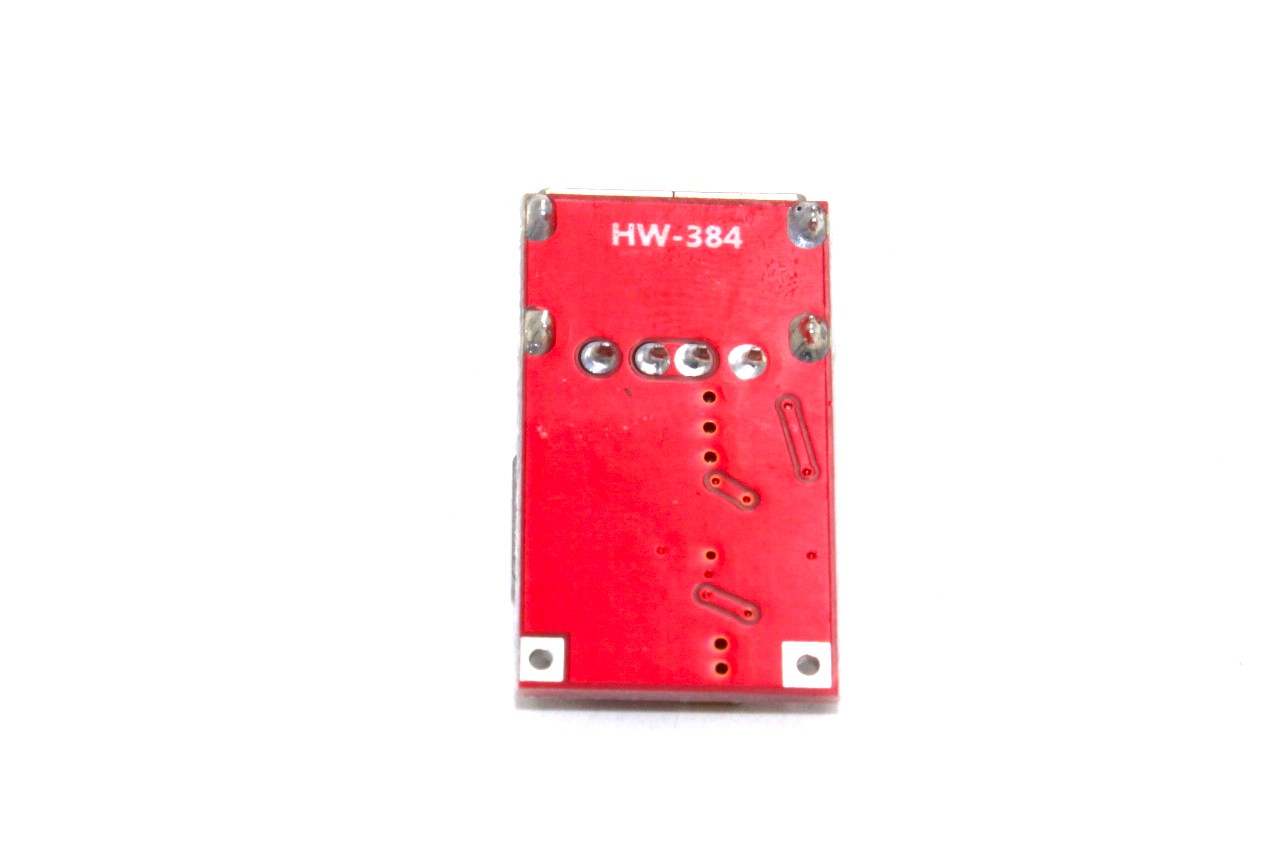

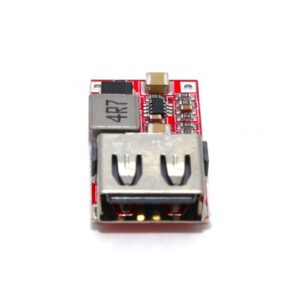

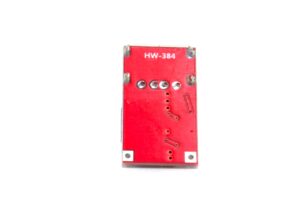

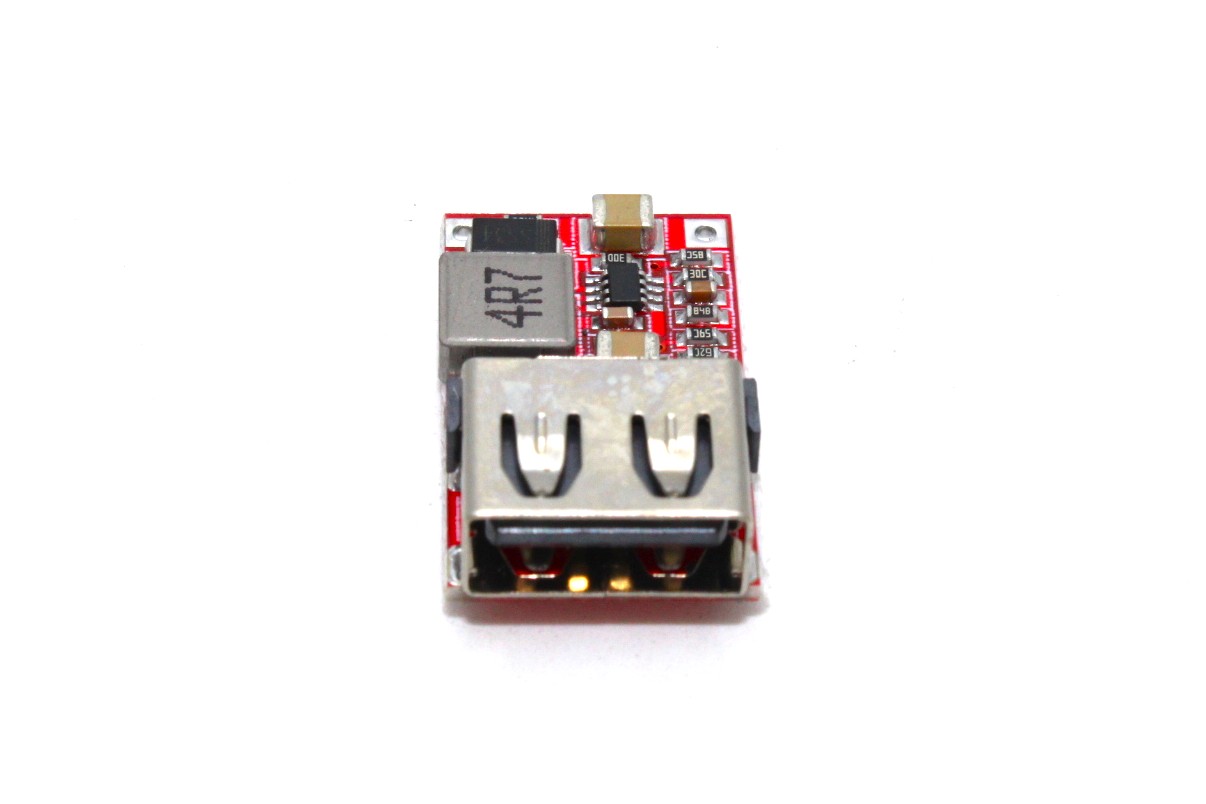

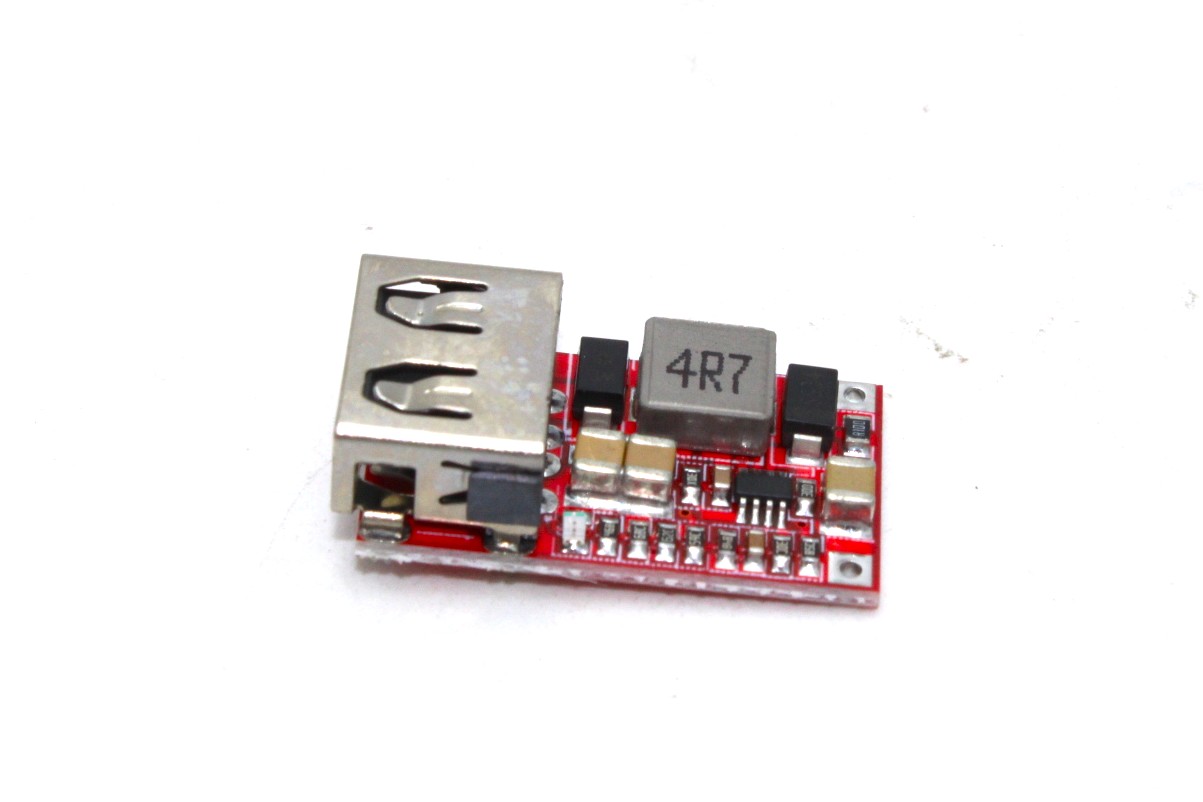

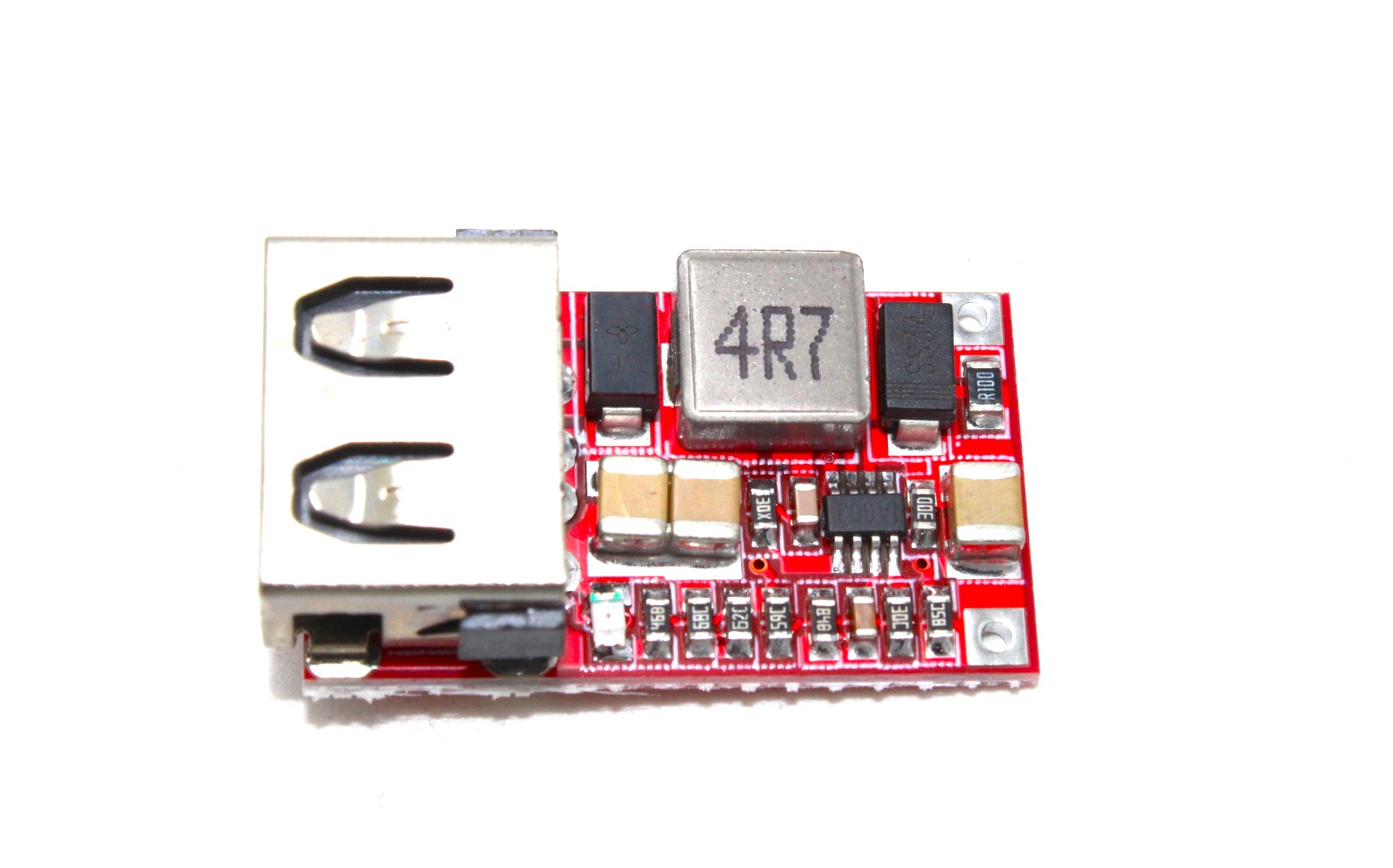

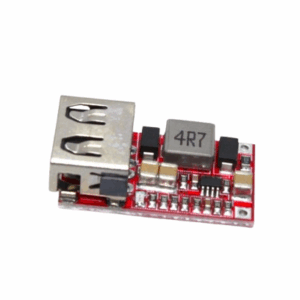

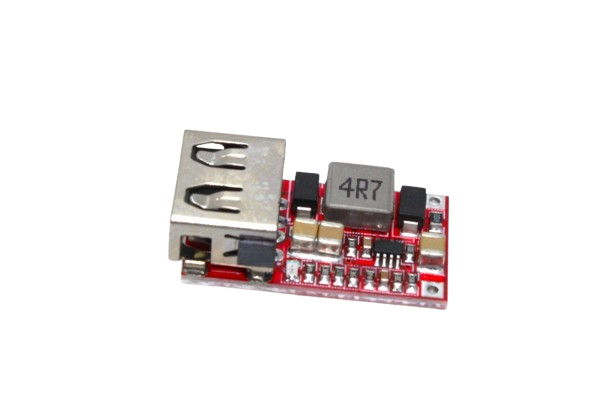

This USB Output Step Down Power Charger accommodates a 6-24V voltage input and delivers a 5V 3A output, complete with input polarity reverse protection, output overvoltage protection, and short circuit protection.



Utilizing synchronous rectification technology, it achieves an ultra-high power conversion efficiency of up to 97.5%, maximizing the use of the input power. The onboard female type A USB port, equipped with an identification circuit, is ideally suited for iPhones, iPads, and Android smartphones. It is also capable of powering or recharging any electronic device that requires a 5V input power at currents up to 3A.

Note:

• The Module has Output short circuit protection, but please do not a short circuit for a long time to avoid damage due to overheating.

Features

Non-isolated buck module (BUCK) synchronous rectification

Maximum Output Current: 3A MAX

Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)

Switch frequency: 500KHz

Output Ripple: 10mV around (12V to 5V3A) 20M bandwidth

Output indicator: Output voltage indicator is red

Operating temperature: Industrial grade (-40 ° to + 85 °) (the higher the ambient temperature, the lower the output power)

Output overvoltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection.

Flat copper inductor, improve conversion efficiency

With output overvoltage protection. There is 1.5A fuse, output 5V have 300W TVS tube protect your USB device

Using the latest USB identification circuit, perfectly compatible with IPHONE, the most of Android phones, IPAD etc.

High-quality USB port

Output voltage indicator (RED)

Small size, Compact Size

Input with reverse polarity protection diode, will not damage when input connect incorrectly

Ultra-low static current, 0.85 mA only. Do not need to add switch when connected to the car battery, can be connected to car cigarette lighter cable or ACC power supply cable



Specifications:

Maximum Output Current	3A
Maximum Conversion Efficiency	97.5%
Full load temperature	30 °C
Switching Frequency	500KHz
Load Regulation	±1%
Voltage Regulation	±0.5%
Dynamic Response Speed	5% 200uS
Dimensions(LxWxH)mm	26.4 x 15 x 7.4
Weight (g)	9
Static current	0.85 mA

Precautions:

please enhance heat dissipation when fully used for load output(i.e. 5V@3A with 24V Input).

For the ideal case (i.e. 5V@2A output with 12V Input) it does not need to enhance heat dissipation.

Package Includes:

1 x DC-DC 6-24V to 5V 3A USB Output Step Down Power Charger
