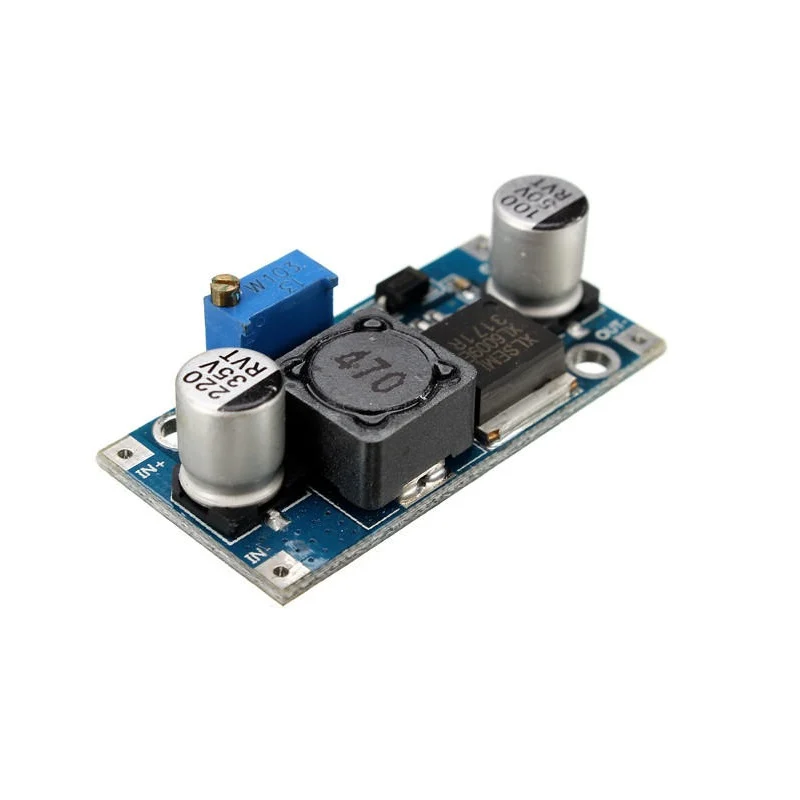

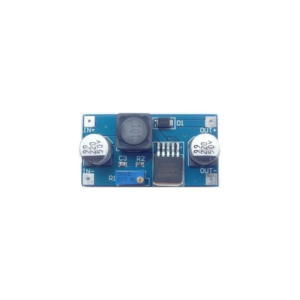

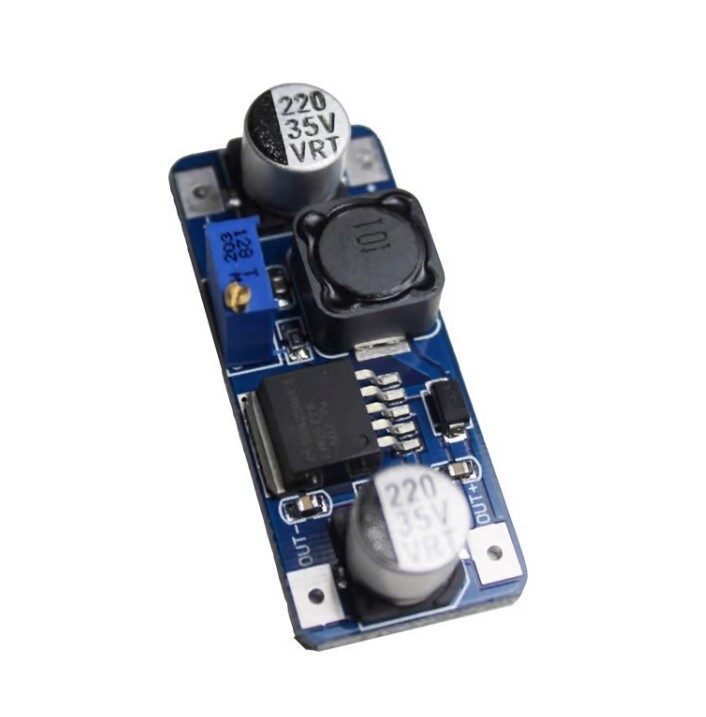

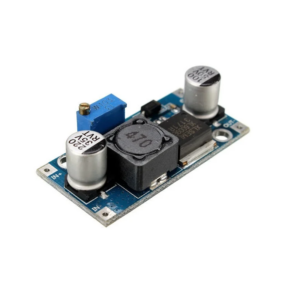

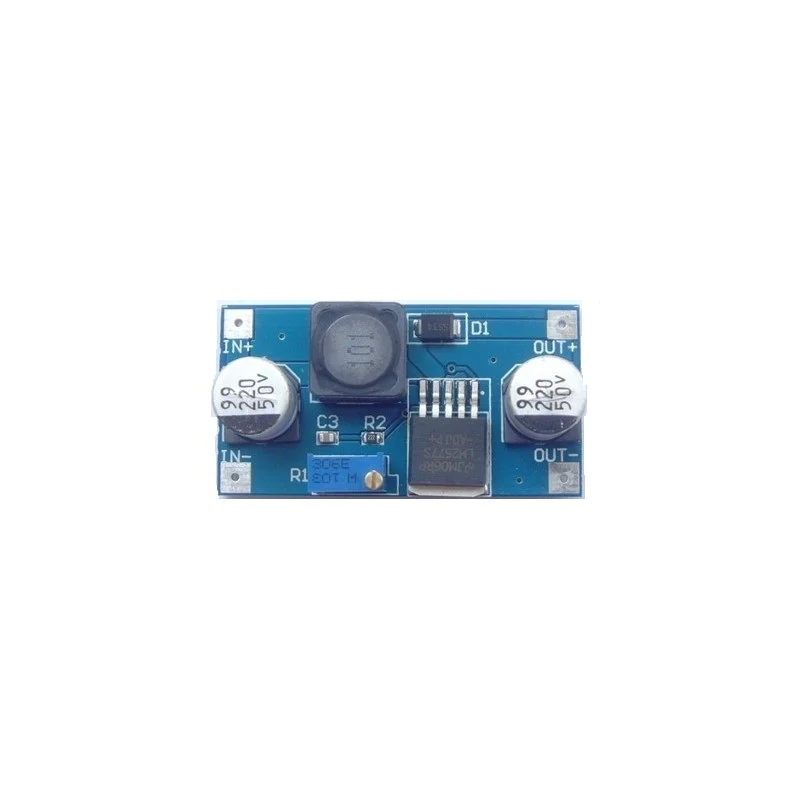

The LM2577 is a DC to DC step-up switching regulator capable of outputting an adjustable voltage ranging from +1.25 to 30VDC, with a maximum current of 3A. Primarily, it is designed to elevate +5 to 10VDC to +12VDC at less than 1A. The output voltage and current are contingent on the input voltage; hence, a higher input voltage will yield a lower output current. For instance, with an input of +5VDC, the output would be 12VDC at less than 1A.
This regulator is perfectly suited for battery-powered projects requiring a regulated power supply. It incorporates additional filtering to minimize output ripple and features an adjustable power supply step-up module. With a maximum input current of 3A and a peak conversion efficiency of 92%, it is highly appropriate for DIY mobile power, boost chargers, and similar applications.
Specifications:
Conversion efficiency
Up to 92%
Switching Frequency
50KHz
Operating temperature
-40 to +85 C
Load regulation
± 0.5%
Voltage regulation
± 0.5%
Length(mm)
52
Width(mm)
22
Height(mm)
20
Weight(g)
13
Features
Wide Input voltage: 3.5V-35V
Output Voltage: 4-35V (Adjustable)
Output current: rated current 3A MAX ( Heat-sink Needed)
Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 50KHz
Rectifier: Non-Synchronous Rectification
Short circuit protection: current limiting, since the recovery
The LM2577 DC-DC Step-Up Power Converter Module is a versatile boost converter used across a wide range of applications including voltage step-up for electronics, battery-powered LED drivers, USB power banks, and low-voltage to high-voltage conversion.
Common use cases:
Boosting 3.7V LiPo to 5V for USB output
Driving 12V LED strips from a 5V source
Building a portable power bank
This product is ideal for power electronics designers and DIY enthusiasts.
Technical Tip: Boost converters increase voltage at the cost of reduced current capacity. Total power (W) remains roughly constant minus efficiency losses.
