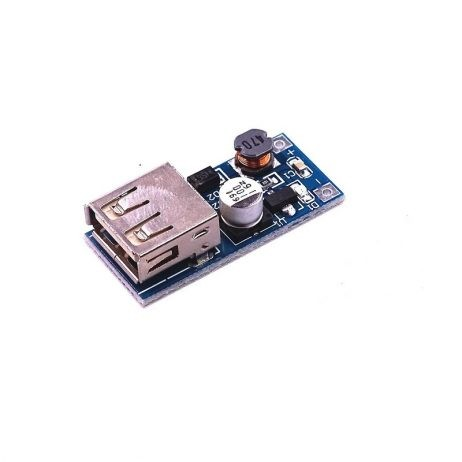

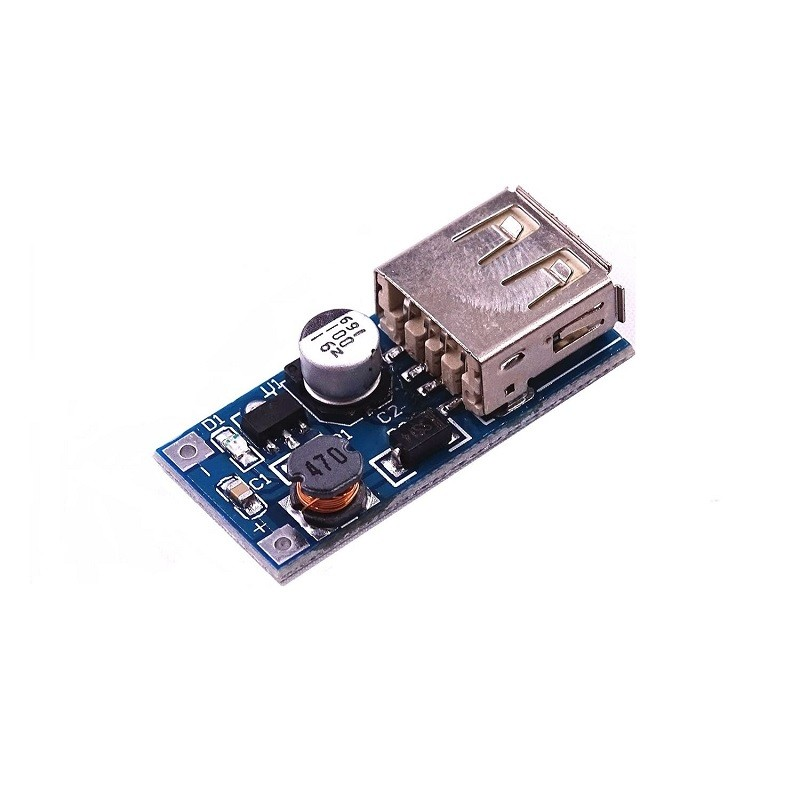

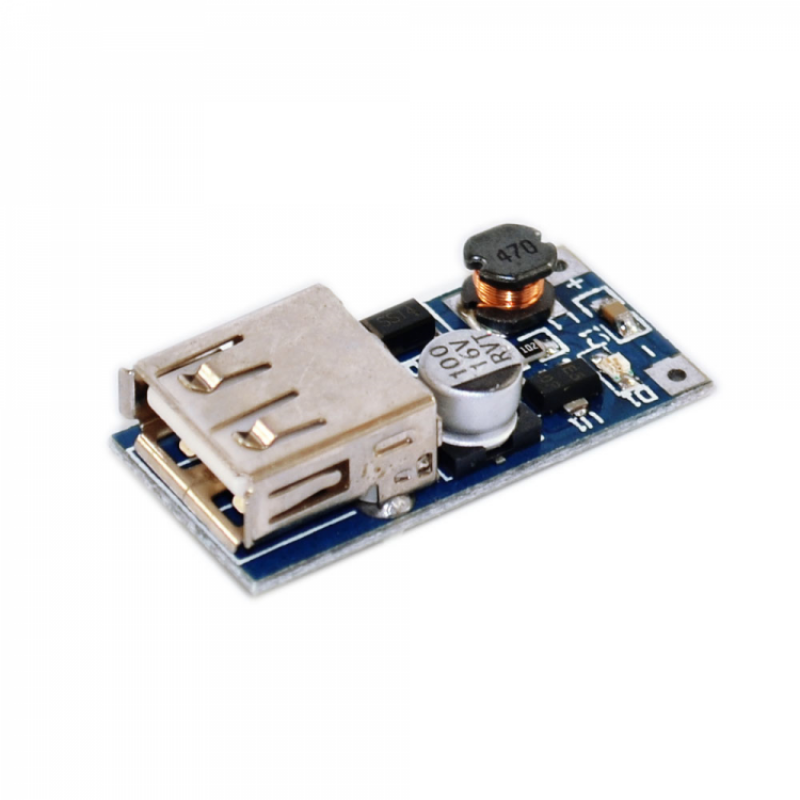

This is the 5V variant of the DC-DC Boost Module (0.9V~5V) to 5V 600MA USB Step-up Board 5V Output in Boost Converter. Available at ₹28.08 (₹23.80 + GST) with free shipping across India.
Description:
Great Step-up Module with 0.9-5V input, output 5V for many digital devices, so this is really a great module for designing a portable charger. Useful for your USB charger projects and onboard USB device supply solutions. (ie GoPro cameras)
You can supply it with single-cell LiPO or an AA size batter or others. Two AA batteries can output a current of 500 ~ 600MA, a single AA battery power supply can output 200ma current supply, great for mobile phones camera, single-chip, digital products supply.
Applications:
- USB voltage regulator for USB-powered device.
- This module will bring the USB voltage required for your application at regulated 5V output.
- Various USB devices need 5V from low voltage batteries.
- Charge mobile phone/MP4/MP3 from AA battery when traveling
Features:
- The module adopts a high-performance imported chip, performance is superior to the common module.
- Work with indicator light.
- Take the USB female, a wide range of Uses.
- A single AA battery power supply can output a current up to 200~300 ma.
- Two AA batteries to the output current of 500~600 mA.
- Work from battery voltage as low as 0.9V, allowing you to maximize battery use.
- If your USB device is critical on 5V operation you can use this module.
Specifications:
| Input Voltage (V) | 0.9-5 |
|---|---|
| Output Voltage(V) | 5 |
| Output Current | 500-600mA |
| Load Regulation | ±1% |
| Voltage Regulation | ±0.5% |
| Switching Frequency (KHz) | 500 |
| Operating Temperature (°C) | -40 to 85 |
| Length (mm): | 25 |
| Width (mm): | 18 |
| Height (mm): | 10 |
| Weight (g): | 5 |
Package Includes:
- 1 x DC-DC 0.9V-5V to 5V 600MA Step-Up Boost USB Module
Technical Specifications
| Operating Voltage | 5V |
|---|---|
| Current Rating | 600MA |
| Interface / Protocol | USB |
| SKU | AI5875 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The DC-DC Boost Module (0.9V~5V) to 5V 600MA USB Step-up Board 5V Output is a versatile boost converter used across a wide range of applications including voltage step-up for electronics, battery-powered LED drivers, USB power banks, and low-voltage to high-voltage conversion.
Common use cases:
- Boosting 3.7V LiPo to 5V for USB output
- Driving 12V LED strips from a 5V source
- Building a portable power bank
This product is ideal for power electronics designers and DIY enthusiasts.
Technical Tip: Boost converters increase voltage at the cost of reduced current capacity. Total power (W) remains roughly constant minus efficiency losses.
