- Input: 2-6s LiPoly
- Constant Current: 30A
- Burst Current: 35A
- BEC: No BEC, OPTO only
- Dimensions: 35 x 17 x 3mm(LxWxH)
- Weight: 9g (with power and signal wires)
- Lightweight
- Preflashed with BLHeli-S Firmware
- MCU: SILABS EFM8BB21F16, MCU running at 48MHz
- Dedicated driver chip
- Input: 2-6s LiPoly
- OPTO ESC

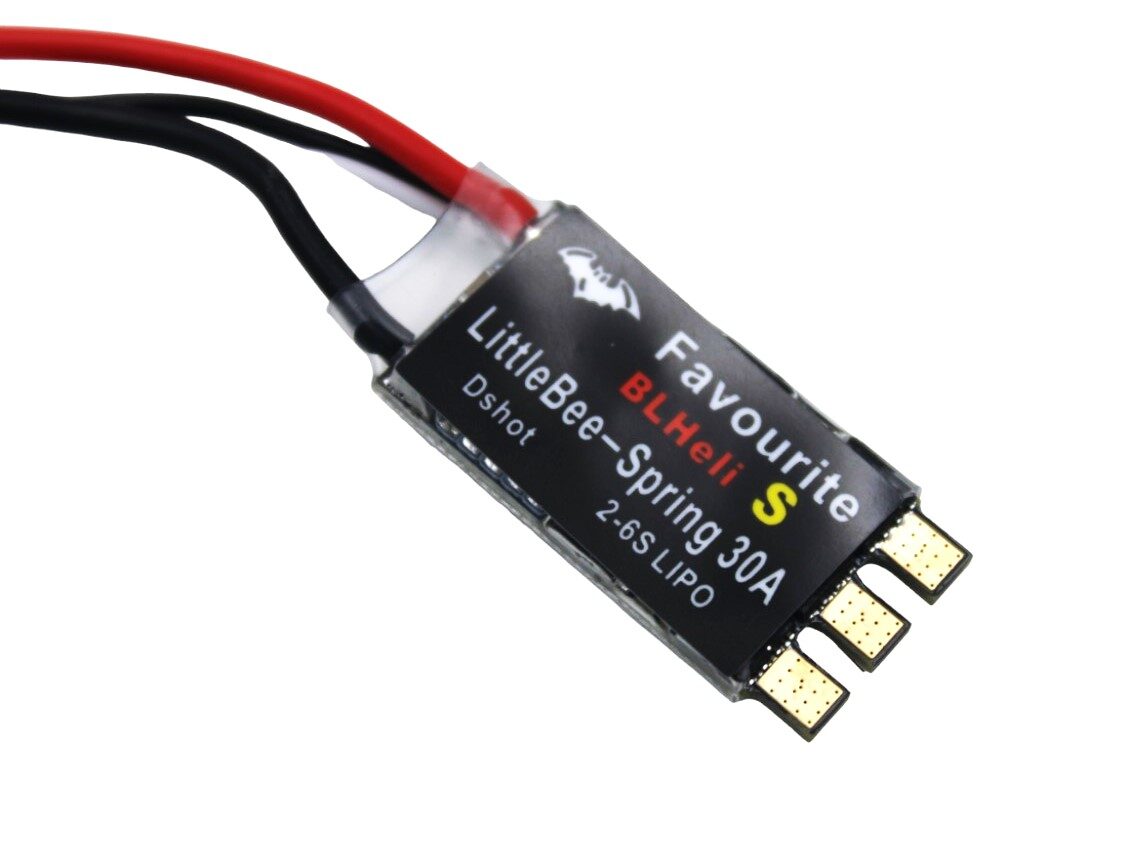

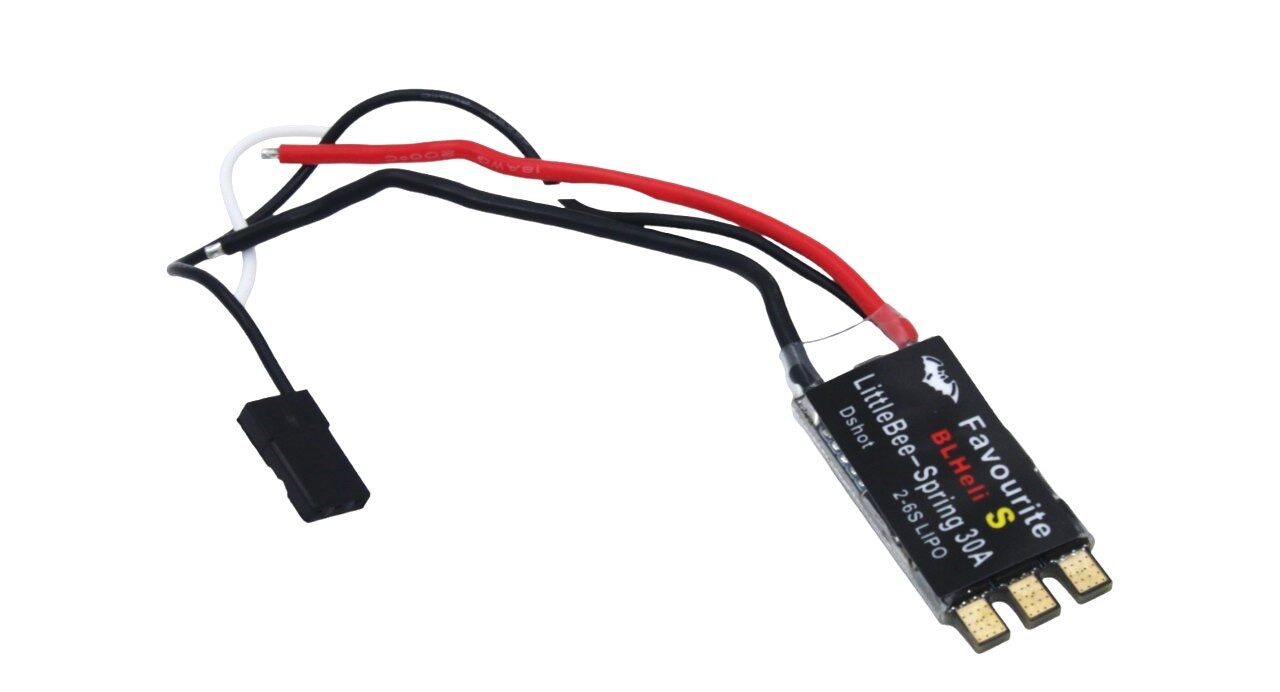

- Model: Little Bee 30A-S
- Battery: 6-25.2V (2-6S Lipo)
- Current Rating: 30amp / 35amp burst
- BEC: No (OPTO)

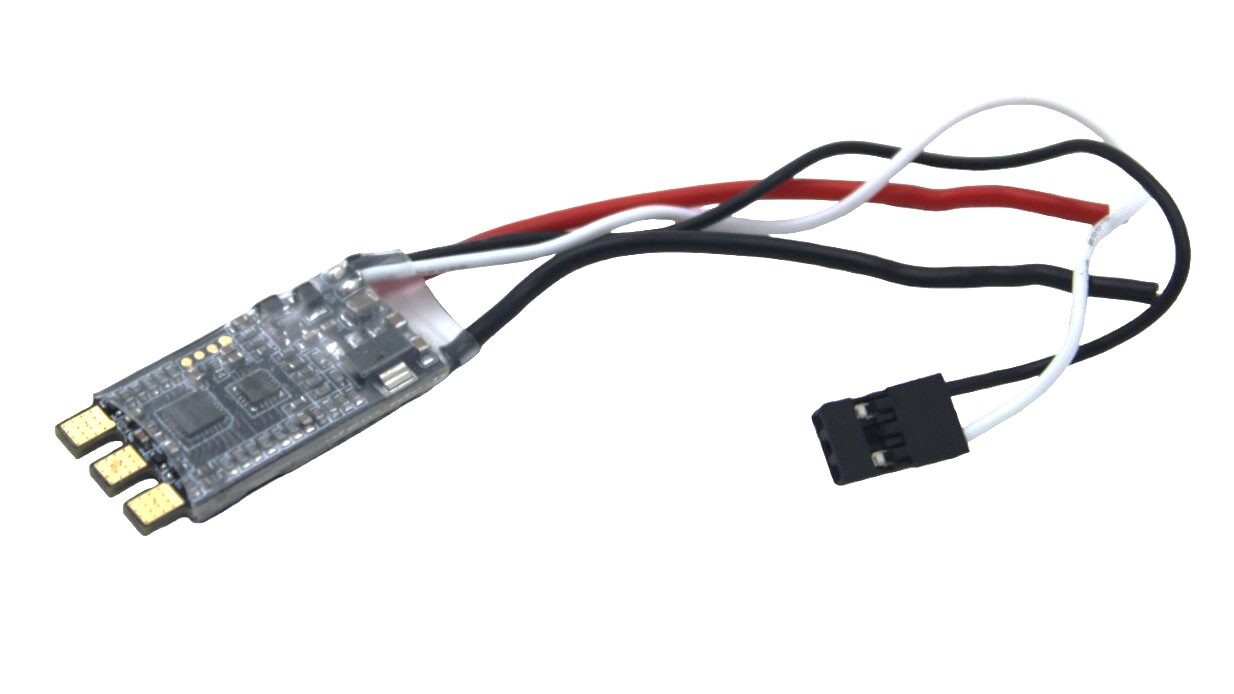

- PCB board: 4 layers blind pole board, 3 oz copper
- Bootloader: BLheli
- Motor Wire: 70mm (20AWG)
- Signal Wire: 120mm
- Firmware: BLHeli_S (Supports Oneshot / Oneshot42 and Multishot / Active Braking – dampened light mode)
- 1 x LittleBee BLHeli_S 30A ESC
FPV Camera Comparison: DJI O3 vs Walksnail vs Analog — Which Is Best?
Table of ContentsIntroductionUnderstanding FPV Video SystemsAnalog FPV: The Classic ChoiceDJI O3 Air Unit: The Premium Digital OptionWalksnail Avatar:...
Read More →
How to Build a 7-Inch Long Range FPV Drone (India Parts Guide 2026)
How to Build a 7-Inch Long Range FPV Drone (India Parts Guide 2026) The 7-inch long range FPV...
Read More →
FPV Drone Range Extender: Booster Amplifiers for Video TX Explained
Table of ContentsUnderstanding FPV Video Range LimitationsHow Video TX Booster Amplifiers WorkTypes of Range Extension SolutionsAntenna Selection for...
Read More →Technical Specifications
| Current Rating | 30A |
|---|---|
| Interface / Protocol | TTL |
| SKU | AI4596 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The LittleBee BLHeli_S 30A ESC is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
