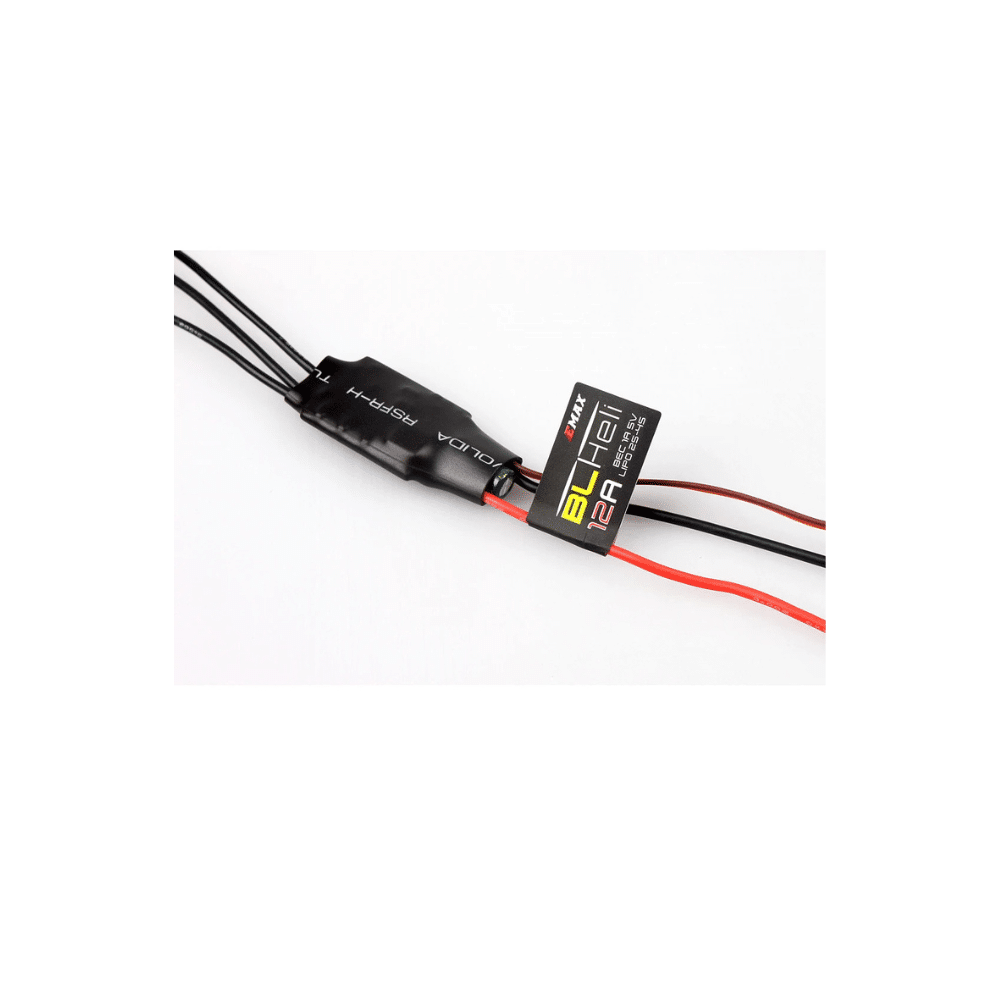

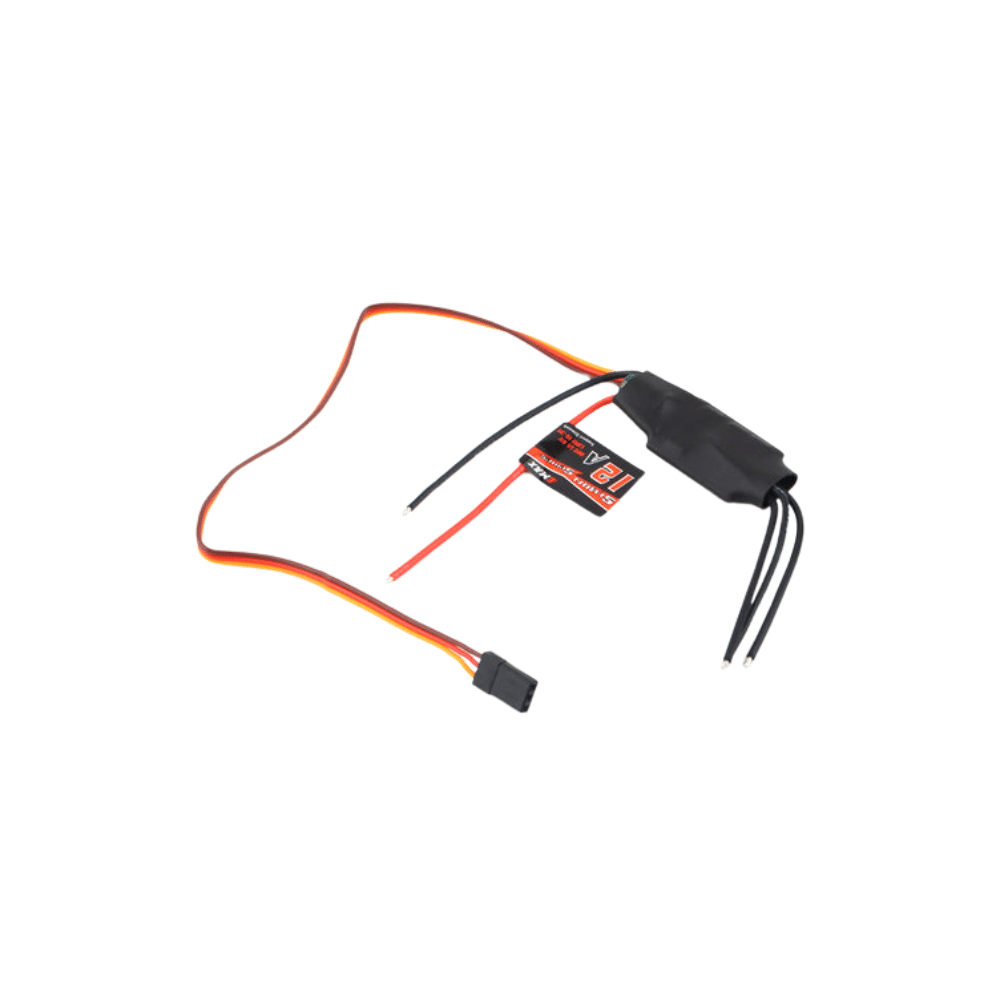

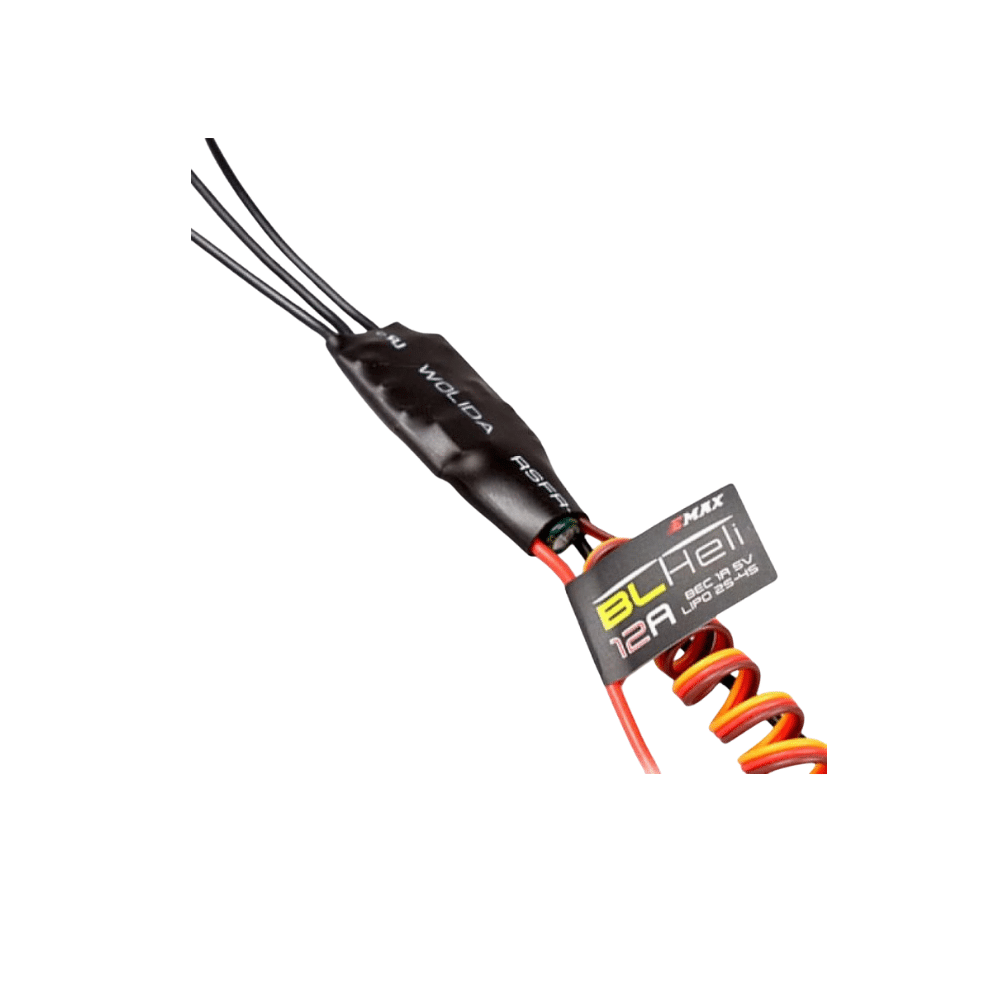

Emax BLHeli Series 12A ESC with Oneshot Based on BLHeli firmware further optimized to the perfect drive performance. It has Low-voltage protection, over-heat protection, and throttle signal loss protection.
The ESC comes with a Separate power supply for MCU and BEC, enhancing the ESC’s ability to eliminate magnetic interference. The Parameter of this ESC can be set via a program card or transmitter. Throttle range can be set to be compatible with different receivers. Equipped with built-in linear BEC or switch BEC. Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.
How to do ESC Connection and Calibration Visit robu.in.
100% Guaranteed Original & Genuine Emax Product.

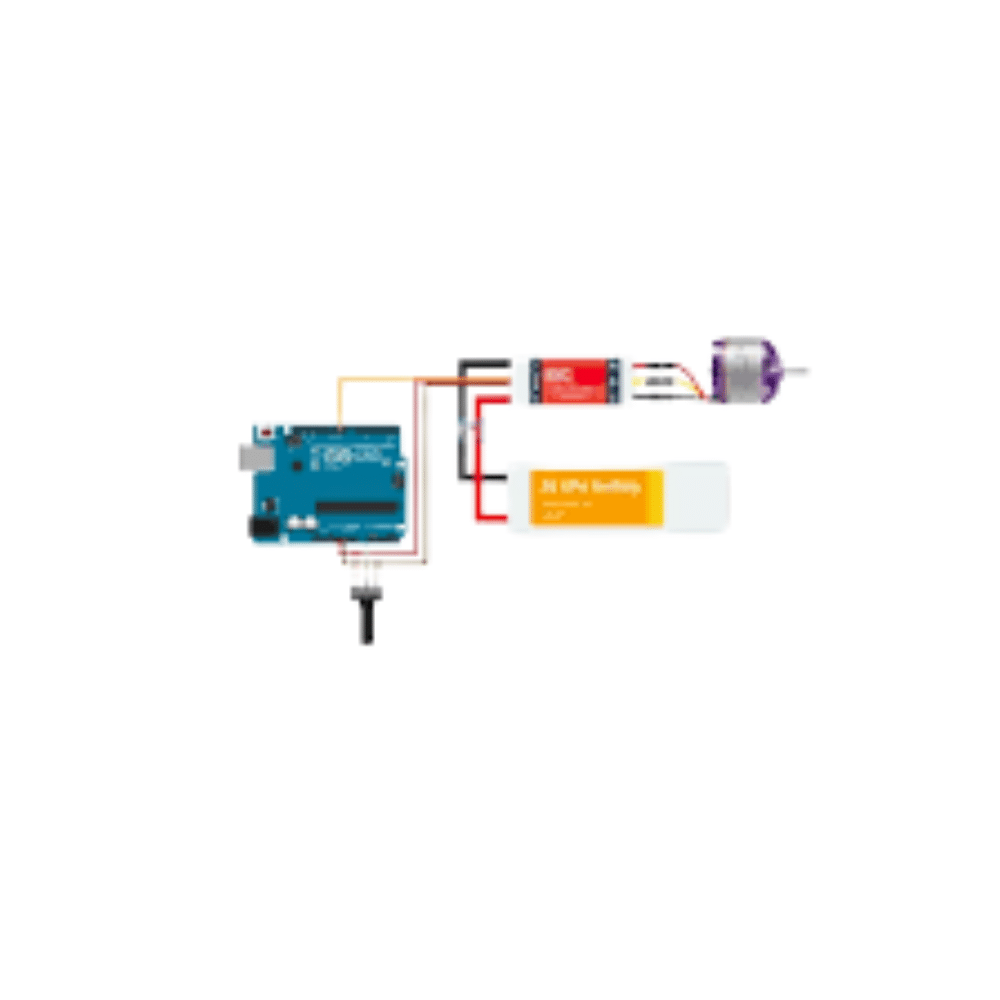

Connections:
Features:
- Uses the authentic Electronic components to ensure high quality and enhance the current endurance ability of the ESC.
- Based on BLHeli firmware, Optimized for high performance with great linearity and much quicker throttle response.
- Specially designed for multi-rotors and compatible with fixed-wing aircraft and helicopters.
- The rotational direction of the motor is Programmable i.e. Normal, reverse or bi-directional.
- All parameters can be programmed via using a programming card or a transmitter
- Multiple protection features including Low-voltage cut-off protection/ over-heat protection.
- Alarm to help you find the device: keep the throttle on FULL OFF position for a while, the ESC will beep
- Throttle range can be configured and fully compatible with all receivers, providing smooth; linear and precise throttle response.
- One-Shot Available.
Specification:
| Item Type: | Brushless ESC |
|---|---|
| Model Name | Emax BLHeli Series 12A ESC |
| Burst Current (A) | 15 |
| Constant Current (A) | 12 |
| BEC (Y/N): | (5V/1A), Yes |
| Compatible LiPO Batteries: | 2S to 4S |
| Color: | Black |
| Application | Multi-roter, Rc Plane etc. |
Package Includes:
1 x Emax BLHeli Series 12A ESC with Oneshot (Original).
ExpressLRS 3.0: New Features and Upgrade Guide
Table of Contents Understanding ExpressLRS 3.0 Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical Tips...
Read More →
How to Fix Drone ESC Beeping Errors After Arming: Complete Troubleshooting Guide
You have assembled your drone, connected your battery, armed the flight controller — and instead of the clean,...
Read More →
FPV LiDAR Mapping Drone: Build a Surveying Quadcopter in India (2026 Guide)
LiDAR-equipped drones are transforming how India conducts land surveys, infrastructure inspections, and agricultural mapping. Whether you are a...
Read More →Technical Specifications
| Brand | Emax |
|---|---|
| Current Rating | 12A |
| SKU | AI7449 |
| Weight | 0.03 kg |
| Availability | In Stock |
Applications & Use Cases
The Emax BLHeli Series 12A ESC with Oneshot (Original) is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
