This is the 60V variant of the CUAV HV_PM Power Module for V5+ | 10-60V Pixhack Pixhawk XT60 Plug For RC Drone FPV in Flight Controller & Accessories. Available at ₹6,119.40 (₹5,828.00 + GST) with free shipping across India.

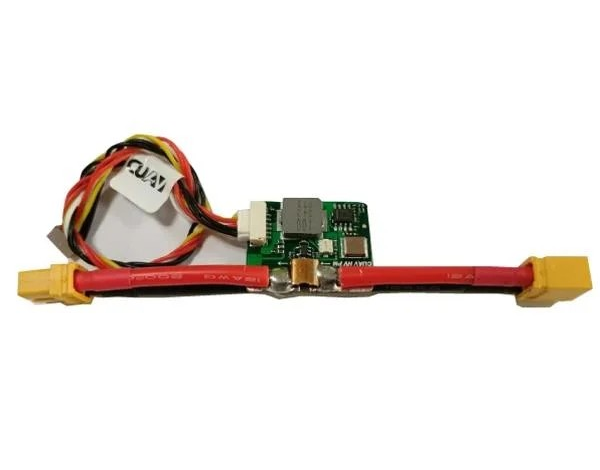

CUAV HV_PM Power Module for V5+ | 10-60V Pixhack Pixhawk XT60 Plug For RC Drone FPV
The CUAV HV_PM Power Module for V5+ is a high-quality power module designed specifically for RC drones and FPV aircraft. It features a wide input voltage range of 10 to 60V, accommodating various battery types and configurations, thus offering versatility and flexibility for pilots.
It comes equipped with an XT60 plug, which is a standard in RC drone technology, ensuring a secure and reliable connection. The HV_PM Power Module’s compatibility with well-known flight controllers like Pixhack and Pixhawk adds to its appeal, allowing for smooth integration.
Beyond its dependable performance and broad compatibility, the CUAV HV_PM Power Module also emphasizes safety. It includes protective features against overcurrent, overvoltage, and overheating, ensuring safe and stable operation during flights.
In summary, the CUAV HV_PM Power Module for V5+ is an excellent choice for RC drone and FPV pilots who require a reliable and flexible power solution for their flying activities.
Ground station settings:
Features:
- Provide 5V voltage output and maximum 5A current to fly control power supply.
- Detection of the current-voltage output analog signal to the flight control
- Detection of the current system output analog signal to the flight control
- Because the PIX flight control ADC maximum detection voltage of 3.3, the maximum can only support 60A current detection.
- Its use is very simple, 6P signal line into the flight control POWER connector.
Note: The battery is not included in the package.
Specification:
| Product | CUAV HV_PM Power Module for V5+ |
|---|---|
| Hold more high input voltage | 10v-60v (3s ~ 14s battery) |
| Voltage detection accuracy | + – 0.1v |
| Current detection accuracy | + – 0.2aA |
| Support higher power port output current | 5A |
| Maximum (detection) current | 60A |
Package Includes:
1 x CUAV HV_PM Power Module for V5+
Best LiPo Batteries for Drones: Capacity and C-Rating Explained
Choosing the right lipo battery for drone builds is one of the most critical decisions you will make...
Read More →
Drone Racing League: Start Competing in India
Table of Contents Understanding Drone Racing League Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Drone Magnetometer Calibration: Fix Compass Errors Fast
Drone Magnetometer Calibration: Fix Compass Errors Fast Nothing is more frustrating than watching your drone drift sideways, spin...
Read More →Technical Specifications
| Brand | CUAV |
|---|---|
| Connector Type | XT60 |
| SKU | AI5625 |
| Weight | 0.05 kg |
| Availability | Out of Stock |
Applications & Use Cases
The CUAV HV_PM Power Module for V5+ | 10-60V Pixhack Pixhawk XT60 Plug For RC Drone FPV is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine CUAV product sourced from authorized channels
