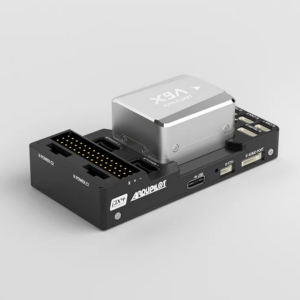

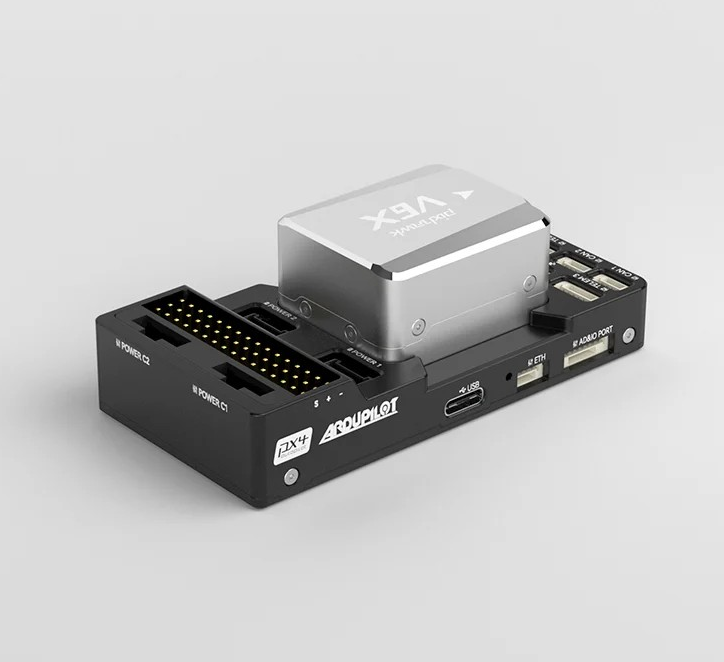

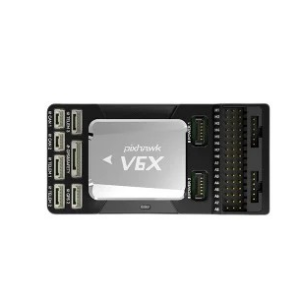

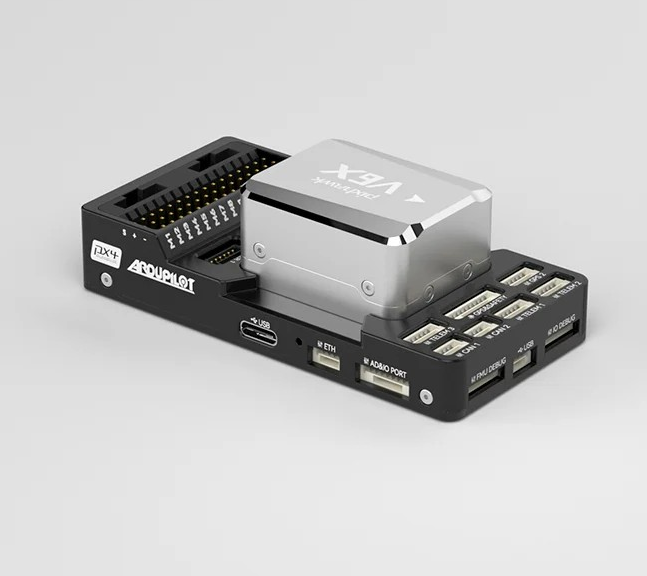

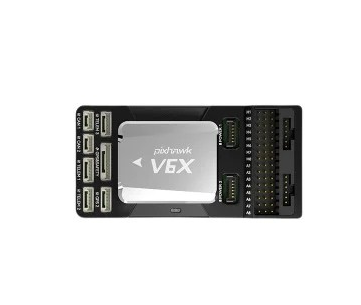

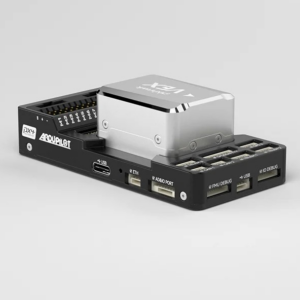

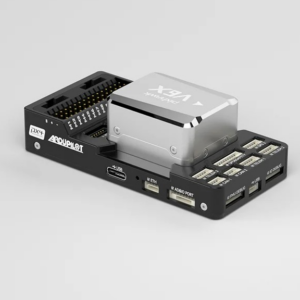

CUAV V6X Flight Controller
The CUAV V6X Flight Controller marks a significant advancement in Pixhawk technology, developed collaboratively by CUAV and PX4. It adheres to the Pixhawk FMU V6X standard, prioritizing exceptional security and stability for unmanned aerial vehicles (UAVs).
Central to the V6X is an H7 double-precision floating-point arithmetic unit coupled with a Cortex-M3 coprocessor, each with its dedicated bus and power supply system. This architecture guarantees robust performance and reliability during flight operations.
Equipped with three redundant IMUs and factory-calibrated IMU temperature technology, the V6X ensures precise and dependable flight dynamics. The integration of dual redundant barometers enhances the reliability of altitude measurements.
The controller’s broad expansion capabilities are underscored by the integration of a 100M Ethernet PHY, enabling swift communication with mission computers, fiber optic inertial navigation systems, high-end surveying and mapping cameras, and other industrial devices installed on UAVs, meeting the demands of complex UAV missions.
In essence, the CUAV V6X Flight Controller sets a new standard in UAV technology, offering unmatched security, stability, and expandability for sophisticated aerial operations. Features include:
An H7 Double Precision Floating-Point Arithmetic Unit Processor
Utilizing the STM32H753IIK6 processor with a double precision floating point arithmetic unit (DSP&FPU), a main frequency of up to 480MHz, 2M FLASH, and 1 MB RAM, the CUAV V6X Flight Controller provides formidable computing power and swift data processing capabilities, enabling more functional development and enhancing flight stability, thus opening up more possibilities.
The ARM® Cortex®-M3 coprocessor enhances the expansion capacity, adding greater security and scalability to UAVs.
A multiple redundancy design guarantees flight safety. Equipped with three redundant IMUs and two redundant barometers on separate buses, the system can seamlessly transition to a reliable IMU if one set fails, thereby ensuring safer flight conditions.
Integrated 100M Ethernet Interface
High-speed communication with task computers through Ethernet; In the future, high-end links, INS, and high-end mapping cameras can be connected through Ethernet to meet the needs of high-end UAVs.
Adapt to More Complex Magnetic Environments
In order to adapt to the complex magnetic field environment, the RM3100 magnetic compass is selected, which supports the GPS direction-finding function, and completely solves the trouble of magnetic compass interference.

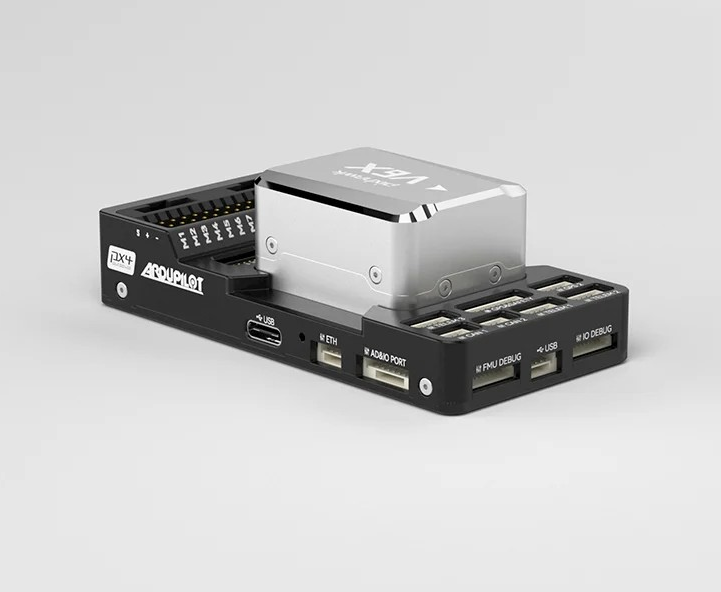

Pixhawk V6X Autopilot Flight Controller Modular Design

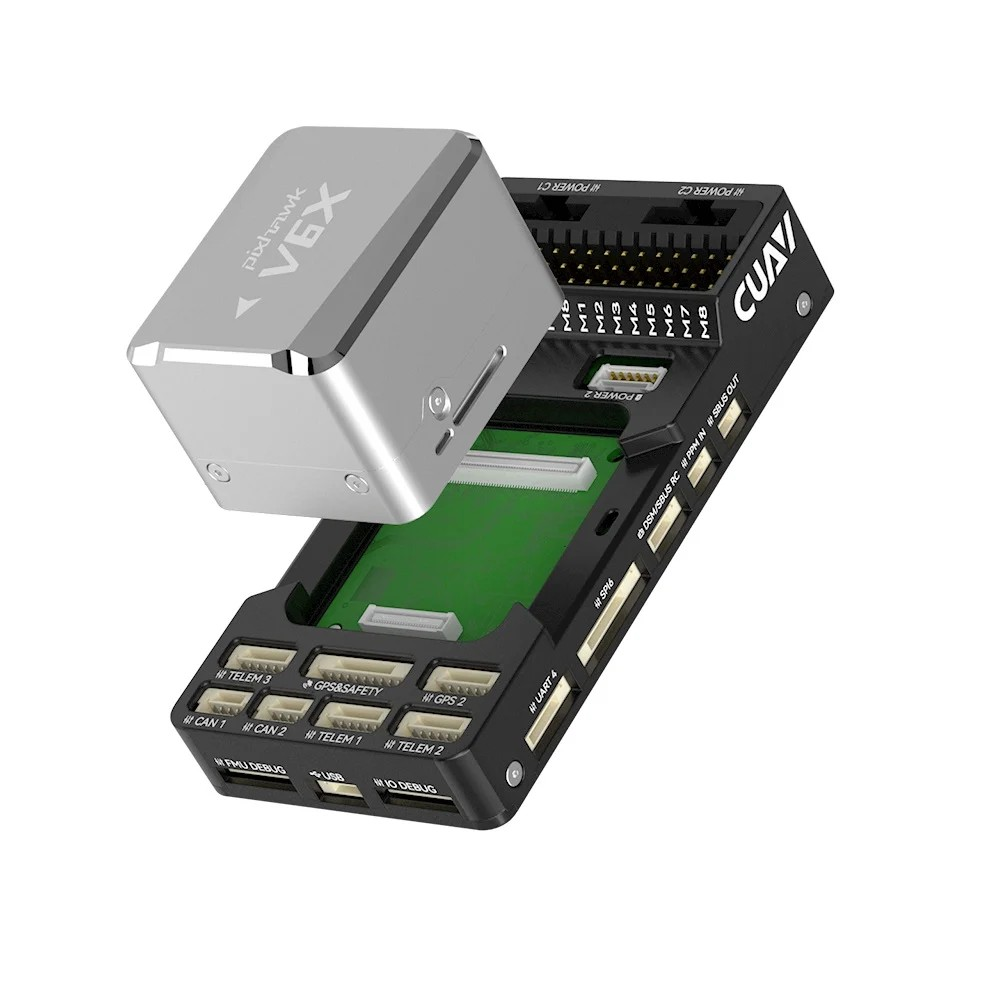

The CUAV V6X Flight Controller adopts a modular design, and the core module contains the processor and all IMUs. Users can design their own baseboard according to the design reference, to meet the personalized customization needs.
Compatibility with PX4/ArduPilot All Models
CUAV V6X Flight Controller supports all models for PX4&ArduPilot firmware,3-8 Copter/Plane/Helicopter/VTOL/unmanned vehicle/Rover, etc.
Specification:
Processor | STM32H75311K6 |
---|---|
Accelerometer& Gyroscope | ICM42688-P ICM-20649 BMI088 |
Compass | RM3100 |
Barometer | 2×1CP-20100 |
PWM I/O | 16 |
Power | 42 for UAVCAN, 2 for SMBUS (12C) |
GPS | 2, 1 GPS port with 12C and safety switch (GPS1), 1 interface with 12C and GPS (GPS2) |
TELEM | 3 |
CAN | 2 |
PPM RC | 1 for PPM receiver |
SBUS/DSM/RSSI | 1 for SBUS/DSM/Spektrum in and Analog (3.3V)/ PWM input |
SBUS outs | 1 |
FMU Debug | 1 |
10 Debug | 1 |
Ethernet | 1 |
SPI EXTERNAL1 | 1 (SPI6 interface, for expanding external sensors) |
ADIO | 1 AD3.3/ADC6.6 |
UART4 | 1 |
USB | 2, 1 for Type C, 1 for GH interface USB |
Operating voltage | 4.75~5.45V |
Servo input voltage | 0~9.9V |
Operating temperature | -20~85 |
Packing Includes:
1 x Pixhawk V6X Autopilot
1 x PW-Link Module
1 x CAN PMU Lite Module
1 x CAN/12C Estension board
1 x TYPE-C Cable 100cm
1 x RSSI Cable 30cm
1 x DSM RC Cable 30cm
1 x SBUS RC Cable 30cm
1 x PPM RC/SBUS OUT Cable 30cm
1 x Ethernet Cable 40cm
1 x CAN Cable 30cm
1 x TELEM Cable 30cm
1 x UART4 Cable 30cm
1 x UATR4->12C Cable 30cm
1 x ADIO Cable 30cm
1 x Debug Cable 30cm
1 x SP16 Cable 30cm
1 x GPS Cable 30cm
1 x memory card
