Looking for Pixhawk 2.4.8 Set? Pixhawk 2.4.8 Set is available at Zbotic with fast shipping across India.

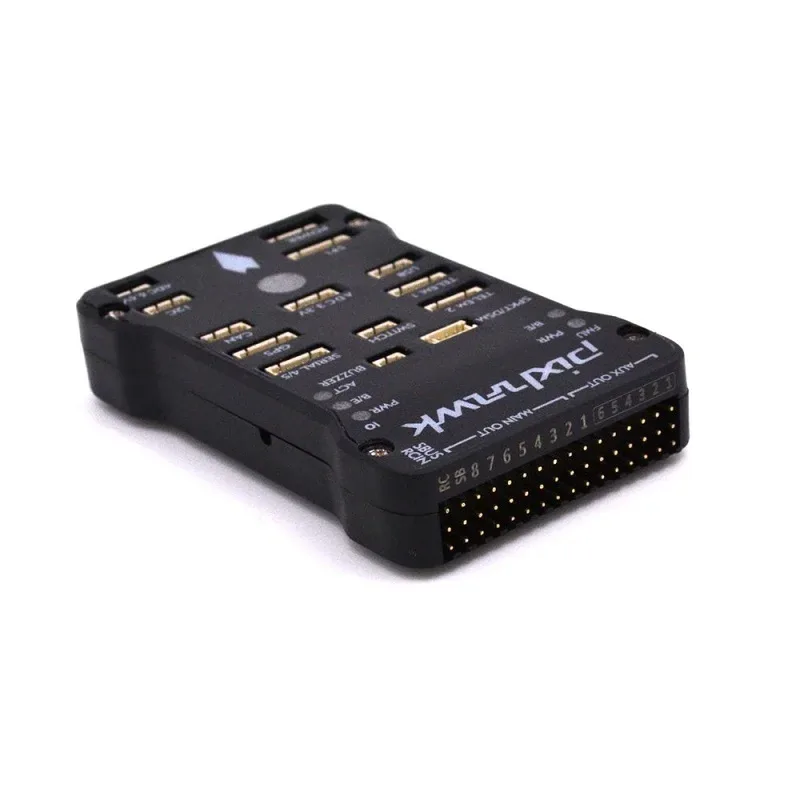

Choosing a flight controller that meets your needs can be challenging, but you don’t have to worry. At zbotic.in, we are here to help you get a quality product. Check out this Pixhawk 2.4.8 32 Bit PX4 Autopilot flight controller for your drone application. All you need to do is look at its specifications.
A common question from our community is “what is a flight controller?” and here is the answer. The flight controller (aka FC) is the brain of the drone (quadcopter). It is a circuit board with various sensors that detect the drone’s movement and the user’s commands, just like the Pixhawk 2.4.8 does. Based on this data, it controls the speed of the motors to make the drone move as instructed.
It supports 8 RC channels and 4 serial ports. You can program it, review logs, and even use some apps for smartphones and tablets with different user interfaces. It also detects and configures all its peripherals automatically.
The Pixhawk system has many advantages, such as a Unix/Linux-like programming environment, new autopilot functions, sophisticated scripting of missions and flight behaviour, and a custom PX4 driver layer that ensures precise timing across all processes.

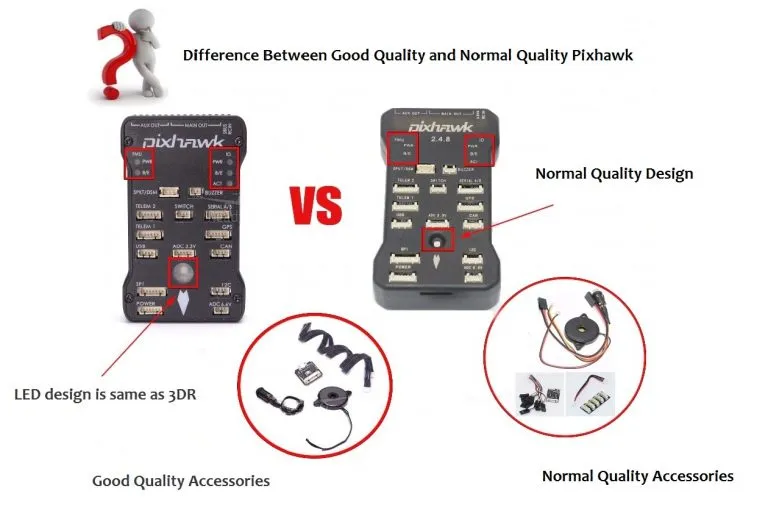

Difference between Good quality and norma; quality pixhwak
Features of Pixhawk 2.4.8:
- The advanced 32-bit ARM CortexM4 high-performance processors; can run NuttX RTOS real-time operating system.
- 14 PWM / servo output.
- Bus interface (UART, I2C, SPI, CAN).
- The integrated backup power and backup controller fails; the primary controller fails over to the backup control is safe.
- Provide automatic and manual modes.
- Provide redundant power input and failover.
- Multicolor LED lights.
- Provide a multi-tone buzzer Interface.

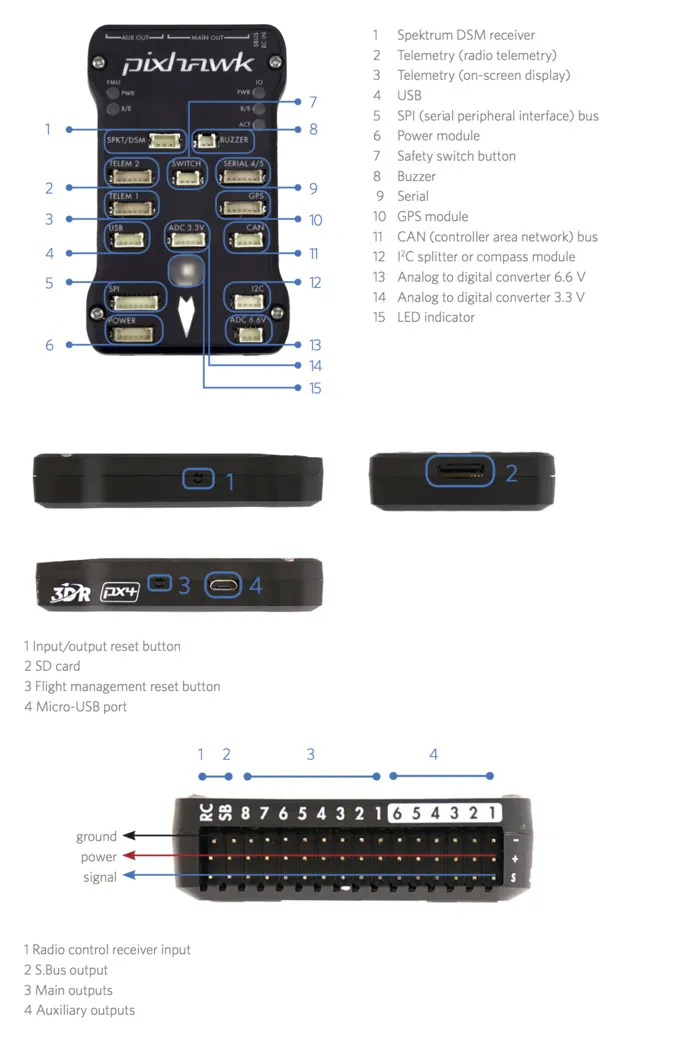

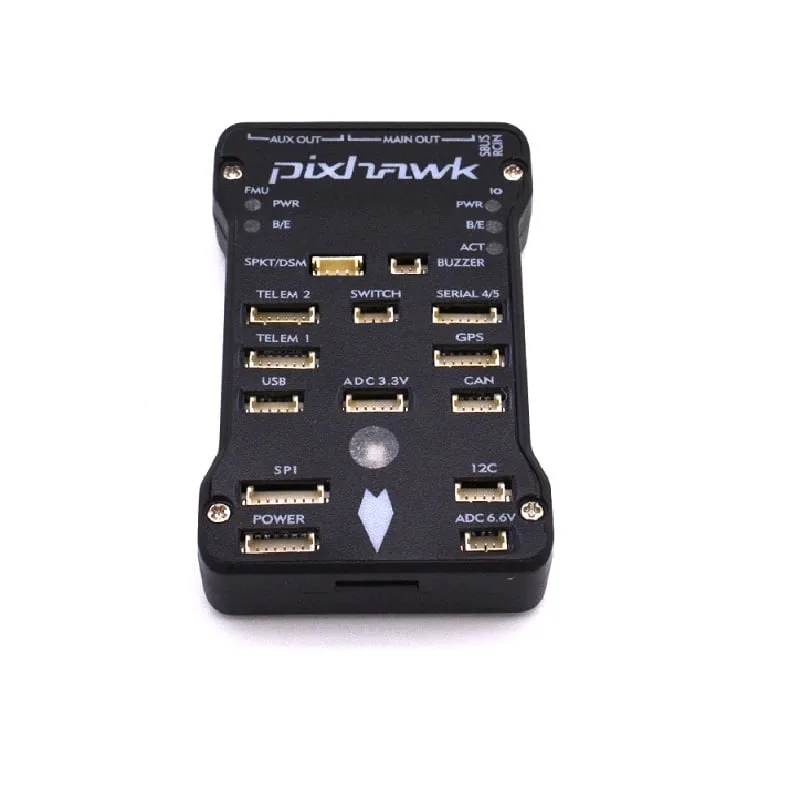

Pixhawk Pinout Connections :

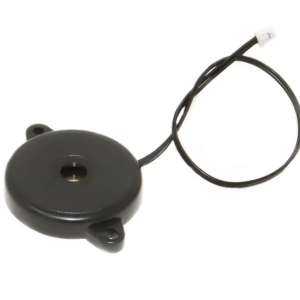

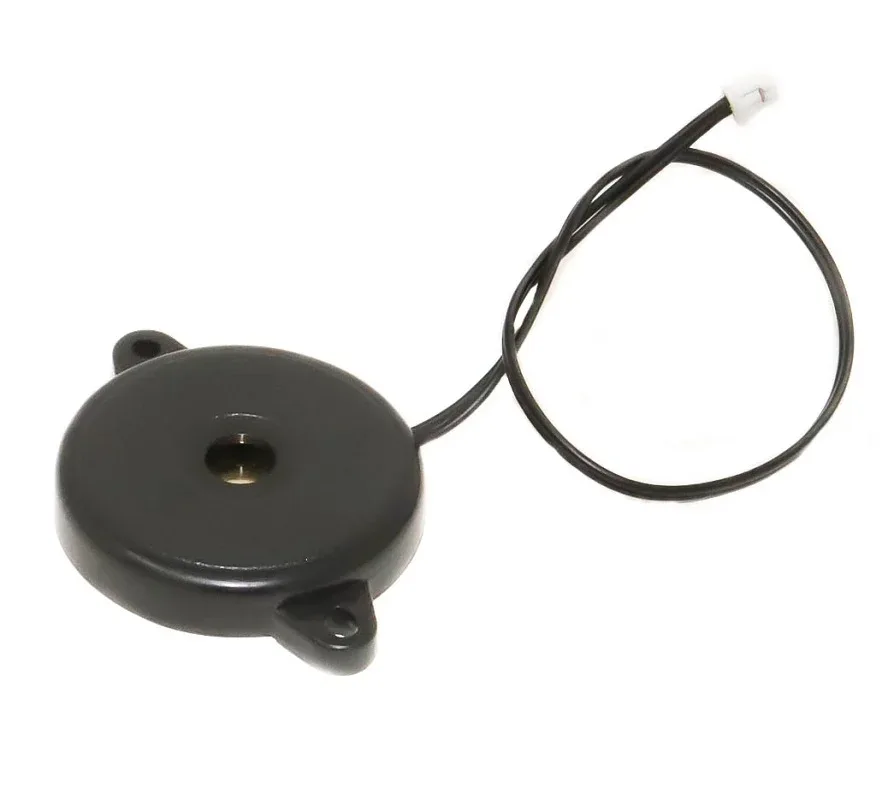

Pixhawk buzzer :
This buzzer is used with Pixhawk and PX4 autopilot to annunciate status tones. The buzzer includes a two-position DF14 connector on one side that plugs directly into the Pixhawk or PX4 FMU board.The Passive buzzer has a JST-SH connector on one side that plugs directly into the Pixhawk.Once connected you will be able to hear different sounds that relate to different modes.
Specification :
- Fit for Pixhawk PX4 flight controller
- Different tones in different flight modes
- DF13 Plug,cable length 18cmMicro SD card to record flight data.

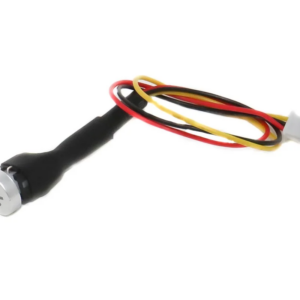

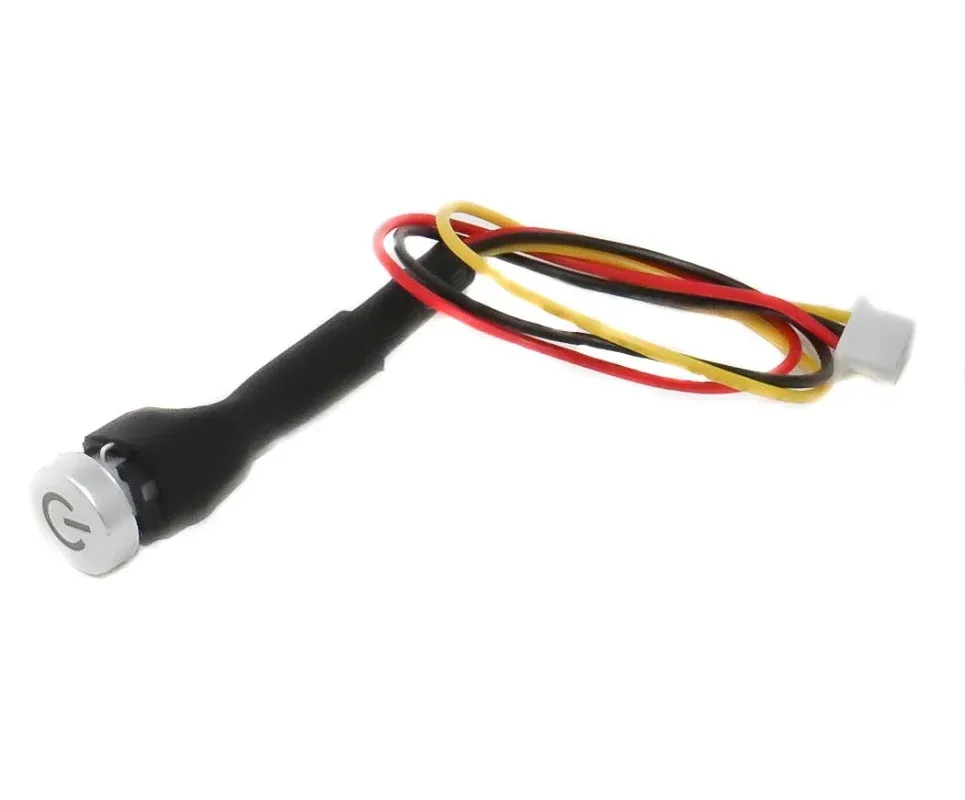

Pixhawk Saftey Switch :
This is a replacement safety switch for the Pixhawk 1. The switch is used to enable/disable the outputs to motors and servos. It also features a status LED light.
LED Meaning:
- Constant blinking – the system is initialising
- Intermittent blinking – system is ready. Press the safety switch to enable output to the motors.
- Solid – safety switch has been pressed. Motors and servos are able to move once the vehicle is armed.

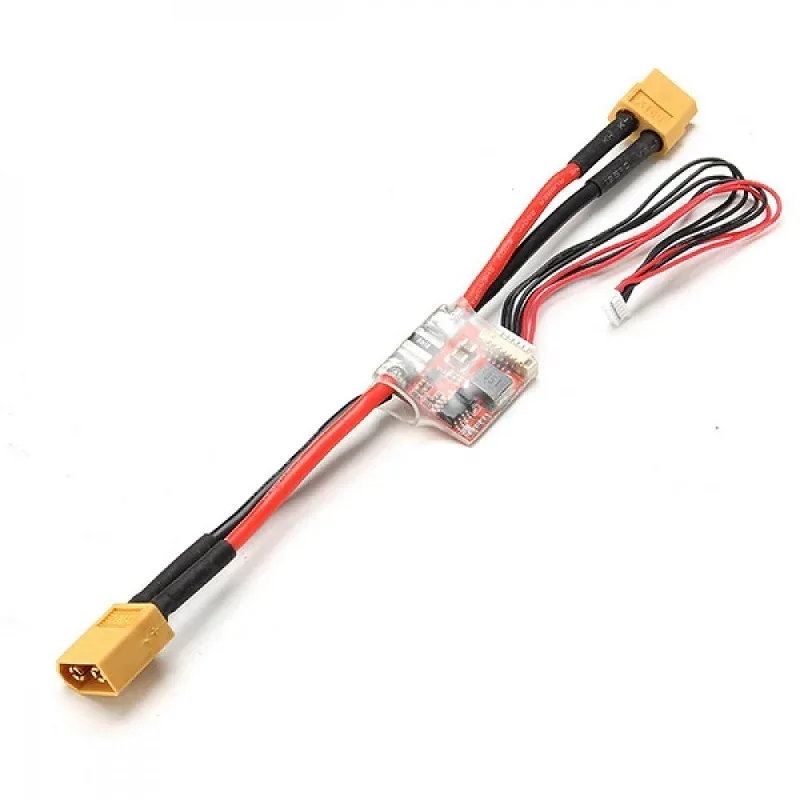

APM 2.5.2/2.6/2.8 Pixhawk Power Module V1.0:
- Max input voltage: 28V
- Max current sensing: 90A
- Voltage and current measurement configured for 5V ADC
- Switching regulator outputs 5.3V and 3A max
- 6-pos DF13 cable plugs directly to APM 2.5’s ‘PM’ connector
- Support 6S battery.

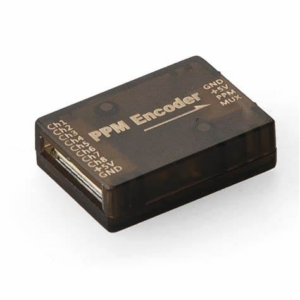

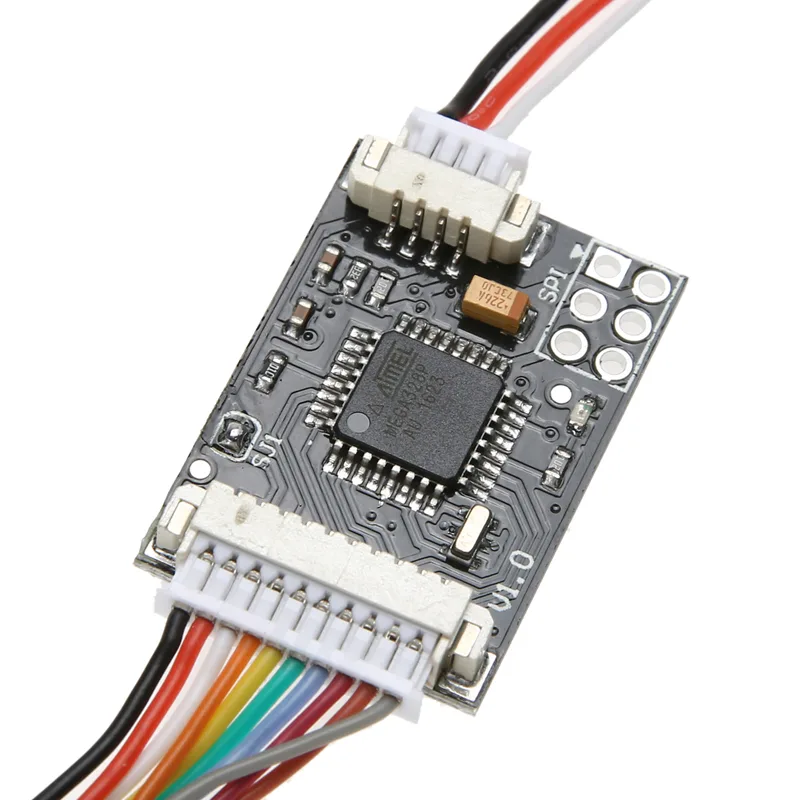

PIXHAWK PPM Encoder Module:
- Support the input channels: 8.
- Output: PPM SUM × 1 / MUX × 1.

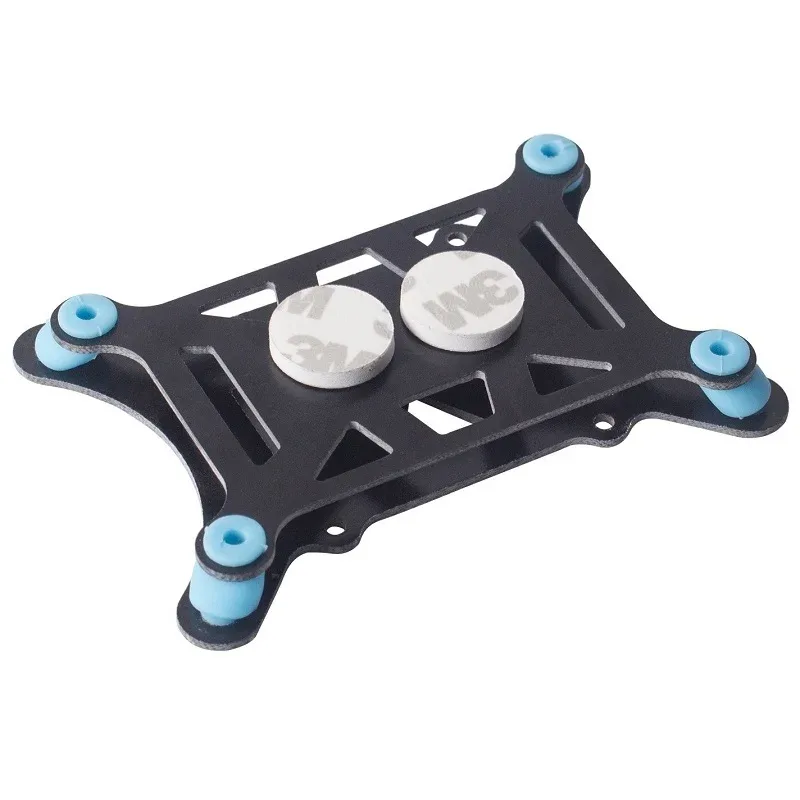

Glass Fiber Flight Controller Anti-vibration/Shock absorber Set:
- Color: Black
- Material: Glass-fiber
- Suit for the different open-source flight controllers, like APM 2.5/2.6/2.8, KK, MWC, and Pixhawk 2.4
Pixhawk RGB Module :
This includes an external RGB-LED and USB receptacle to connect to Pixhawk. Use the provided cables and connect to the I2C splitter module to set up a bright, multicolor LED and convenient USB port for your vehicle.
Features:
- RGB indicator extends to outside displaying
- Extension USB interface for external USB connection
- The same LED controller and RGB LED with Pixhawk
PPM Module :
Pulse position modulation (PPM) encoding is the system where encoding is carried out by positioning the pulses. The PPM encoder allows to encode up to 8 PWM (pulse width modulated) signals into one PPM (pulse position modulation) signal.
This PPM encoder will encode regular PWM inputs into a single PPM output. This allows you to combine up to 8 channels from a regular RC receiver to a single wire PPM input for your flight controller e.g. Pixhawk or APM. The nice thing about PPM is that it will enable you to reduce all channels to a single wire, excluding ground and power lines.

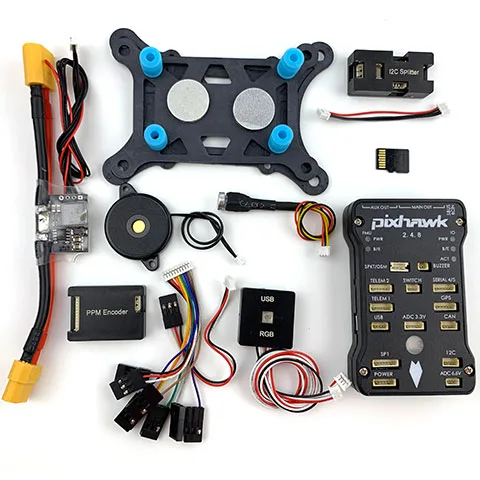

Package Includes :

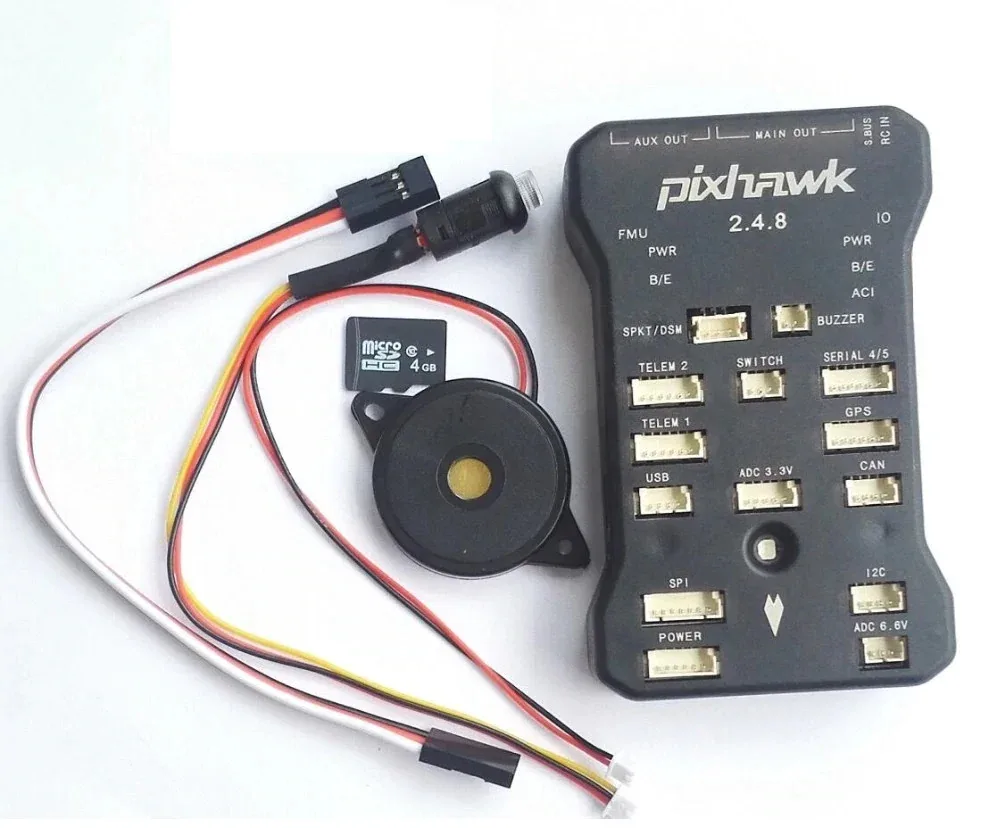

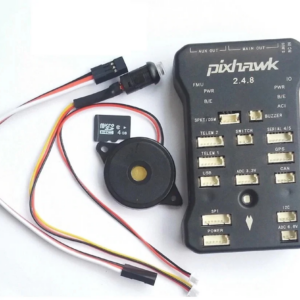

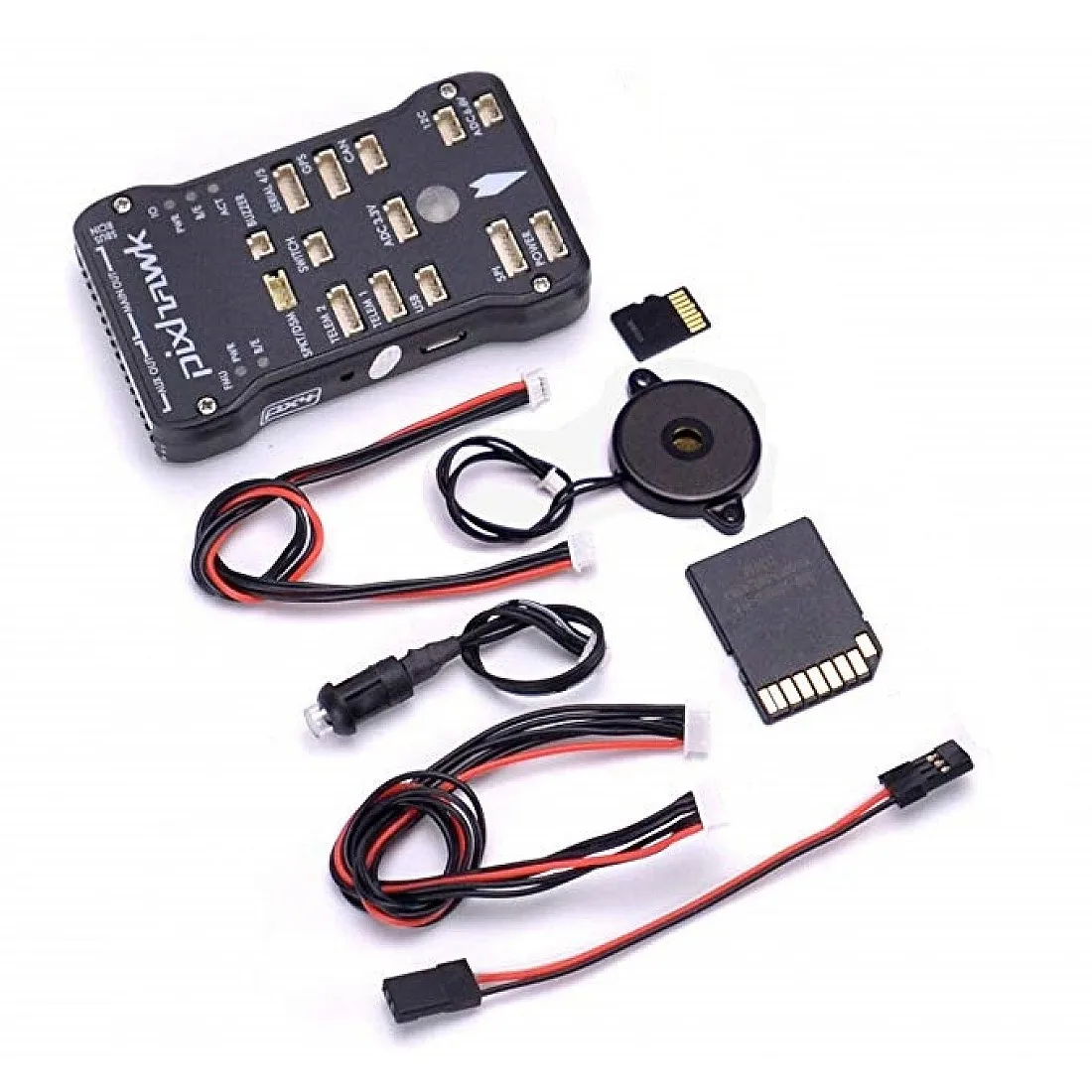

- Pixhawk 2.4.8
- Buzzer
- Safety Switch
- Power Module
- RGB Connector
- I2C extension
- Shock absorber mount

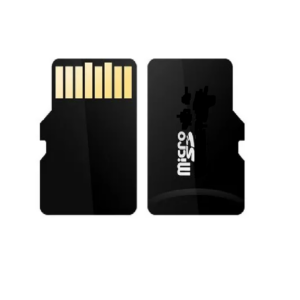

- SD Card
- PPM Encoder
Pixhawk 2.4.8 Set Overview
The Pixhawk 2.4.8 Set is a 32-bit PX4 autopilot flight controller designed for drone and UAV applications. It integrates a Cortex M4 core with multiple onboard sensors and a micro SD slot to record flight data, making it ideal for precise navigation and stable flight control.
Key Features of Pixhawk 2.4.8 Set
- 32-bit Cortex M4 processor for high-speed real-time flight computations
- Onboard gyrometer, accelerometer, barometer and magnetometer for accurate attitude sensing
- Multiple bus interfaces (UART, I2C, SPI, CAN) to connect peripherals and telemetry radios
- Mission Planner firmware compatibility for mission planning and parameter tuning
- Micro SD card slot for onboard data logging of flight parameters and telemetry
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Autopilot control for quadcopters, hexacopters and octocopters
- Stabilization and navigation in fixed-wing RC aircraft and gliders
- Development of autonomous UAVs for aerial photography and surveying
- Research and educational projects in robotics and control systems
- Integration into custom drone platforms and prototype UAV designs
How to Use Pixhawk 2.4.8 Set
Mount the Pixhawk 2.4.8 on your airframe using vibration-damping hardware, connect the power module and ESCs to the designated ports, then hook up GPS and telemetry radios via UART or CAN. Insert a micro SD card, power on the system, and use Mission Planner software on your PC to calibrate sensors, configure flight modes and upload waypoints before your first flight test.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Does the Pixhawk 2.4.8 support Mission Planner on Windows?
Yes, this set comes preloaded with Mission Planner firmware and is fully compatible with Mission Planner software on Windows. Simply connect via USB or telemetry radio to begin configuration.
Which sensors are integrated into the Pixhawk 2.4.8?
The Pixhawk 2.4.8 features a gyrometer, accelerometer, barometer and magnetometer onboard to provide complete orientation and altitude data for stable flight control.
How do I record flight logs?
Insert a micro SD card into the dedicated slot on the Pixhawk 2.4.8. All flight data, including sensor readings and telemetry, will be automatically logged for post-flight analysis.
