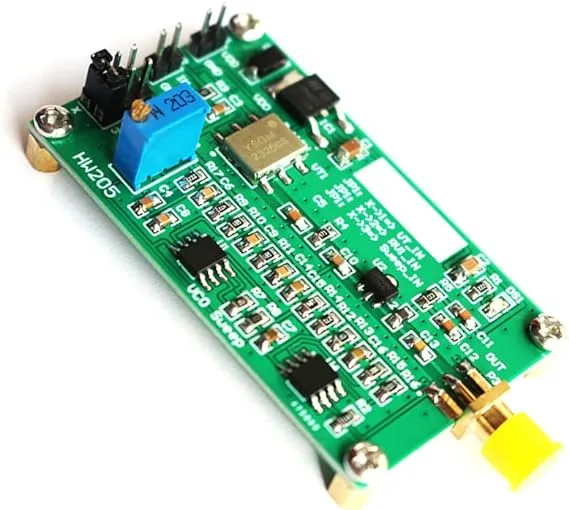

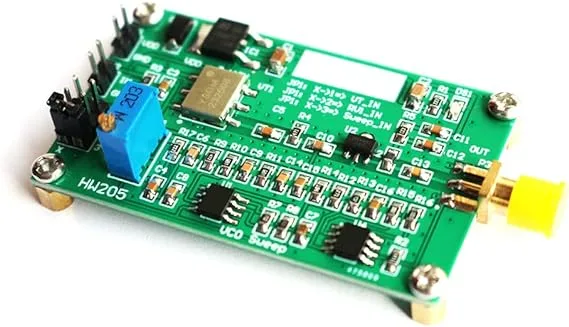

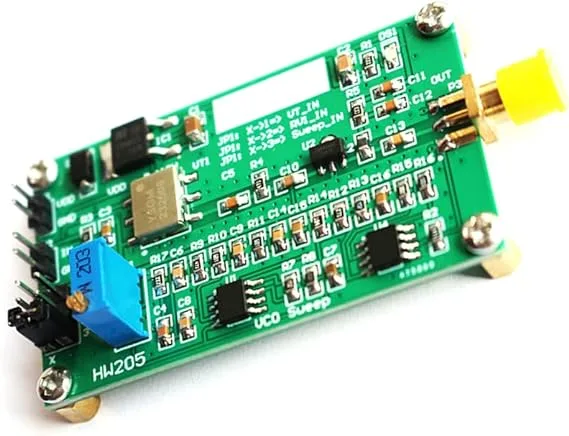

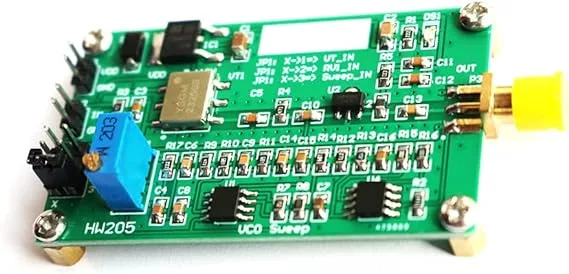

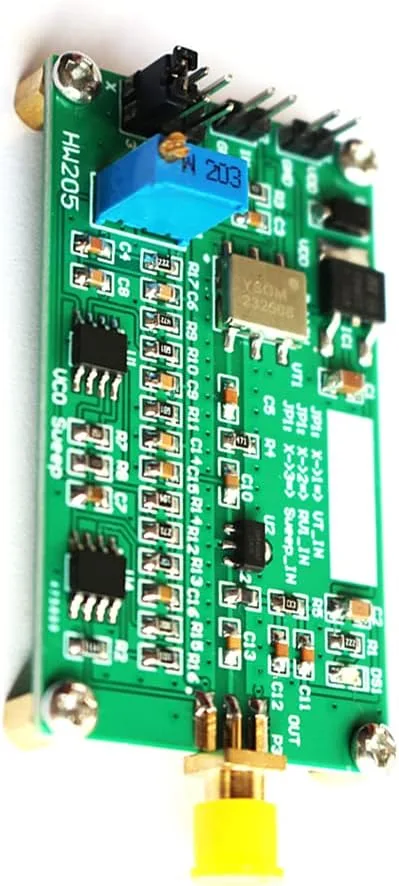

VCO generator module with sweep power 5.8G
A Voltage Controlled Oscillator (VCO) generator module is an electronic component used in RF systems to generate stable oscillating signals within a specified frequency range. The5.8 GHz sweep power refers to the frequency range over which the VCO can generate signals, particularly within the 5.8 GHz spectrum commonly used in Wi-Fi and other RF applications.
The VCO generator module offers voltage control functionality, allowing precise adjustment of the output frequency based on the input voltage signal. The module provides excellent frequency stability, ensuring reliable performance in demanding RF environments.
Capability to dynamically adjust the output power within the specified frequency range, offering flexibility in signal transmission and reception.
Features:
Voltage Control Capability:
The VCO generator module offers voltage control functionality, allowing precise adjustment of the output frequency based on the input voltage signal.
Wide Frequency range:
With a sweep power of 5.8 GHz, this module covers a broad frequency spectrum suitable for various wireless communication and radar applications.
frequency stability:
The module provides excellent frequency stability, ensuring reliable performance in demanding RF environments.
Power adjustable:
Capability to dynamically adjust the output power within the specified frequency range, offering flexibility in signal transmission and reception.
Specifications:
Frequency Range: 5.8 GHz
Frequency Control: Voltage controlled
Output Power: Adjustable within specified limits
Frequency Stability: High stability over temperature and environmental changes
Dimension(L*W*H): 60*35*1.5(mm)
Working voltage：7~12 V
Package Include:
1 x VCO generator module with sweep power 5.8G
Technical Specifications
| SKU | AI5304 |
|---|---|
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The VCO generator module with sweep power 5.8G is a versatile signal generator module & oscilloscopes used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
