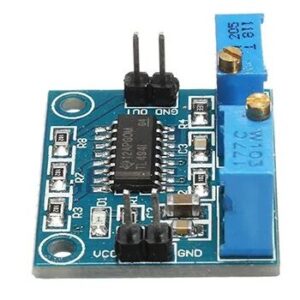

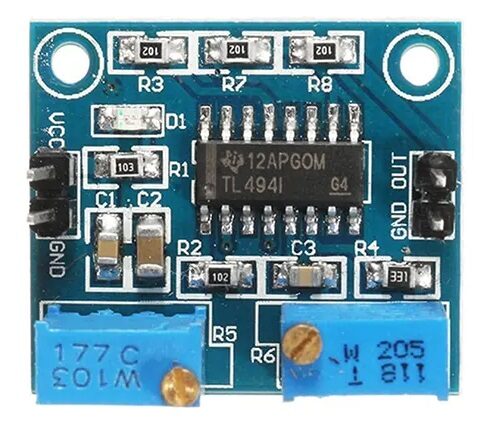

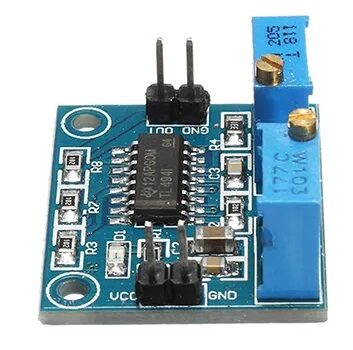

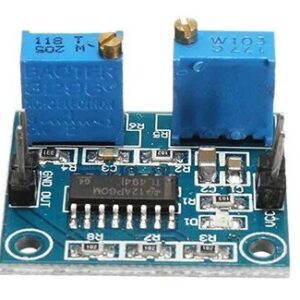

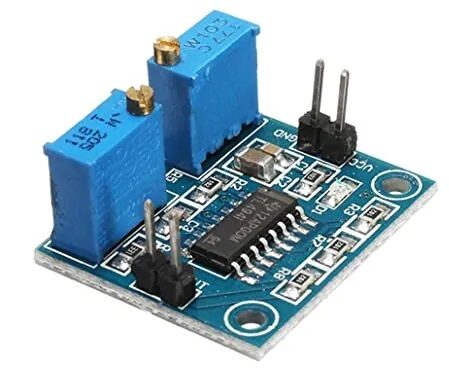

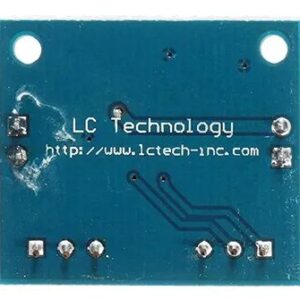

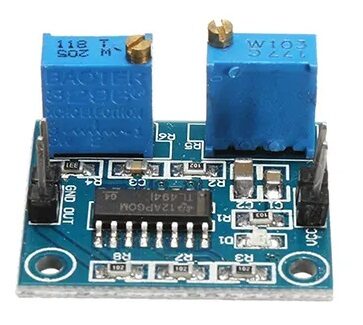

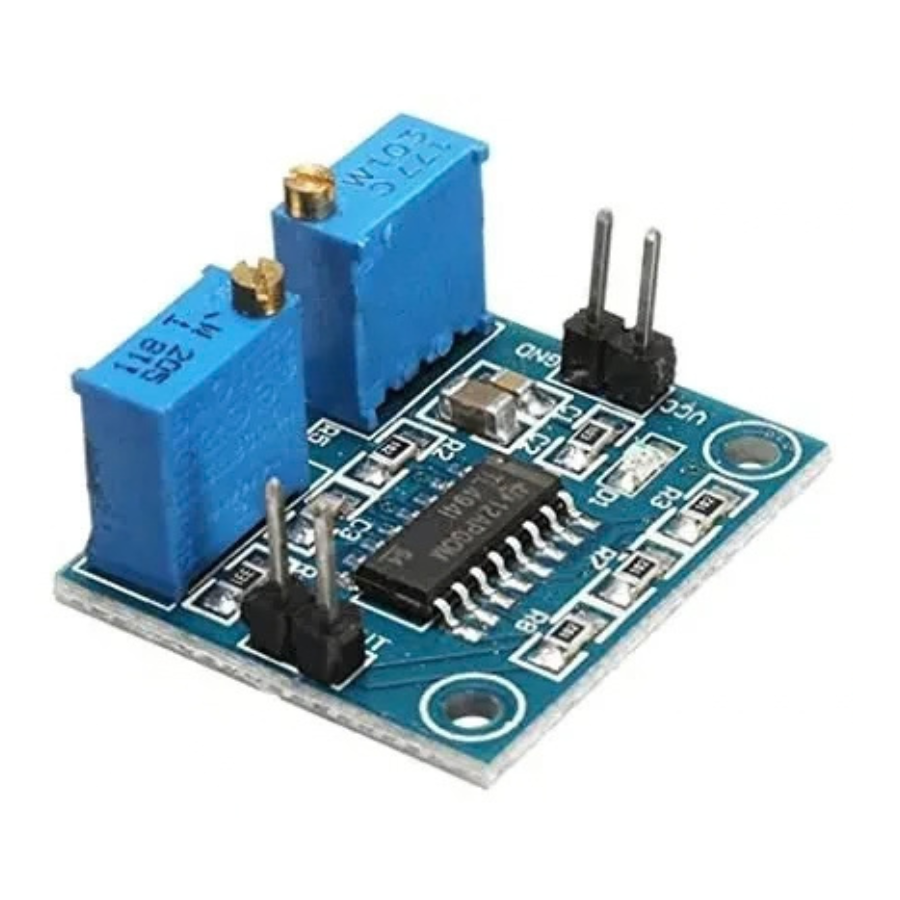

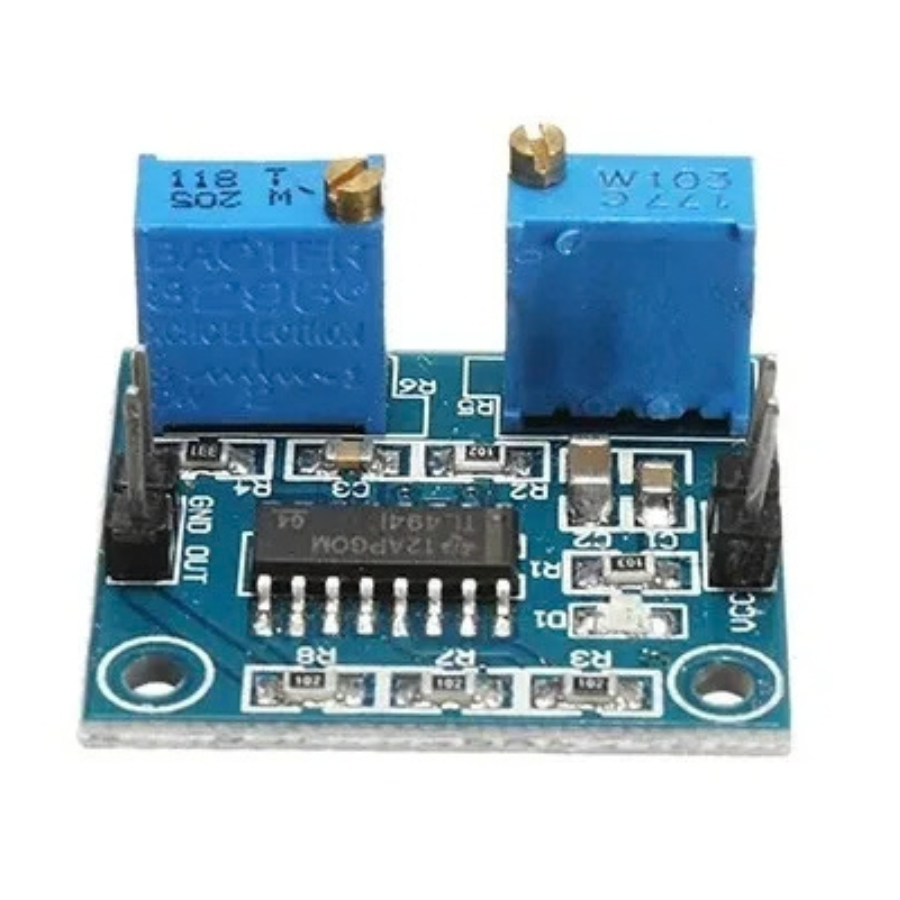

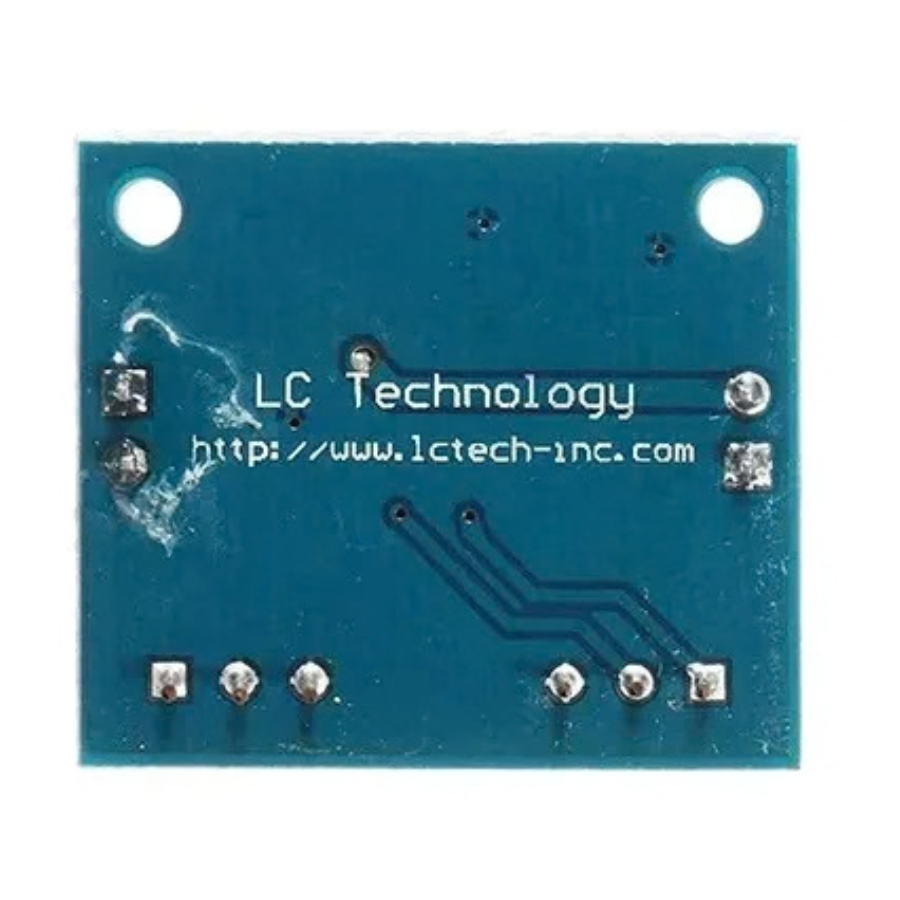

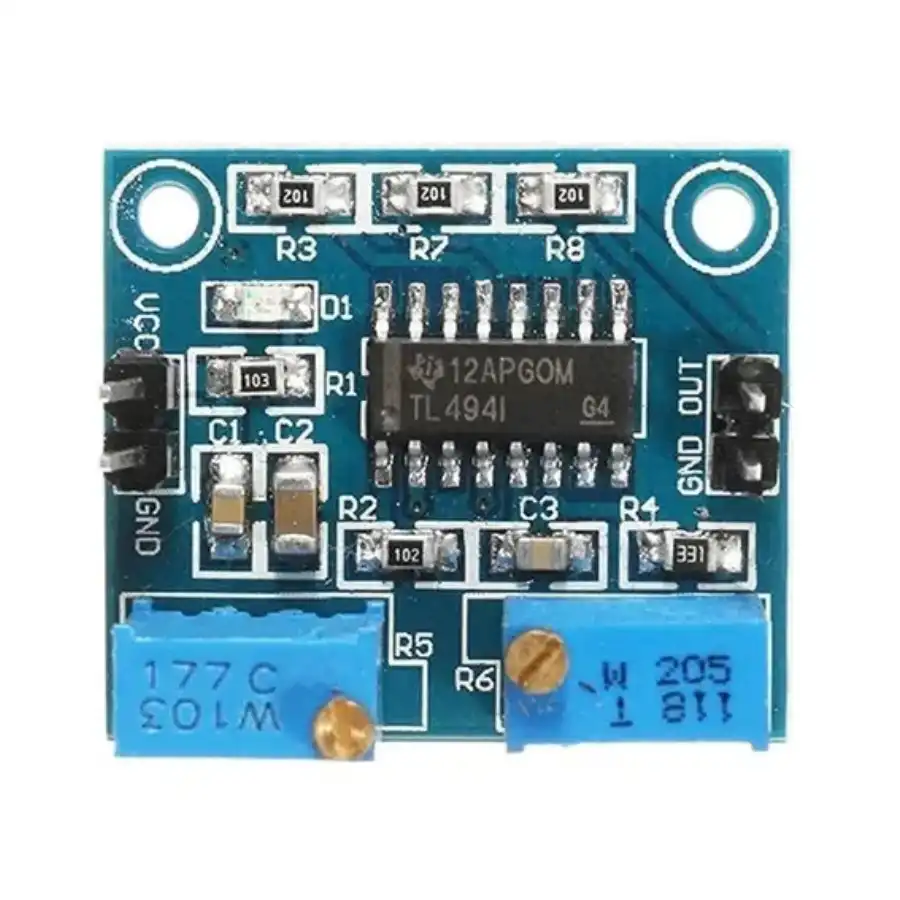

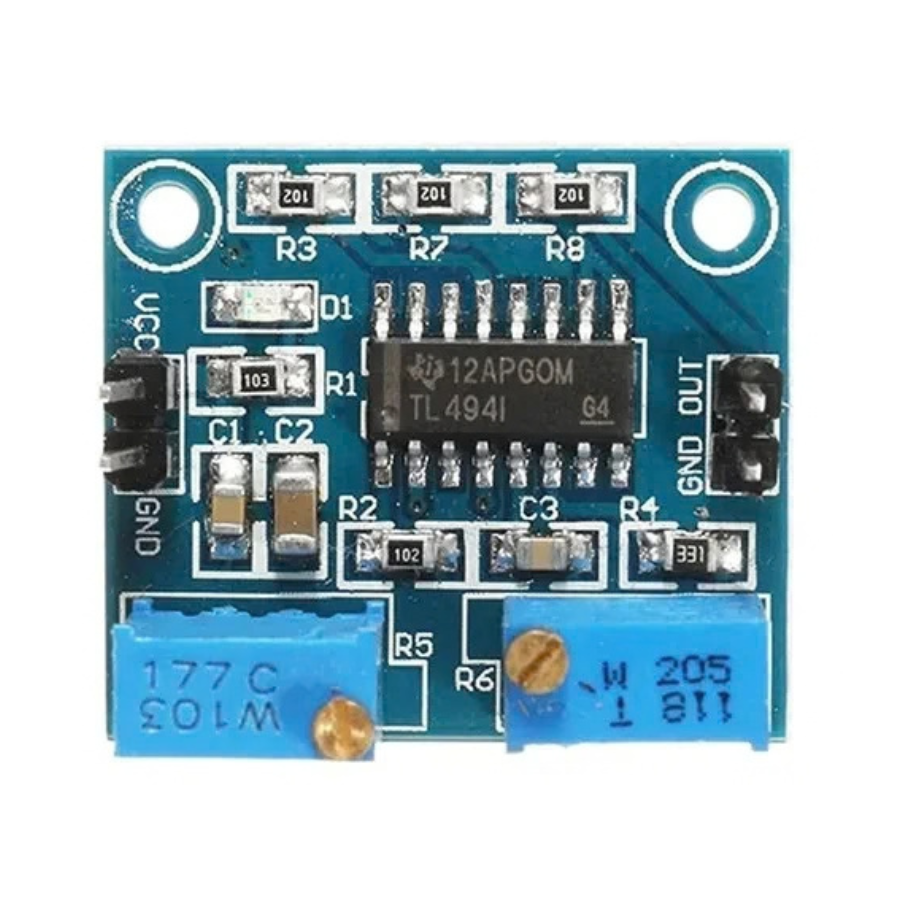

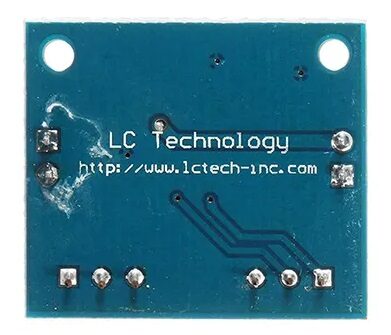

TL494 PWM Controller Module Adjustable 5V Frequency 500-100kHz 250mA

TL494 PWM Controller Module Adjustable 5V Frequency 500-100kHz 250mA

The TL494 device integrates all necessary functions for constructing a pulse-width-modulation (PWM) control circuit within a single chip. Primarily aimed at controlling power supplies, this device provides the versatility to customize the power-supply control circuitry for particular applications.

Features:

1.Complete PWM power-control circuitry
2.Uncommitted outputs for 200-mA sink or source current
3.Output control selects single-ended or push-pull operation
4.Internal circuitry prohibits double pulse at either output
5.Variable dead time provides control over total range
6.Internal regulator provides a stable 5-V reference supply with 5% tolerance
7.Circuit architecture allows easy synchronization

Applications:

Desktop PCs, Microwave ovens, Power supplies: AC/DC, isolated, with PFC, > 90 W, Server PSUs, Solar micro-inverters, Washing machines: low-end and high-end, Power supplies: AC/DC, isolated, No PFC, < 90 W, Smoke detectors, Solar power inverters

Specifications:

• PWM output frequency in the range 500Hz-100KHz can be adjustable, maximum duty cycle to 96%.
• Output drive capability, signal stability.
• Working voltage: DC 7V-40V, Limit 42V.
• Maximum output current: 250mA
• Output voltage: DC5V
• Maximum power consumption: 1000mW
• Working ambient temperature: 0-70 ℃
• Positioning hole: 2.7mm diameter (M2.5)

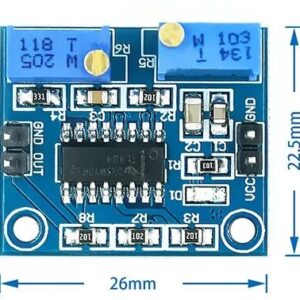

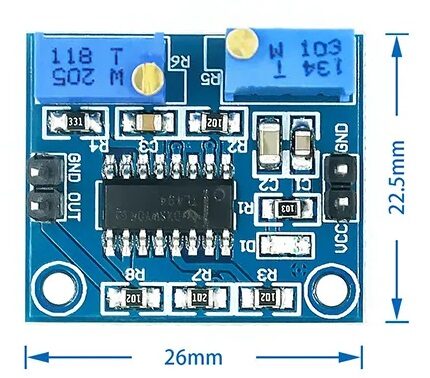

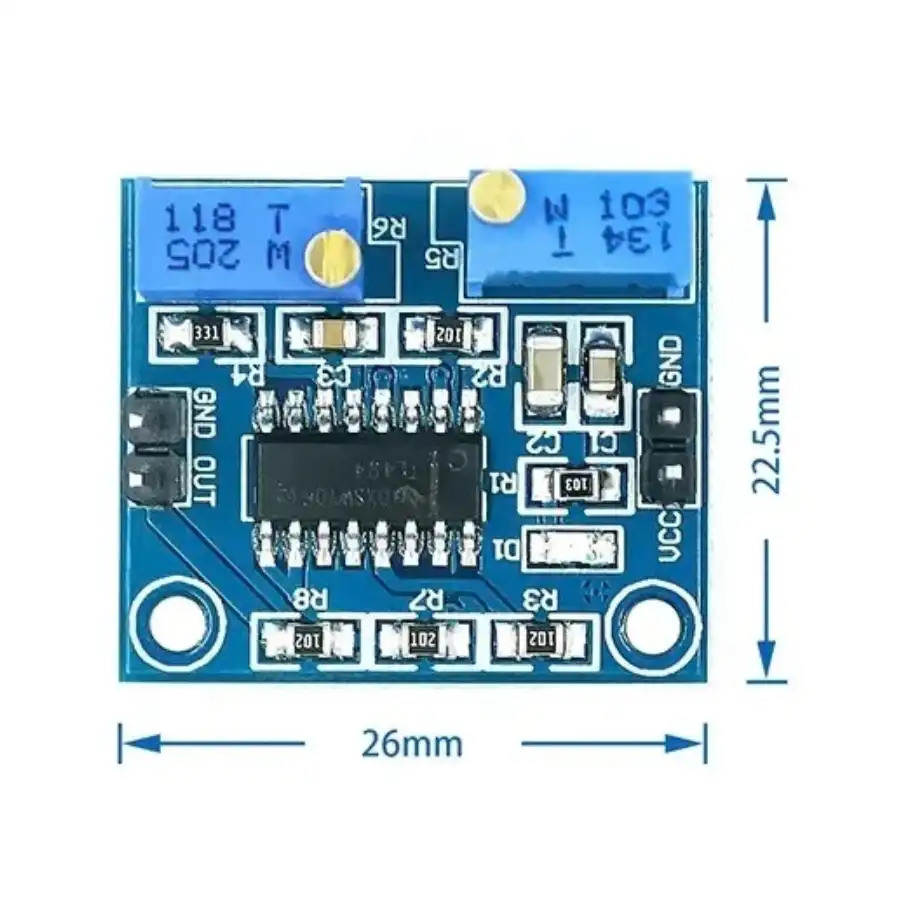

• Board size: 26mmx23mm

Package includes:

• 1 x TL494 PWM Speed Controller Frequency Duty Ratio Adjustable
