Description:
If you want to build a device that detects the pressure of the atmosphere, then this Sensor is needed for you. From this sensor, you can easily identify the pressure of wind at the time of the cyclone.
HX710B Atmospheric Pressure Sensor Module – This barometric pressure sensor is optimized for altimeters and variometers with an altitude resolution of 10 cm. The sensor module includes a high linearity pressure sensor and an ultra-low power 24-bit ADC with internal factory calibrated coefficients. It provides a precise digital 24-bit pressure and temperature value and different operation modes that allow the user to optimize for conversion speed and current consumption.

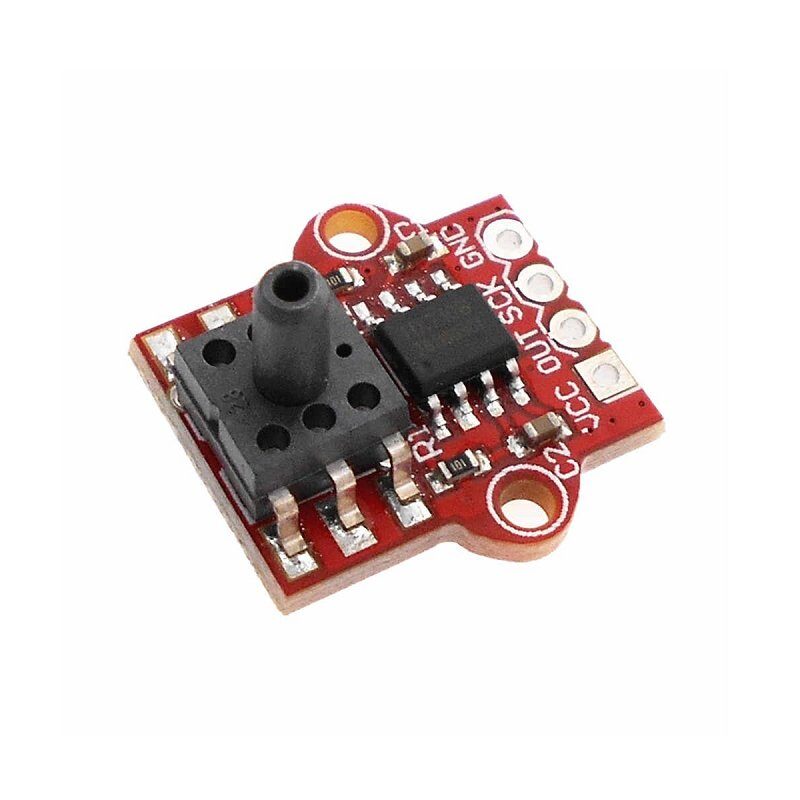

This HX710B air pressure sensor module uses a high-precision AD sampling chip, adopts a 0-40KPa air pressure sensor, can connect a 2.5mm hose, and can detect water level and other air pressure.

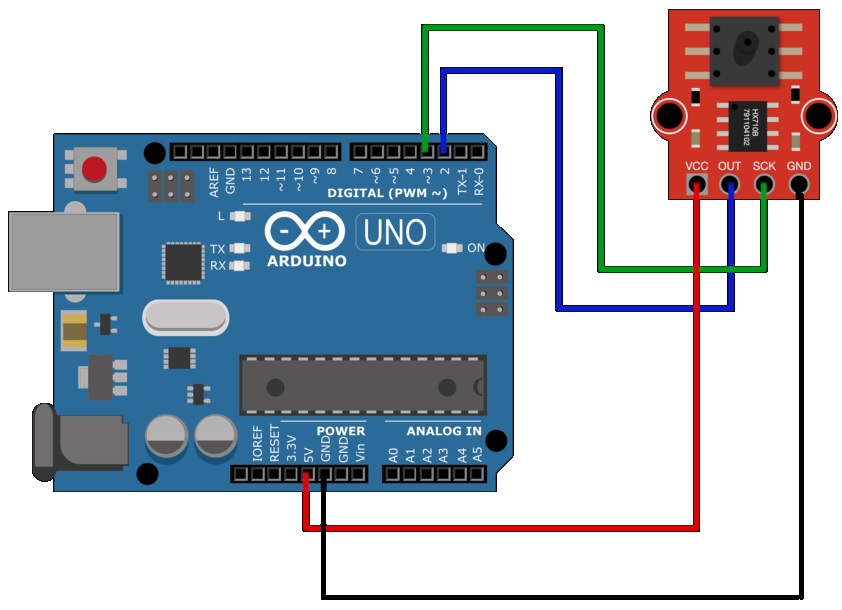

Connection Diagram of HX710B With Arduino:
Features:
- Two Selectable Differential Input Channels
- On-Chip Active Low Noise PGA
- Selectable Gain of 32, 64, and 128
- On-Chip Power Supply Regulator for Load Cell and ADC Analog Power Supply
- On-Chip Power-ON-Reset
- Simple Digital Control and Serial Interface
Specifications:
| Interface Type | Serial |
|---|---|
| Data Output Rate | 10 SPS / 80SPS |
| Max. Operating Current (mA) | 1.5 |
| Operating Temperature (°C) | -40 to 85 |
| IC Package | 16 Pin SOP |
| Gain | 32 / 64 / 128 |
| Length (mm): | 18 |
| Width (mm): | 17 |
| Height (mm): | 2 |

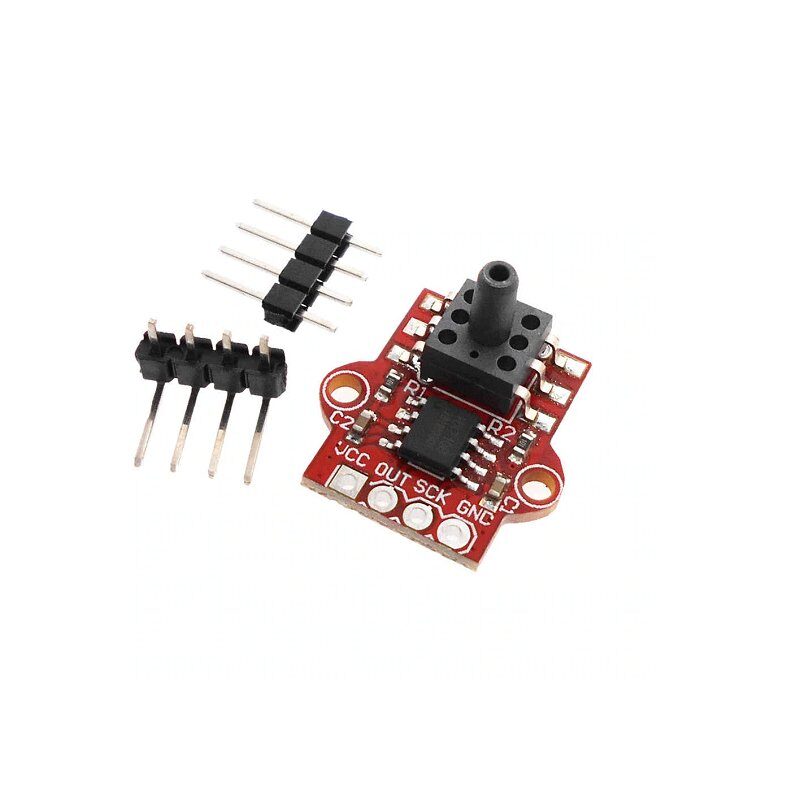

Package Includes:
- 1 x HX710B AIR PRESSURE (0-40KPA) SENSOR MODULE
- 1 x 4 Pin Male Straight Header
- 1 x 4 Pin Male Right Angle Header
Attachments:
Tutorial:
https://swharden.com/blog/2022-11-14-hx710b-arduino/
HX710B Air Pressure Sensor Module Water Level Sensor Module Overview
The HX710B Air Pressure Sensor Module Water Level Sensor Module is a compact barometric pressure transducer with an integrated 24-bit ADC, designed to measure pressures from 0 kPa to 40 kPa. It delivers precise digital readings for both atmospheric pressure and hydrostatic pressure, making it ideal for altimeters, variometers and water level monitoring applications.
Key Features of HX710B Air Pressure Sensor Module Water Level Sensor Module
- Model HX710B chip: High-linearity pressure sensor with built-in 24-bit ADC
- Pressure range of 0–40 kPa for air and water level detection
- Selectable data output rate: 10 SPS or 80 SPS via onboard jumper
- Ultra-low power consumption with max. operating current of 1.5 mA
- Compact 16-pin SOP package for space-constrained designs
- Genuine product, fast shipping across India from Zbotic
Applications and Use Cases
- Barometric altimeters and variometers in drones, UAVs and model rockets
- Weather stations monitoring wind pressure during storms or cyclones
- Water tank and reservoir level measurement via hydrostatic pressure
- Environmental data loggers tracking atmospheric pressure trends
- DIY home automation for flood detection and leak alarms
How to Use HX710B Air Pressure Sensor Module Water Level Sensor Module
Power the HX710B module with 3.3 V–5 V and connect GND to your controller. Wire the Data (DOUT) and Clock (SCLK) pins to two digital I/O lines, then set the output rate to 10 SPS or 80 SPS using the onboard jumper. Use the provided factory-calibrated digital values to compute pressure or water depth in your firmware—no external reference resistors or complex calibration steps required.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What pressure range can the HX710B module measure?
The HX710B sensor covers 0 kPa to 40 kPa, suitable for low-pressure atmospheric readings and hydrostatic measurements for water level sensing.
How do I interface the HX710B with a microcontroller?
Connect VCC (3.3 V–5 V) and GND, then wire DOUT and SCLK to two GPIO pins. Read 24-bit digital output at 10 SPS or 80 SPS directly in your code and convert counts to pressure or depth using the sensor’s formulas.
Can I use this sensor for water level monitoring?
Yes. By submerging the sensor diaphragm, the module measures hydrostatic pressure, which you can translate into water depth for tank or reservoir level applications.
