Home Sensors Pressure / Load Sensors 50kg Half-bridge Experiments Body Scale Load Cell Sensor
5-Channel Flame Sensor Module ₹159.0 ( +GST 18% )
Back to products
A88 Metal Detector Non-Contact Metal Induction Detection Module ₹159.0 ( +GST 18% )

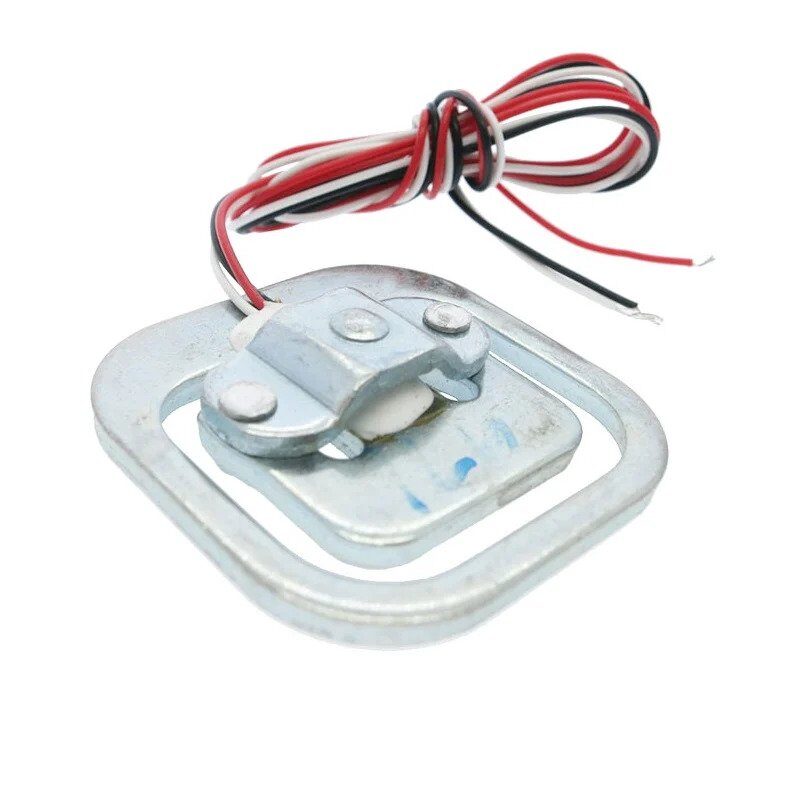

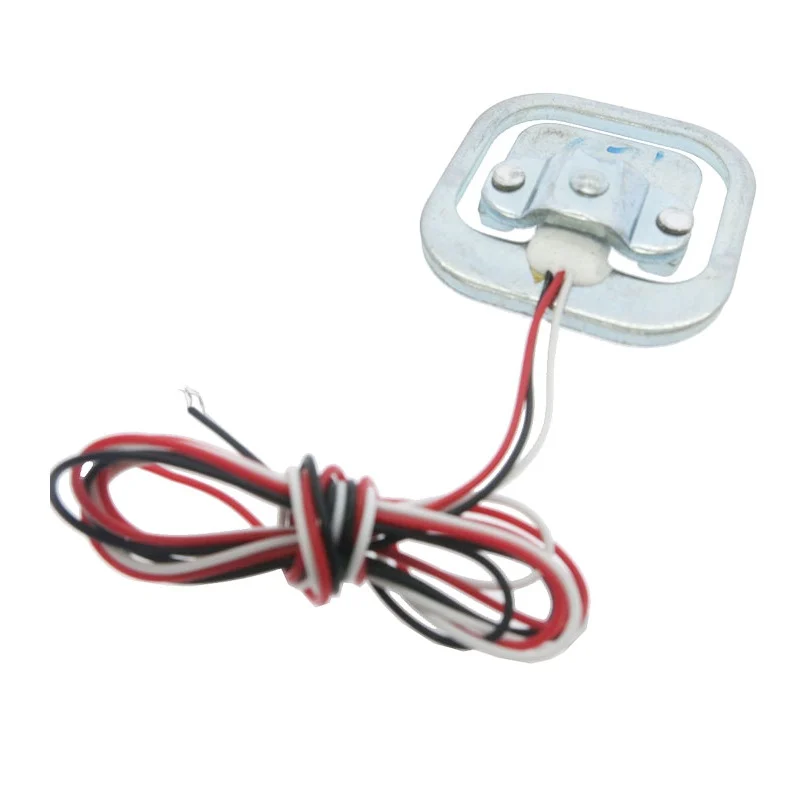

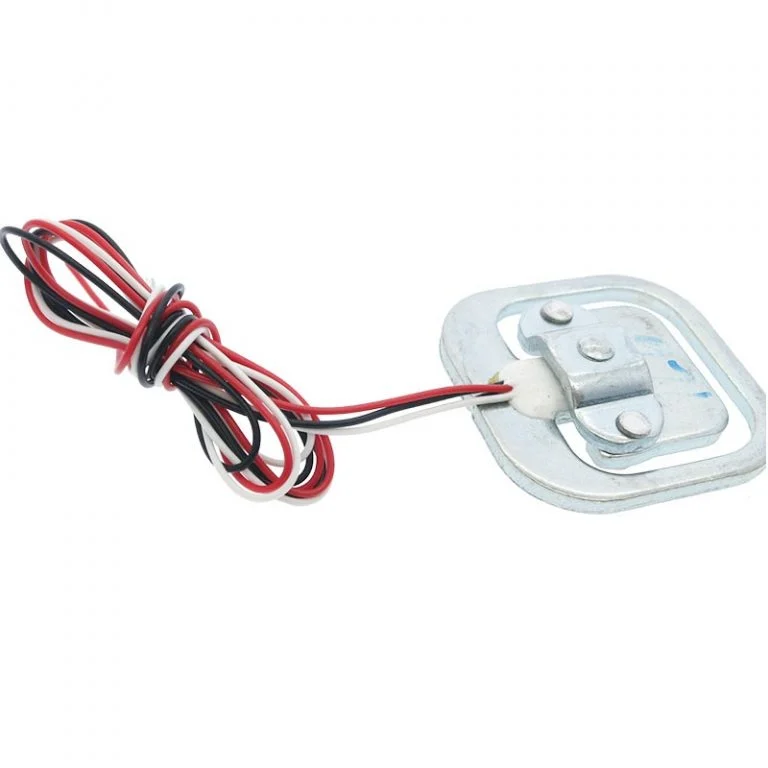

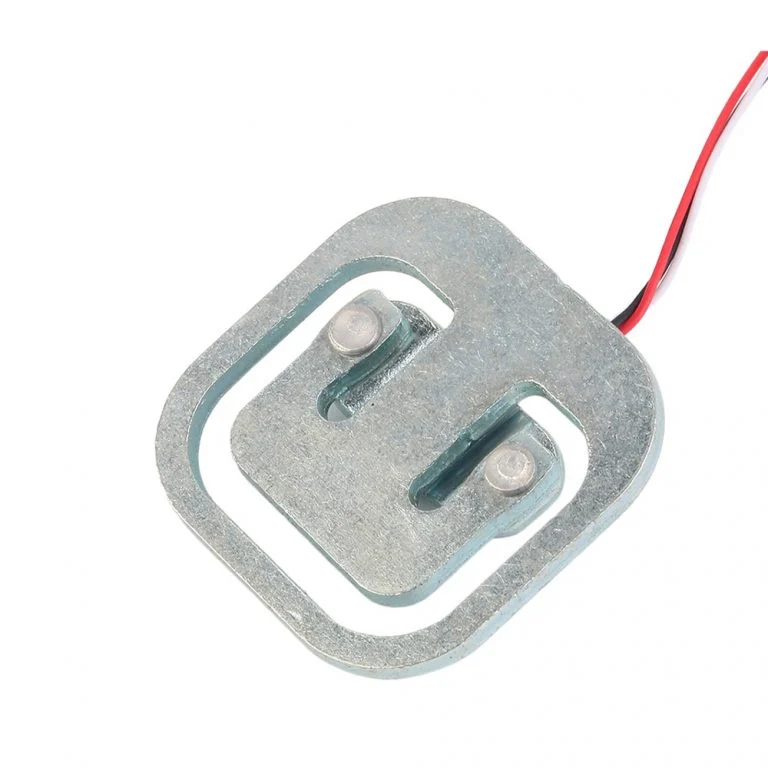

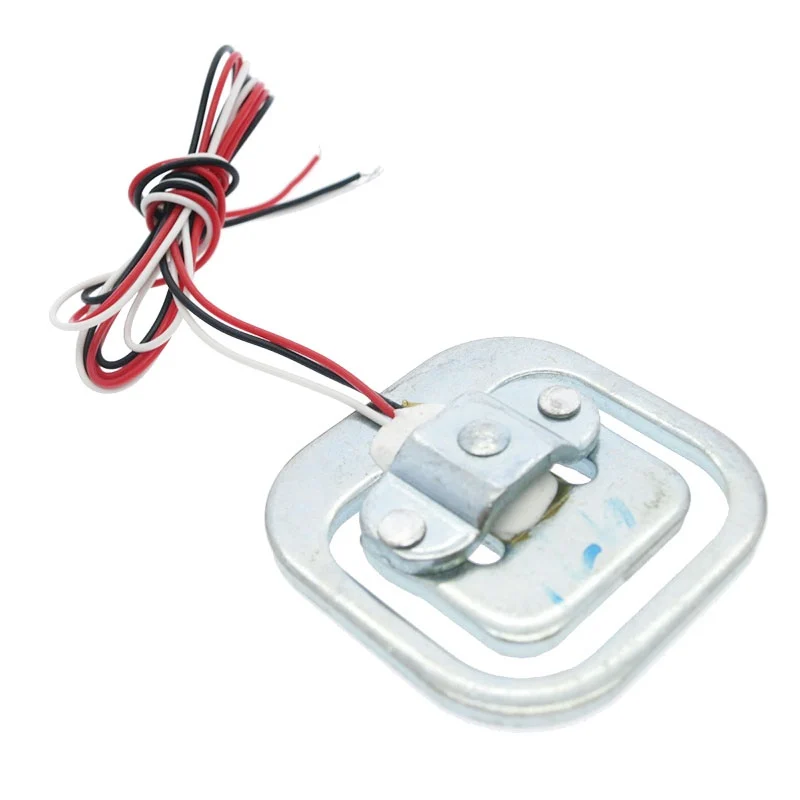

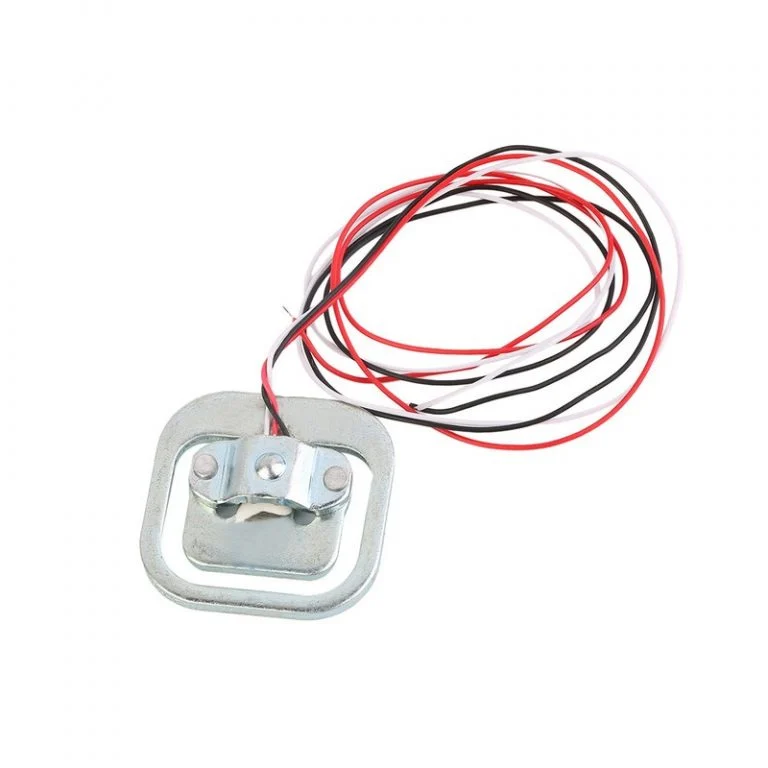

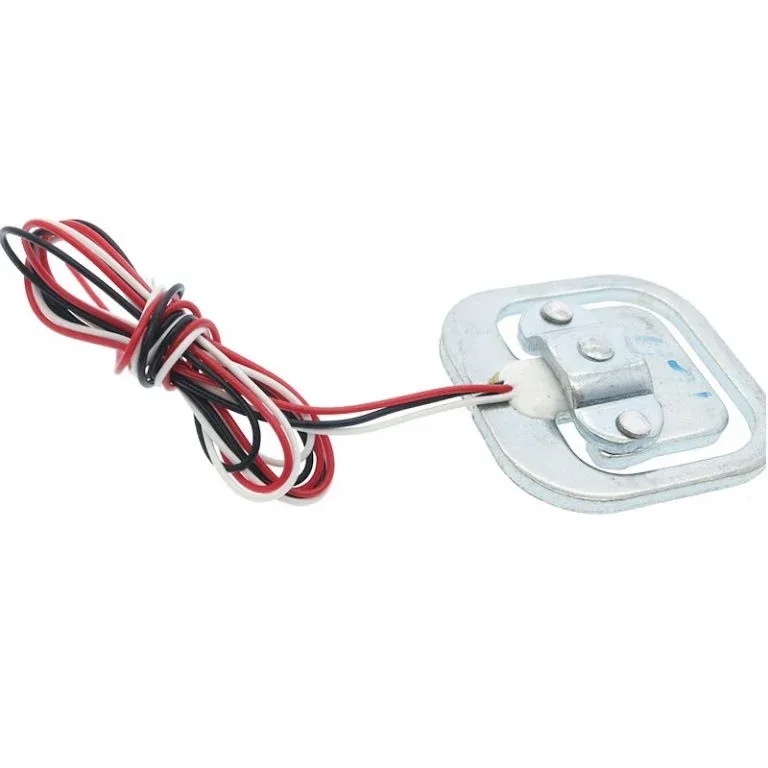

50kg Half-bridge Experiments Body Scale Load Cell Sensor

₹41.0 ( +GST 18% )

  • ⚡ Dispatched within 24 hours*
  • 💸 COD Orders above 250rs*
  • ✅15 days warranty*
  • 🛠️ Dedicated Technical Support Team
  • 🚚 Free shipping on orders above Rs 499/- for b2c customers

QUICK OVERVIEW

  • Capacity (Kg): 50.
  • Output Sensitivity (mv/v): 1.0±0.1.
  • Nonlinearity (%FS): 0.03.
  • Repeatability (%FS): 0.03.
  • Input Resistance (Ω): 1000.
  • Insulation Resistance (MΩ): ≥5000.

For B2B Enquiry Email Us:- [email protected]

56 in stock

Compare
Add to wishlist
SKU: AI0681 Categories: Back in Stock, Pressure / Load Sensors
Share:
  • Description
  • Additional information
  • Reviews (0)
  • COO Info
Description

Product Description

The 50kg Half-bridge Experiments Body Scale Load Cell Sensor is measuring; the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor (i.e., a strain gauge affixed to the intermediate, adhesive coating with white beam arms); and the outer edges to form a shear force in the opposite direction, i.e., middle strain beam bending necessary changes can occur under stress, strain beam side by another force should not be a barrier.
Experiments body scale human scale load cell sensor resistance strain 50kg half-bridge sensors
The sensor can be used with  the following three methods
  1. Using a sensor with an external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for an external resistor.
  2. The uses of only two full-bridge sensors measuring range are the range of the two sensors and: 50kgx2 = 100kg.
  3. The use of four full-bridge sensors measuring range is the range of four sensors and: 50kgx4 = 200kg.

Features

  1. Internal 1000Ohm half-bridge strain gauge load cell, the range is 50kg, half-bridge structure.
  2. Widely used in hopper scales, platform scales, platform balance, belt scales, and other electronic weighing devices.
  3. This is a half-bridge load sensor, which is widely used in weight scales. When the half-bridge is being stretched, it sends the signal via the red signal wire.
  4. Alloy Steel wired weighing load cell, high accuracy, simple structure, simple installation.
    You can use multiple load sensors simultaneously to increase the capacity range, Parallel use to add additional capacity.

Package Includes

  • 1 x 50kg Half-bridge Experiments Body Scale Load Cell Sensor.
Additional information
Weight 0.022 kg
Dimensions 10 × 7 × 5 cm
Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

COO Info

Country Of Origin – China
