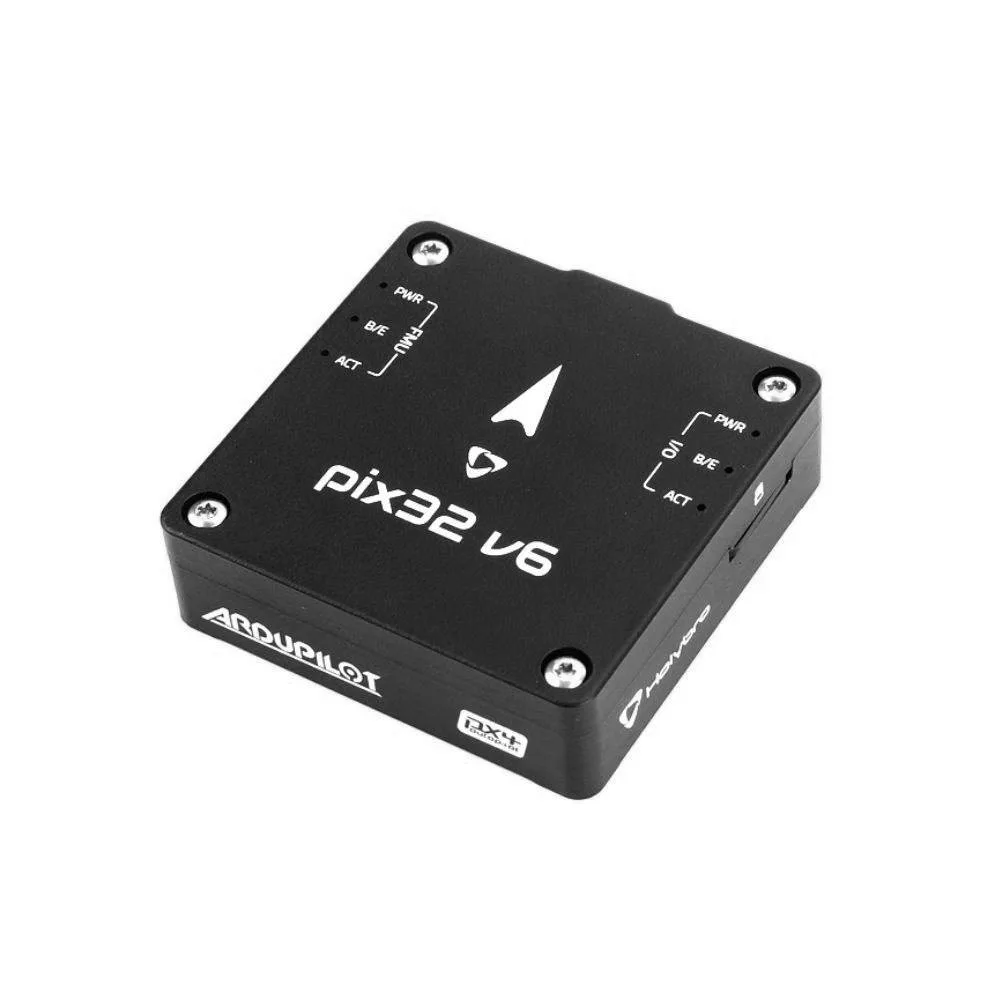

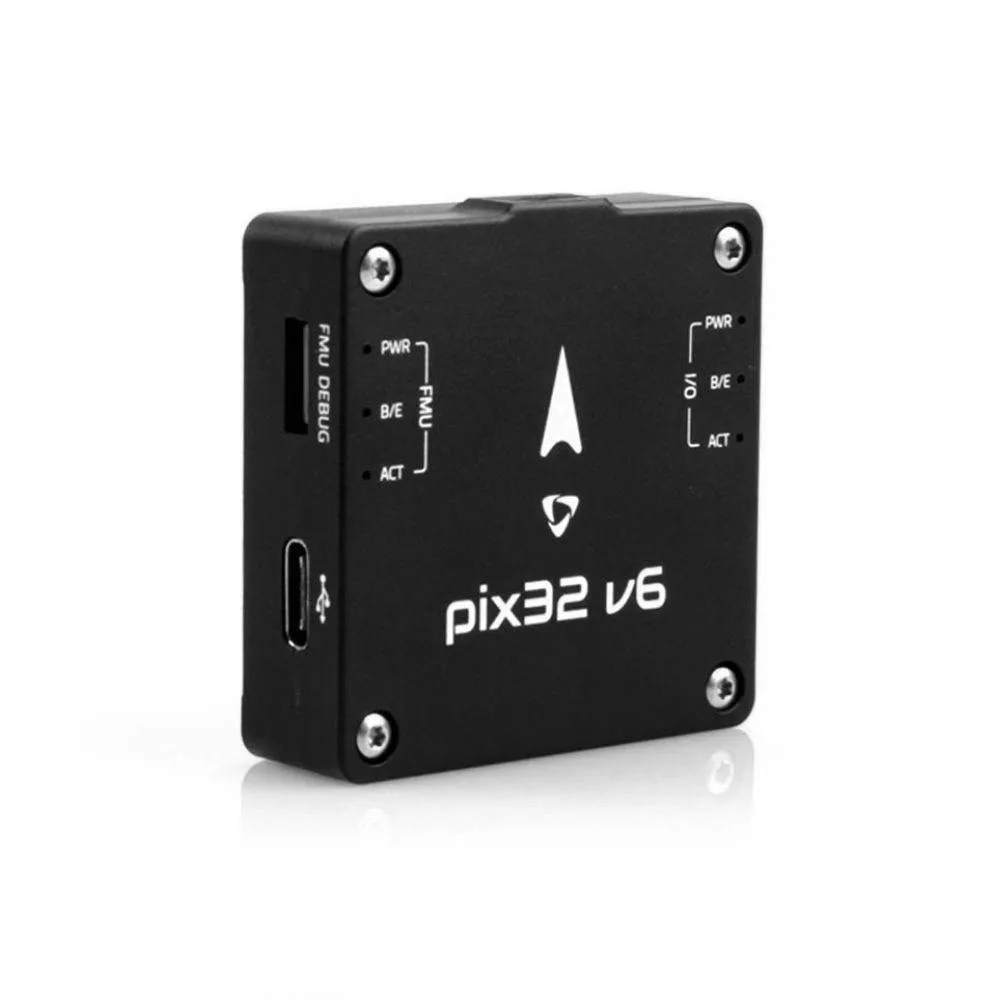

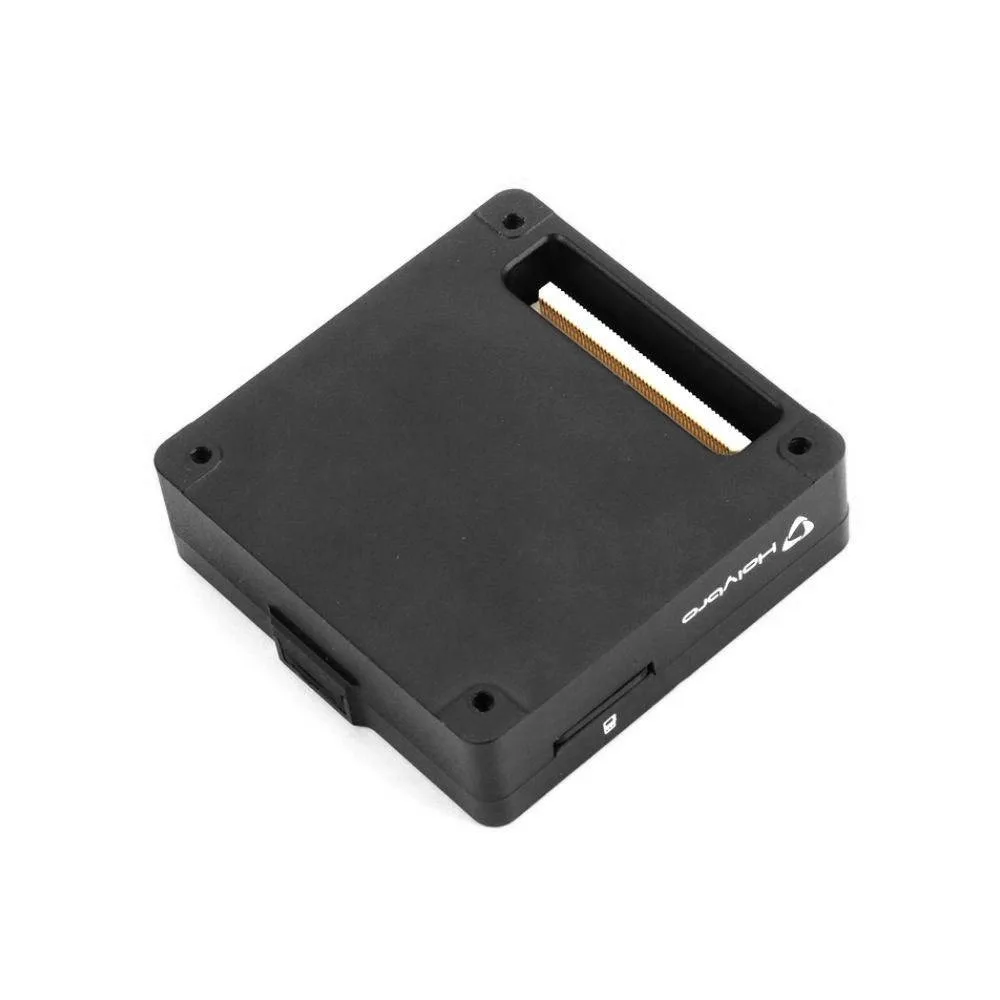

Holybro Pix32 v6 Flight Controllers FC Module Standard Set

This is a Holybro Pix32 v6 Flight Controllers FC Module Standard Set.

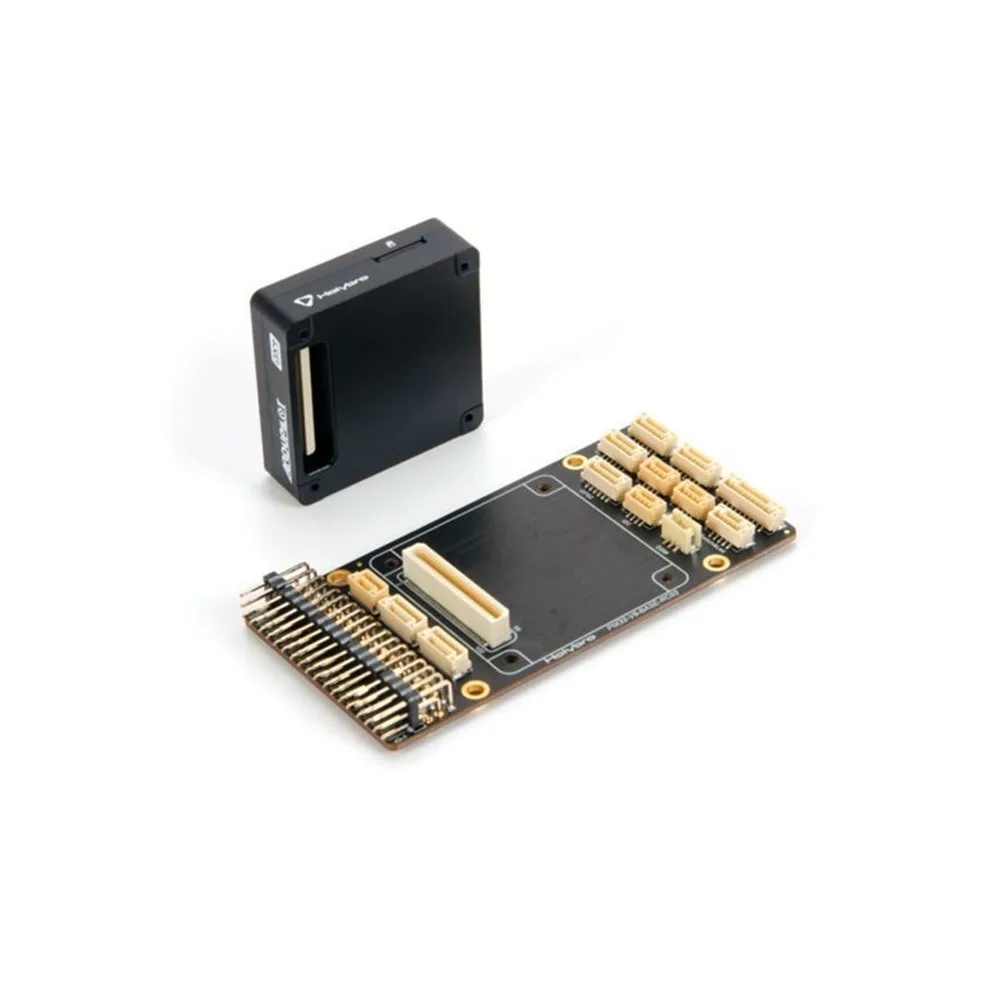

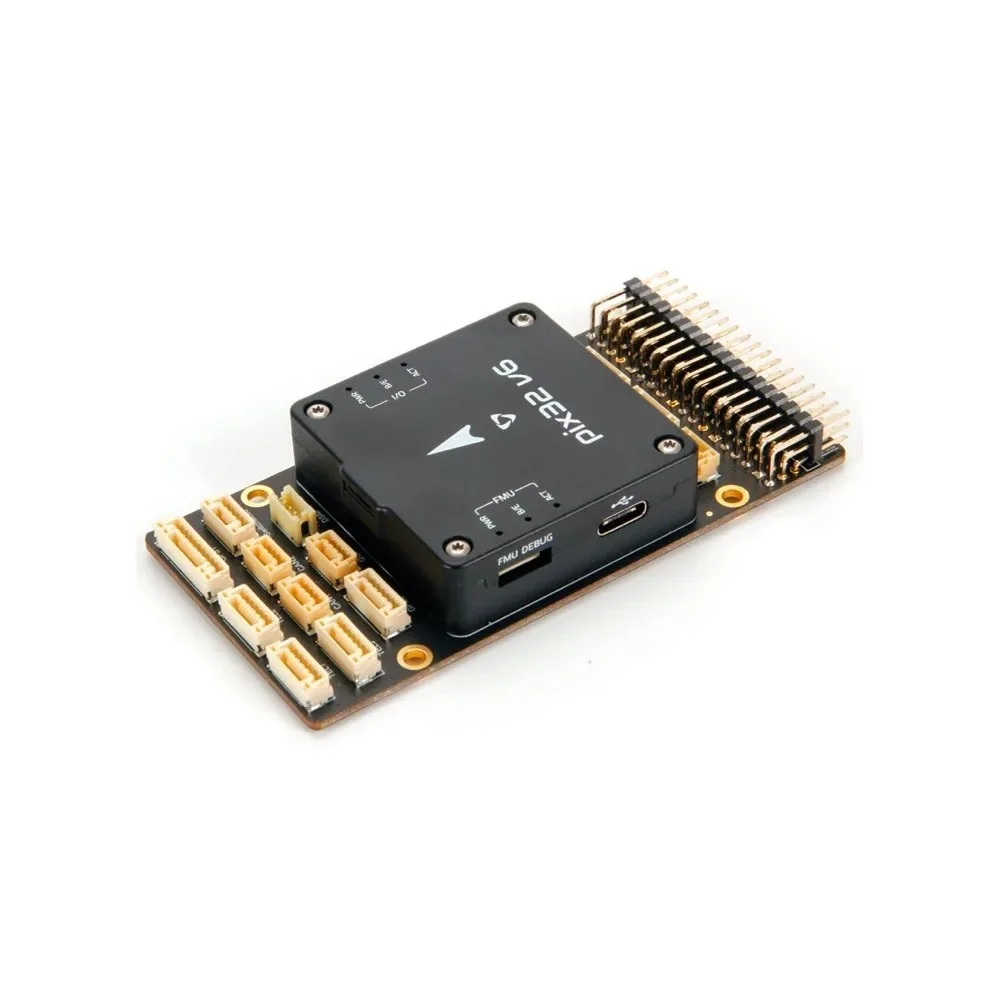

The Pix32 v6 is the latest update to the Pix32 v5 flight controllers. It is a variant of the Pixhawk 6C. It is comprised of a separate flight controller and carrier board which are connected by a 100-pin connector. It is designed for those pilots who need a high-power, flexible, and customizable flight control system.

Inside the Pix32 v6, you can find an STMicroelectronics-based STM32H743, paired with sensor technology from Bosch® & InvenSense, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pix32 v6’s H7 microcontroller contains the Arm Cortex®-M7 core running up to 480 MHz and has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models. It includes high-performance, low-noise IMUs on board, designed to be cost-effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.

This flight controller is perfect for people who are looking for an affordable and modular flight controller that can use a customized baseboard. We have made the pix32 v6 baseboard schematics public, you can either make a custom carrier board yourself or just let us help you with it. By using a customized baseboard, you can make sure that the physical size, pinouts, and power distribution requirements match your vehicle perfectly, ensuring that you have all the connections you need and none of the expense and bulk of connectors you don’t.

Features:

Specification-

Package Includes:

1 x Holybro Pix32 v6 Flight Controllers FC Module Standard Set

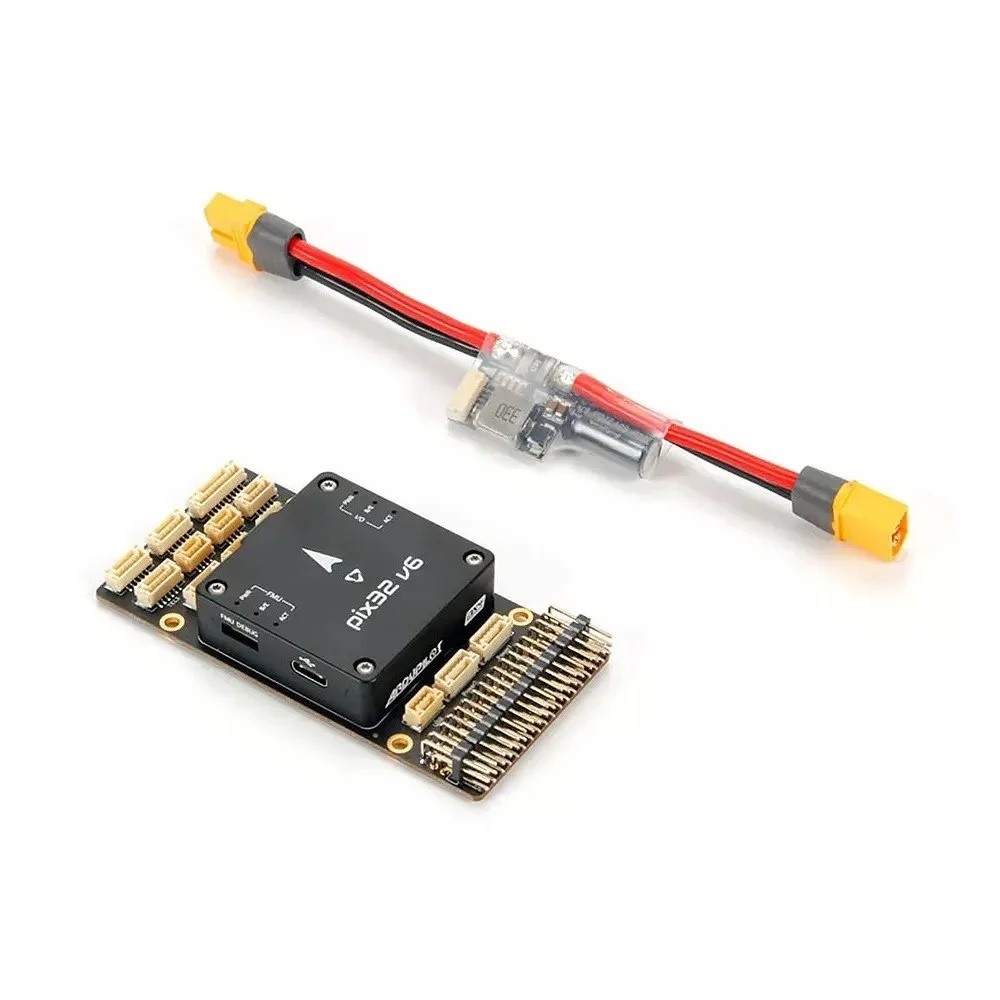

Set Includes:

1. 1 x Pix32 v6 Flight Controller Module metal body
2. 1 x Standard baseboard
3. 1 x PM02 V3 12S Power Module
4. 1 x Standard Cable Set

DOWNLOADS

Holybro Pix32 v6 Flight Controllers FC Module Standard Set Overview

The Holybro Pix32 v6 Flight Controllers FC Module Standard Set is a high-performance flight control solution designed for advanced multirotors and autonomous vehicles. It features a separate flight controller and carrier board connected via a 100-pin connector, offering modularity and flexibility for custom UAV builds.

Key Features of Holybro Pix32 v6 Flight Controllers FC Module Standard Set

• Powered by an STM32H743 Arm Cortex®-M7 core running up to 480 MHz, with 2 MB flash and 1 MB RAM
• Integrated vibration isolation system to filter high-frequency vibration and reduce sensor noise
• Onboard heating resistors for temperature-controlled IMUs, ensuring consistent performance in varying conditions
• Compact, low-profile form factor for streamlined installation in tight airframes
• Separate FC and carrier board design for easy upgrades and maintenance
• Genuine Holybro product with fast shipping from Zbotic

Applications and Use Cases

• Professional drone development for aerial photography and cinematography
• Autonomous research platforms in universities and R&D labs
• Commercial inspection drones for power lines, wind turbines, and infrastructure
• Custom multirotor builds for drone racing and FPV applications
• Industrial UAVs used in agricultural monitoring and precision spraying
• Prototype vehicles in robotics competitions and proof-of-concept testing

How to Use Holybro Pix32 v6 Flight Controllers FC Module Standard Set

Begin by mounting the carrier board in your airframe, then attach the Pix32 v6 flight controller using the supplied header. Connect your power module, RC receiver, GPS, and other peripherals to the 100-pin connector. Calibrate sensors and configure firmware (PX4 or ArduPilot) via Mission Planner or QGroundControl to complete setup.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What is included in the Standard Set?

The Standard Set comprises the Pix32 v6 flight controller module and its matching carrier board, complete with headers and mounting accessories. Power module, GPS, and external cables are sold separately.

Which firmware platforms does Pix32 v6 support?

The Pix32 v6 is compatible with both PX4 and ArduPilot firmware distributions. Users can load and configure their preferred autopilot software using QGroundControl or Mission Planner.

How does the vibration isolation system work?

The flight controller uses a specially designed integrated isolation mount that decouples high-frequency vibrations from the IMUs, ensuring cleaner sensor data and improved flight stability.
