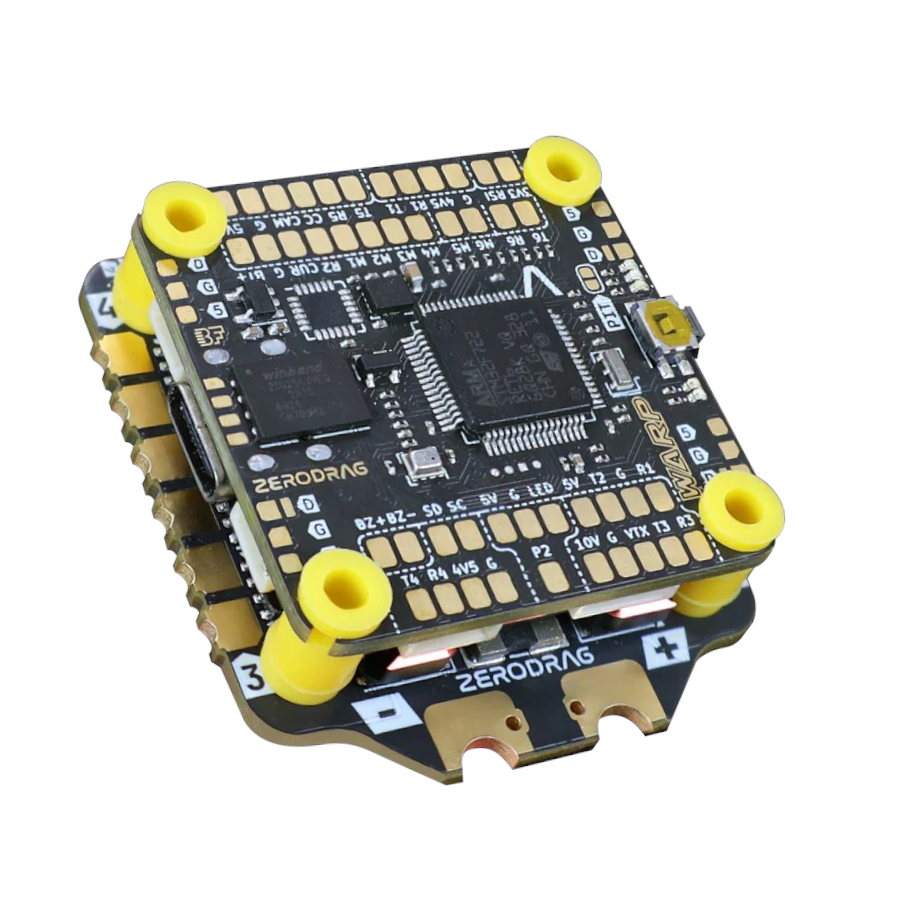

Zerodrag Warp Boost Stack (F7 FC + 55A 4-in-1 AM32 ESC) (Made in India)
Description:
Elevate your UAV experience with the ZERODRAG Warp Boost Stack, a premium flight controller and ESC combination designed for high-performance, precision-driven drone builds. Perfect for freestyle, FPV racing, and professional UAV applications, this stack integrates cutting-edge technology to deliver unmatched power, stability, and control.
Features:

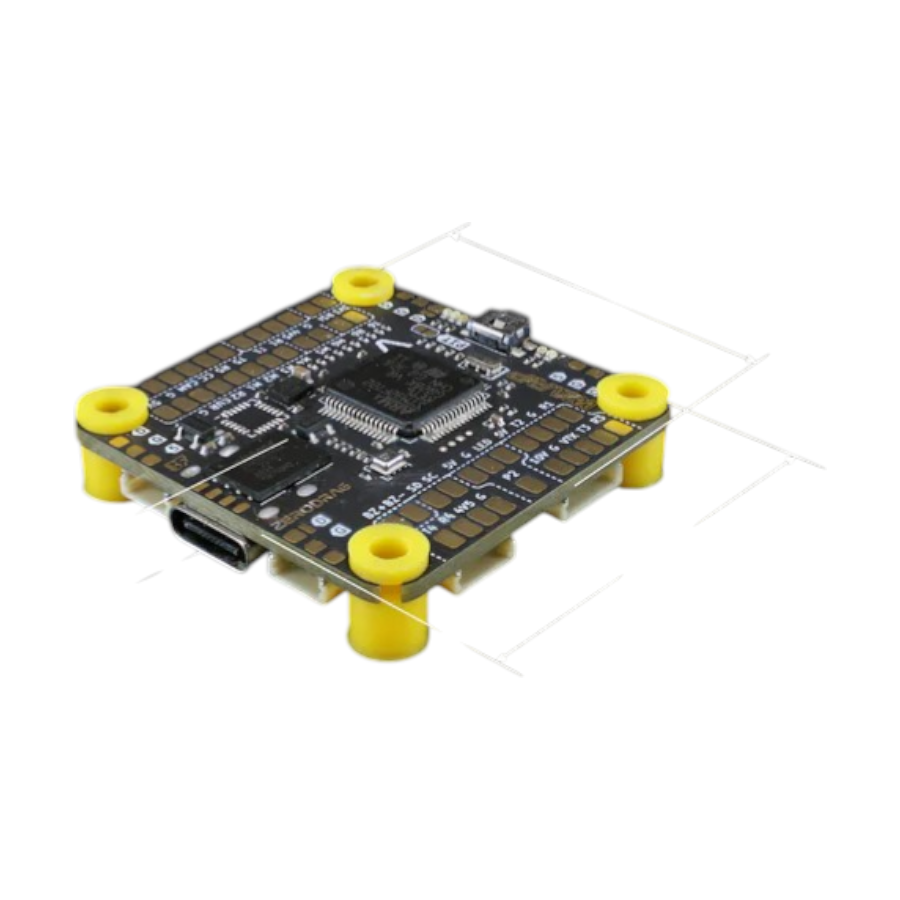

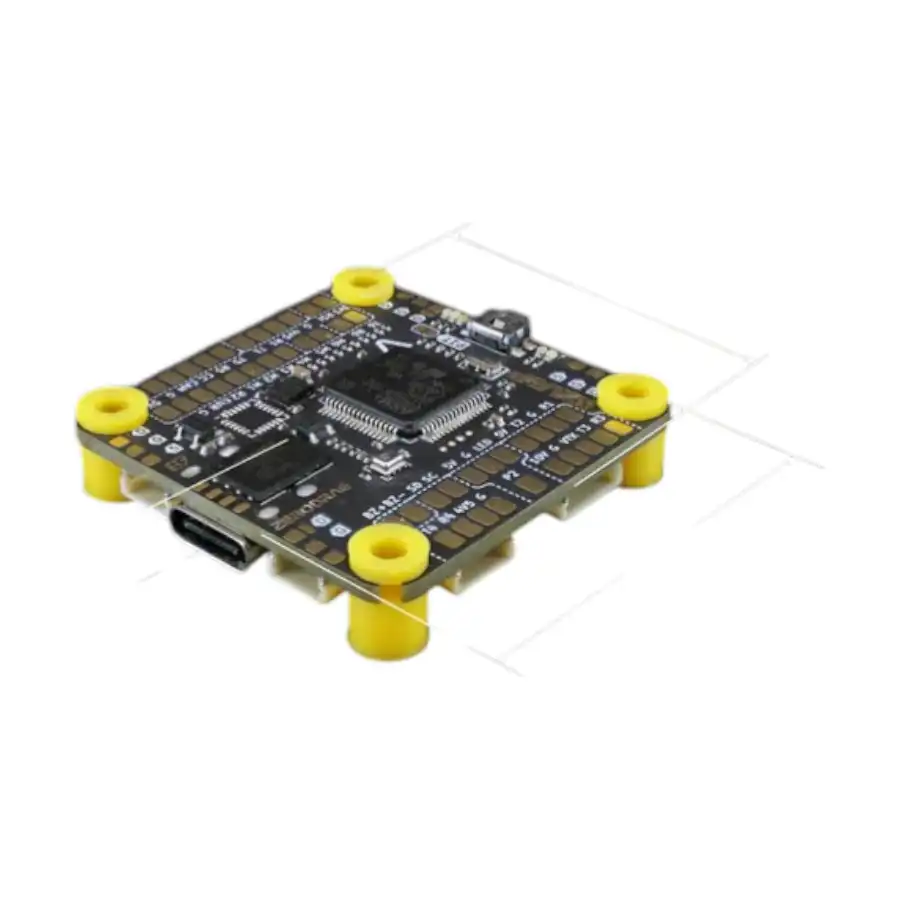

- Warp F7 Flight Controller with STM32F722 MCU and ICM42688P gyro for high-precision control
- Dedicated LDO for optimal noise isolation in electrically noisy environments
- Integrated BMP280 barometer and 32MB BlackBox for enhanced flight data logging

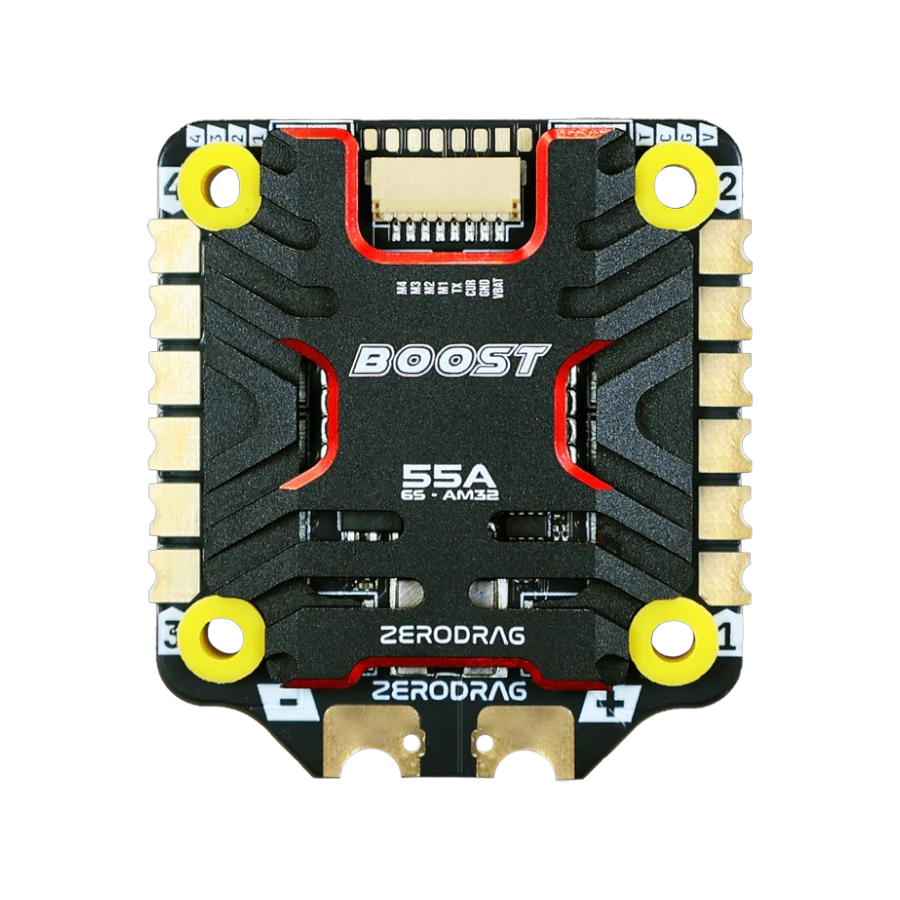

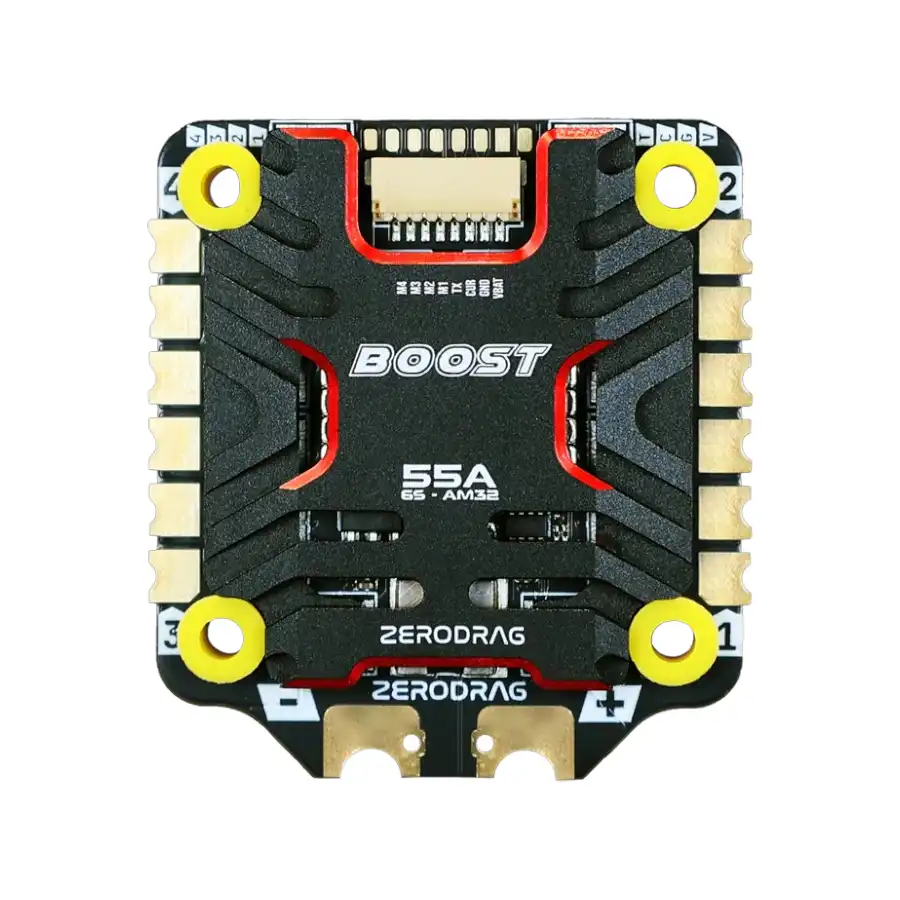

- BOOST AM32 55A 4-in-1 ESC with AM32 firmware for efficient power management and smooth motor control
- Telemetry support for current and RPM feedback
- Supports 3-6S LiPo batteries with burst capabilities up to 65A
- High-efficiency MOSFETs for reduced heat generation
Specification:
| Item Type: | flight controller and ESC stack |
|---|---|
| Model Name: | Zerodrag Warp Boost Stack |
| Main control (MCU) | STM32F722 |
| Gyroscope | ICM42688P |
| Barometer | BMP280 |
| Current Rating (A): | 55 continuous, 65 burst |
| Rated Voltage (Lipo) | 3-6S |
| Firmware: | AM32 for ESC, Betaflight, iNav for FC |
| Telemetry | Real-time feedback for current and RPM |
| Dimensions (mm) : | 45 x 41.1 x 7.5 |
| Weight (g): | 12.5 |
| Flash(for Blackbox) | 32 MB |
| OSD Chip | AT7456E |
| UART | 6 |
Attachments:
Package Includes:
1 x Warp F7 Flight Controller
1 x Boost Am32 55A 4-in-1 ESC
4 x LED Wire
1 x Camera Wire
1 x AVTX Wire
1 x DVTX Wire
1 x GPS Wire
1 x RC Wire
1 x ESC Long Cable
1 x ESC Short Cable
10 x Gummies (Tall)
5 x Gummies (Short)
5 x Spacers
5 x 30mm Screws
5 x M3 Nuts
1 x XT60H Pigtail
1 x 35V 1000uF Capacitor
