Looking for Fs-ia6 Receiver? FS-IA6 6CH AFHDS 2A 2.4G Radio Receiver is available at Zbotic with fast shipping across India.
Fs-ia6 Receiver – Product Descrption

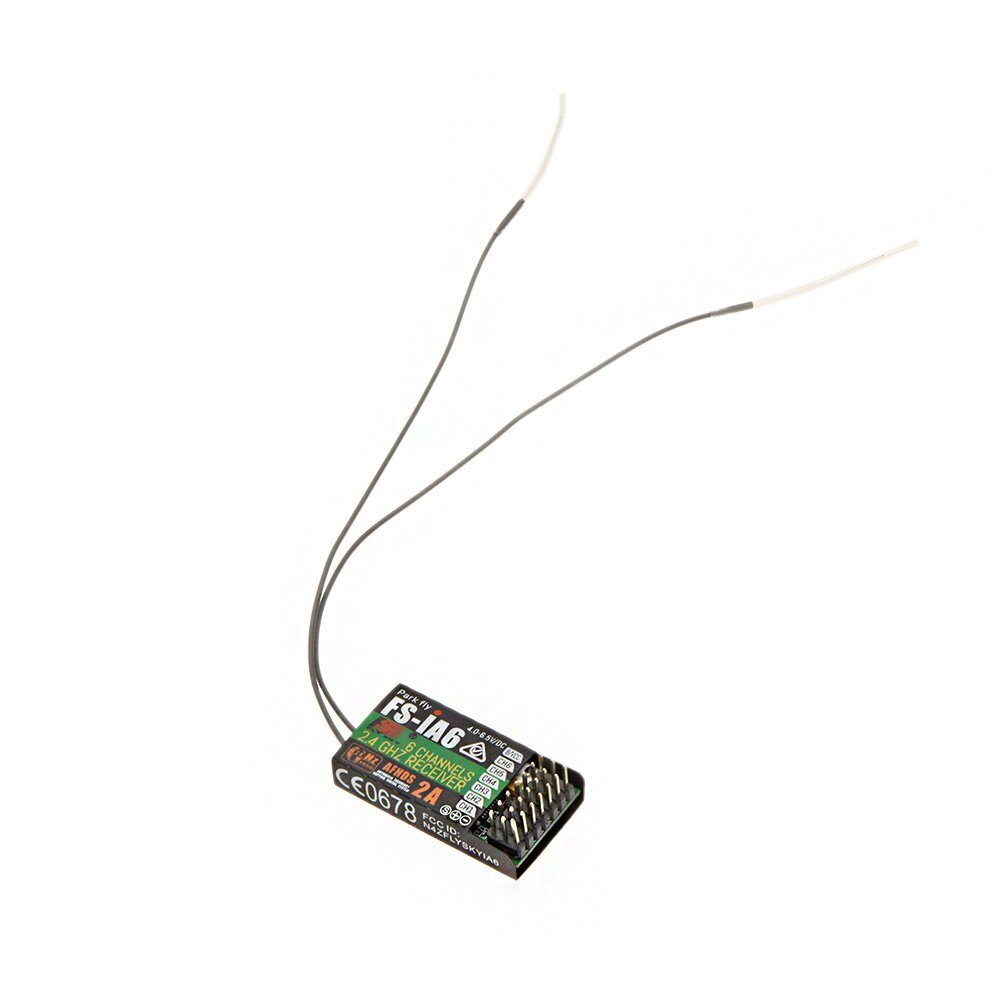

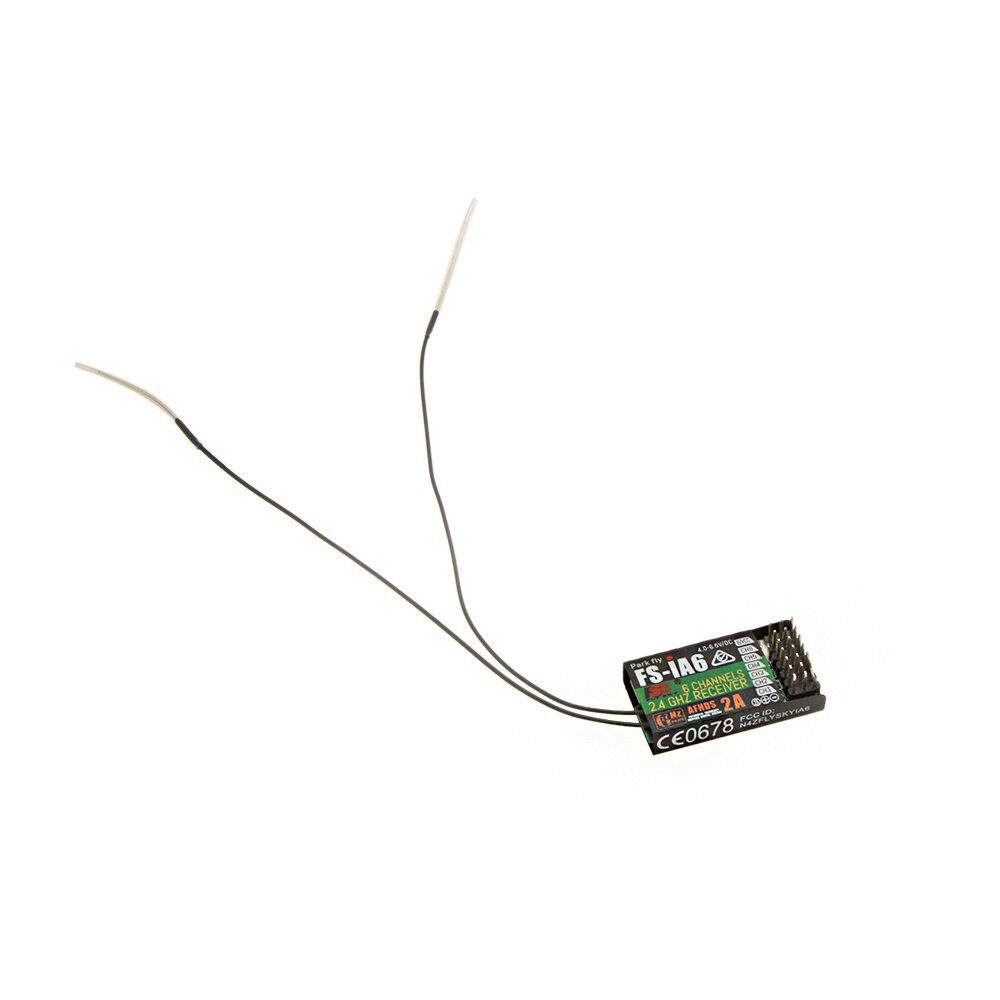

- The FS-IA6 6CH AFHDS 2A 2.4G Radio Receiver pairs exceptionally well with the FlySky FS-i6 Controller. Ideal for models requiring up to 6 channels, this compact receiver boasts reliable, interference-free 2.4GHz AFHDS2A signal operation, with a range that exceeds 500 meters, making it suitable for a wide range of applications.
- The receiver features end-on connectors for a clean installation in tight spaces and dual antennas that ensure outstanding reception and interference rejection capabilities.
- Key attributes include a digital receiver system, rapid and highly stable performance, and an ultra-lightweight design. It also offers easy binding, compact dimensions, and dual antennas for enhanced connectivity.
- Our selection includes a variety of transmitters and receivers designed to meet the needs of your unmanned vehicle projects.

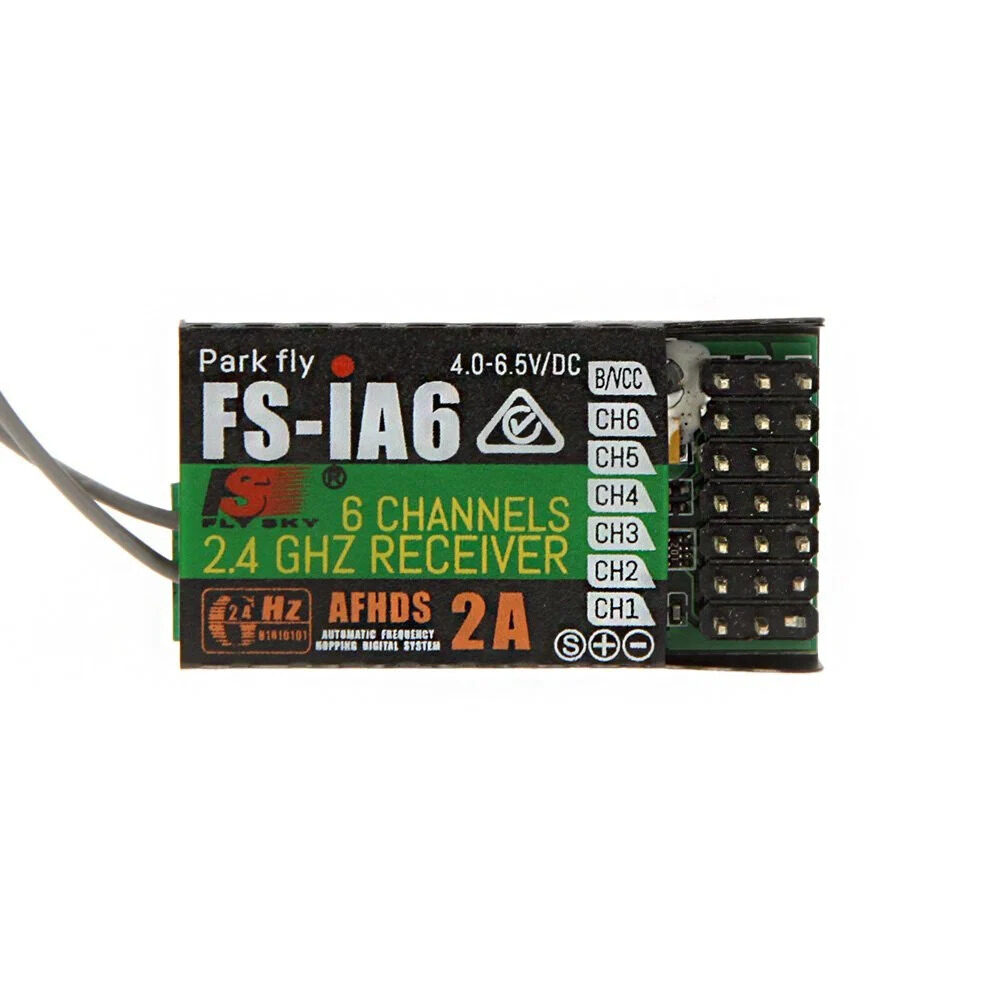

Note: Take care of Battery polarity shown on the IA6 cover while connecting to your LiPo to avoid the Damage.
Features :
- Channels: 6 Channels
- Model type: Airplane / Glider / Helicopter / Multirotor
- Transmitting power is not more than 20dBm
- 2.4G modes: automatic frequency second generation digital systems
Specification
| Item Type: | Receiver |
|---|---|
| Frequency(GHz) | 2.4 |
| Modulation Type | GFSK |
| Sensitivity (dBm) | -105 |
| Current Consumption (mA): | 30 |
| Control Distance | 300m |
| i-Bus Interface | No |
| Data Acquisition Interface | No |
| Antenna Length (mm) | 26 |
| Color: | Black |
Package Includes :
- 1 x FS-IA6 2.4G Radio Receiver

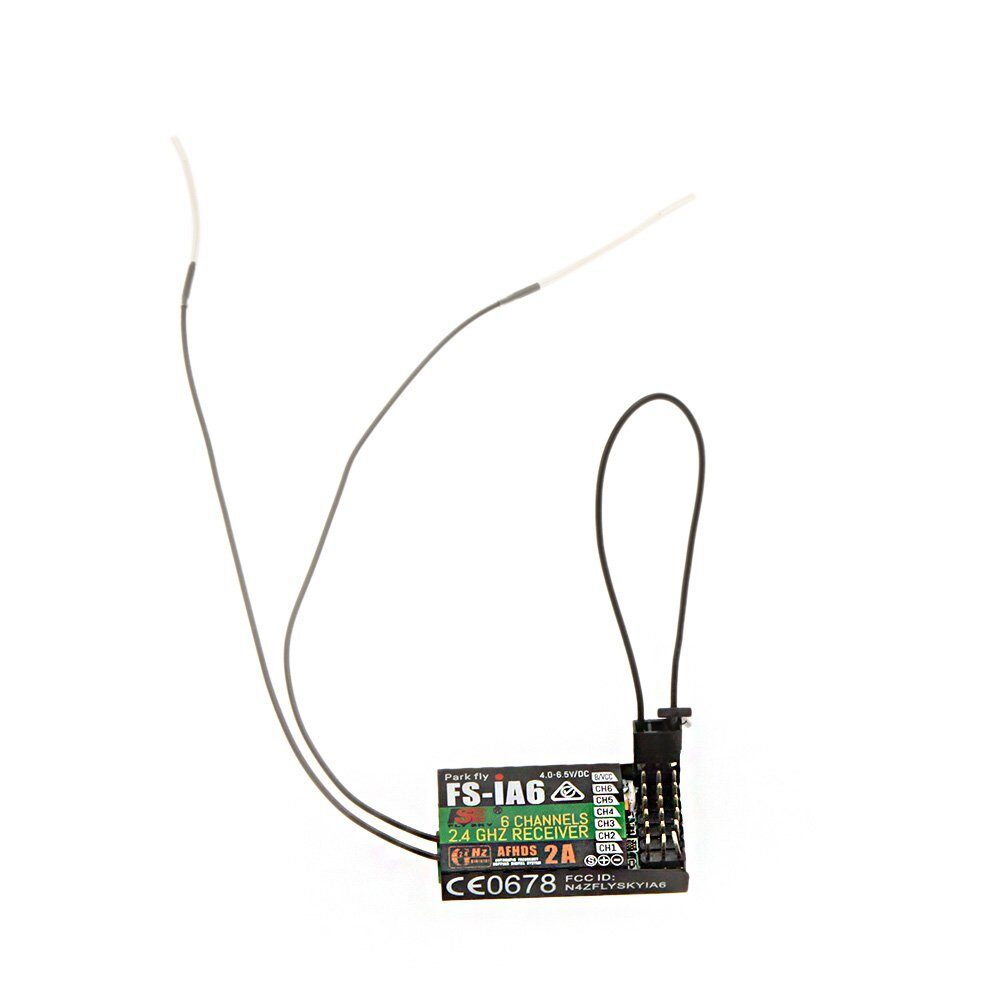

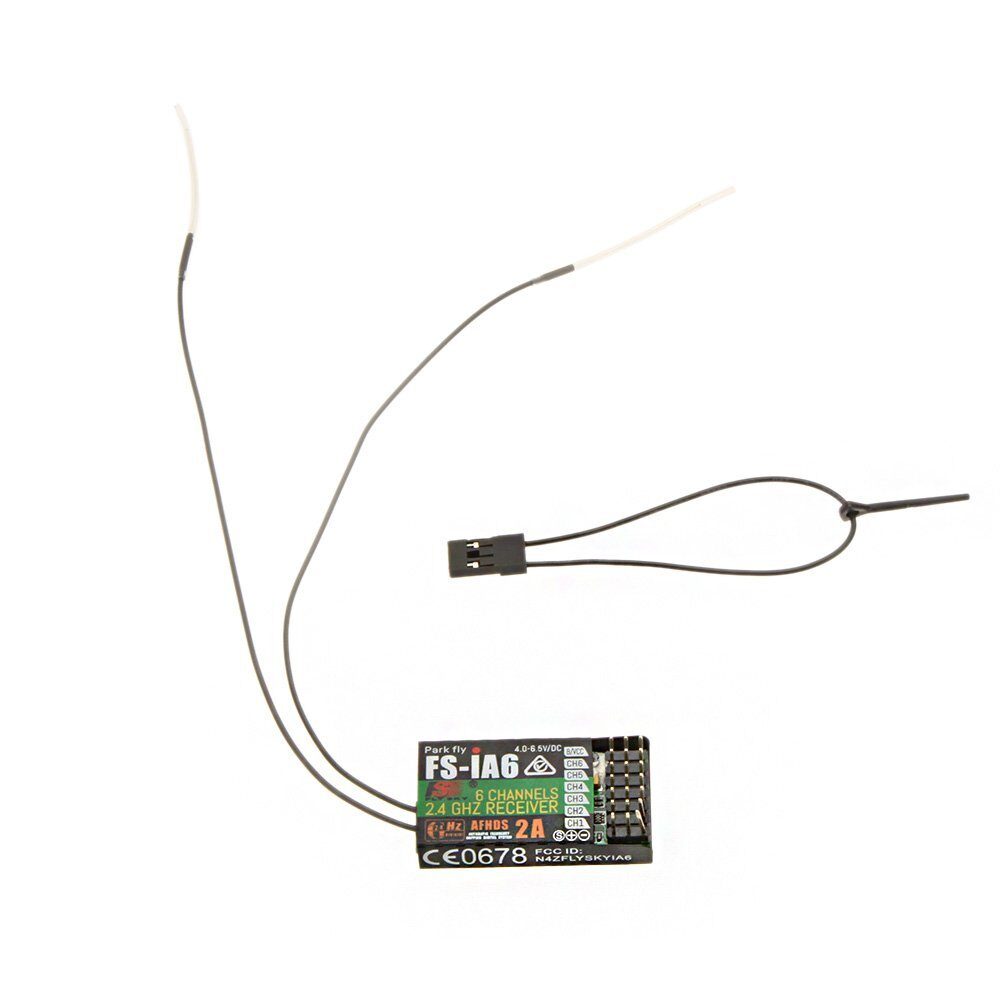

- 1 x Jumper Connector for binding
Video
FS-IA6 6CH AFHDS 2A 2.4G Radio Receiver Overview
The FS-IA6 6CH AFHDS 2A 2.4G Radio Receiver is a compact, six-channel RC receiver designed for airplanes, gliders, helicopters and multirotors. It operates on a robust AFHDS2A digital link at 2.4–2.48 GHz, delivering interference-free control with a range exceeding 500 meters.
Key Features of FS-IA6 6CH AFHDS 2A 2.4G Radio Receiver
- Six fully independent channels for versatile control of servos and ESCs
- Automatic frequency-hopping AFHDS2A system ensures stable link in crowded RF environments
- Dual diversity antennas and end-on connector layout for optimal reception in tight installations
- Ultra-sensitive RF reception (–105 dBm) and 20 dBm max transmit output
- Compact footprint and GFSK encoding for rapid signal response
- Fast shipping from Zbotic across India—order today and get tracking within 24 hours
Applications and Use Cases
- Sport and scale RC airplanes requiring precise control of flaps, ailerons and throttle
- Foam and composite gliders with retractable landing gear and spoiler functions
- Electric or nitro helicopters using multiple servos for collective pitch and tail control
- Quadcopters and hexacopters with up to six-channel flight controllers
- FPV rigs where reliable, low-latency link is crucial
- DIY drone builds needing a compact, straightforward receiver module
How to Use FS-IA6 6CH AFHDS 2A 2.4G Radio Receiver
To set up, connect the receiver’s servo leads to your flight controller or ESCs, then press and hold the bind button while powering the module. Activate bind mode on your FlySky FS-i6 transmitter to establish a link; once the LED stops blinking, power down and remount the receiver in your model. Finally, test each channel output before flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I bind the FS-IA6 receiver to my FS-i6 transmitter?
Press and hold the bind button on the FS-IA6, then power it on. The LED will blink rapidly. On your FS-i6 transmitter, select “Bind” in the menu and power up. Wait for the receiver’s LED to become solid, indicating a successful bind.
What is the effective control range of this receiver?
The FS-IA6 offers reliable control at distances over 500 meters in open line-of-sight conditions, thanks to its AFHDS2A frequency-hopping spread spectrum technology and dual antennas.
Does FS-IA6 provide telemetry feedback?
No, the FS-IA6 does not include a telemetry data interface. It delivers control signals only, without real-time sensor or voltage feedback.
