Looking for 2.4ghz Receiver Jumper? Jumper 2.4Ghz ELRS AION-RX-MINI-SE Receiver is available at Zbotic with fast shipping across India.
2.4ghz Receiver Jumper – 🧾Product description:

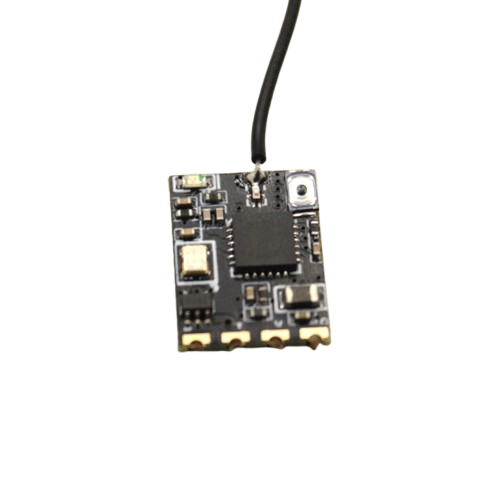

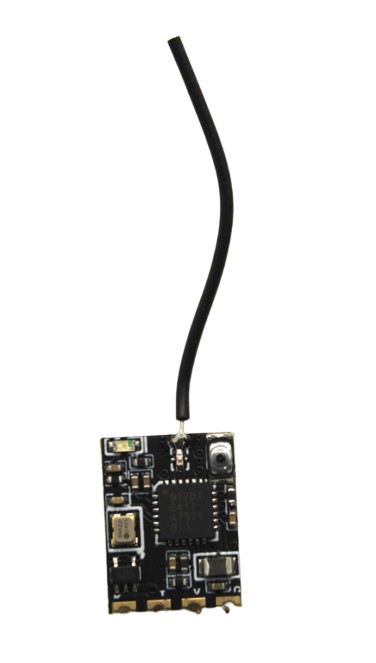

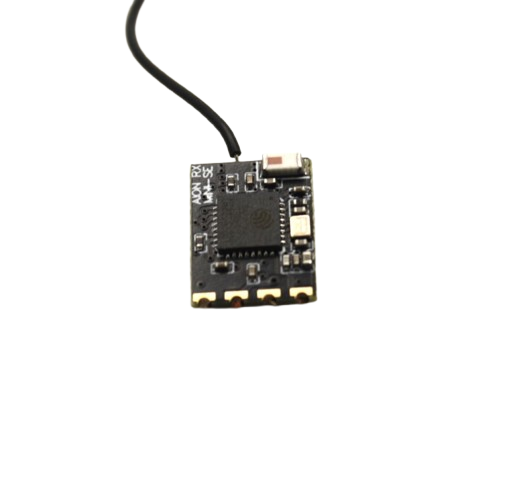

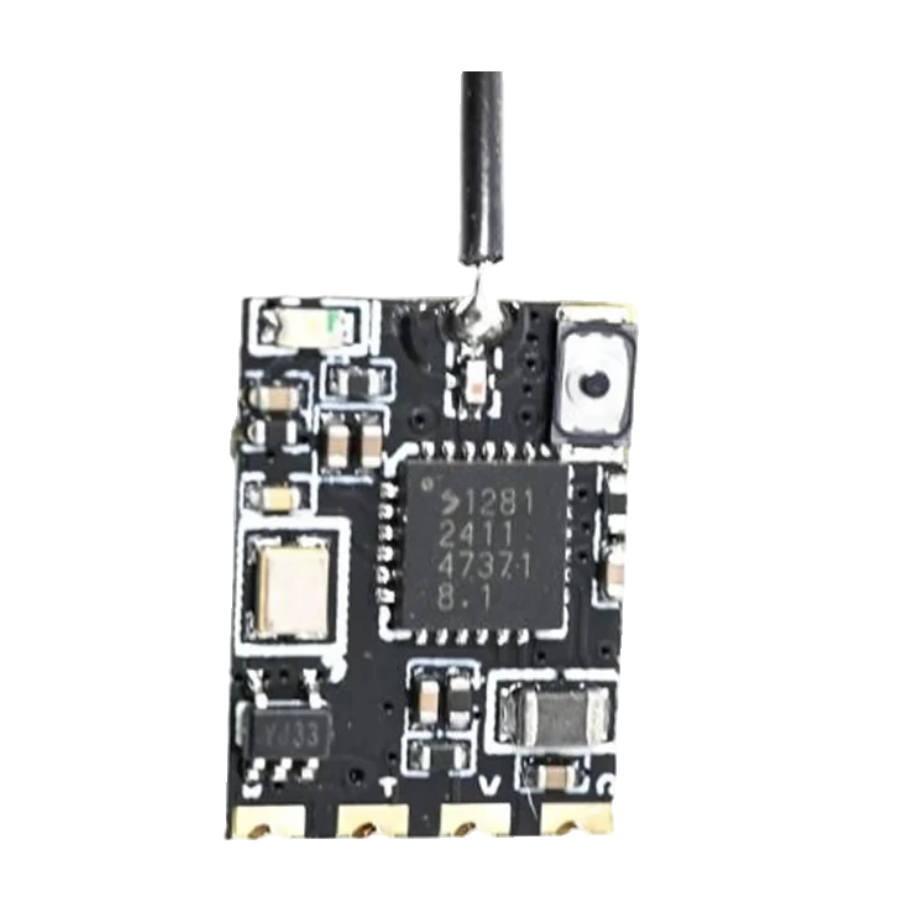

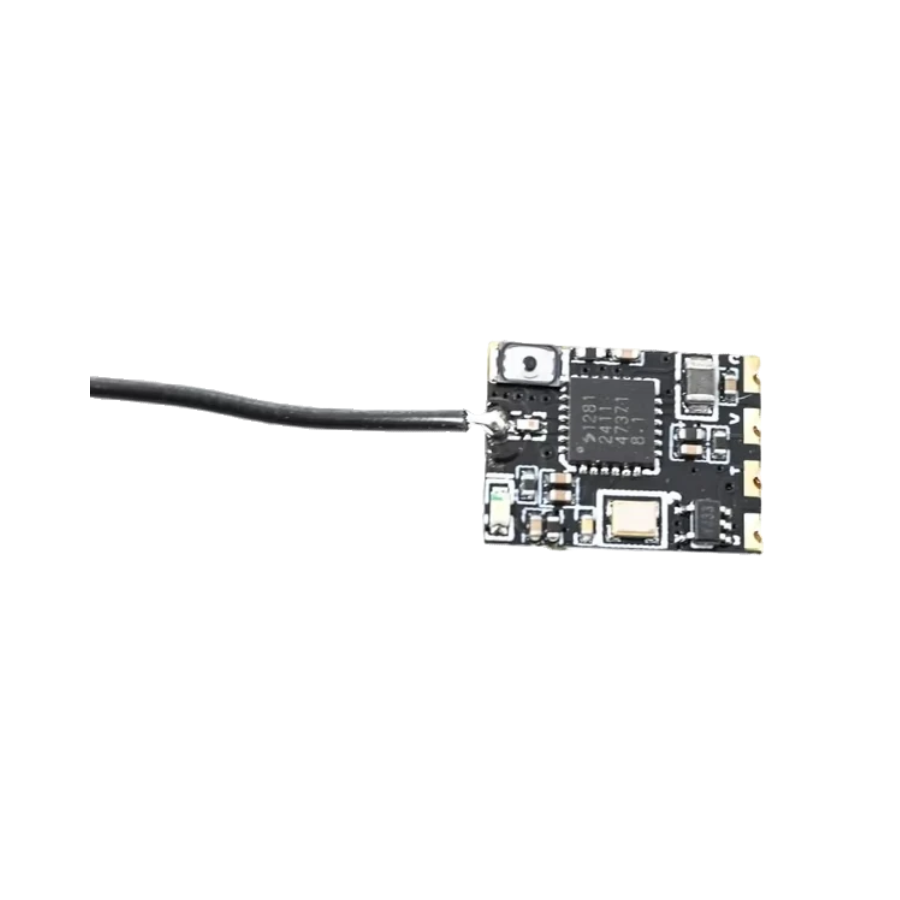

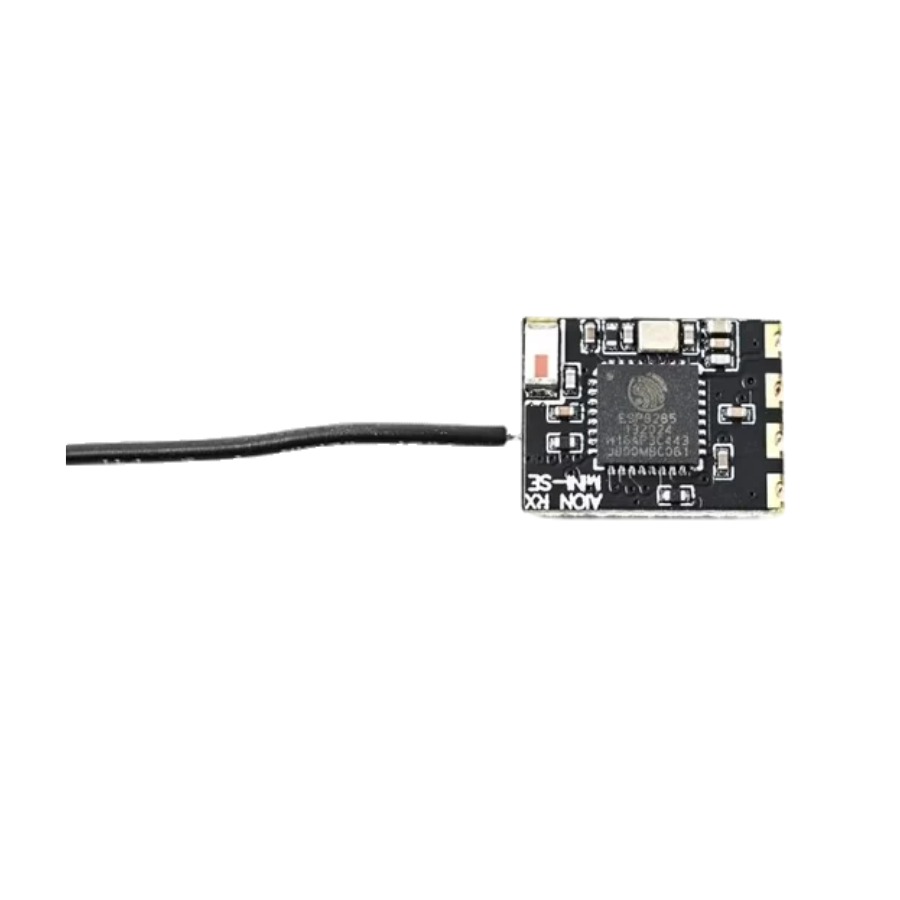

The Jumper 2.4Ghz ELRS AION-RX-MINI-SE Receiver full duplex telemetry receiver. This compact and lightweight receiver measures 12.8 x 9.8 x 3.6mm and weighs just 0.8g. It supports 16 channels and operates within a voltage range of 3.5V-6V, with a current of 60mA at 5V. Compatible with radios in ELRS 2.4 mode, it offers full-range operation and a distance of over 5KM, ensuring reliable performance.
🌟Features:
- Compact Design: Measuring only 12.8 x 9.8 x 3.6mm, it’s perfect for tight spaces.
- Lightweight: At just 0.8g, it adds minimal weight to your setup.
- 16 Channels: Supports up to 16 channels for versatile usage.
- Wide Voltage Range: Operates between 3.5V and 6V for flexible power options.
- Low Power Consumption: Consumes only 60mA at 5V.
- Long Range: Provides reliable operation over distances greater than 5 km.
📐Specification:
| Item Type: | Receiver |
|---|---|
| No. of Channels: | 16 |
| Operating Voltage (V): | 3.5-6 |
| Operating Current (mA): | 60 |
| Range | >5KM |
| Compatibility: | Radios in ELRS 2.4 mode |
📦Package Includes:
- 1 x Jumper 2.4Ghz ELRS AION-RX-MINI-SE Receiver
Jumper 2.4Ghz ELRS AION-RX-MINI-SE Receiver Overview
The Jumper 2.4Ghz ELRS AION-RX-MINI-SE Receiver is a full-duplex telemetry module designed for ExpressLRS radio systems. Its ultra-compact footprint and lightweight build make it ideal for tight-space installations on FPV drones and other RC platforms.
Key Features of Jumper 2.4Ghz ELRS AION-RX-MINI-SE Receiver
- Compact Dimensions: 12.8 x 9.8 x 3.6 mm for easy integration in micro builds
- Featherweight Design: Only 0.8 g, adding negligible mass to your aircraft
- 16-Channel Support: Full access to all control and auxiliary functions
- Wide Voltage Range: Operates reliably on 3.5 V to 6 V supply
- Low Current Draw: 60 mA at 5 V to conserve battery life
- Long-Range Performance: Full-range operation beyond 5 km with compatible transmitter
- Fast Shipping from Zbotic: Receive your receiver quickly anywhere in India
Applications and Use Cases
- FPV Racing Drones: Ideal for lightweight, high-speed quadcopters
- Long-Range Photography Platforms: Maintain telemetry over extended distances
- Fixed-Wing Models: Seamless integration in slim fuselages
- Freestyle Multirotors: Reliable control during acrobatic maneuvers
- Micro and Nano Builds: Perfect for builds where space and weight are critical
- Telemetry-Enabled Flights: Real-time link quality and battery monitoring
How to Use Jumper 2.4Ghz ELRS AION-RX-MINI-SE Receiver
Mount the receiver securely on your airframe, wire the power (3.5–6 V) and ground pins, and connect the CRSF signal line to your flight controller. Follow standard ExpressLRS binding steps in your transmitter’s ELRS 2.4 GHz mode. Once bound, configure channel mapping in your FC firmware, then perform a range check and start flying.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I bind the AION-RX-MINI-SE Receiver to my Jumper transmitter?
Power up the receiver in bind mode (hold bind button while powering), then enable ELRS binding in your Jumper transmitter’s model setup. Wait for the LED to indicate a successful link.
Can I power this receiver directly from a 5 V BEC?
Yes, the AION-RX-MINI-SE accepts 3.5 V to 6 V, so a 5 V BEC is within its operating voltage range and provides stable power.
What is the effective control range I can expect?
With clear line of sight and a compatible ELRS transmitter module, you can achieve reliable control and telemetry beyond 5 km.
