This is the 12V variant of the Hi-Link HLK 5M12 12V/5W Switch Power Supply Module in Hi-Link Power Supply Module. Available at ₹195.88 (₹166.00 + GST) with free shipping across India.
Description:

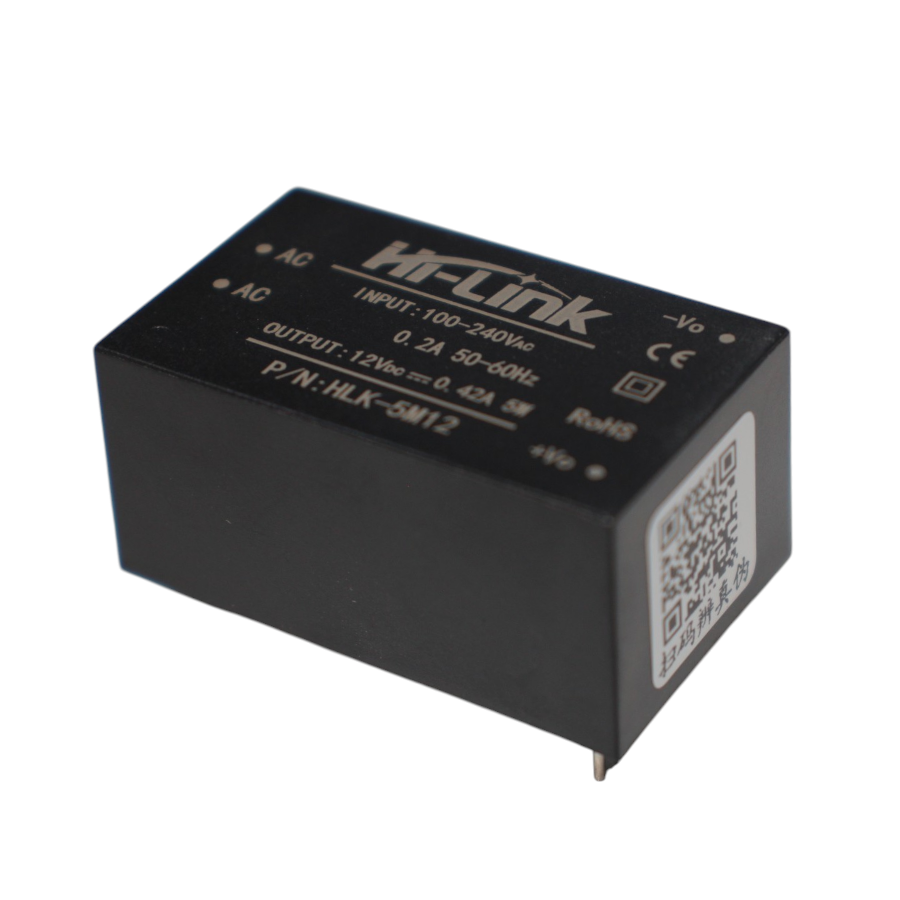

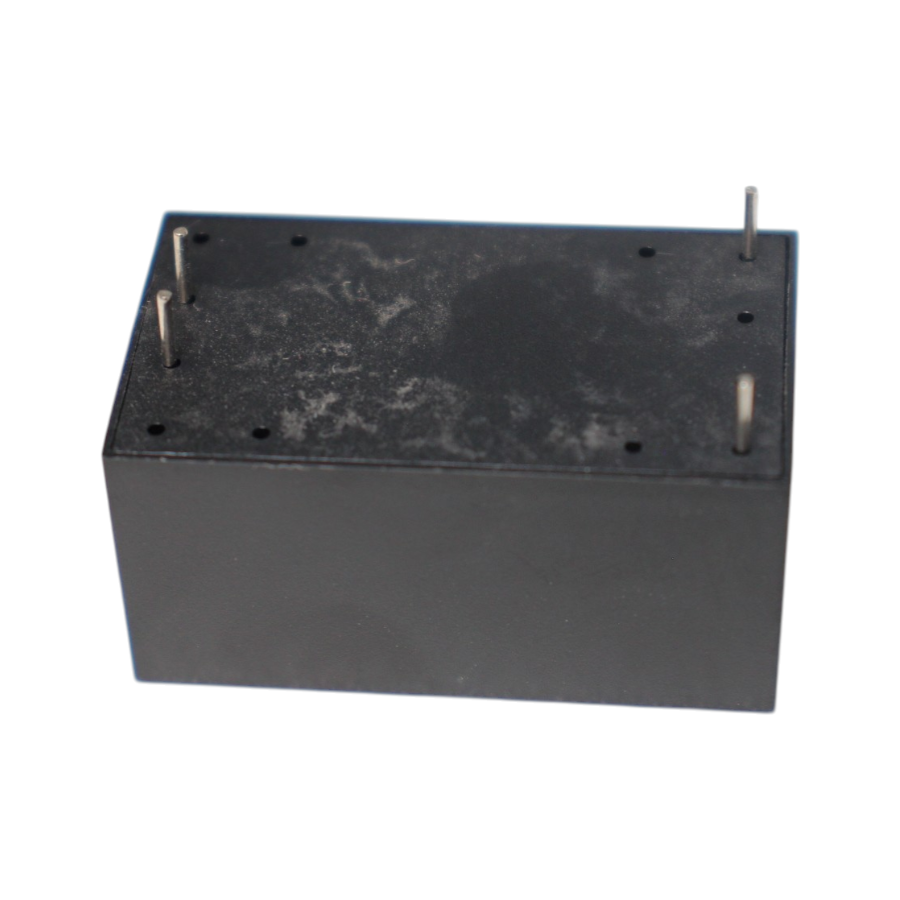

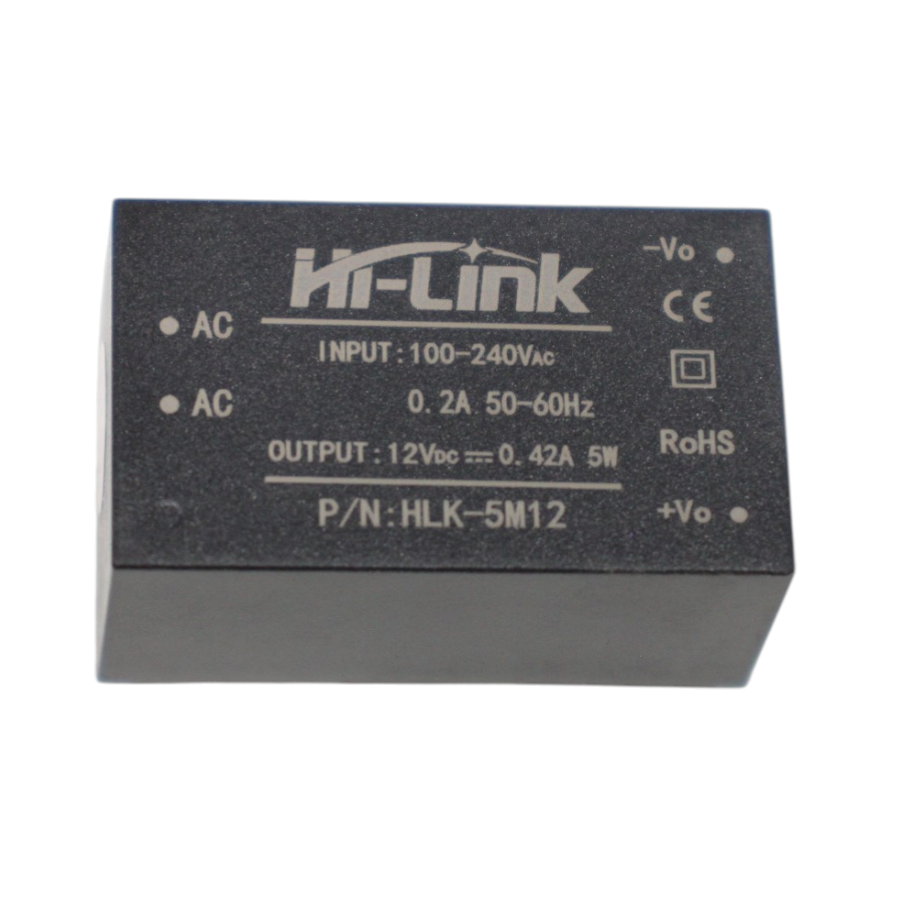

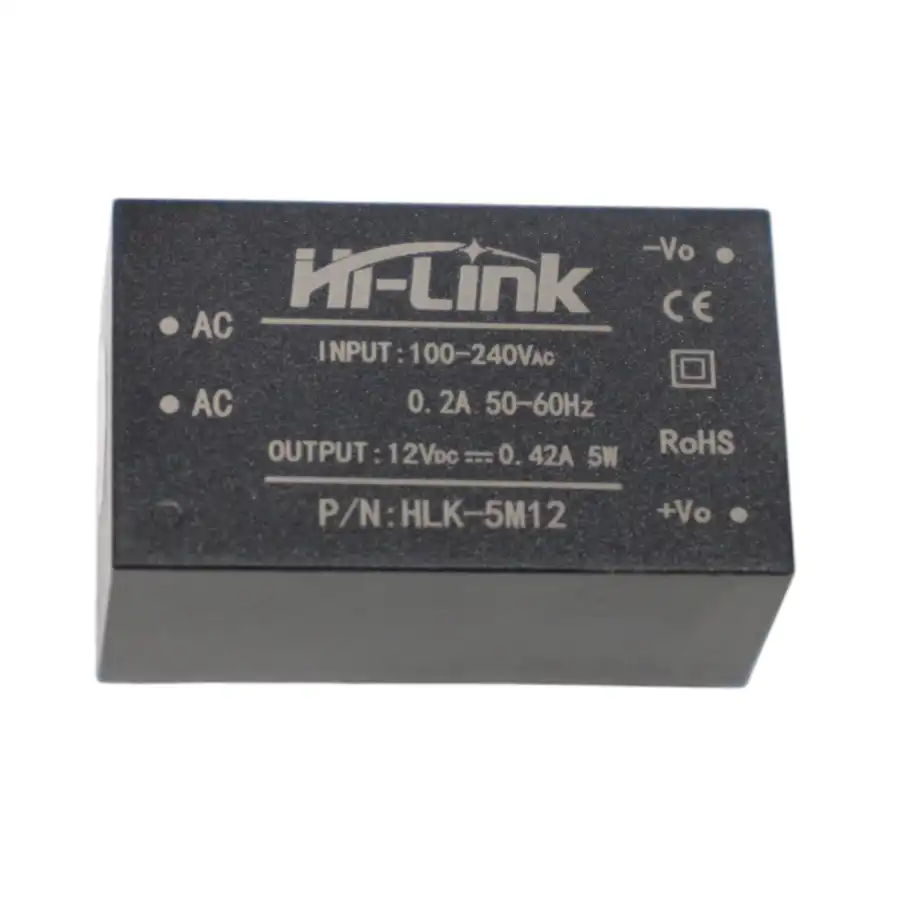

Hi-Link HLK 5M12 12V/5W Switch Power Supply Module
The HLK-5M12 Hi-link 12V 5W AC to DC Power Supply Module is a compact and isolated switch-mode power supply module that can be mounted on a PCB. It converts 120V AC – 230V AC input to 12V DC output and has a power rating of 5 Watt. This is ideal for small projects that require a 12 volt supply from mains. This power supply module simplifies the traditional power supply design by eliminating the need for diodes, voltage regulator and transformers. It also offers many benefits, such as low-temperature rise, low power consumption, high efficiency, high reliability and high-security isolation.
This Power Supply Module uses a switching regulator to maintain a stable output voltage regardless of the input voltage fluctuations. It can be easily integrated into the PCBs of various devices and applications. It is widely used in smart home, automation and control, communication equipment, instrumentation and other industries.
Features:
- Meet UL, CE requirements,
- Ultra-thin, ultra-small
- All voltage input (AC: 90 ~ 264V)
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- The product is designed to meet the requirements of EMC and Safety Test
- Low power consumption, environmental protection, no-load loss <0.1W
Environmental conditions:
- Technical indicators: Single bit
- Working temperature: – 20-60 +degree
- Storage temperature: + 80-40 -degree
- Relative humidity: 5-95%
- The cooling way: Natural cooling
- The atmospheric pressure: 80-106Kpa
- The altitude: 2000M or less.
Specifications:
- Rated input voltage 100-240 VAc
- Input voltage range 90-264 VAc
- Maximum input current ≤0.2 A
- Input current surge ≤10 A
- maximum input voltage ≤270 VAc
- Enter slow start ≤50 mS
- Input Low Voltage Efficiency Vin=110VAc,Output full-load≥69 %
- Input High Voltage Efficiency Vin=220VAc,output full-load≥70 %
- Long-term reliability MTBF≥100,000 h
- Load rated output voltage +12±0.1 VDc
- Full rated output voltage 12±0.2 VDc
- Short-term maximum output current ≥540mA
- The maximum output current for a long time ≥450 mA
- Voltage Regulation ±0.2 %
- Load Regulation ±0.5 %
- Output ripple and noise (mVp-p) ≤50
- Rated input voltage, full load. Using 20MHz of bandwidth,
- The load side 10uF and 0.1uF capacitor to be tested. mV
- Switch overshoot amplitude (Rated input voltage and output load plus 10%)≤5 %VO
- Output over-current protection 150-200% of the output maximum load A
- Output short circuit protection Direct short circuit at the normal output, automatically resume normal operation after a short circuit removal
Package Includes:
- 1 x Hi Link HLK 5M12 12V/5W Switch Power Supply Module
Attachments:
Technical Specifications
| Brand | Hi-Link |
|---|---|
| Operating Voltage | 12V |
| Power Rating | 5W |
| SKU | AI0704 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Hi-Link HLK 5M12 12V/5W Switch Power Supply Module is a versatile hi-link power supply module used across a wide range of applications including electronics workbench, LED lighting, industrial equipment, embedded system power, and CCTV installations.
Common use cases:
- Powering a development board or test setup
- Driving LED strip installations
- Providing regulated DC power to equipment
This product is ideal for electronics labs, makers, and system integrators.
Technical Tip: Ensure output voltage and current match your load requirements. Switching power supplies are more efficient but may introduce noise; consider linear for sensitive analog circuits.
