HGLRC ZEUS5 ELRS AIO VTX F411 Flight Control 5A BL_S 5 in 1 FC
Description:
This is HGLRC ZEUS5 ELRS AIO VTX F411 Flight Control 5A BL_S 5 in 1 FC. This is an ultra-light F411 5A 1S AIO integrated brushless flight controller, integrated SPI Expresser’s 2.4G receiver, and integrated 200mW 5.8GHz adjustable power video transmission at the same time. The SPI ELRS receiver uses patch ceramic antennas to solve the short-distance problem of the ancient SPI D8/D16 protocol. The ELRS receiver superimposes 200mW high-power video transmission to easily fly around the harsh indoor environment. The built-in receiver has the characteristics of high sensitivity, high refresh rate, and low delay, and is loved by many FPV enthusiasts. This AIO flight controller is fully compatible with 65/75/lightweight toothpick drone/whoop series and other frames on the market.
Specification:
| Item Type: | Flight Controller |

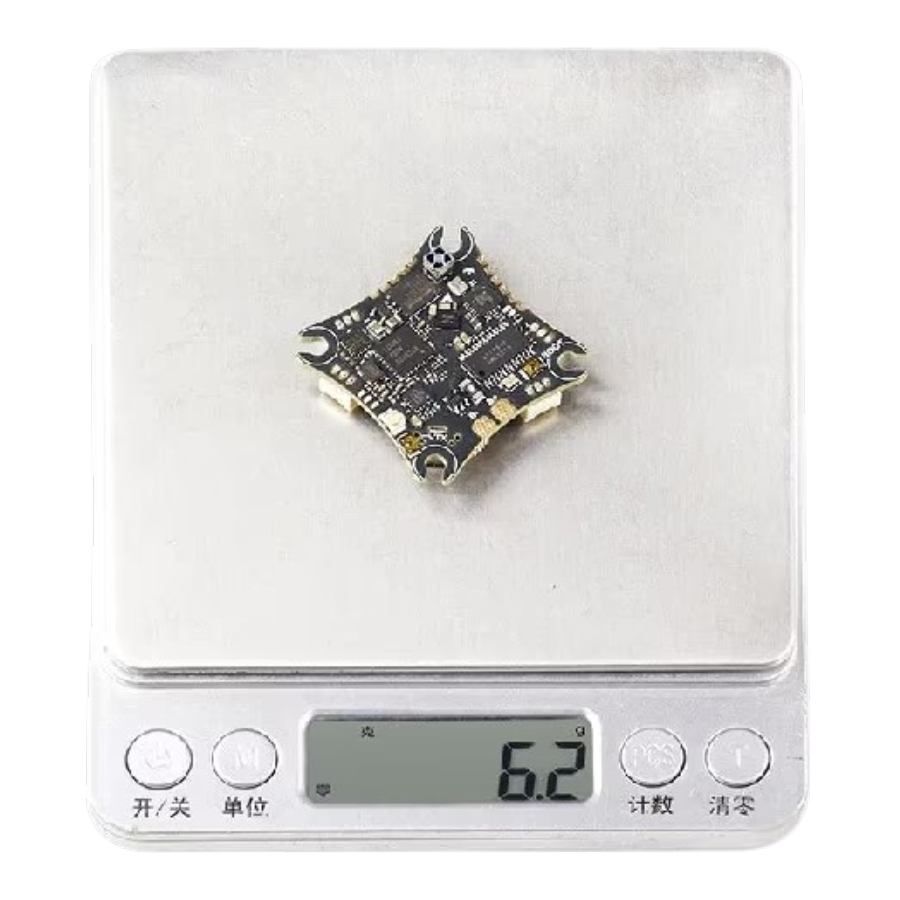

| Weight (g): | 6.2 |
| MCU Type | STM32F411 |
| Product Size | 32x32mm |
| Supported | OSD, LED, Buzzer |
Features:
1. Built-in SPI ELRS receiver/or external CRSF protocol receiver 2. Built-in integrated 200mW 5.8GHz analog video transmission 3. Independent 3P socket, which can be directly connected to the motor 4. Built-in 16M black box, convenient to adjust parameters, view flight data and other functions 5. By default, the Bluejay firmware is flashed to improve the flight efficiency, which is the best choice for the drone 6. Compatible with all 65mm-75mm hoop/toothpick frames
Package Includes:
1 x ZEUS5 ES24 1S AIO 1 x XT30U-M 22AWG 70mm male power cord 1 x PH2.0-2P 22AWG 35mm male power cord 1 x MX1.25-3P 30AWG 75mm camera cable 4 x M2*6.6 Shock-absorbing column
DigiSky Commercial Drone License: DGCA Process Step-by-Step
Obtaining a DGCA commercial drone license in India through the DigiSky platform is mandatory for anyone operating drones...
Read More →
Drone Magnetometer Calibration: Fix Compass Errors Fast
Drone Magnetometer Calibration: Fix Compass Errors Fast Nothing is more frustrating than watching your drone drift sideways, spin...
Read More →
Drone Mapping with Photogrammetry in India: DroneDeploy vs WebODM Complete Guide 2025
Drone photogrammetry has transformed how Indian industries approach land surveying, construction monitoring, agricultural planning, and infrastructure inspection. Where...
Read More →Technical Specifications
| Brand | HGLRC |
|---|---|
| Current Rating | 5A |
| Interface / Protocol | ELRS |
| SKU | AI8174 |
| Weight | 0.025 kg |
| Availability | Out of Stock |
Applications & Use Cases
The HGLRC ZEUS5 ELRS AIO VTX F411 Flight Control 5A BL_S 5 in 1 FC is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine HGLRC product sourced from authorized channels
