This is the Red variant of the GY-9960-3.3 APDS-9960 RGB Infrared Gesture Sensor Motion Direction Recognition Module in PIR / IR and Optical Sensor. Available at ₹187.62 (₹159.00 + GST) with free shipping across India.
Looking for Gy-9960 Module? GY-9960-3.3 APDS-9960 RGB Infrared Gesture Sensor Motion Direction Recognition Module is available at Zbotic with fast shipping across India.
Product Description:

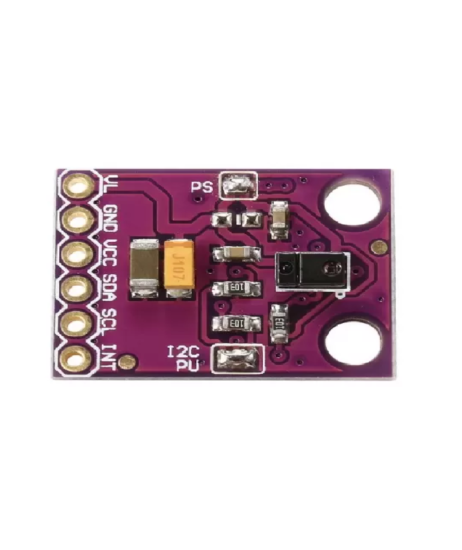

The RGB and Gesture Sensor is a small breakout board that has an APDS-9960 sensor, which can measure ambient light and color, detect proximity, and sense touchless gestures. You can use this sensor to control a computer, microcontroller, robot, or any other device with a simple hand gesture. This sensor is the same one used by the Samsung Galaxy S5 and it is one of the best gesture sensors available for its price.

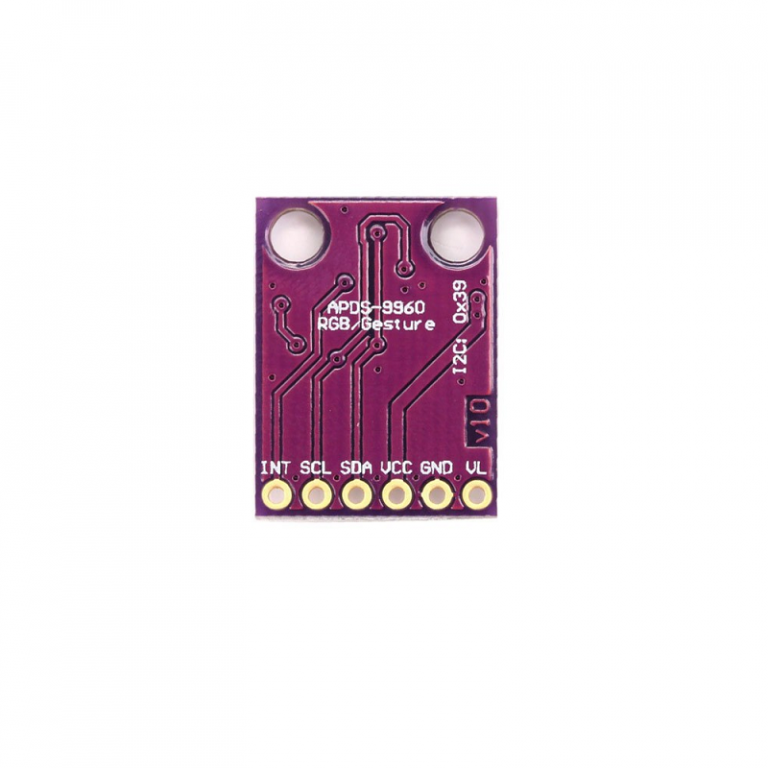

The APDS-9960 has built-in filters that block UV and IR light, four diodes that are sensitive to different directions, and an interface that is compatible with I2C. The following pins are broken out for your convenience: VL (optional power to IR LED), GND (ground), VCC (power to APDS-9960 sensor), SDA (I2C data), SCL (I2C clock), and INT (interrupt). The detection range of the APDS-9960 is 4 to 8 inches (10 to 20 cm).
Application:
- RGB Infrared Gesture Sensor
- Motion Direction Recognition Module
Features:
- RGB and Gesture Sensor
- APDS-9960 sensor
- Specifications
- Model: GY-APDS9960-3.3
- chip: APDS-9960
- Power supply: 3.3v
- Communication: IIC communication protocol
- Size: 20 mm * 15.3 mm
Package Includes:
1 x GY-9960-3.3 APDS-9960 RGB Infrared Gesture Sensor Motion Direction Recognition Module
1 x 6 Pin Male Header
GY-9960-3.3 APDS-9960 RGB Infrared Gesture Sensor Motion Overview
The GY-9960-3.3 APDS-9960 RGB Infrared Gesture Sensor Motion Direction Recognition Module is a compact breakout board powered at 3.3 V that integrates the APDS-9960 chip for ambient light, RGB color, proximity sensing, and touchless gesture detection. Using its built-in IR filters and four directional photodiodes, it recognizes swipe gestures and measures environmental lighting via I²C communication.
Key Features of GY-9960-3.3 APDS-9960 RGB Infrared Gesture Sensor Motion
- APDS-9960 sensor: ambient light, RGB color, proximity, and gesture detection in one package
- 4 directional IR photodiodes for accurate up/down/left/right gesture recognition
- Integrated UV and IR blocking filters for reliable color measurements
- I²C interface compatible with common microcontrollers at 3.3 V logic
- Compact breakout board with labeled pins for easy wiring
- Fast shipping from Zbotic, ready to use in your next robotics or IoT project
Applications and Use Cases
- Touchless control panels for home automation or appliances
- Gesture-based user interfaces on Arduino, Raspberry Pi, or custom boards
- Proximity-triggered lighting adjustments based on ambient light levels
- Interactive exhibits and kiosks with hand-swipe navigation
- Robotics projects requiring non-contact object detection and color sensing
How to Use GY-9960-3.3 APDS-9960 RGB Infrared Gesture Sensor Motion
Connect the module’s VCC to a 3.3 V supply, GND to ground, and SDA/SCL to your microcontroller’s I²C pins. Load an APDS-9960 driver library or example code, initialize I²C at the correct address, then call functions to read ambient light, RGB values, proximity, or gesture status. Adjust integration time and thresholds in software to fine-tune detection for your environment.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What power supply voltage does the GY-9960-3.3 require?
This module operates at 3.3 VDC. Supplying higher voltage may damage the APDS-9960 chip, so ensure your microcontroller’s 3.3 V rail powers VCC.
Which interface does this sensor use for data communication?
The GY-9960-3.3 communicates solely over the I²C bus. Use standard SDA and SCL lines at 3.3 V logic levels to interface with most development boards.
How many gesture directions can it detect?
Thanks to its four directional IR photodiodes, the APDS-9960 can recognize swipe gestures in four directions: up, down, left, and right, as well as detect proximity and stationary hand presence.
Agricultural Sensors India: EC, pH, NPK Soil Sensor Buying Guide
Table of ContentsWhy Agricultural Sensors Matter for Indian FarmersEC (Electrical Conductivity) SensorspH Sensors for Soil and WaterNPK Soil...
Read More →
Sensor Fusion with Kalman Filter on Arduino: IMU Example
If you have ever built a drone, a self-balancing robot, or any motion-tracking project with an Arduino and...
Read More →
Optical Encoder Disc: Speed Measurement with Arduino PWM
Speed measurement is one of the most fundamental requirements in robotics, motor control, and industrial automation. Whether you...
Read More →Technical Specifications
| Model | GY-9960-3 |
|---|---|
| Color | Red |
| SKU | AI2476 |
| Weight | 0.00325 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GY-9960-3.3 APDS-9960 RGB Infrared Gesture Sensor Motion Direction Recognition Module is a versatile pir / ir and optical sensor used across a wide range of applications including motion detection, security systems, automatic lighting, people counting, and gesture recognition.
Common use cases:
- Building an automatic porch light
- Creating a people counter for a room
- Adding motion detection to a security system
This product is ideal for home automation builders and security system designers.
Technical Tip: PIR sensors detect heat-emitting movement. Adjust sensitivity and delay potentiometers for your environment. False triggers can be reduced with proper shielding.
