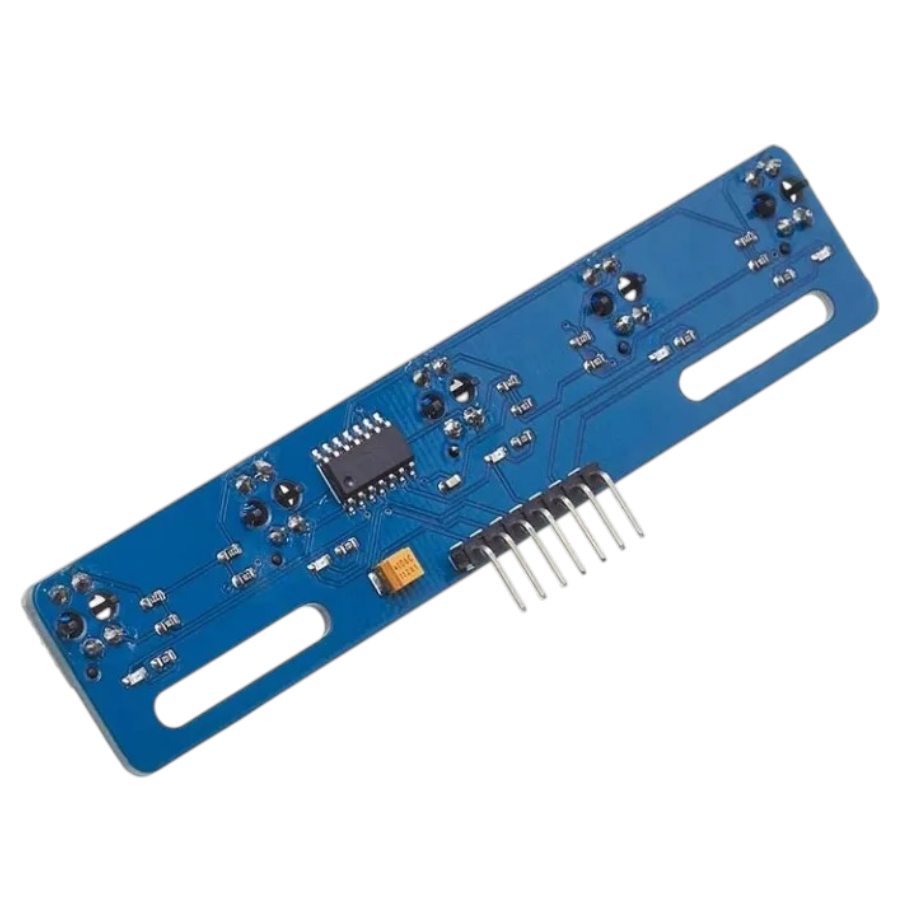

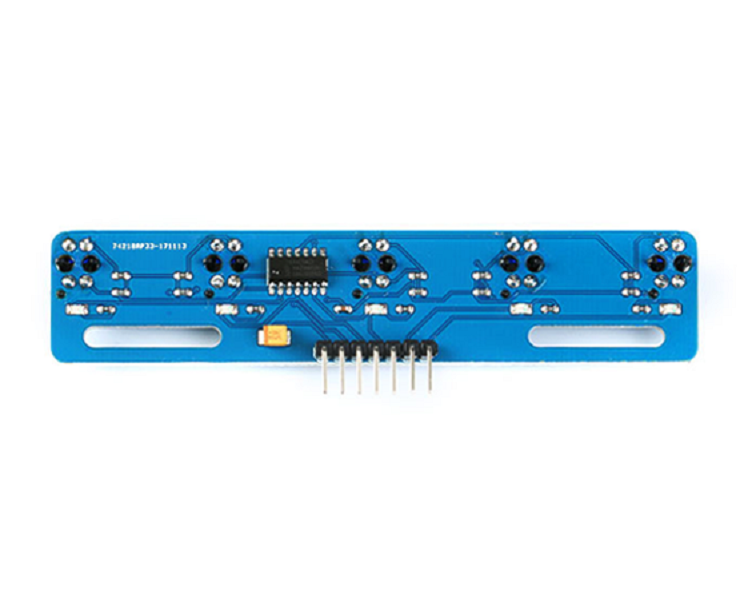

TCRT5000L 5 Channel Tracking Sensor Tracking Module Infrared Sensor
The TCRT5000L 5 Channel Tracking Sensor Tracking Module utilizes the TRCT5000 infrared reflection sensor, commonly employed in crafting intelligent tracking vehicles. It functions by emitting infrared rays from its infrared emitting diode continuously. These rays, upon encountering an object, are reflected back and received by the infrared receiver, which then outputs analog values. The analog output is indicative of both the distance and color of the object. By analyzing the analog values from its five outputs, the module determines the position of the tracking line.
Connection:
- VCC: VCC is the power input port, which could access 3.3V ~ 5V voltage.
- GND: GND is the negative input of the power supply.
- OUT1 ~ 5:OUT is the signal output port, MCU link I / O port.
Features
- Applicable to a variety of platforms including for Arduino /AVR/ARM/PIC
- High-Quality Tracker Sensor
- The module is a convenient carrier for eight IR emitter and receiver pairs evenly paced.
- Distance between each IR Sensor: 15mm.
- Uses 5 sensors for best resolution.
- Great useful in building fast line following and grid navigating robots.
- Comes with easy-to-use digital outputs with a direct connection to microcontrollers.
- The array has mounting holes of 3mm diameter for easy mounting.
- Status LED on each sensor for the detection of black line
Package Includes

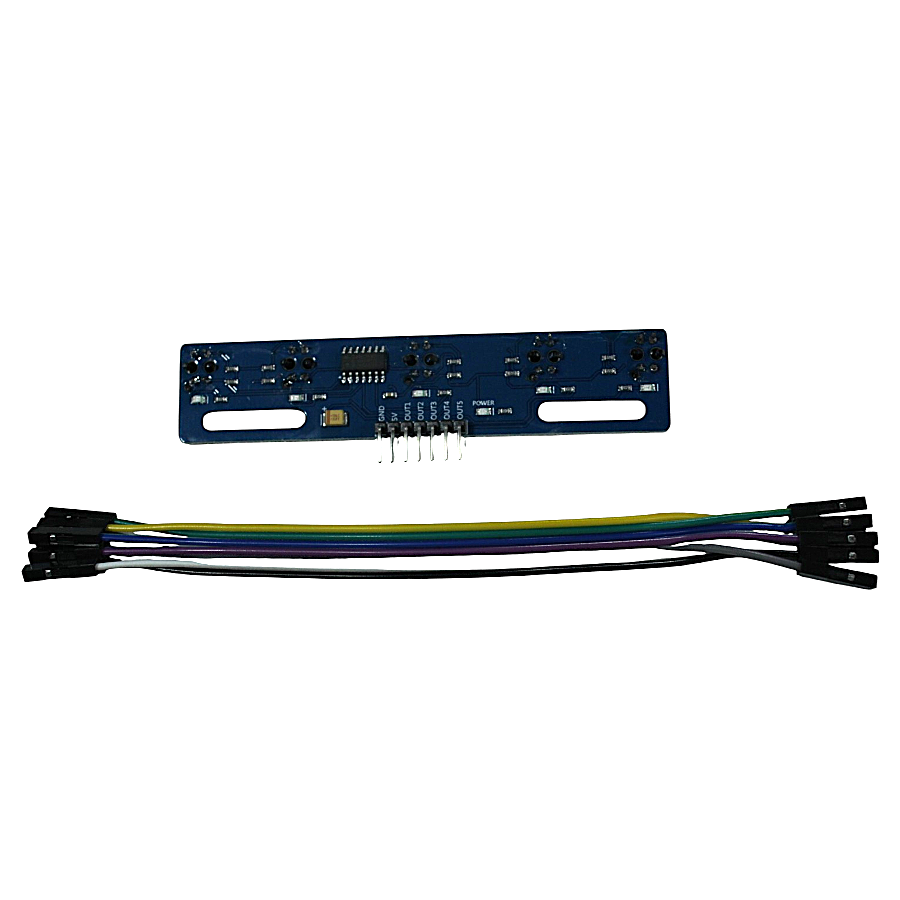

1 x TCRT5000L 5 Channel Tracking Sensor Tracking Module Infrared Sensor
TCRT5000L 5 Channel Tracking Sensor Tracking Module Overview
The TCRT5000L 5 Channel Tracking Sensor Tracking Module is an infrared reflectance array designed for precise line-following and grid-navigation in mobile robots. It features five IR emitter/receiver pairs on a single board, offering fast digital outputs for direct connection to microcontrollers.
Key Features of TCRT5000L 5 Channel Tracking Sensor Tracking Module
- Five high-performance TCRT5000L infrared reflectance sensors evenly spaced at 15 mm
- Digital outputs on each channel for easy microcontroller interface
- 3 mm diameter mounting holes for secure attachment to robot chassis
- Compact PCB carrier with clear labeling for VCC, GND and outputs
- Fast response time ideal for high-speed line following
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Line-following robots for robotics competitions and hobby projects
- Grid-navigation platforms mapping floor patterns or mazes
- Automated guided vehicles (AGVs) in educational and prototyping setups
- Light/dark sorting mechanisms on small conveyor systems
- Obstacle-edge detection for tabletop robotic arms
- Surface-contrast detection in DIY electronics demonstrations
How to Use TCRT5000L 5 Channel Tracking Sensor Tracking Module
Mount the module beneath your robot chassis so the sensor array sits 2–4 mm above the surface. Connect VCC to 5 V, GND to system ground, and the five digital output pins to your microcontroller’s digital inputs. Calibrate ambient light by testing each channel over white and black surfaces, then adjust your firmware’s threshold logic to detect the line reliably.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What supply voltage does this module require?
The module operates on a 5 V supply (±0.2 V) and consumes minimal current per channel, making it compatible with most Arduino and Raspberry Pi shields.
How close should the sensor array be to the surface?
For optimal reflectance detection, position the sensor array 2–4 mm above the surface. Too high reduces sensitivity; too low risks collision.
Can I adjust the detection threshold for different floor colors?
Yes. By testing the outputs over your specific floor materials and reading the high/low states, you can set digital threshold values in your code or add external comparators if needed.
